Product ID: 68592416
China CE EPA Brand New Versatile Multi-Functional 50HP Mini Micro Track Crawler Four Wheel Skid Steer Loader Xc740K with Attachments and Parts
Contact Now
Description
Basic Info.
Model NO.
XC740K
Certification
TUV, ISO, RoHS, CE
Condition
New
Rated Load
<1t
Transmission
Hydraulic
Load and Unload Mode
Front Discharge
Walking Mode
Wheeled
Type
Small Loader
Bucket Capacity
0.35cbm
Operating Weight
1500kg
Max. Operating Height
3878mm
Rated Power
49.5HP/36.8kw
Max. Breakout Force
18kN
Transport Package
Naked
Specification
steel
Trademark
TEWREX
Origin
Jiangsu, China
HS Code
8429590000
Production Capacity
5000
Packaging & Delivery
Package Size
340.00cm * 180.00cm * 200.00cm
Package Gross Weight
3150.000kg
Product Description
Christine Chen
Sales Manager
Sales Manager

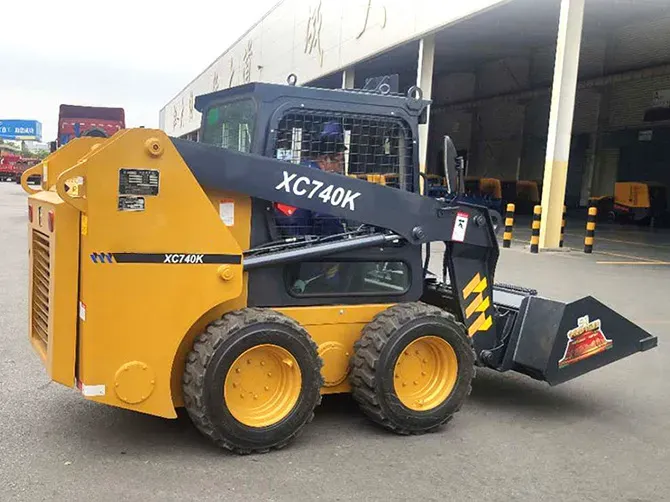

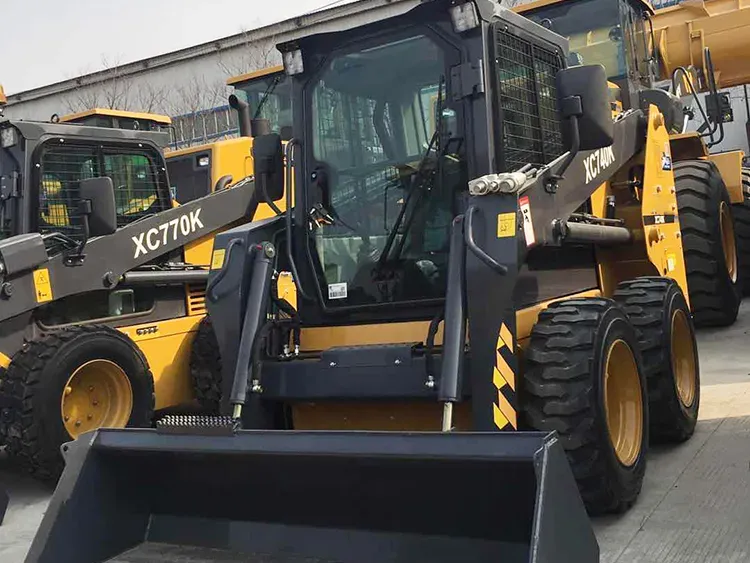

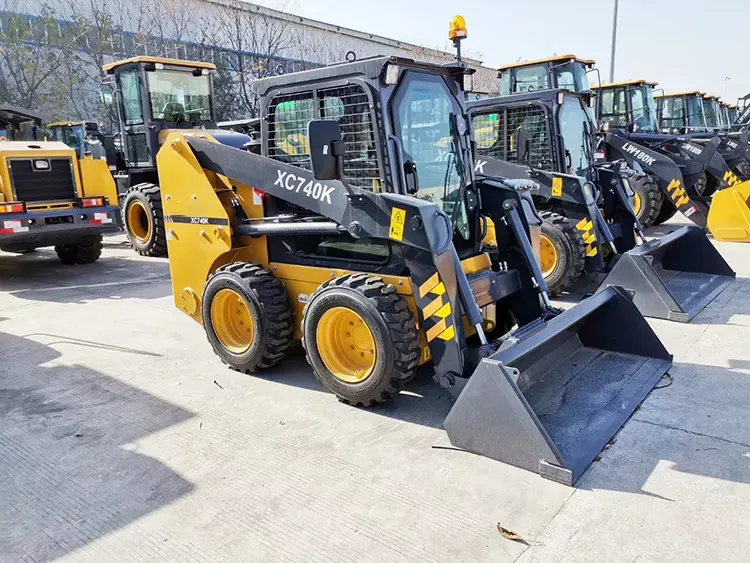

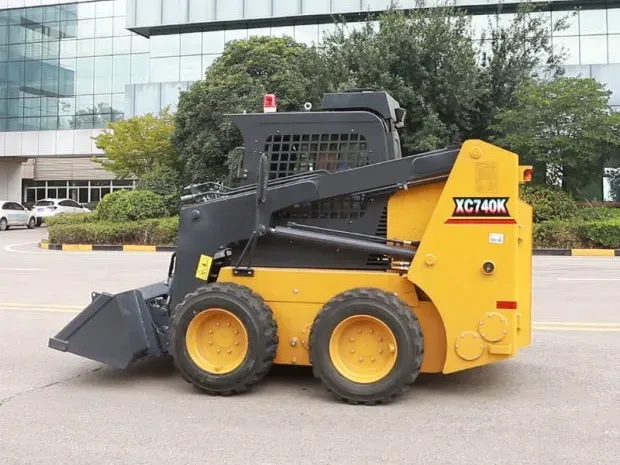

XC740K with strong power and rich attachments, the skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
1. Strong and Efficient Power Transmission System
2. Solid and Reliable Design
4. Incomparable Multi-Functionalities
1. Strong and Efficient Power Transmission System
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.
* The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.
2. Solid and Reliable Design
The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.
3. Flexible Operations
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working
efficiency.
efficiency.
4. Incomparable Multi-Functionalities
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer,
breaking hammer, and ditcher, rapidly and conveniently.
|
Description
|
Unit
|
Parameter value
|
|
|
Rated load
|
kg
|
750
|
|
|
Tipping load
|
kg
|
1500
|
|
|
Operating weight
|
kg
|
3140
|
|
|
Maximum breakout force
|
kN
|
18
|
|
|
Engine
|
Manufacturer
|
|
Xinchai
|
|
Model
|
|
4D27G31
|
|
|
Rated power
|
Hp/kw
|
49.3/36.8
|
|
|
Rated speed
|
rpm
|
2500
|
|
|
Cooling mode
|
|
Water-cooling
|
|
|
Performance parameter
|
Operation mode
|
|
Mechanical & multi-function electronic control
|
|
Tire standard
|
|
10-16.5
|
|
|
Maximum speed
|
Km/h
|
14
|
|
|
Hydraulic system
|
Hydraulic flow rate
|
L/min
|
62.5
|
|
Optional large flow
|
|
--
|
|
|
Hydraulic pressure
|
bar
|
200
|
|
|
Maximum operating height
|
mm
|
3878
|
|
|
Bucket hinge pin height
|
mm
|
3057
|
|
|
Cabin top height
|
mm
|
1960
|
|
|
Maximum horizontal height of bucket bottom
|
mm
|
2851
|
|
|
Length without bucket
|
mm
|
2533
|
|
|
Length with bucket
|
mm
|
3310
|
|
|
Toppling angle
|
°
|
40
|
|
|
Maximum unloading height
|
mm
|
2375
|
|
|
Ground-bucket angle
|
°
|
30
|
|
|
Rotating angle of bucket at highest point
|
°
|
83
|
|
|
Unloading distance
|
mm
|
575
|
|
|
Wheel base
|
mm
|
1027
|
|
|
Departure angle
|
°
|
25
|
|
|
Ground clearance
|
mm
|
183
|
|
|
Front radius of turning circle (without bucket )
|
mm
|
1183
|
|
|
Front radius of turning circle (with bucket)
|
mm
|
2066
|
|
|
Rear radius of turning circle
|
mm
|
1564
|
|
|
Length of tail
|
mm
|
1005
|
|
|
Wheel track
|
mm
|
1380
|
|
|
Tire edge width
|
mm
|
1640
|
|
|
Bucket edge width
|
mm
|
1800
|
|
|
Bucket capacity (stacking height)
|
m³
|
0.45
|
|
|
Bucket capacity (tiling)
|
m³
|
0.35
|
|
|
Diesel tank capacity
|
L
|
80
|
|
|
Capacity of hydraulic oil tank
|
L
|
60
|
|
