Factory CE 200kgs-1400kgs EPA Diesel Small/Mini Compact Wheel Track Skid Steer Loader
Description
Overview
Basic Info

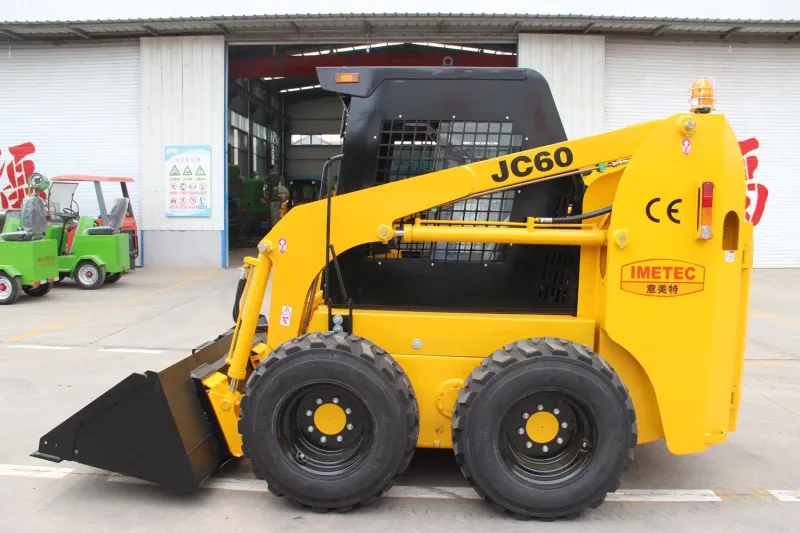

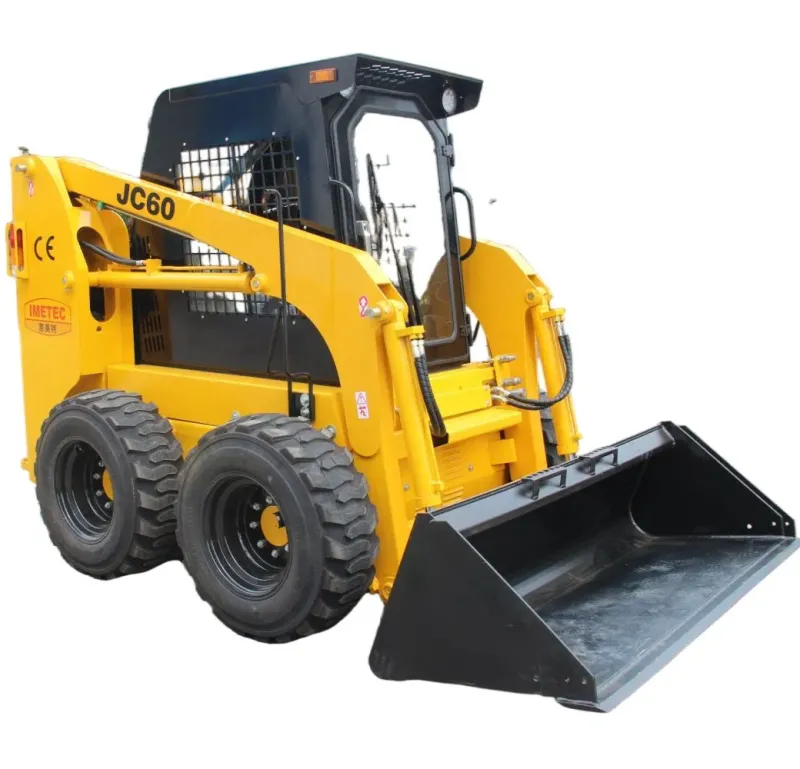

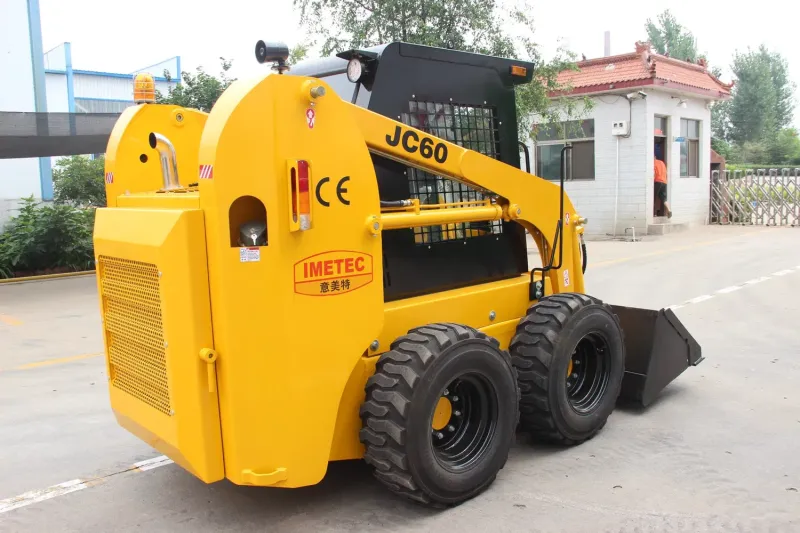

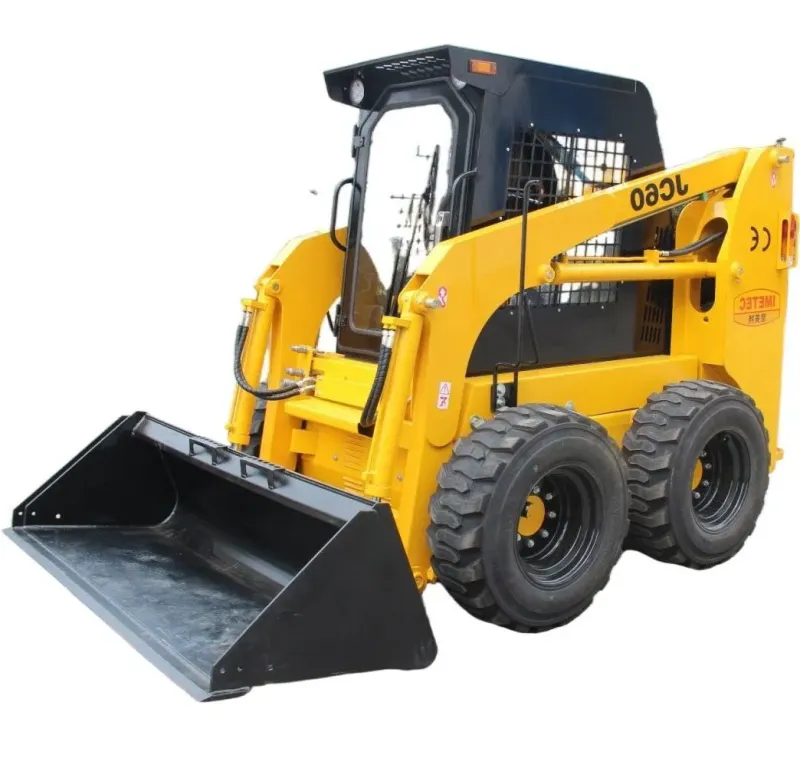

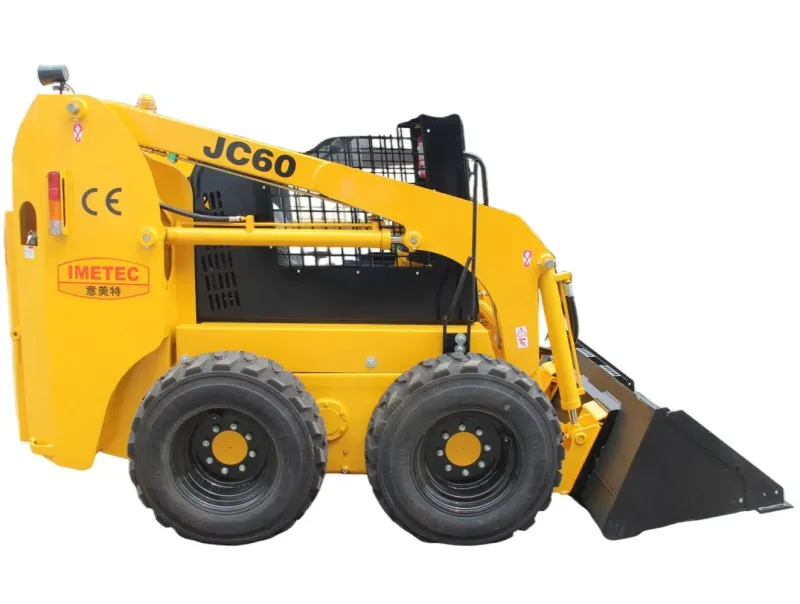

- Model NO. JC60
- Certification TUV, ISO, RoHS, CE
- Condition New
- Rated Load <1t
- Transmission Hydraulic
- Load and Unload Mode Rear Dump
- Walking Mode Wheeled
- Type Medium-sized Loader
- Product Name Skid Steer Loader
- Bucket Capacity 0.45m³
- Unique Selling Multifunctional and Convenient
- Tipping Load (Kg) 1700
- Machine Running Mass (Kg) 3200
- Travel Speed (Km/H) 12
- Working Flow Rate(L/Min) 75
- Bucket Capacity(M3) 0.45
- Fuel Tank Capacity (L) 90
- Tire Model 12/16.5NHS
- Cabin Air Conditioning Optional
- Maximum Operating Height(mm) 4000
- Hitch Pin Height (mm) 3100
- Wheelbase(mm) 1500
- Transport Package Packed in Container
- Specification 3490mm*1800mm*2150mm
- Trademark IMETEC
- Origin Shandong, China
- HS Code 847490
- Production Capacity 1500 Units/Yea
Packaging & Delivery
- Package Size 350.00cm * 188.00cm * 215.00cm
- Package Gross Weight 3200.000kg
Product Description
Factory CE 400kgs 1400kgs EPA Diesel Small/Mini Compact Wheel Track Skid Steer Loader with Yangma Engine
Skid steer loaders are also known as skid steer loaders, multi-functional engineering vehicles, and multi-functional engineering machines. It is a wheel-type special chassis equipment that uses the linear speed difference between the two wheels to realize the steering of the vehicle. It is mainly used in the occasion of narrow work site, undulating ground, and frequent change of work content.
It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residences, barns, barns, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery. There are two ways to travel skid steer loaders: wheeled and tracked.
A compact skid steer, sometimes called a skid loader or wheel loader, is a compact multipurpose piece of construction equipment often used for digging or loading. It's maneuverable, lightweight and its arms can attach to different tools for various construction, landscaping and farming jobs.
Product Parameters
Factory CE 400kgs 1400kgs EPA Diesel Small/Mini Compact Wheel Track Skid Steer Loader
| Model | JC60G |
|---|---|
| A. Overall operating height (mm) | 4000 |
| B. Height to bucket hinge pin (mm) | 3100 |
| C. Hheight to top of cab (mm) | 2160 |
| D. Height to bottom of level bucket(mm) | 2933 |
| E. Without bucket length(mm) | 2750 |
| F. Overall length with bucket(mm) | 3490 |
| G. Dumping angle at maximum height(° ) | 40 |
| H. Dumping height(mm) | 2400 |
| I.Dumping reach(mm) | 750 |
| J. Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| L. Wheelbase(mm) | 991 |
| M. Ground clearance(mm) | 205 |
| N. Angle of departure(° ) | 20 |
| O. Front turning radius without bucket(mm) | 1198 |
| P. Front tuning radius(mm) | 1958 |
| Q. Rear tuning radius(mm) | 1728 |
| R. Rear axle to bumper (mm) | 1208 |
| S. Tread width (mm) | 1500 |
| T. Width (mm) | 1880 |
| U. Bucket width (mm) | 1880 |
Product Introduction
A Compact Skid Steer Loader, also known as a skid loader or multi-function engineering machine, is a versatile and powerful piece of equipment designed for a wide range of tasks, particularly in confined or challenging work environments. Its unique steering mechanism relies on the difference in wheel speeds between the two sides of the vehicle, allowing it to maneuver easily in tight spaces and uneven terrain.
This combination of features makes it an excellent tool for projects that demand both strength and agility. Whether on a construction site, in agriculture, or landscaping, a Skid Steer Loader delivers the performance needed to get the job done efficiently.
Product Advantages
It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery. There are two types of walking modes for skid loaders: wheeled and crawler.
The biggest feature of the skid loader is that the machine has a small overall size and can be turned on the spot; various working devices can be randomly and quickly replaced or attached at the work site. Its main uses are as follows.
- Since its minimum turning radius is less than half of that of the same-level articulated loader, it is particularly suitable for operations in narrow places such as urban infrastructure, roads or construction sites, factory workshops, warehouses, docks, ship decks and even cabins.
- Due to the short wheelbase, the skid loader is particularly agile in a small space. In a small space, the skid equipment can not only provide the original loading operation, but also realize various types of engineering operations through accessories, maximizing the speed of engineering construction. At the same time, thanks to the comprehensive design, the own lighting system can provide comprehensive engineering lighting.
- The cab of the skid equipment is in the center of the equipment, which can fully ensure the safety of the operator while ensuring stability.
- The skid loader is an expert in work efficiency in small spaces.
- The use of all-wheel drive and the lack of an inter-wheel differential are conducive to operations on uneven sites.

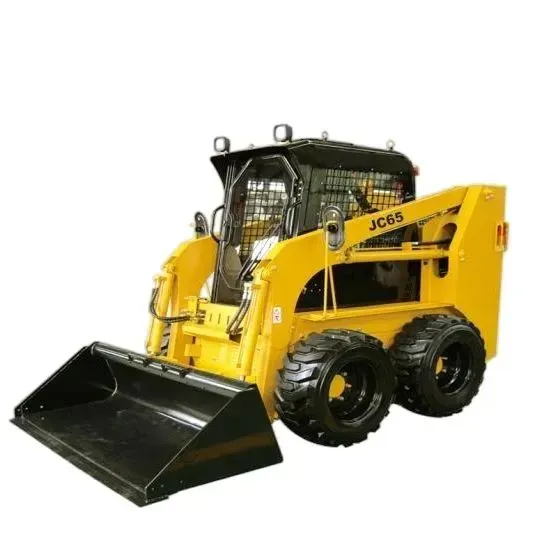

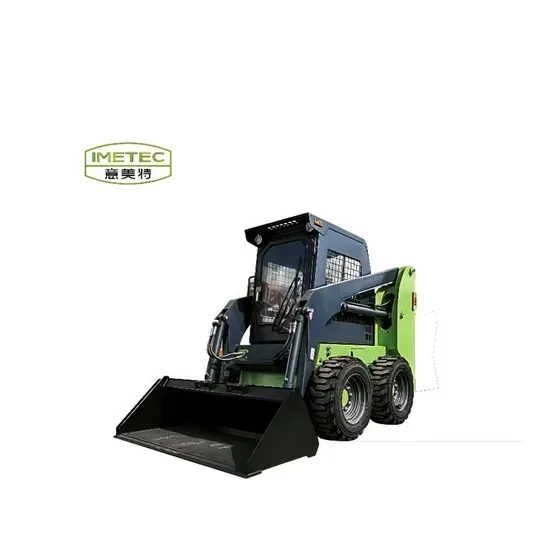

Optional Models
It can also do this by changing attachments:
