Hot Selling 4WD Telehandler 5 Ton with Imported Engine
Contact Now
Description
Overview
Basic Info.
- Model NO. HNT50
- Cab Location Adjustable
- Type Diesel Forklift
- Power Diesel Engine
- Load Capacity 1T - 5T
- Fuel Diesel
- Load center >500mm
- Lift height >5000mm
- Condition New
- Min. Horizontal Reach 1500mm
- Max. Horizontal Reach 5700mm
- Min. Turning Radius (Outer Tyre Center) 6800mm
- Rated Load 5000kg
- Transport Package Nude
- Specification 4820*2355*2460mm
- Trademark Tewrex
- Origin China
- HS Code 84294011
- Production Capacity 10000 Units/Year
Packaging & Delivery
- Package Size 556.00cm * 227.00cm * 256.00cm
- Package Gross Weight 5000.000kg
Product Description
Telescopic Handler 5Ton Telehandler HNT50
- Hydraulic mechanical drive, hydraulic power steering and hydraulic brake, rear-wheel steering
- The two-stage quadrilateral telescopic boom serves as the working unit. A regular lift truck is equipped with a fork or a boom
- The lift trucks applicable to the unstuffing and casing of pellatized goods in containers, as well as handling, stacking and short-distance transportation of a variety of packaged goods
- Suitable for many different working environments, is ideal equipment for loading and unloading, lifting, and transportation in mining, factory, architecture, building material, dock, municipal engineering industries, etc.
Product Parameters
| Items | Unit | Deviation allowed | HNT50-2 | |
|---|---|---|---|---|
| Rated load | kg | - | 5000 | |
| Load center | mm | - | 500 | |
| Load capacity @ max. Forward reach | kg | - | 1500 | |
| Basic boom max. Lifting height | mm | ±1.5% | 4500 | |
| Max. Lifting height | mm | ±1.5% | 7300 | |
| Max. Horizontal reach | mm | ±1.5% | 5700 | |
| Min. Horizontal reach | mm | ±1.5% | 1500 | |
| Min. Ground clearance | mm | ±1.5% | 310 | |
| Min. Turning radius (outer tyre center) | mm | ≤105% | 6800 | |
| Angle | Boom frame upward angle | ° | ±1.0 | 43 |
| Boom frame downward angle | ° | ±1.0 | -14 | |
| Operating weight | kg | ±5% | 13000 | |
| Overall dimension | Length (with fork) | mm | ±2% | 6288 |
| Width | mm | ±2% | 2300 | |
| Height | mm | ±2% | 2715 | |
| Wheel tread | mm | ±1% | 1638 /1845 | |
| Wheel base | mm | ±1% | 2988 | |
| Rated power / Rated turning speed | kW/rpm | - | 74/2200 | |
| Driving system | Max. Travelling speed (unloaded) | km/h | ±10% | 25 |
| Gradeability | % | - | ≥20% | |
| Tyre | Front (2 pc) | - | - | 11.00-20 |
| Rear (2 pc) | - | - | 9.00-20 | |
| Engine | Famous Brand | - | National 2 | 4BTA3.9-C100II |
| - | National 3 | QSB3.9-C100 |

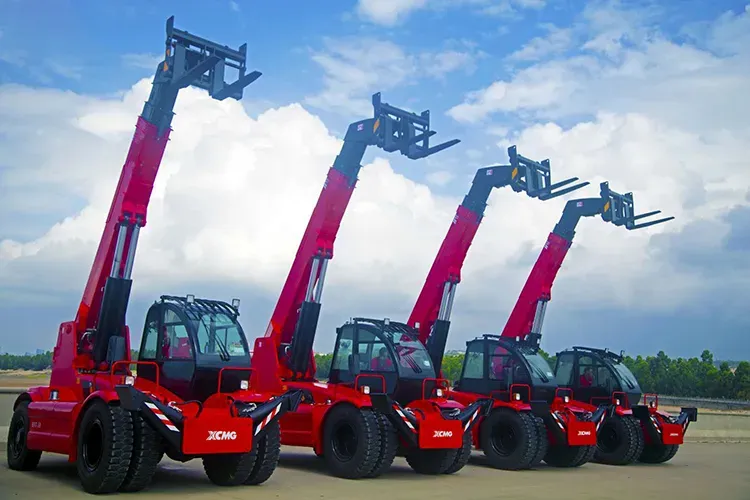

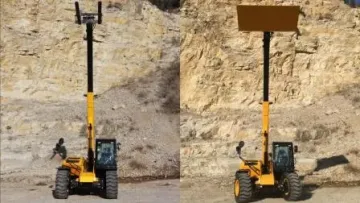

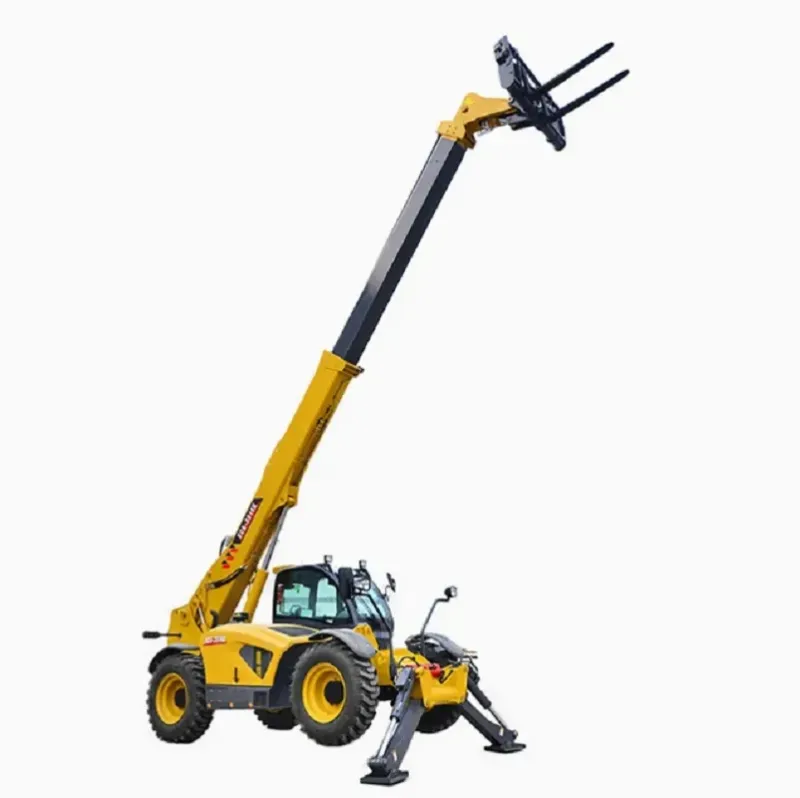

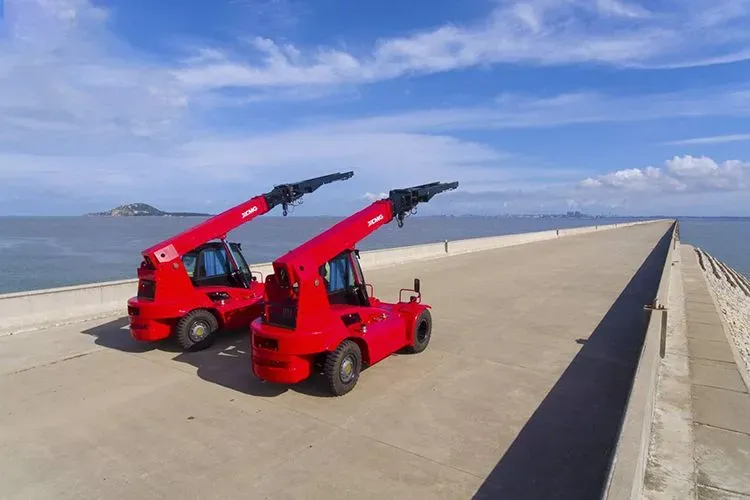

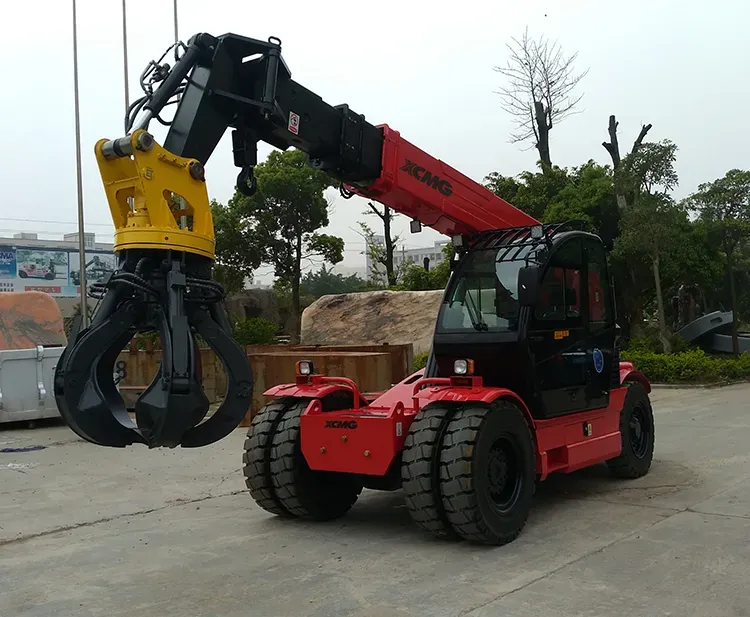

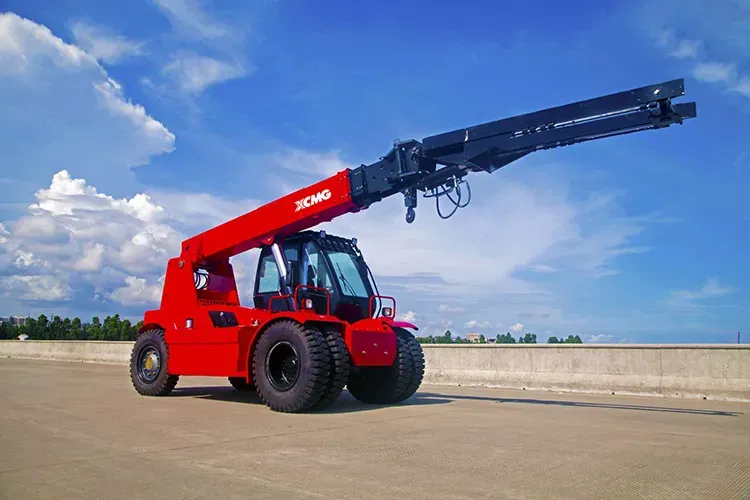

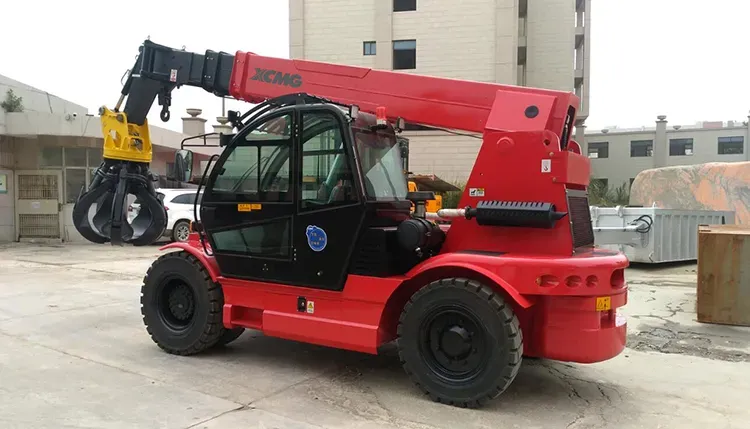

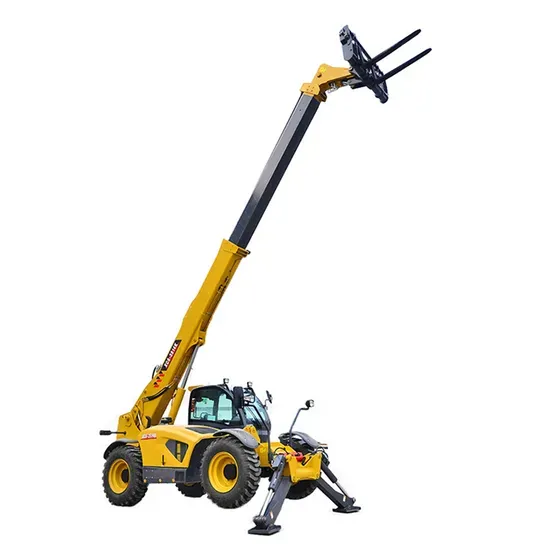

Detailed Photos
