Overview

Basic Info.

• Model NO. 3350T
• Certification CE
• Condition New
• Rated Load 3-6t
• Transmission Hydraulic Torque Converter and Transmission
• Load and Unload Mode Front Discharge
• Walking Mode Wheeled
• Type Tele-Handler
• Color Green, Red, White, Blue, Yellow
• Operating Weight 7500kg
• Joystick Electric Joystick
• Product Name 3350t
• Loading Capacity 3500kg
• Key Word Forklfit 3-5ton
• Engine Model Yuchai
• Rated Output 75kw
• Transport Package 2 Sets/40gp
• Specification 6084x2300x2550mm
• Trademark WOLF
• Origin China
• HS Code 84272090
• Production Capacity 5000 Sets/Year

Packaging & Delivery

• Package Size 6084.00cm * 2300.00cm * 2550.00cm
• Package Gross Weight 7500.000kg

Product Description

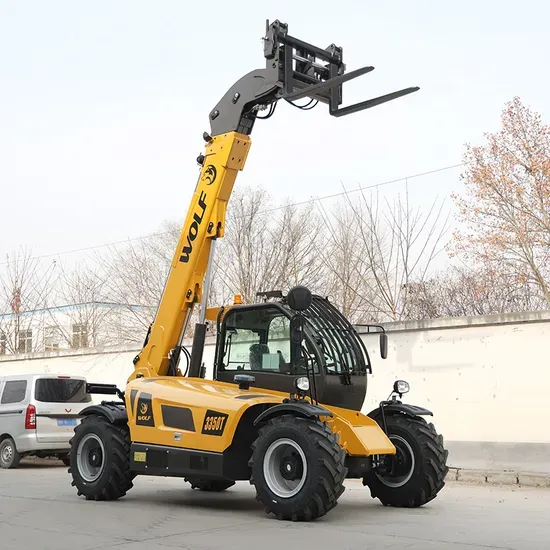

WOLF 3.5tons Telescopic Handler 3350T

The telescopic handler is versatile and ideal for various construction tasks. Its uses include:

• Material Handling: Lifting and moving heavy materials like bricks, blocks, and timber to high or hard-to-reach locations.
• Site Preparation: Clearing and organizing construction sites by transporting materials and equipment.
• Loading and Unloading: Efficiently handling pallets and other loads at loading docks or construction sites.
• Elevated Work: Providing a stable platform for working at height, such as installing overhead structures or repairing tall equipment.

Its ability to reach elevated areas and maneuver in tight spaces makes it invaluable for diverse construction scenarios.

Standard configuration

• Engine: Yunnei 76kw
• torque limiting system
• Air conditioning
• 4 wheel steering
• Hydraulic quick hitch

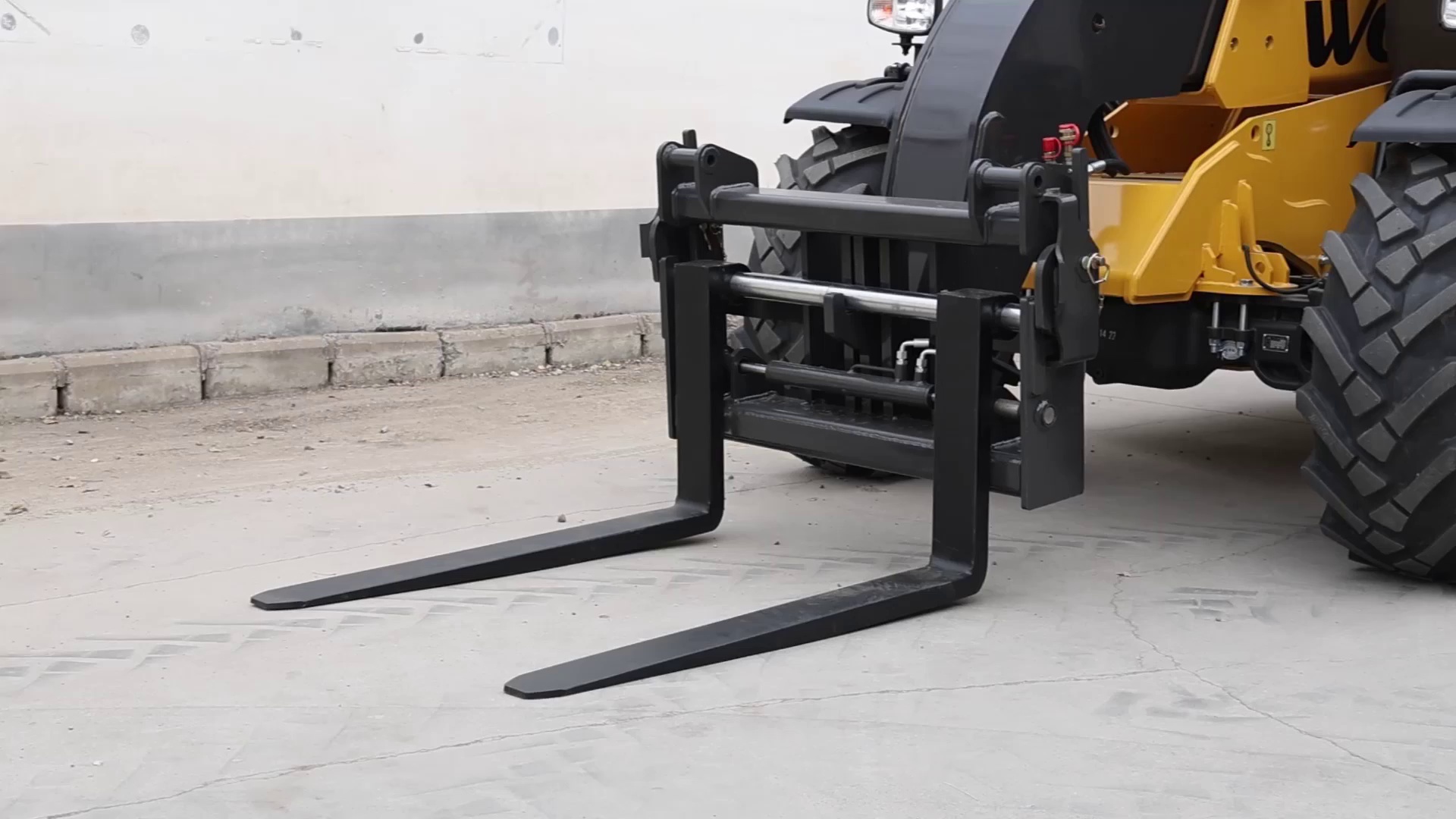

• Pallet fork included
• Rear video camera
• Hydraulic torque converter

Optional configuration

• Luxury cabin
• Euro V stage engine
• Electric proportional control system
• Wet-type axle
• Vacuum tires

Detailed Photos

Product Parameters

• Applicable Industries Farms, Home Use, Construction works
• Condition New
• Dimension (Long * Breadth * High) 6084x2300x2550mm
• Engine Brand YUNNEI
• Power 76 KW
• Bucket capacity 1.2-2.5 CUBLIC
• Rated loading 3500KG
• Overall weight 7500KG
• Maximum lift height 7000mm
• Maximum dump height 5450mm
• Minimum turning radius 5600mm
• Maximum tractive force 48kN
• Maximum grade ability 25°
• Maximum steering angle 30°
• Oscillation angle 8°
• Type Water cooled, four stroke
• Displacement 4.33L
• Torque converter HK280
• Gearbox mode Speed changes are electronically controlled
• Gear shift 2 forward shift 2 reverse shift
• Maximum speed 30km/h
• Wheel base 2940mm
• Wheel tread 1860mm
• Ground clearance 260mm
• System working pressure 18MPa-25MPa
• Boom lifting time 5.6s
• Total time 9.9s
• Service brake Air assist disc brake on 4 wheels
• Parking brake Manual disc brake
• Type specification 16/70-20

Dimensions

• A - Overall height 2600mm
• B - Overall width (over tyres) 2150mm
• C - Inside width of cab 800mm
• D - Front track 1750mm
• E - wheelbase 2850mm
• F - Overall length to front tyres 4200mm
• G - Overall length to front carriage 4650mm
• H - Ground clearance 350mm

Packaging & Shipping

Packing: 2 sets in 40HQ container
