Product ID: 68592565
Ce Certificate Telescopic Handler Xt670-140 for Sale
Contact Now
Description
Basic Info.
- Model NO. XT670-140
- Load Capacity 1T - 5T
- Fuel Gasoline
- Load center >500mm
- Lift height 3000~5000mm
- Condition New
- Dimensions 6360X2440X2690
- Working Weight 13500kg
- Engine Power 82kw
- Max.Capacity 45000kg
- Max.Lift Capacity to Full Height 2269kg
- Max.Lift Capacity at Full Reach 453kg
- Max.Reach at Full Height 13700
- Transport Package Nude Package
- Specification ISO, CE
- Origin Jiangsu, Nanjing
- HS Code 84272090
- Production Capacity 500 Set/Month
Product Description

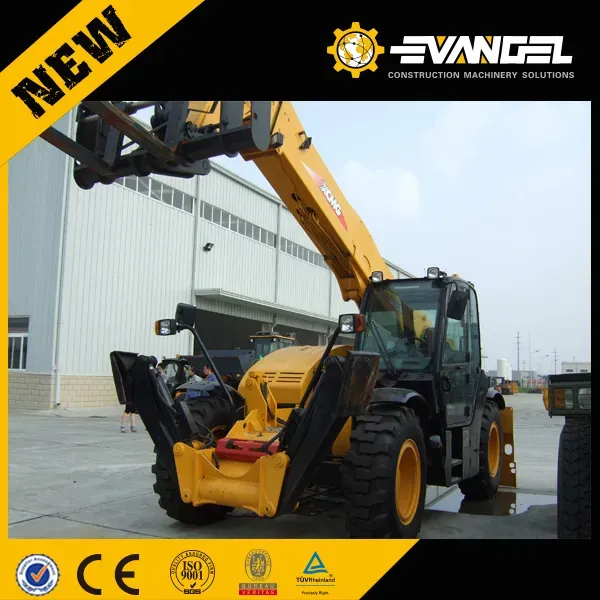

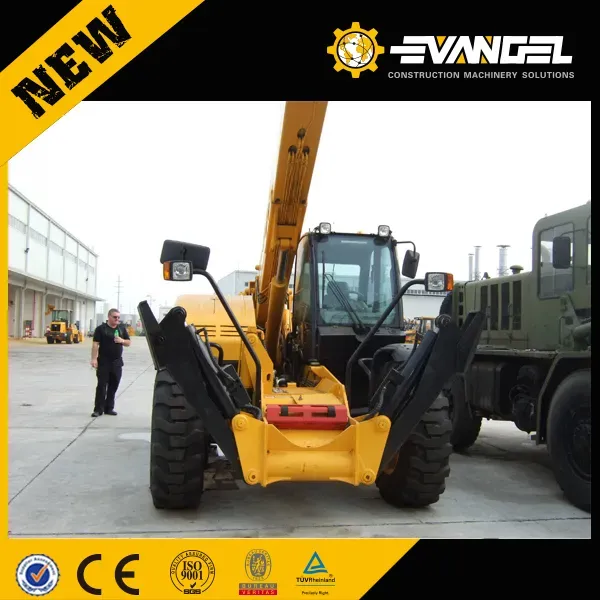

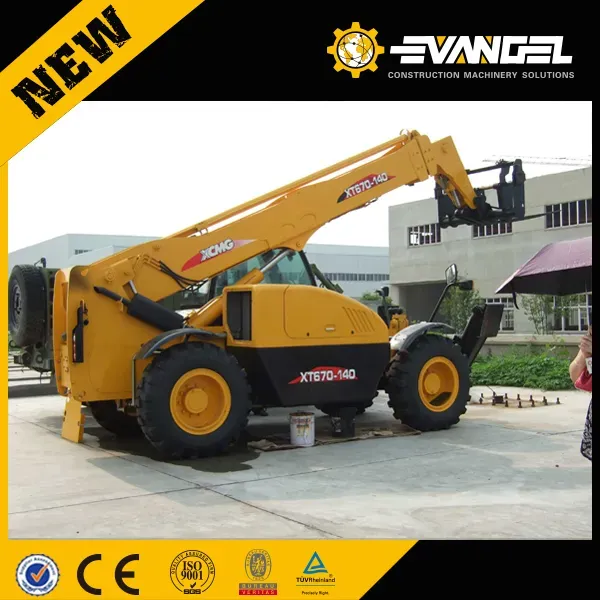

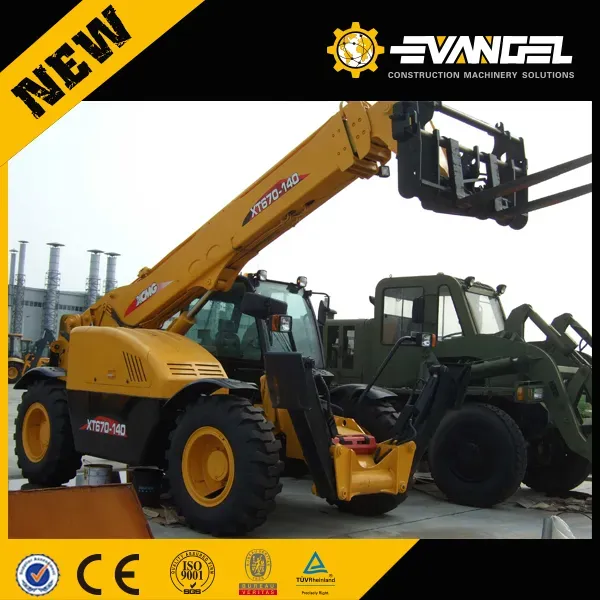

Telescopic Forklift XT670-140 / Telehandler
Main Feature:
- CE certified telescopic forklift truck, a multi-functional engineering machinery. It can be used for lifting and carrying, with good stability and efficiency. The telescopic forklift truck has a compact frame, flexible operation, sensitive lift, automatic adjustment, and high carrying capacity.
- Adopts the DEUTZ engine which is powerful and with low maintenance. It meets Europe III (EPA Tier3) exhaust standard, with big torque force.
- Equipped with power transmission, compact structure, and high rigidity.
- With an articulated frame, small turning radius.
- Wheel drive, steering by front wheel, etc.

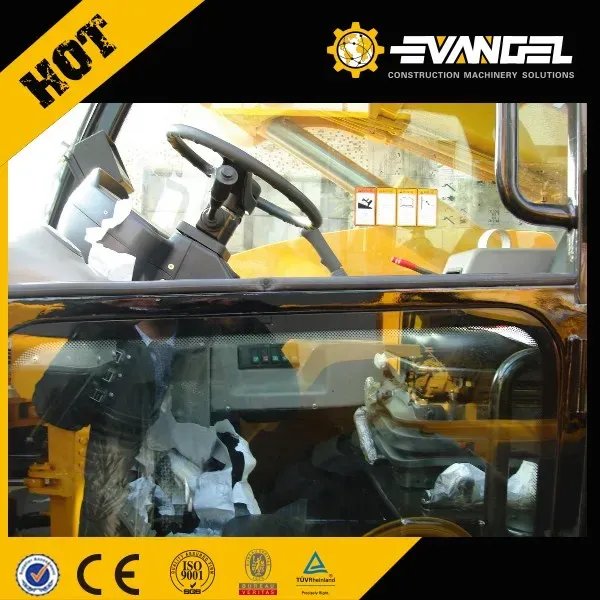

- The driver's cabin is equipped with an air conditioning system, safe and comfortable, with a broad field of view. It adopts shock attenuation, improving the comfort of operation.
- Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
- Multifunction instrument can be chosen... It is a kind of machinery suitable for lifting and carrying in narrow ground.
Dimension
| XT670-140 | Unit |
|---|---|
| Overall weight | 10500 kg |
| Engine capacity | DEUTZ 70 kW |
| Perkins | 74.5 kW |
| Max. Rated Load | 3500 kg |
| Lift capacity to full height | 3100 kg |
| Lift capacity at full reach | 635 kg |
| Lift height | 13700 mm |
| Reach at maximum lift height | 1050 mm |
| Maximum forward reach | 9460 mm |
| Wheel base | 3250 mm |
| Wheel tread | 1970 mm |
| Min. Ground Clearance | 370 mm |
| Overall length | 6290 mm |
| Host maximum length (from tail to front front tyre) | 5078 mm |
| Host maximum width (including leg) | 2500 mm |
| Host maximum height (including light) | 2600 mm |
| Fork length | 1200 mm |
| Suspension length | 1191 mm |
| Departure angle | 36 ° |
| Max. traction (load-free) | 48 kN |
| Min. turning radius (tire lateral) | 4238 mm |
| Max. grade ability | 30 ° |
| Travel speed | I 9.52 km/h |
| II | 23 km/h |
| I | 9.52 km/h |
| II | 23 km/h |
