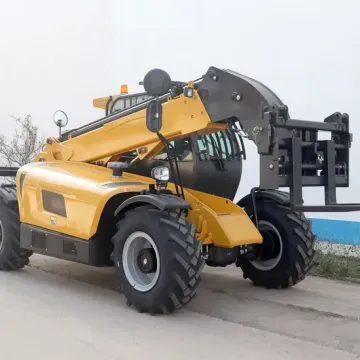

Telescopic Handler Machinery
Description
Overview
Basic Info.
- Model NO. Loader
- Certification ISO
- Condition New
- Rated Load 6-9t
- Transmission Power
- Load and Unload Mode Front Discharge
- Walking Mode Wheeled
- Type Large Loader
- Power Diesel Engine
- Load Capacity 1t - 5t
- Load Centerload Center >500mm
- Lift Height Fork, Bucket, Hook
- Color Customized
- Transport Package Standard Marine Packing
- Specification 7000.00cm * 2500.00cm * 3000.00cm
- Trademark SUNPAT
- Origin China
- Production Capacity 50000
Packaging & Delivery
- Package Size 210.00cm * 90.00cm * 125.00cm
- Package Gross Weight 1000.000kg
Product Description
Product Description
Main technical parameters of fork loading of telescopic ar
| Rated load | kg | 3500 |
|---|---|---|
| Maximum lift height | mm | 10000 |
| Maximum reach | mm | 5000 |
| Maximum traction force | kn | ≥70 |
| Minimum ground clearance | mm | 420 |
| Overall dimensions(L×W×H) | mm | 5700×2230×2400 |
| Minimum width (with hydraulic outriggers fully open) | mm | 3400 |
| Wheelbase | mm | 3670 |
| Axle track | mm | 1990 |
| Rear wheel center to rear | mm | 1240 |
| Turning radius (outer wheel)) | mm | ≤4500 |
| Maximum travel speed | km/h | 30 |
| Tire model | / | 16/70-20 |
| Steering type | / | 4 wheel drive 3 steering modesFront Wheel Steering Crab SteeringFour Wheel Steering |
| Transmission type | / | Closed piston pump + walking motor + gearbox + drive axle |
| Service brake | / | Oil-immersed multi-disc hydraulic brake[Disc Brake] |
| Parking brake | / | Negative braking |
| Weight (with forks) | kg | 9500 |
| Engine | Model | CYD |
| Power | kw/r/min | 85 |
| Optional engine | ||
| Number of gears (forward/reverse,high/low speed) | / | 4/4 |
| Gear Control | / | Electronic control |
| Working hours | Lift | s 18 |
| Decline | 13 | |
| Outreach | 17 | |
| Retracted | 16 | |
| Tipping up (filling) | 5 | |
| Tipping down (unloading) | 4 | |
| Standard fork (L x W x D) | mm | 1200 x 125 x 50 |
| Hydraulic control system | / | Multifunctional centralized handle[Overload Protection System] |
| Frame leveling | / | +/- 9° |
1. Compact structure, flexible operation, stable lifting, automatic leveling, high net load load index, and precise fork transportation;
2. Engine, low noise, low emission, strong power and large torque reserve;
3. Equipped with a torque limit system to meet the needs of extreme working conditions and ensure operational safety;
4. The fork leveling adopts the automatic flow compensation technology to realize the automatic control of the fork level during the luffing process of the boom to ensure the stability and safety of the high-position fork lift;
5. It has the function of horizontal leveling of the frame, and has strong site adaptability to meet the needs of complex working conditions;
6. Four-wheel drive, with two-wheel steering, four-wheel steering and crab steering mode, strong off-road capability, suitable for different working situations;
7. Advanced human-computer interaction system, instrument monitoring and alarm system are fully functional and easy to operate;
8. The full hydraulic wet braking system can be selected, the braking is stable and reliable, and the driving safety is ensured;
9. Imported dedicated fully electronically controlled gearbox and axle can be selected, with compact structure and high transmission efficiency;
10. It can be configured with high-altitude platforms, buckets and other tools to meet the individual needs of users.
Detailed Photos
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
