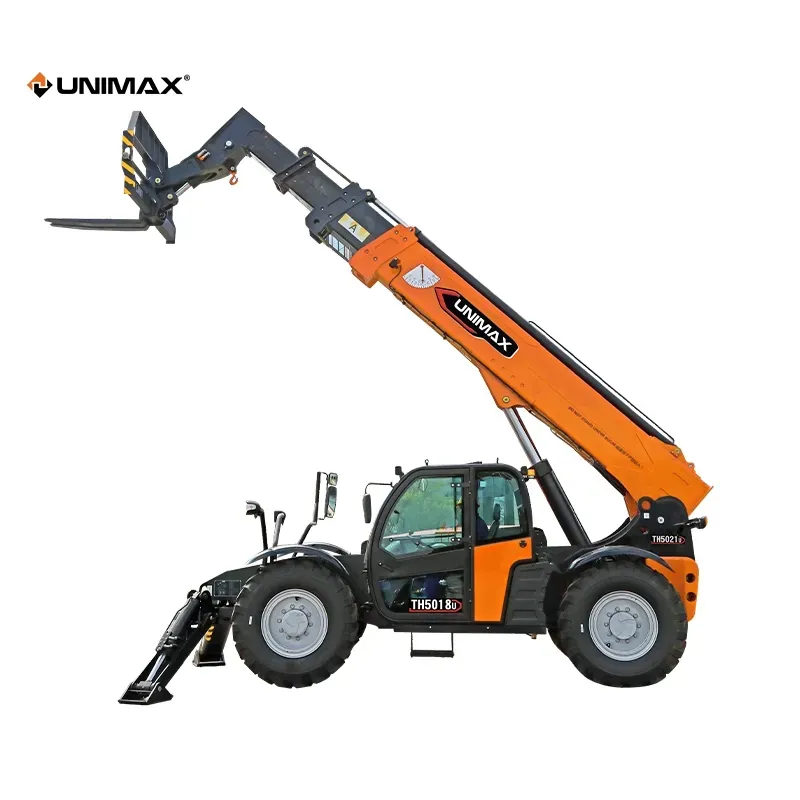

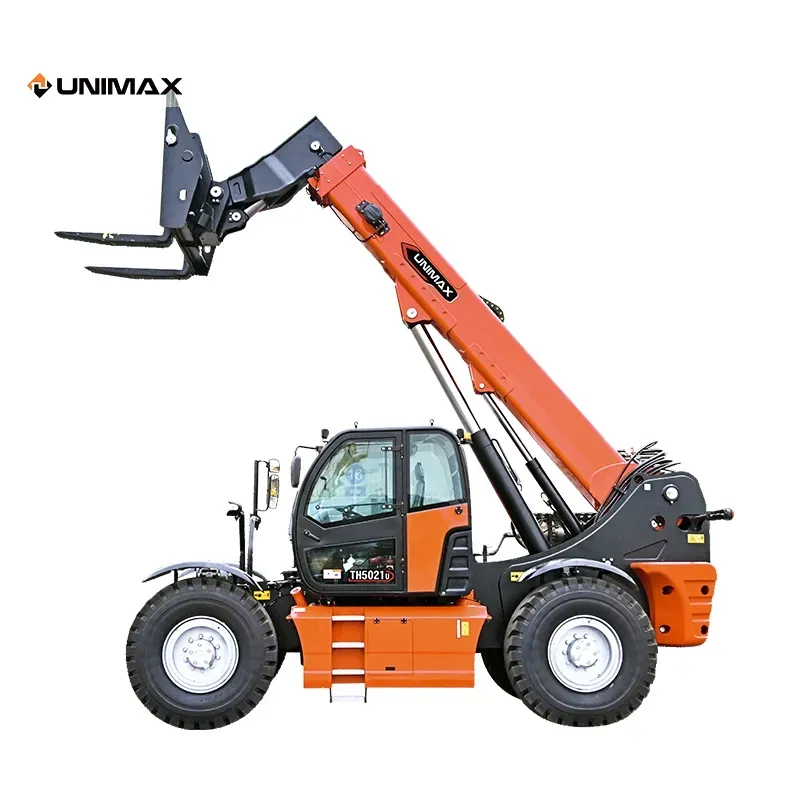

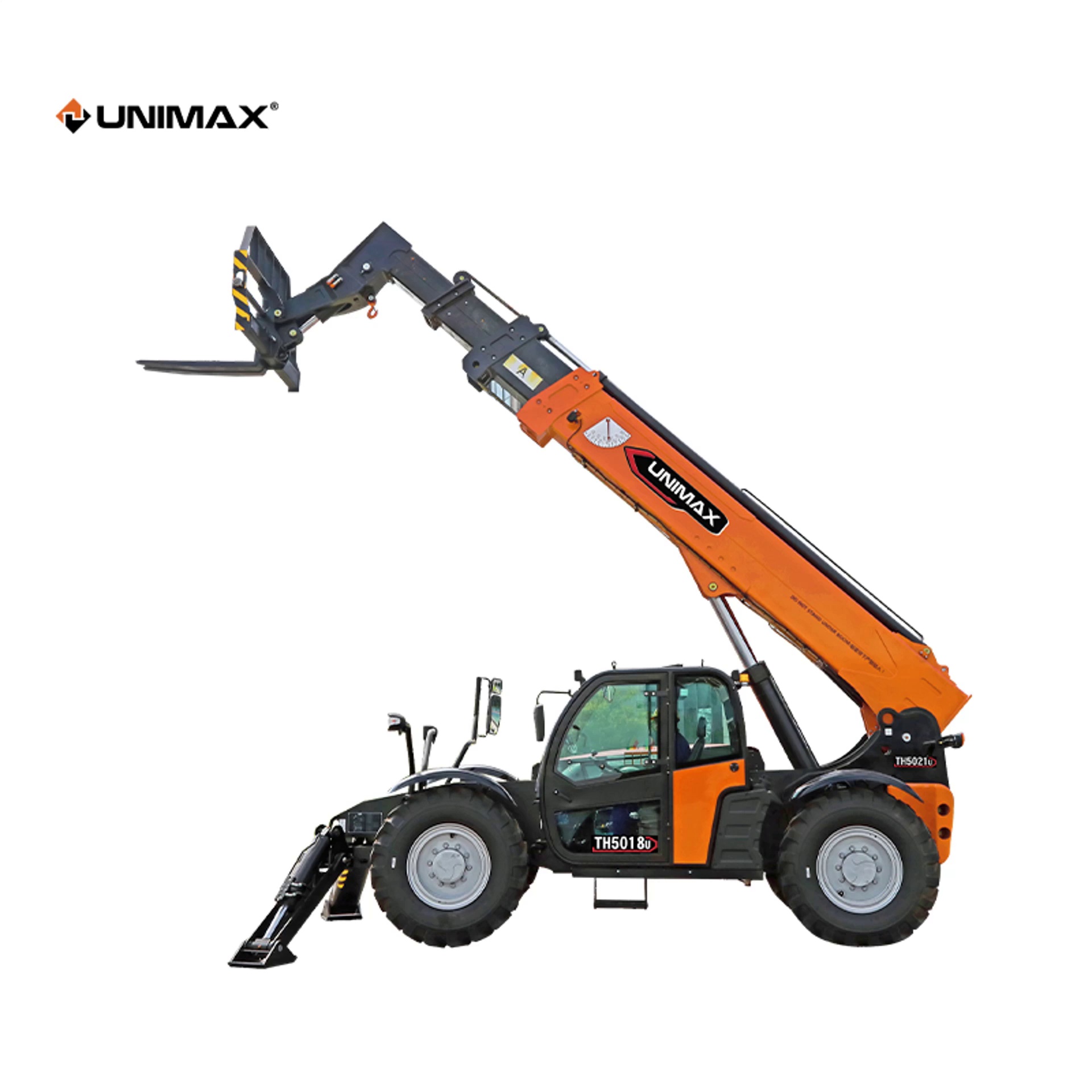

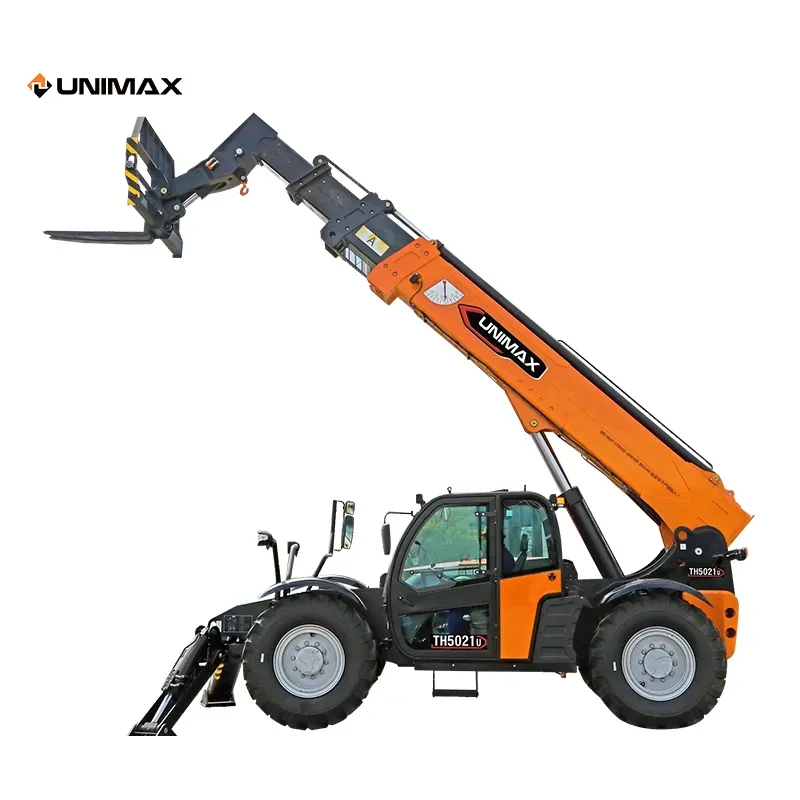

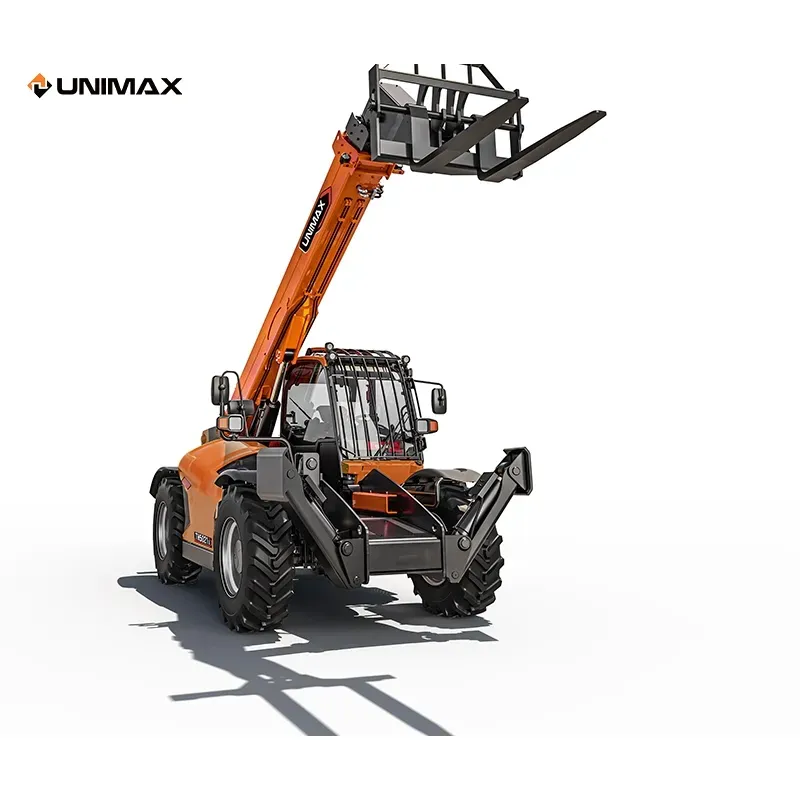

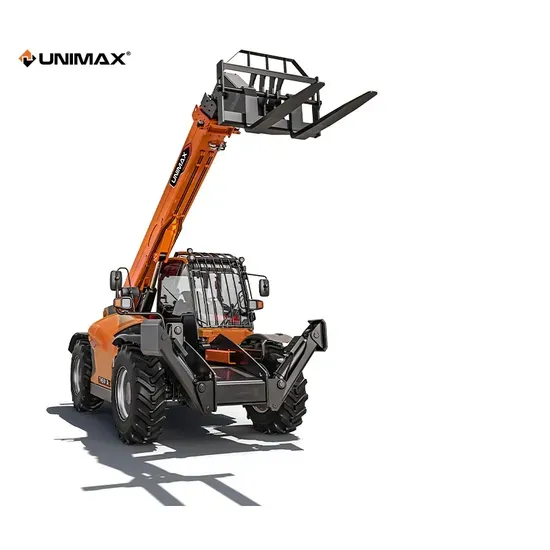

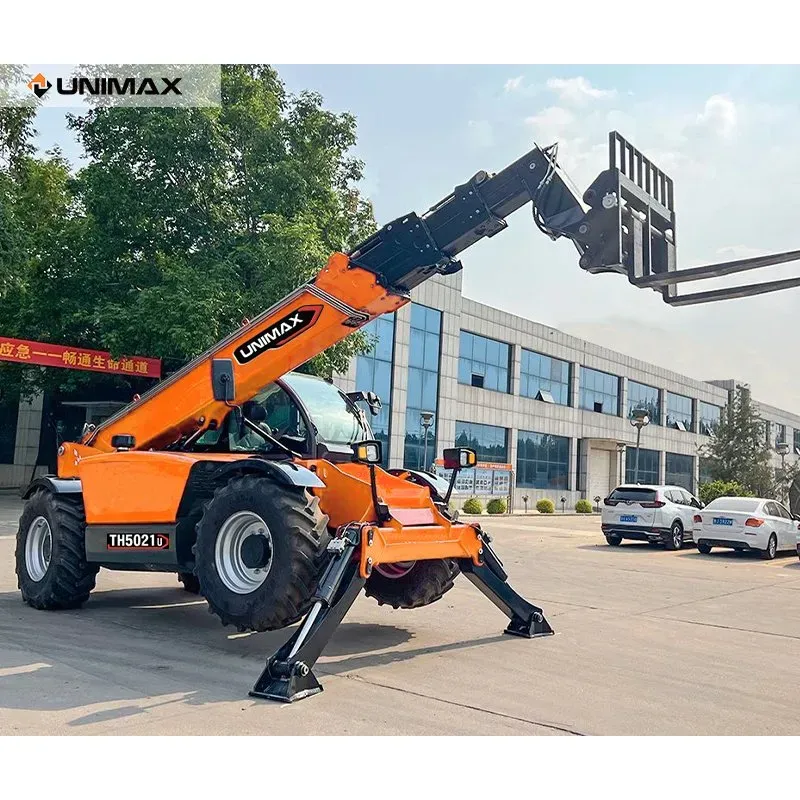

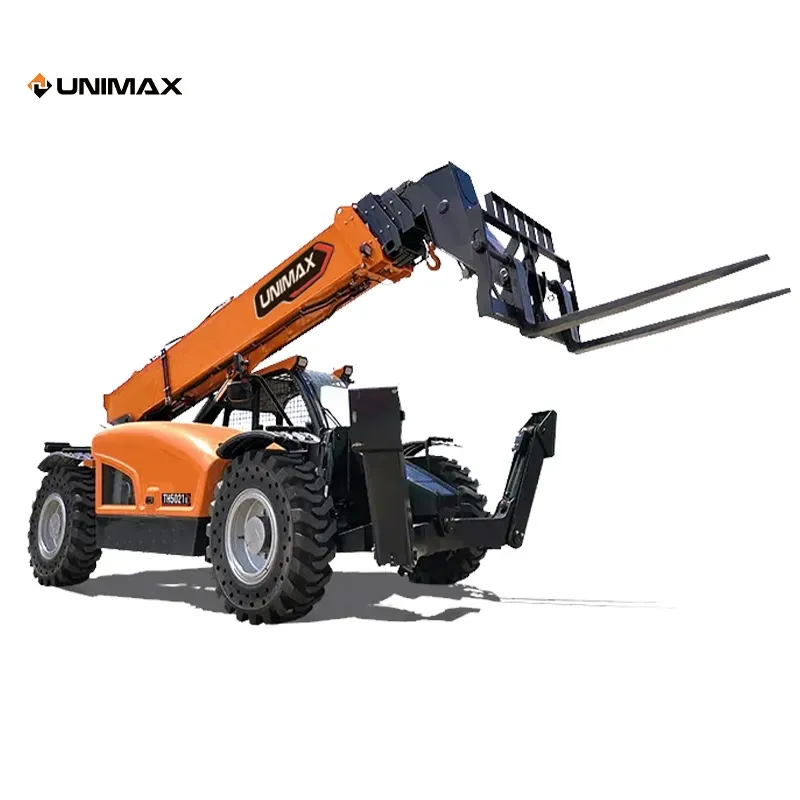

Lightweight Telescopic Handler Solutions
Contact Now
Description
Basic Info.
Model NO.
TH5018U
Type
Diesel Forklift
Power
Diesel Engine
Load Capacity
1T - 5T
Fuel
Diesel
Load center
500mm
Lift height
>5000mm
Condition
New
Max. Capacity
4, 999kg
Rated Power
106kw
Hydraulic Oil Capacity
170L
Drive /Steering Mode
4 Wheel Drive / 4 Wheel Steer
Transport Package
in Nude
Specification
17ton
Trademark
UNIMAX
Origin
China
HS Code
8427900000
Production Capacity
3000
Product Description
MODELS | TH3507U | TH4010U | TH4514U | TH5018U | ||||
Measurements | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial |
Max.
Lifting Height | 7m | 23' | 9.8m | 32'2" | 13.8m | 45'3" | 17.8m | 58'5" |
Max. Outreach | 3.9m | 12'10” | 5.4m | 17'72” | 7.4m | 24'28” | 11.2m | 36'9" |
Overall
Length | 4.99m | 16'4'' | 6.08m | 19'95'' | 6.4m | 21'0" | 6.86m | 22'6" |
Overall Width | 2.34m | 7'8' | 2.44m | 8'01'' | 2.44m | 8' | 2.46m | 8'1'' |
Overall
Height | 2.3m | 7'7' | 2.68m | 8'10" | 2.85m | 9'4" | 3.1m | 10'2" |
Wheelbase | 2.85m | 9'4'' | 3.07m | 10'1" | 3.07m | 10'1" | 3.45m | 11'4" |
Approach
Angle | 32° | 32° | 32° | 32° | ||||
Departure Angle | 31° | 31° | 31° | 31° | ||||
Wheel
Track | 1.93m | 6'33'' | 1.93m | 6'33'' | 2m | 6'56'' | 2m | 6'56'' |
Ground Clearance | 0.43m | 1'5'' | 0.41m | 1'4" | 0.41m | 1'4" | 0.39m | 1'3'' |
PRODUCTIVITY | ||||||||
Max. Capacity | 3,500kg | 7,716 lbs | 4000kg | 8,818 lbs | 4,500kg | 9,920 lbs | 4,999kg | 11,022 lbs |
Gradeability-Unladen | 45% | 65% | 65% | 50% | ||||
Min. Turning Radius | 3.9m | 12'10” | 4.2m | 13' 94" | 4.3m | 14'1'' | 4.4m | 12' |
Tilt
Angle | ±5° | ±9° | ±9° | ±8° | ||||
Drive /Steering Mode | 4 Wheel Drive / 4 Wheel Steer | 4 Wheel Drive / 4 Wheel Steer | 4 Wheel Drive / 4 Wheel Steer | 4 Wheel Drive / 4 Wheel Steer | ||||
Primary
Boom Ascending Time | 7.51s | 14s | 17.5S | 27s | ||||
Primary Boom DescendingTime | 5.57s | 16s | 13.5S | 22s | ||||
Boom Extending Time | 6.93s | 22s | 22.5S | 32s | ||||
Boom Retracting Time | 5.32s | 15s | 18S | 23s | ||||
Forward · First Gear Travel Speed | 9km/h | 5.6mph | 5km/h | 3.1 mph | 5km/h | 3.1mph | 5km/h | 3.1mph |
Forward - Second Gear Travel Speed | 27km/h | 16.8mph | 12km/h | 7.5 mph | 12km/h | 7.5mph | 30km/h | 18.6mph |
Forward · Third Gear Travel Speed | / | / | 20km/h | 12.4 mph | 20km/h | 12.4mph | 20km/h | 12.4mph |
Forward - Fourth Gear Travel Speed | / | / | 30km/h | 18.6 mph | 30km/h | 18.6mph | 30km/h | 18.6mph |
Backward
- First Gear Travel Speed | 9km/h | 5.6mph | 5km/h | 3.1 mph | 5km/h | 3.1mph | 5km/h | 3.1mph |
Backward · Second Gear Travel Speed | 27km/h | 16.8mph | 12km/h | 7.5 mph | 12km/h | 7.5mph | 12km/h | 7.5mph |
Barking | Multi-disc wet brake of front and rear axles | Multi-disc wet brake of front and rear axles | Multi-disc wet brake of front and rear axles | Multi-disc wet brake of front and rear axles | ||||
Standard Tyres | 16/70-24 | 16/70-24 | 440/80 R24 | 440/80 R24 | ||||
ENGINE | ||||||||
Manufacturer | Kubota | Perkins | Perki ns | Perkins | ||||
Rated
Power | 54.6kW | 74hp | 74.5kw | 100 hp | 74.5kw | 100 hp | 80.5kW | 108hp |
Max. Torque | 289.3N.m | 213.4 Ib.ft | 430N.m | 317.2 Ib.ft | 430N.m | 317.2 Ib.ft | 404N.m | 298.0 lb.ft |
Displacement | 3'331ml | 3'331cc | 3620ml | 3620cc | 3620ml | 3620cc | 4,400ml | 4,400cc |
Fuel Tank Capacity | 100L | 26.4gal | 150L | 32.9gal | 180L | 47.6gal | 170L | 44.9gal |
Maximum
traction force | 43kN | 9,667 lbf | 93KN | 20,907 lbf | 93KN | 20,907 lbf | 96KN | 21,582 lbf |
HYDRAULIC SYSTEM | ||||||||
Working
pump displacement | 113l/min | 30 US gpm | 180L | 47.6gal | 180L | 47.6gal | 132 l/min | 35 US gpm |
Hydraulic Oil Capacity | 100L | 26.4gal | 150L | 39.6gal | 150L | 39.6gal | 260L | 68.7gal |
WEIGHT | ||||||||
Machine Weight | 7,300kg | 16094lbs | 11,900kg | 26,235lbs | 13,300kg | 29,321lbs | 14,300kg | 31,526lbs |
MAIN FEATURES
Engine
Equipped with a diesel engine meeting Stage IV emission standards, offering high reliability, excellent fuel economy, low noise, and reduced emissions. Tailored for construction equipment, it features dual-direction damping and full elastic suspension to minimize resonance, noise, and fatigue damage.
Transmission
Features an automatic transmission with superior performance, designed for varied working conditions. The 2-forward, 2-reverse gear setup enhances fuel efficiency and engine lifespan in complex operations requiring frequent direction changes. Electronically controlled shifting ensures effortless operation, reducing driver fatigue.
Drive Axle
Incorporates maintenance-free multi-disc wet brakes with spring-applied, hydraulic-release functionality. The compact wet brake design is fully sealed, preventing contamination, with brake discs immersed in hydraulic oil for excellent heat dissipation and maintenance-free operation.
Hydraulic System
The load-sensing full hydraulic steering system, equipped with a priority valve, efficiently distributes hydraulic oil to the steering and working systems, prioritizing steering for enhanced safety. The electro-proportional control of the working hydraulic system ensures smooth operation, minimizing operator effort.
Braking System
The fully hydraulic wet braking system features a sealed hydraulic circuit to prevent dust contamination, ensuring reliable performance. With light, responsive operation and proportional braking force, plus low-pressure alarms for real-time monitoring, safety is guaranteed.
COMPANY OVERVIEW
UNIMAX CONSTRUCTION EQUIPMENT is a distinguished manufacturer specializing in construction equipment designed for urban infrastructure projects. Our comprehensive product range includes wheeled excavators, rough terrain forklifts, backhoe loaders, and telescopic handlers, all engineered to meet the exacting demands of contemporary construction environments. As a fully integrated, factory-based manufacturing company, we leverage a state-of-the-art production facility and a highly skilled engineering team to deliver exceptional quality. Our operations are guided by an unwavering commitment to customer satisfaction and the success of every project we support.
The Meaning Behind "UNIMAX"
The name "UNIMAX" reflects our foundational values and global ambitions. The prefix "Uni-" signifies our dedication to unifying markets worldwide by delivering unique and innovative solutions that transcend geographical boundaries. The suffix "-Max" embodies our relentless pursuit of maximizing quality, performance, and value in every piece of equipment we produce. Together, "UNIMAX" symbolizes our aspiration to lead the construction equipment industry on a global scale.
Our Slogan: "VALUE CRAFTED PERFORMANCE"
Our slogan, "VALUE CRAFTED PERFORMANCE," encapsulates our mission to foster enduring partnerships and drive success through precision-engineered products and tailored services. It highlights our promise to deliver more than just equipment—offering tangible value and superior performance that empower our customers to achieve their objectives. This commitment is the cornerstone of our approach to meeting the diverse needs of clients worldwide.
UNIMAX CONSTRUCTION EQUIPMENT is not merely a manufacturer but a trusted partner in your success. With our advanced facilities, expert team, and steadfast commitment to quality and service, we are well-positioned to meet the evolving demands of the construction industry. We invite you to collaborate with us and experience the superior construction equipment your projects deserve. Together, let us construct a future defined by excellence and innovation.
The Meaning Behind "UNIMAX"
The name "UNIMAX" reflects our foundational values and global ambitions. The prefix "Uni-" signifies our dedication to unifying markets worldwide by delivering unique and innovative solutions that transcend geographical boundaries. The suffix "-Max" embodies our relentless pursuit of maximizing quality, performance, and value in every piece of equipment we produce. Together, "UNIMAX" symbolizes our aspiration to lead the construction equipment industry on a global scale.
Our Slogan: "VALUE CRAFTED PERFORMANCE"
Our slogan, "VALUE CRAFTED PERFORMANCE," encapsulates our mission to foster enduring partnerships and drive success through precision-engineered products and tailored services. It highlights our promise to deliver more than just equipment—offering tangible value and superior performance that empower our customers to achieve their objectives. This commitment is the cornerstone of our approach to meeting the diverse needs of clients worldwide.
UNIMAX CONSTRUCTION EQUIPMENT is not merely a manufacturer but a trusted partner in your success. With our advanced facilities, expert team, and steadfast commitment to quality and service, we are well-positioned to meet the evolving demands of the construction industry. We invite you to collaborate with us and experience the superior construction equipment your projects deserve. Together, let us construct a future defined by excellence and innovation.
FAQ
Q: How about your product quality guaranty?
A: The complete series machinery from us are configured with the world-famous brand of components with optimizing the best of technology to maximize the performance and lift-span of every unit.
Q: How about the after sales service?
A: We emphasize on delivering excellent after-sales service to our customers, and provide FOC (Free of Charge) spare parts, and readily available fast-moving parts inventory to meet your every need with 7*24 on line service.
Q: How can I order?
A: For ready-to-ship products, you can order easily online directly. For customized products, please contact us online or send your request by email and get your exclusive adviser from us.
Q: What are the transaction terms and conditions?
A: We can follow FOB, CFR, CIF, DAF terms etc. at your convenience.
Q: Do you have the product in stock?
A: All the products which are shown on our site are available. Order lead time depends on the products and quantities.
Q: What are the delivery charges and shipping cost?
A: Delivery charges and shipping cost are dependent on your location and products on your order, please check with our sales team to get the up to date rate before your order.
A: The complete series machinery from us are configured with the world-famous brand of components with optimizing the best of technology to maximize the performance and lift-span of every unit.
Q: How about the after sales service?
A: We emphasize on delivering excellent after-sales service to our customers, and provide FOC (Free of Charge) spare parts, and readily available fast-moving parts inventory to meet your every need with 7*24 on line service.
Q: How can I order?
A: For ready-to-ship products, you can order easily online directly. For customized products, please contact us online or send your request by email and get your exclusive adviser from us.
Q: What are the transaction terms and conditions?
A: We can follow FOB, CFR, CIF, DAF terms etc. at your convenience.
Q: Do you have the product in stock?
A: All the products which are shown on our site are available. Order lead time depends on the products and quantities.
Q: What are the delivery charges and shipping cost?
A: Delivery charges and shipping cost are dependent on your location and products on your order, please check with our sales team to get the up to date rate before your order.
