Product ID: 68592541
Xc6-3006K Xc6-3007K 3Ton Telescopic Handler
Contact Now
Description
Overview
Basic Info
- Model NO. Xc6-3007K
- Cab Location Adjustable
- Type Diesel Forklift
- Power Diesel Engine
- Load Capacity 1T - 5T
- Fuel Diesel
- Load center >500mm
- Lift height >5000mm
- Condition New
- Rated Load 3000 Kg
- Maximum Lifting Height 6950 mm
- Maximum Forward Reach 3690 mm
- Maximum Traction Force ≥55 Kn
- Wheelbase 2850 mm
- Transport Package Nude Packing or 40hq
- Specification 4820*2355*2460mm
- Trademark MAXIZM
- Origin Xuzhou, China
- HS Code 84272090
- Production Capacity 100units/Month
Product Description
China Xuzhou Hot-Selling Telescopic Boom Forklift Telescopic Handler 3Ton 6.9m Xc6-3006K Xc6-3007K
Top Brand XC6-3007K 3 Ton 7 M Lifting Capacity Telescopic Boom Telehandler Forklift For Sale
Official 3 ton telehandler telescopic with attachments XC6-3007K.
XC6 is the latest agricultural version telehandler which features the highest operation simplicity, safety and efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency. Advantages and Highlights:
- The panoramic cab and the visual identity appearance design feature good fashion and elegance.
- With compact short wheelbase and lateral engine arrangement, this machine features high handiness and flexibility.
- The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
- The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
- The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
- The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
- The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
- The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
- This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
Main Parameters
| Description | Unit | Parameter value |
|---|---|---|
| Gross weight | kg | 7450 |
| Engine power | kW | 90 |
| Rated load | kg | 3000 |
| Effective load at maximum forward reach | kg | 1250 |
| Maximum lifting height | mm | 6950 |
| Maximum forward reach | mm | 3690 |
| Center distance of load | mm | 500 |
| Luffing angle | ° | -3~65 |
| Fork angle | ° | -90~18 |
| Maximum traction force | kN | ≥55 |
| Gradeability | ° | ≥25 |
| Maximum traveling speed | km/h | 40* |
| Turning radius | mm | ≤4020 |
| Braking distance | m | ≤8 |
| Overall length | mm | 4820 |
| Overall width | mm | 2355 |
| Overall height | mm | 2460 |
| Wheelbase | mm | 2850 |
| Wheel tread | mm | 1920 |
| Fork length | mm | 1000 |
| Bale clamp diameter | mm | 800-1800 |

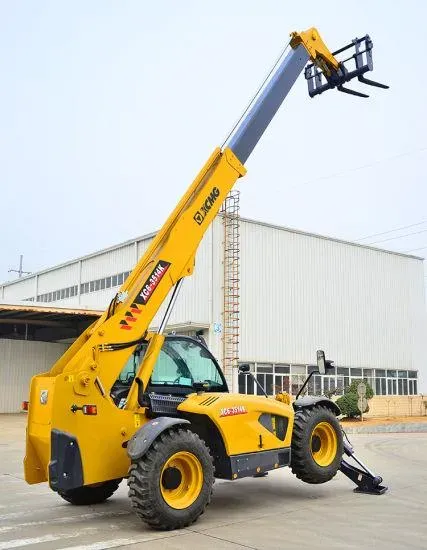

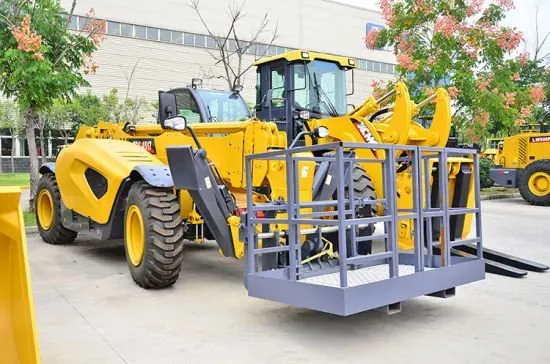

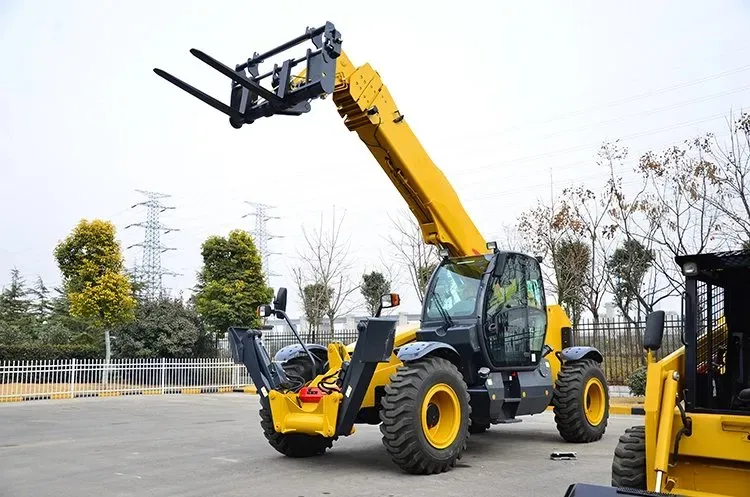

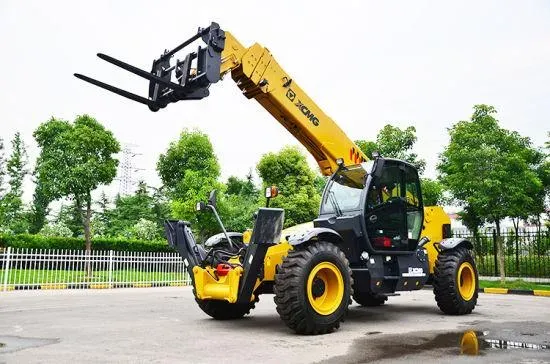

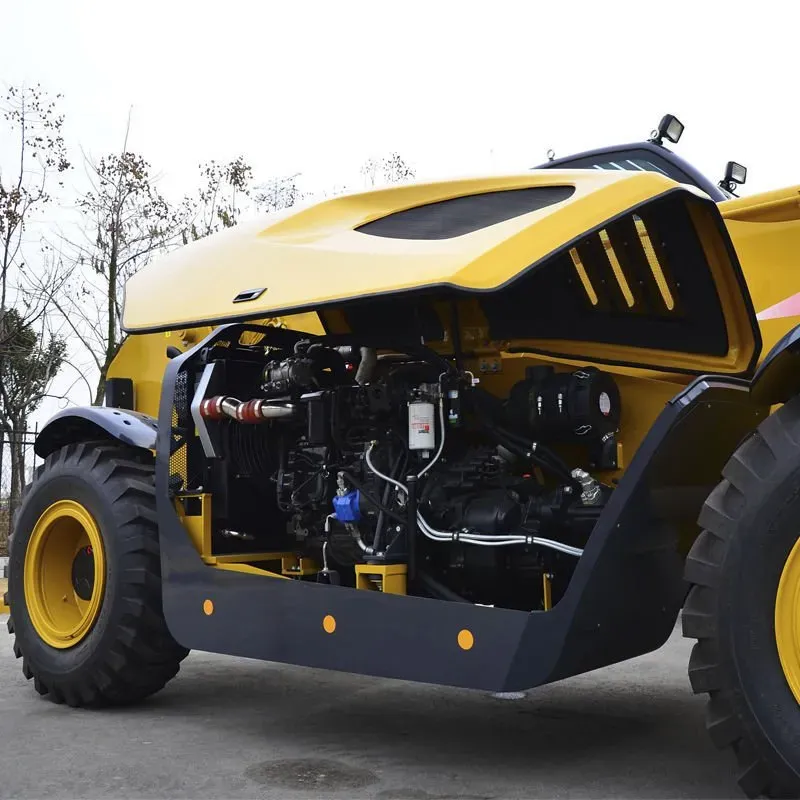

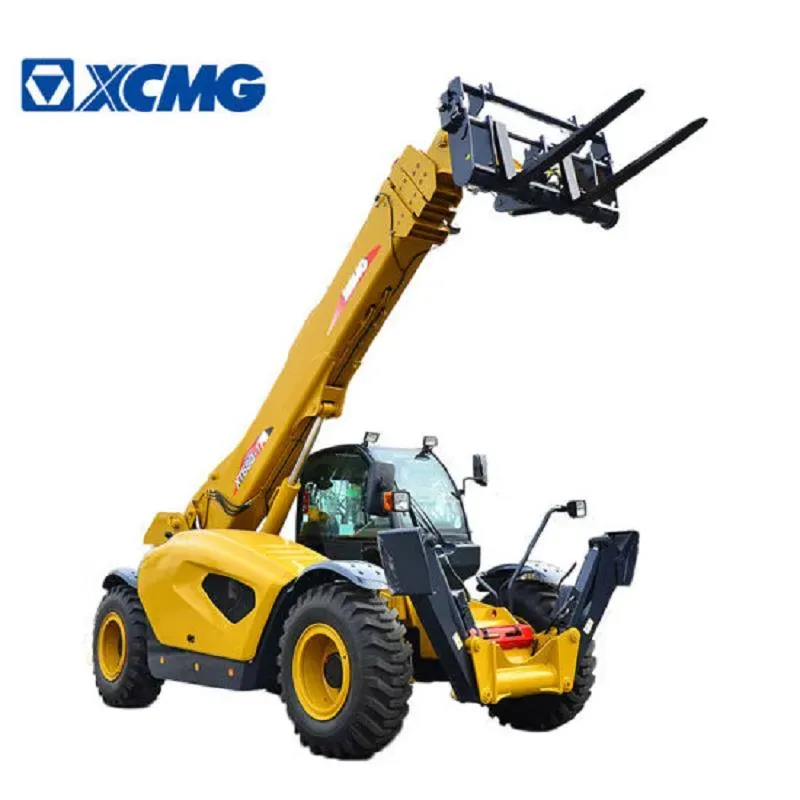

Detailed Photos
