High-Performance Ceramic Lining Bricks for Ball Mills
Description
Overview
Basic Info.
- Model NO. Ball Mill Liners
- Material Aluminum
- Type Wear Resistant Ceramic
- Color White
- MOQ 50kg
- Delivery Time 15~25 Days as Your Request
- Samples Free Samples Can Be Provided
- Alumina Content 92%
- Density 3.6g/cm³
- Bending Strength >220MPa
- Compressive Strength >1050MPa
- Fracture Toughness >3.2
- Rock Hardness >82
- Vickers Hardness >950
- Wear Volume <0.25
- Transport Package Safe Carton with Pallet
- Specification customized
- Trademark Ultraming
- Origin China, Shandong, Zibo
- HS Code 6909120000
- Production Capacity 18000 Tons/Years
Product Description

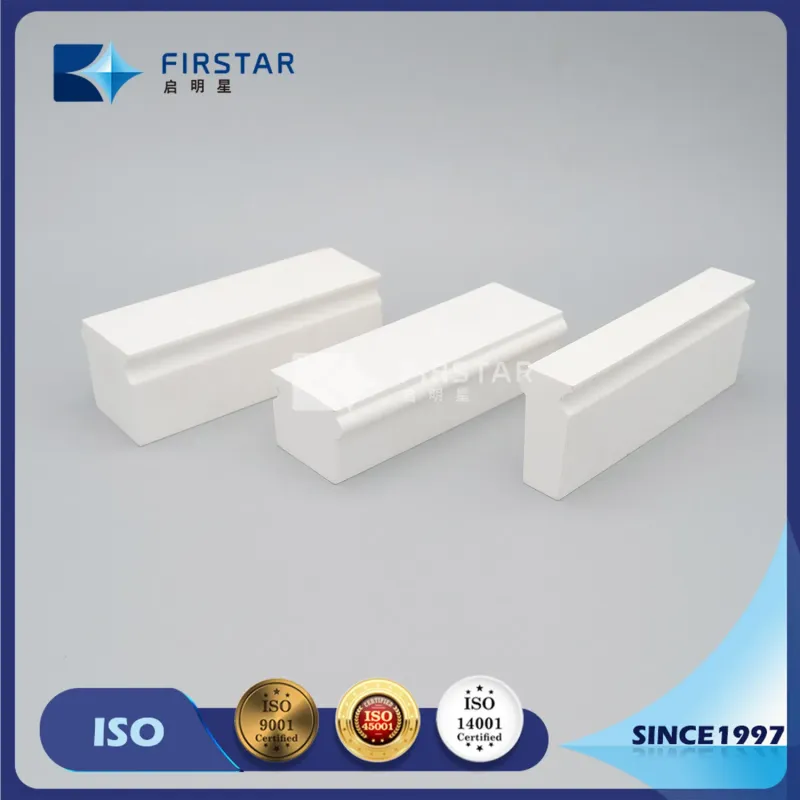

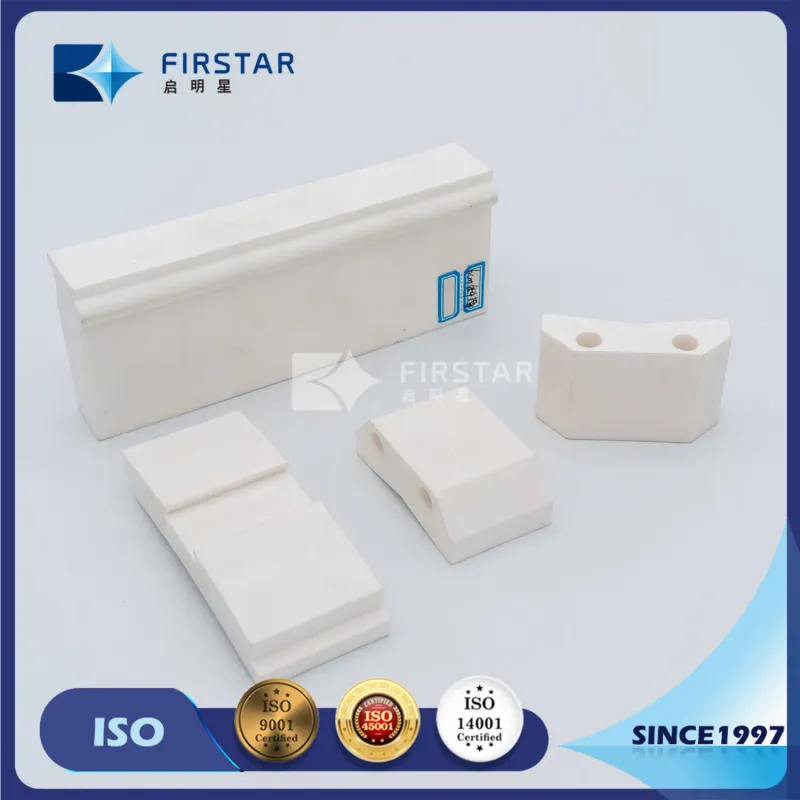

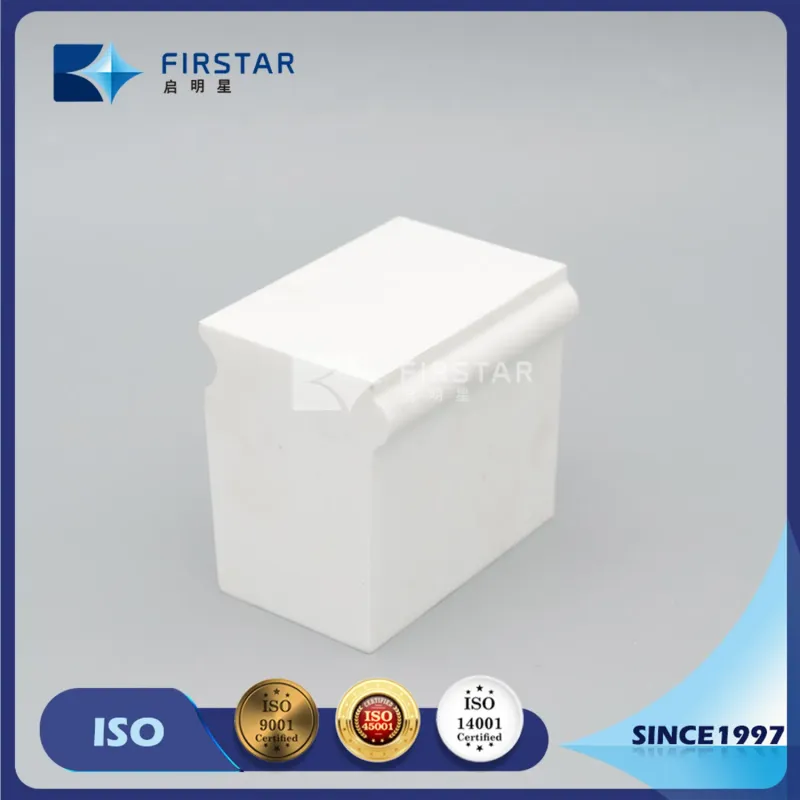

Interlocking Wear Resistant Ceramic Lining Bricks for Ball Mills
Mineral Processing equipment operates in some of the harshest and remote locations. It is crucial to the Mineral Processing industries that this equipment continues to operate efficiently and its lifecycle is maximised to minimise down time. By appropriately protecting equipment from the extreme wear caused by the high speed and flow rates of ore when processed as a slurry ensures better equipment longevity. Slurry is highly abrasive and can not only cause wear damage to wet processing equipment but also with the inclusion of chemicals and heat, there is constant risk of corrosion and dangerous leakage. Wear Protection ceramic Linings are used throughout Mineral Processing to protect the steel surfaces of equipment from wear and corrosion. They are used on a range of equipment including pipes, tanks, chutes, pumps, flotation cells, thickeners, launders and feed spouts or chutes.
When request quote, we need factors as below:
- Material being conveyed
- Abrasion type (sliding or impingement)
- Equipment design
- Installation position
- Pipe diameter and temperature
We can supply Ceramic wear tiles Series:
- 92%, 95%, T95%, 99% Alumina ceramic tiles
- ZTA (Zirconia Toughened Alumina) tiles/brick/block
- Ceramic Rubber and ceramic-Rubber-steel impact resistant liner
- Monolithic Cyclone/ cyclone tiles/Ceramic Lined pipe fittings
- High impact ceramic wearing compound
Main Applications of our Ceramic Tiles include:
- Pipe & fittings
- Chutes & hoppers
- Vibratory feeders
- Cyclones
- Distributors
- Screens
- Centrifuges

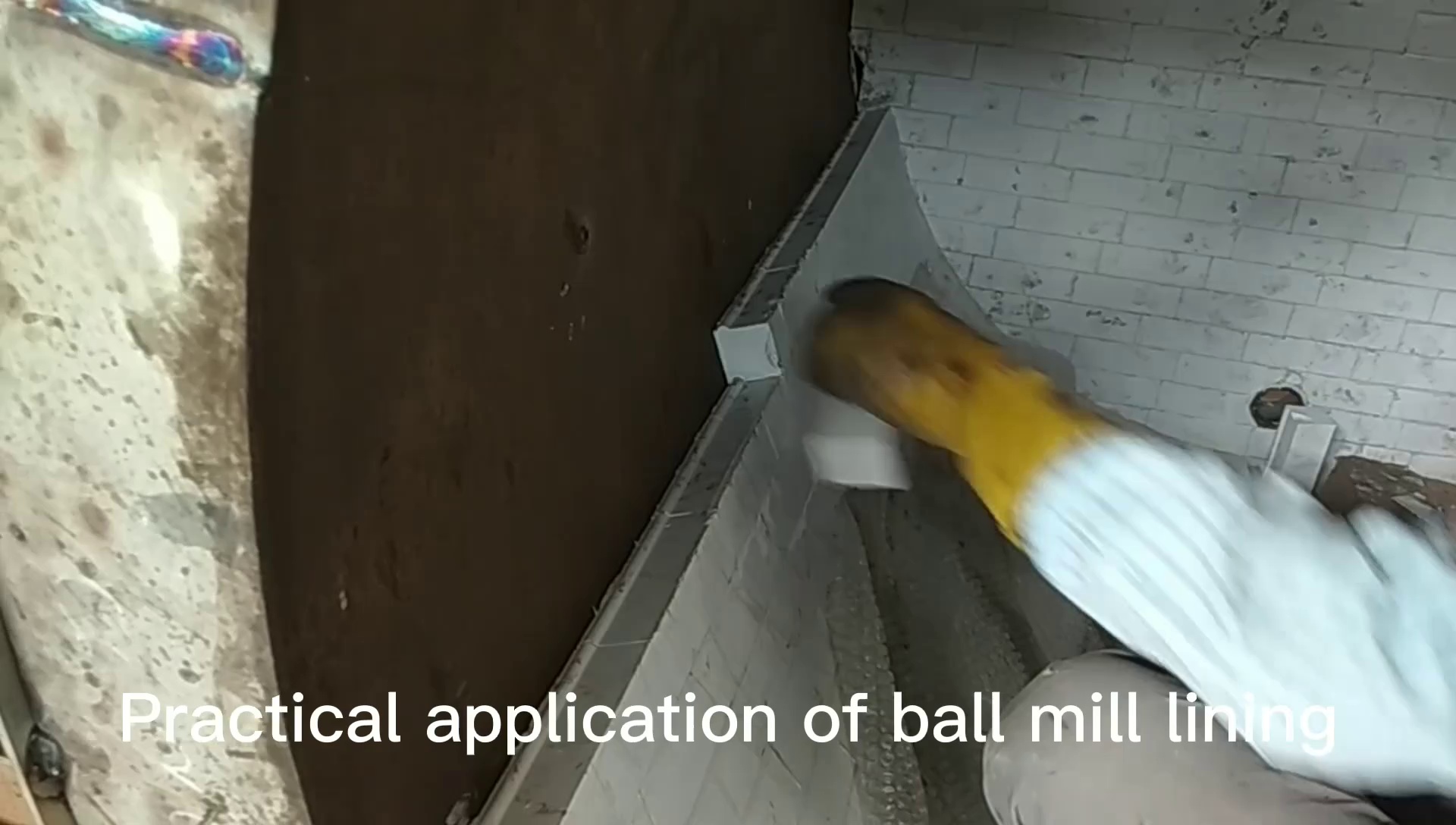

- Mill liners
Most importantly, the alumina ceramic linings will extend the life of your equipment while reducing maintenance costs and downtime. Contact us today to tell us more about your ceramic lining needs.

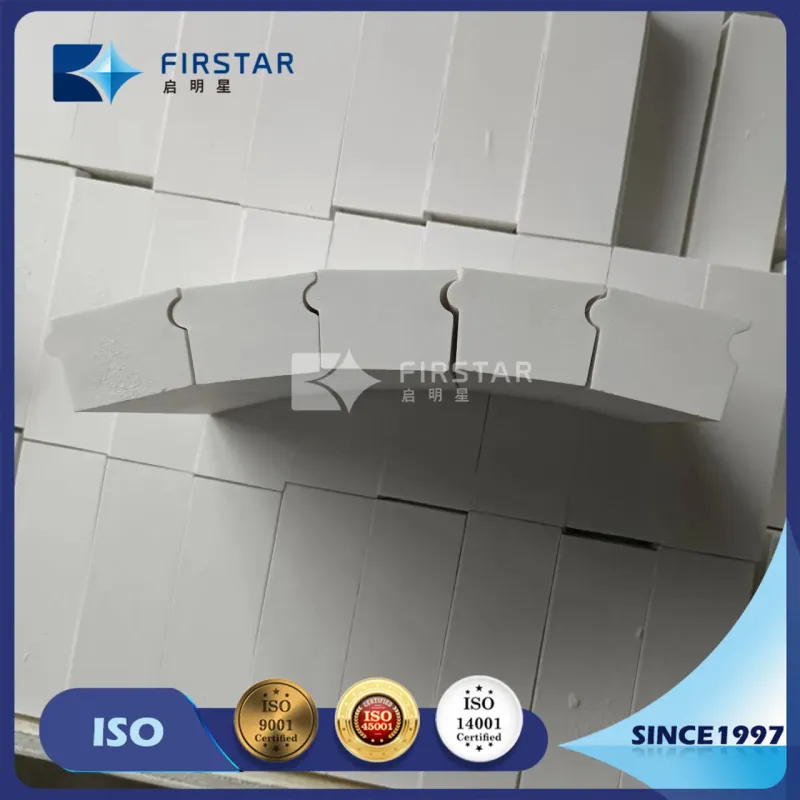

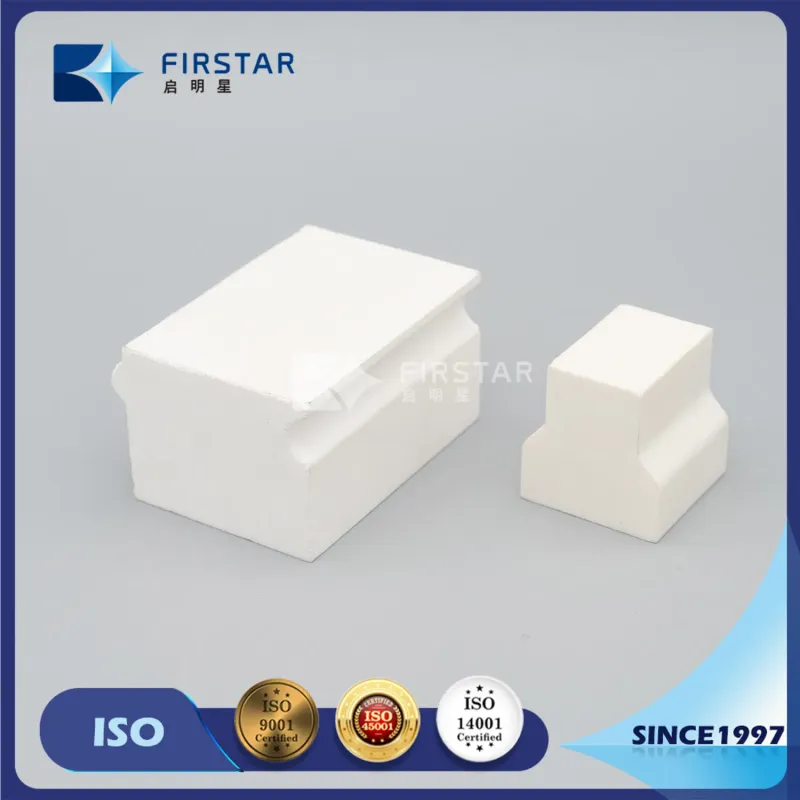

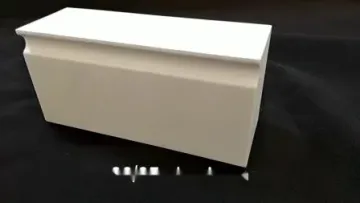

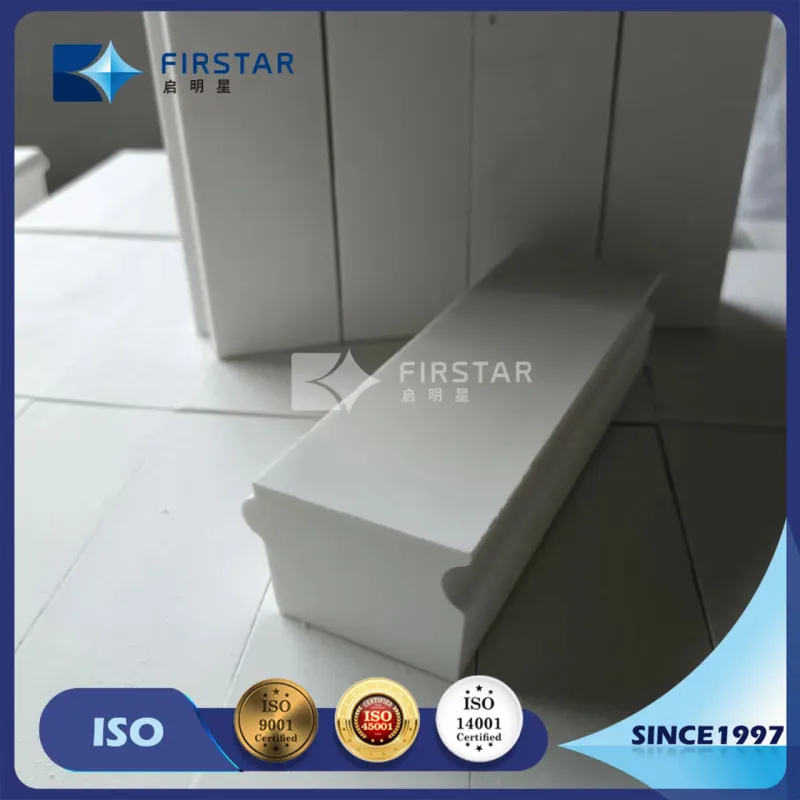

Detailed Photos
Product Parameters
| L(mm) | 150 | 150 | 150 | 150 | 150 |
|---|---|---|---|---|---|
| W(mm) | 50 | 50 | 50 | 50 | 50 |
| H(mm) | 40 | 50 | 60 | 70 | 100 |
| 92 | 95 | T95 | 99 | ZTA | ZrO2 |
| Test Standard | GB/T 25995-2010 | JC/T 1085-2008 | JC/T 1085-2008 | GB/T 6569-2006 | ISO21618 IM |
| Density(g/cm³) | >=3.6 | >=3.65 | >=3.7 | >=3.83 | >=4.15 |
| Al2O3(%) | >=92% | >=95% | >=95% | >=99% | >=75% |
| ZrO2 +Y2O3 | >=21% | >=99.8% | |||
| Bending Strength(MPa) | >=220 | >=250 | >=300 | >=330 | >=400 |
| Compressive Strength (MPa) | >=1050 | >=1300 | >=1600 | >=1800 | >=2000 |
| Fracture Toughness(MPa.m1/2) | >=3.2 | >=3.2 | >=3.5 | >=3.5 | >=5.0 |
| Rockwell Hardness HRA | >=82 | >=85 | >=88 | >=89 | >=90 |
| Vickers Hardness HV20(MPa) | >=950 | >=1000 | >=1100 | >=1200 | >=1400 |
| Wear Volume(cm³) | <=0.25 | <=0.20 | <=0.15 | <=0.10 | <=0.05 |
