High Alumina Ceramic Lining Bricks for Ball Mills
Description
Overview
Basic Info.
- Model NO. Cerami Liner Plate
- Material Aluminum
- Type Wear Resistant Ceramic
- Square Tile 10X10X3~10mm, 17.5X17.5X3~15mm, 20X20X3~15mm, etc.
- Ceramic Plate 100X100X6~50mm, 150X100X6~50mm, etc.
- Hexagonal Tile S12.5xt3~20mm, S23.5xt6-25mm
- Dimple Tiles 20X20X4-10+1(with 5 Dimples), 20X30X5~15+1(with 18)
- Ceramic Block 40X40X40mm, 45X45X50mm, 32X32X22mm, 38X38X38mm, etc.
- Ceramic Cylinder/Rod 6X6mm, 15X15mm, 20X20mm, 31X31mm, 40X40mm, 45X50mm, 5
- Al2O3 99%
- Density 3.83 G/Cm³
- Hv 20 1200
- Rock Hardness Hra 90
- Bending Strength MPa 330
- Compression Strength MPa 1800
- Fracture Toughness Kic Mpam 1/2 4.2
- Wear Volume 0.10 Cm³
- Transport Package Box
- Trademark firstar
- Origin China
- HS Code 6909120000
- Production Capacity 400t/Month
Product Description
High Alumina Ceramic Lining Bricks for Durable Ball Mill Wear
1. Detailed description:
92% 95% Abrasive Resistant Ceramic Alumina Plate Tiles for Composite Ceramic Rubber Panel is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the Cube liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot. Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
- Alumina 92: most common wear product with great wear resistance
- Alumina 95: increased wear performance
- Alumina T95: premium alumina for best wear resistance
- Zirconium toughened alumina(ZTA): increased strength and impact resistance
2. Product features:
- High hardness
- Superior abrasion and impact resistance
- Corrosion and chemical resistance
- Light weight
- Easy installation by epoxy resin or bolt
- Improve your working environment - noise, vibration and safety

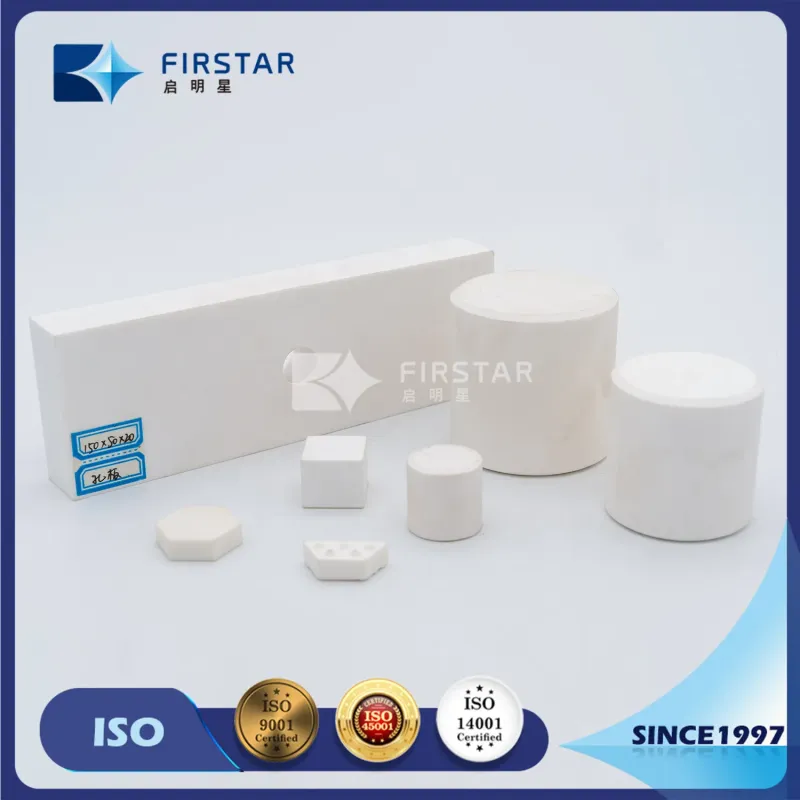

3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.

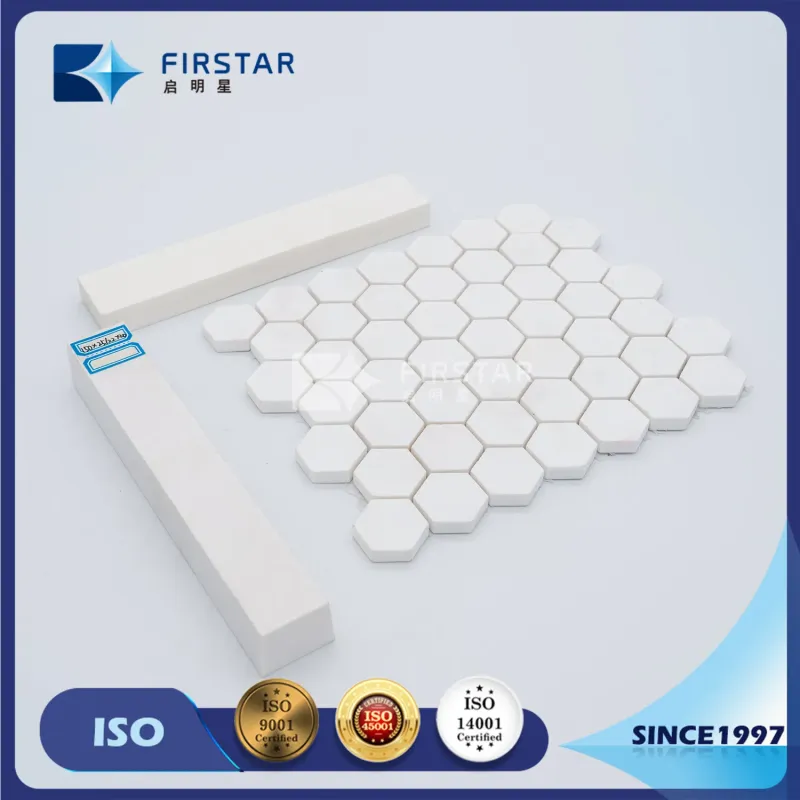

- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- Ceramic Block: 40x40x40mm, 45x45x50mm, 32x32x22mm, 38x38x38mm, etc.
- Ceramic Cylinder/rod: 6x6mm, 15x15mm, 20x20mm, 31x31mm, 40x40mm, 45x50mm, 50x50mm etc.
4. Ceramic wear lining tiles for a variety of applications:
- Processing equipment: Pharmaceutical clean rooms, Food processing plants, Grain handling, Mineral processing, Cement manufacturing, Chemical processing
- Large Cyclones: Coal-fired power plants, Steel Mills, Asphalt Plants, Petrochemical plants, Pulp and paper mills
Product Parameters
| Character | 92 | 95 | T95 | 99 | ZTA | ZrO2 |
|---|---|---|---|---|---|---|
| Density(g/cm³) | ≥3.6 | ≥3.65 | ≥3.7 | ≥3.83 | ≥4.15 | ≥5.9 |
| Al2O3(%) | ≥92% | ≥95% | ≥95% | ≥99% | ≥75% | / |
| ZrO2 +Y2O3 | / | / | / | / | ≥21% | ≥99.8% |
| Bending Strength(MPa) | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
| Compressive Strength (MPa) | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
| Fracture Toughness(MPa.m1/2) | ≥3.2 | ≥3.2 | ≥3.5 | ≥3.5 | ≥5.0 | ≥7.0 |
| Rockwell Hardness HRA | ≥82 | ≥85 | ≥88 | ≥89 | ≥90 | ≥88 |
| Vickers Hardness HV20(MPa) | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1400 | ≥1100 |
| Wear Volume(cm³) | ≤0.25 | ≤0.20 | ≤0.15 | ≤0.10 | ≤0.05 | ≤0.05 |

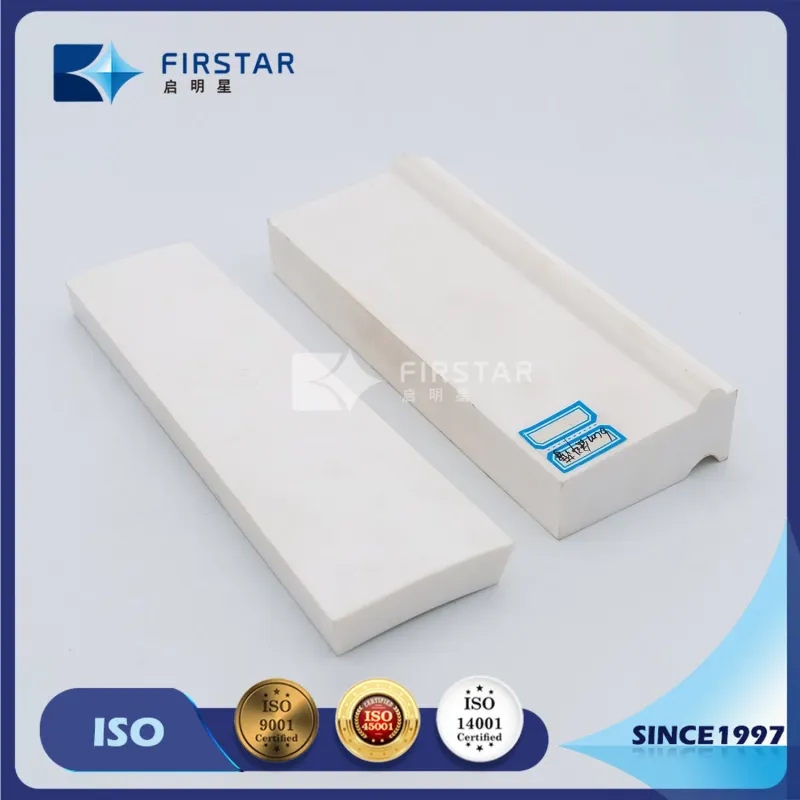

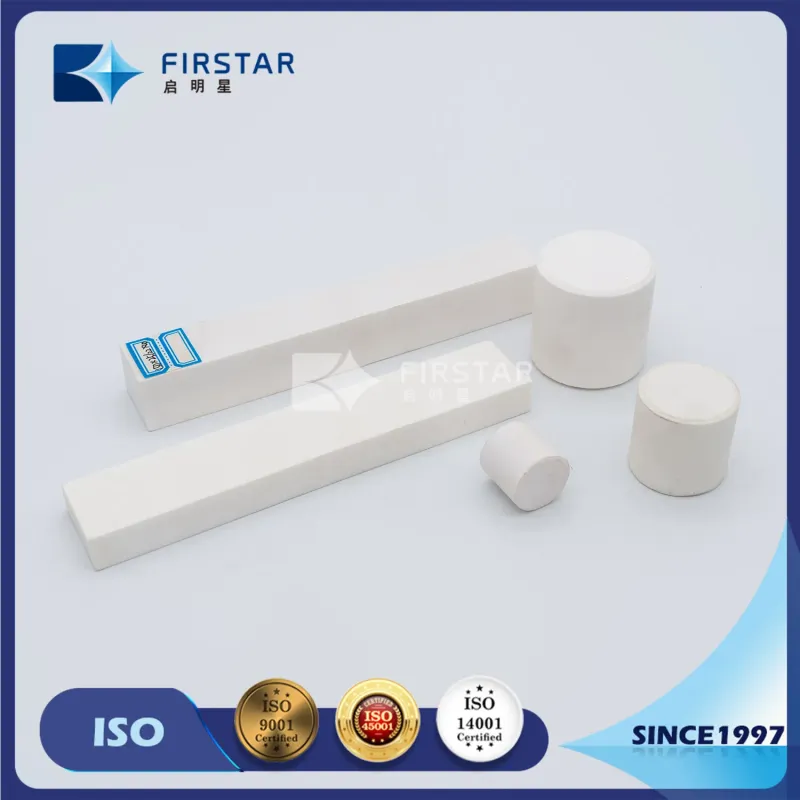

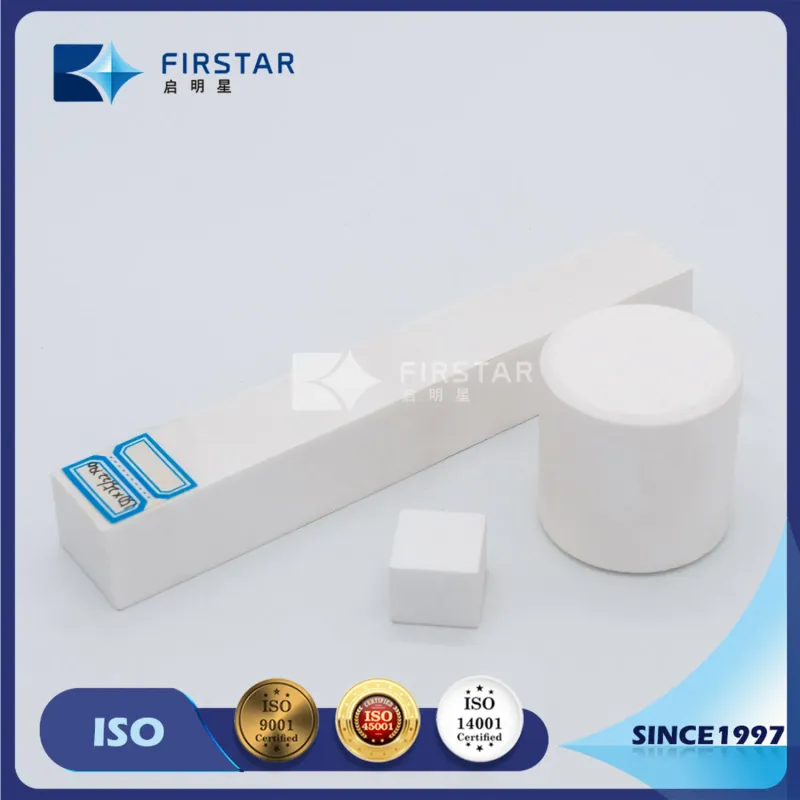

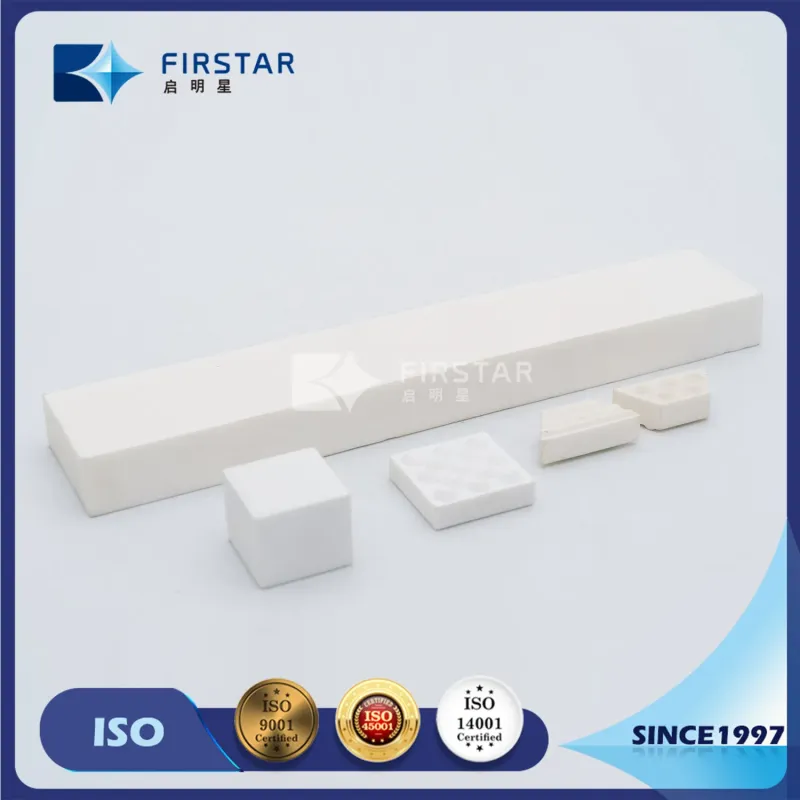

Detailed Photos

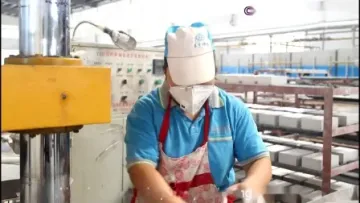

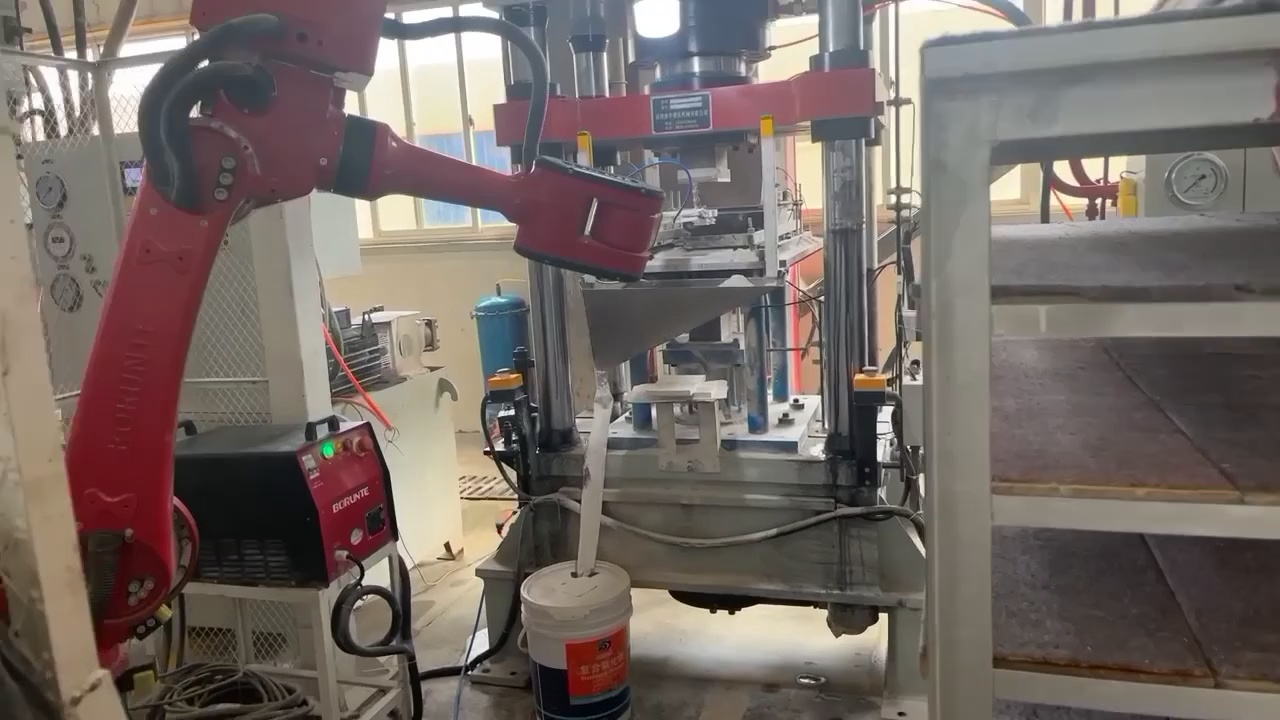

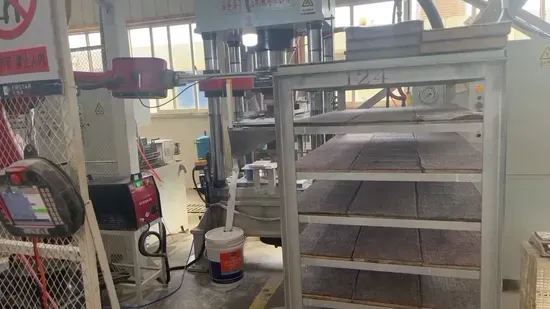

Company Profile
Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied. - Established Ultrafine Energy Efficiency Technology Research Institute - Increase lifespan of wearable parts - New improved technology and products - Minimal downtime to minimize delays in production - Variety of wear combating options available as a one stop solution - Strong focus on product innovation supported by Chinese Academy of Sciences. - Customized application techniques to suite any wear problem
