Product ID: 68592729

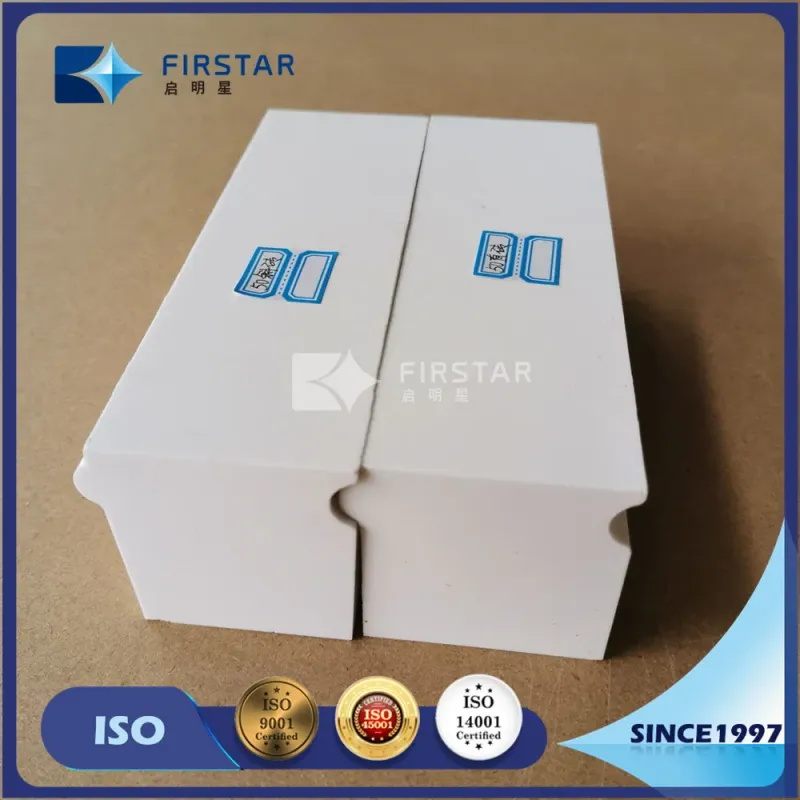

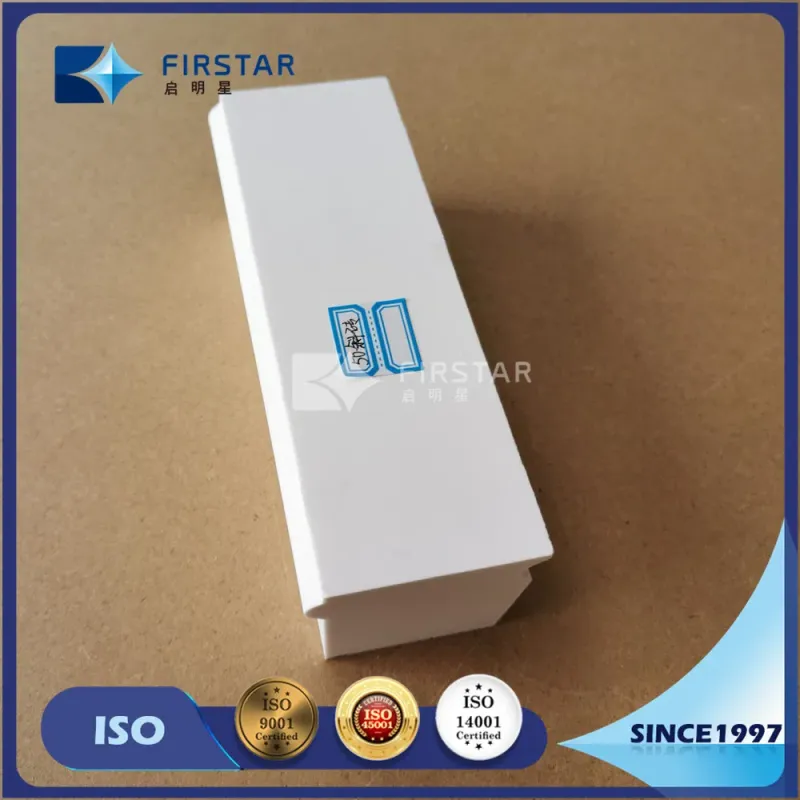

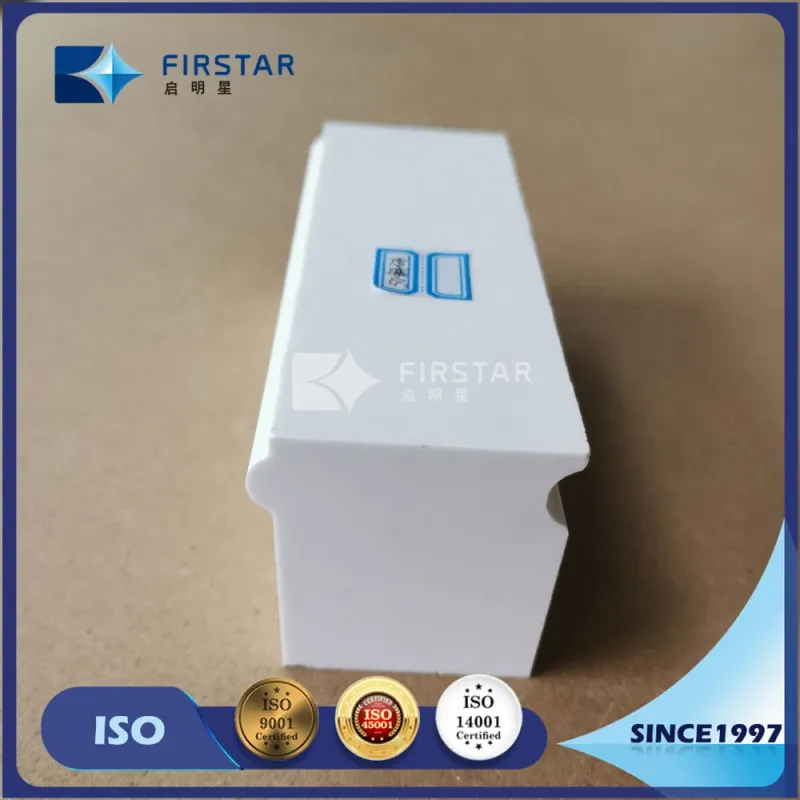

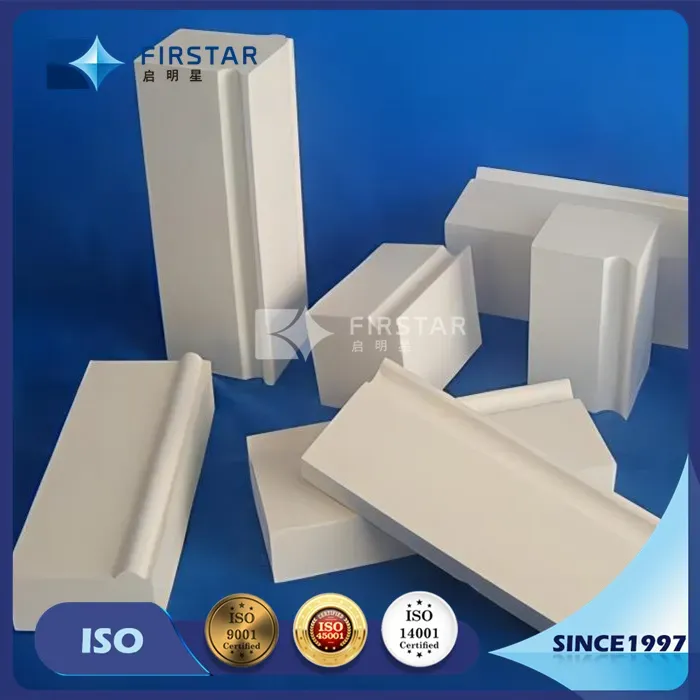

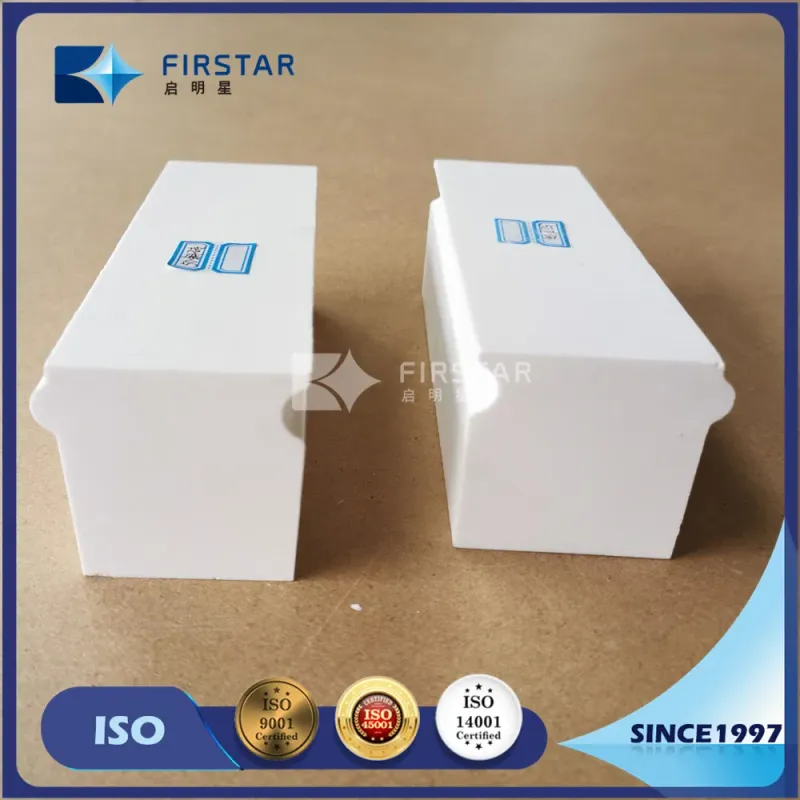

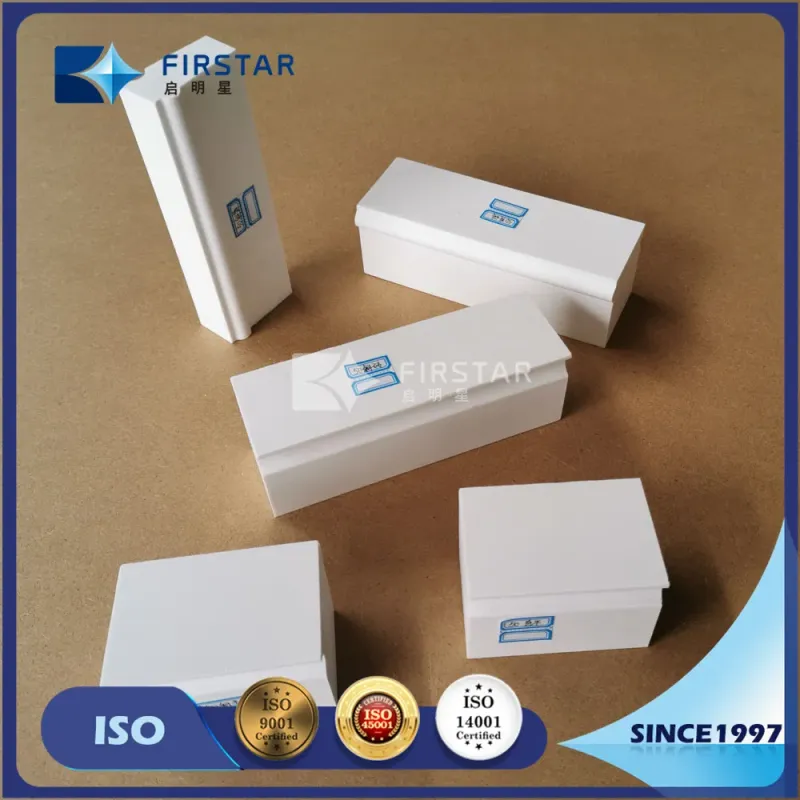

Impact-Resistant Alumina Ceramic Wear Lining for Ball Mill
Contact Now
Description
Basic Info.
Model NO.
Ball Mill Bricks
Material
Aluminum
Type
Wear Resistant Ceramic
Square Tile
10X10X3~10mm, 17.5X17.5X3~15mm, 20X20X3~15mm, etc.
Ceramic Plate
100X100X6~50mm, 150X100X6~50mm, etc.
Hexagonal Tile
S12.5xt3~20mm, S23.5xt6-25mm
Dimple Tiles
20X20X4-10+1(with 5 Dimples), 20X30X5~15+1(with 18
Ceramic Block
40X40X40mm, 45X45X50mm,32X32X22mm, 38X38X38mm,etc.
Ceramic Cylinder/Rod
6X6mm,15X15mm,20X20mm, 31X31mm,40X40mm, 45X50mm, 5
Al2O3
92%
Density
3.60 g/cm3
Hv 20
950
Rock Hardness Hra
82
Bending Strength MPa
220
Compression Strength MPa
1050
Fracture Toughness Kic Mpam 1/2
3.2
Wear Volume
0.25 Cm3
Transport Package
Box
Specification
customized size
Trademark
firstar
Origin
China
HS Code
6909120000
Production Capacity
400t/Month
Product Description
Impact 40-100mm Thickness Alumina Ceramic Wear Lining for Ball Mill
1. Detailed description
The Ceramic tiles is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the Cube liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot.
Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina T95: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA): increased strength and impact resistance
2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safety
3. Product Specification:
- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.
- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.
- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm
- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)
- Ceramic Block: 40x40x40mm, 45x45x50mm,32x32x22mm, 38x38x38mm,etc.
- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.
4. Ceramic wear lining tiles for a variety of applications:
Processing equipment:
l Pharmaceutical clean rooms
l Food processing plants
l Grain handling
l Mineral processing
l Cement manufacturing
l Chemical processing
l Large Cyclones:
l Coal-fired power plants
l Steel Mills
l Asphalt Plants
l Petrochemical plants
l Pulp and paper mills
| Category | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
| Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
| ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
| Density | >3.50g/ cm3 | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.83g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
| HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
| Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
| Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
| Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
| Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
| Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied. - Established Ultrafine Energy Efficiency Technology Research Institute - Increase lifespan of wearable parts - New improved technology and products - Minimal downtime to minimize delays in production - Variety of wear combating options available as a one stop solution - Strong focus on product innovation supported by Chinese Academy of Sciences. - Customized application techniques to suite any wear problem
