Overview

Basic Info.

Model NO. zc-alb01
Material Aluminum
Type Wear Resistant Ceramic
Al2O3 92%
Density 3.83G/Cm3
Hv 20 1200
Rock Hardness Hra 90
Bending Strength MPa 330
Compression Strength MPa 1800
Fracture Toughness Kic Mpam 1/2 4.2
Transport Package Carton Box+Pallet
Specification 100X100X6~50mm, 150X100X6~50mm, etc.
Trademark Zhongci
Origin China
HS Code 69091200
Production Capacity 10000ton/Year

Product Description

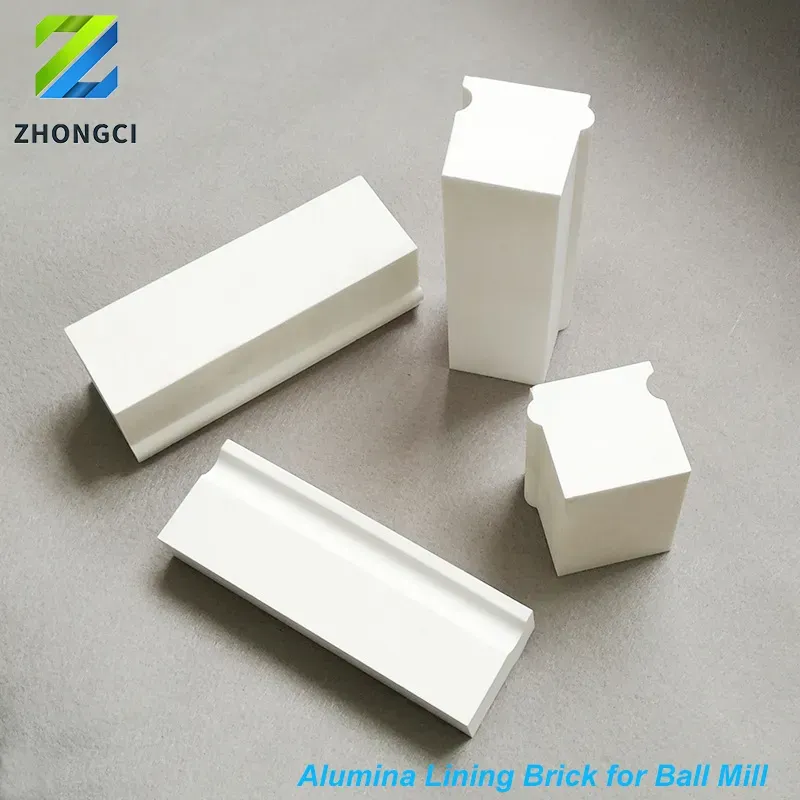

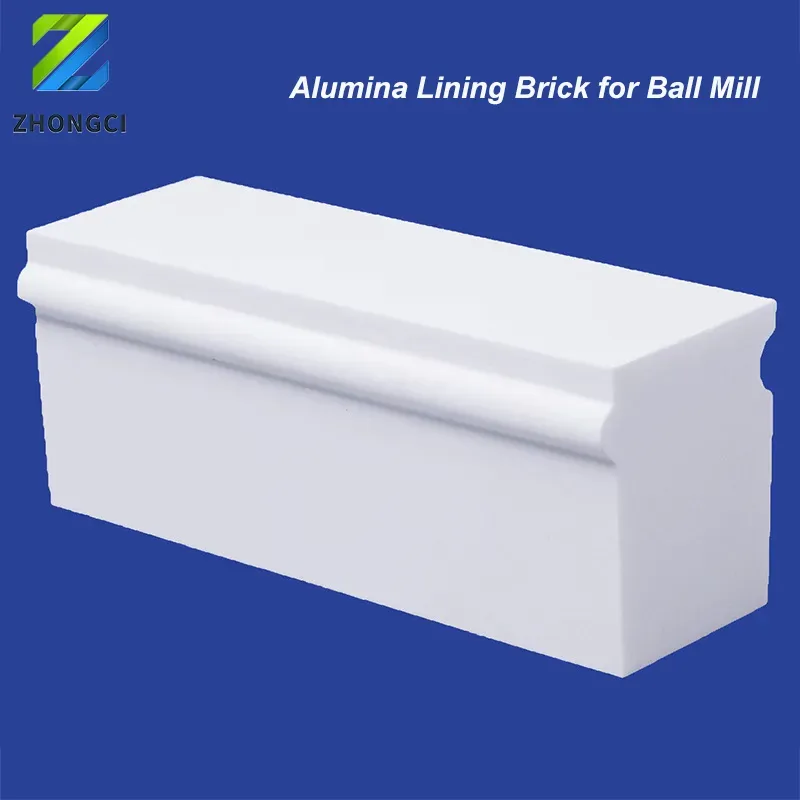

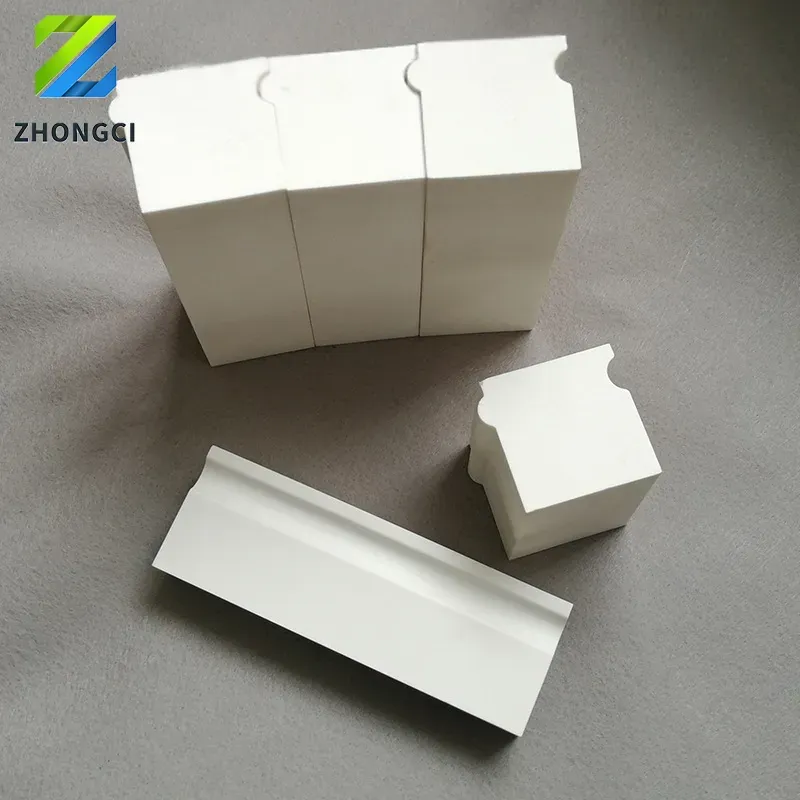

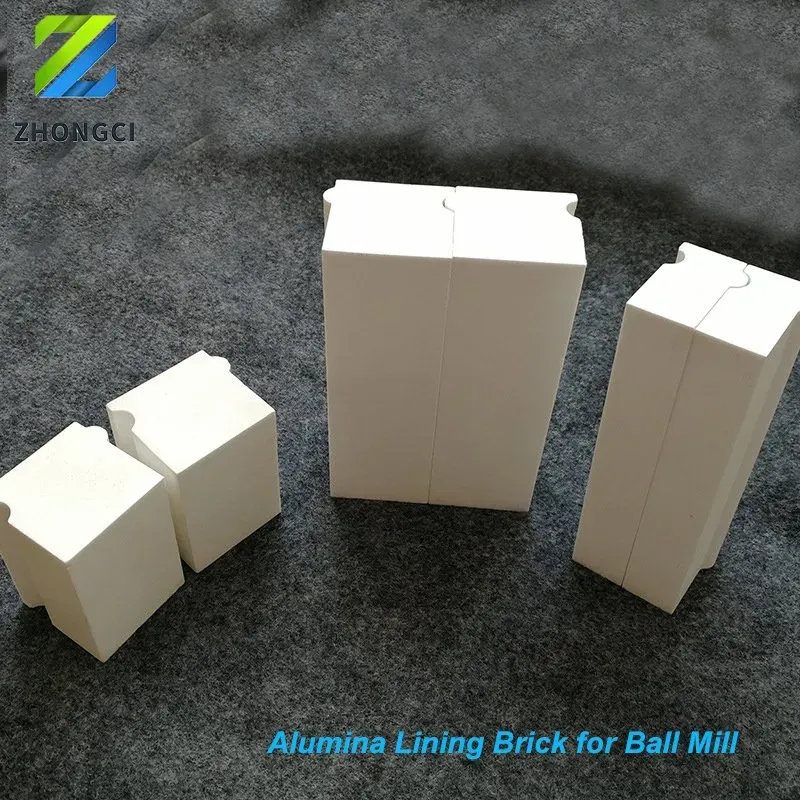

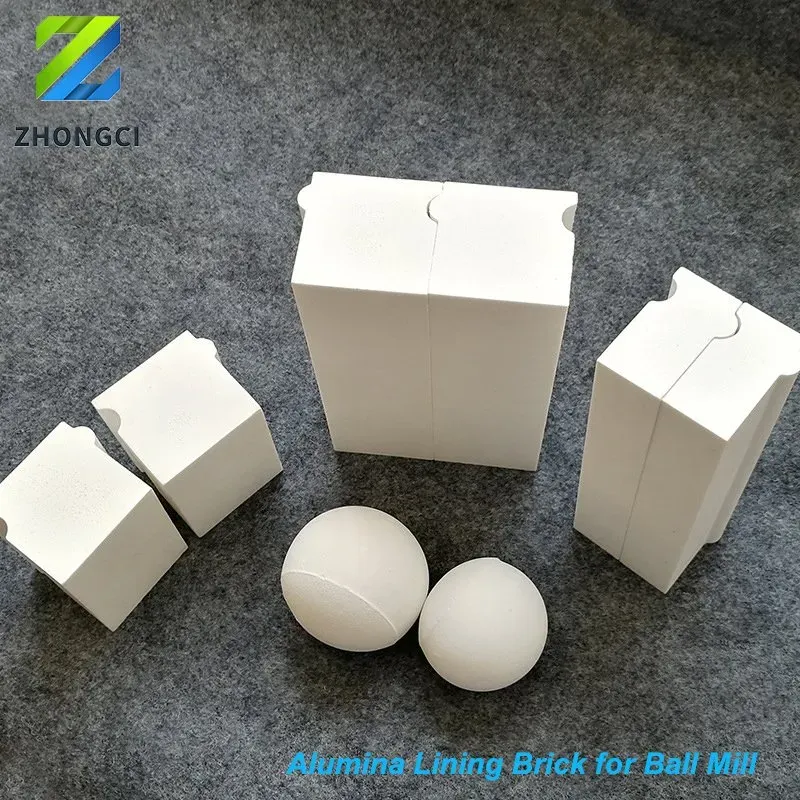

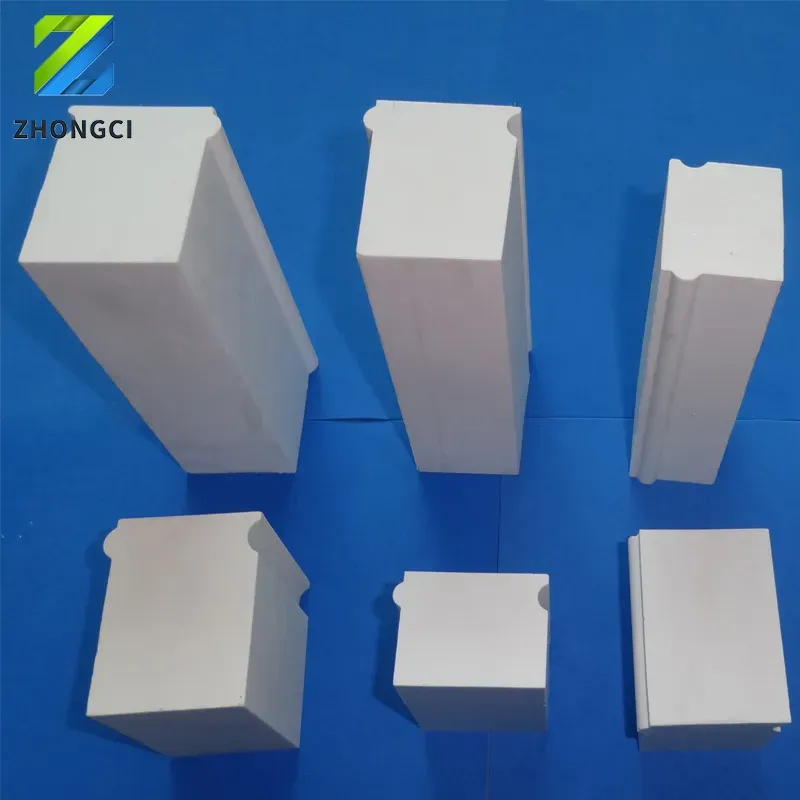

Ball Mill Wear Liners with Material 92% Alumina, Ball Mill Wear Resistant Lining Brick with Interlocking

Ceramic as a material has beneficial anti-impact properties that prolong wear life and improve impact resistance. Ceramic wear liners are designed to be extremely resistant to abrasion even in high material flows and speeds, preventing material build-up. Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:

Alumina 92: most common wear product with great wear resistance
Alumina 95: increased wear performance
Alumina T95: premium alumina for best wear resistance
Zirconium toughened alumina (ZTA): increased strength and impact resistance

Alumina mill linings (alumina bricks and tiles) are the perfect solution for protecting grinding ball mills from wear, as they allow for a constant use over an extended period of time without any routine maintenance.

Feature: High performance abrasion resistance lining brick is one of our main products by the advanced technology with the perfect character in abrasion resistance, external appearance, complete specification, and easier application.
