Overview

Basic Info

Model NO. 150*90mm
Material Aluminum
Type Wear Resistant Plate
Color White
MOQ 50kg
Delivery Time 15~25 Days as Your Request
Samples Free Samples Can Be Provided
Feature Interlocking System
Advantage Wear Resistant
Transport Package Safe Carton with Pallet
Specification as your request
Trademark Ultraming
Origin China
HS Code 6909120000
Production Capacity 18000 Tons/Years

Product Description

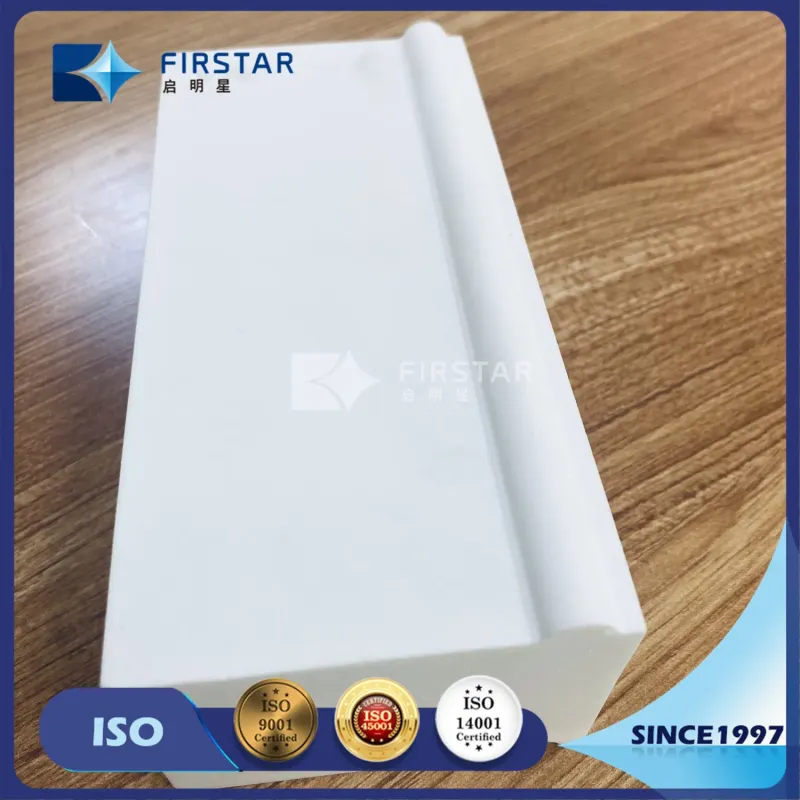

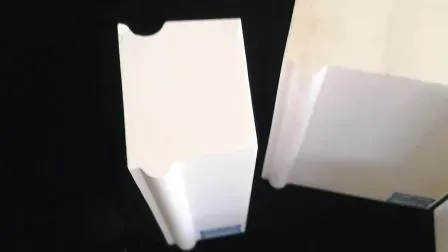

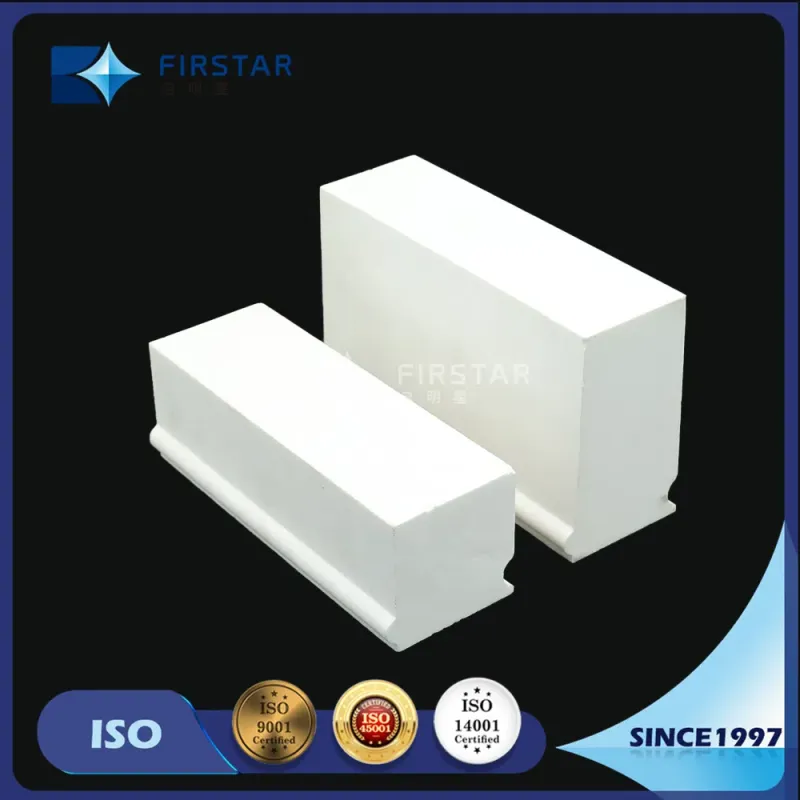

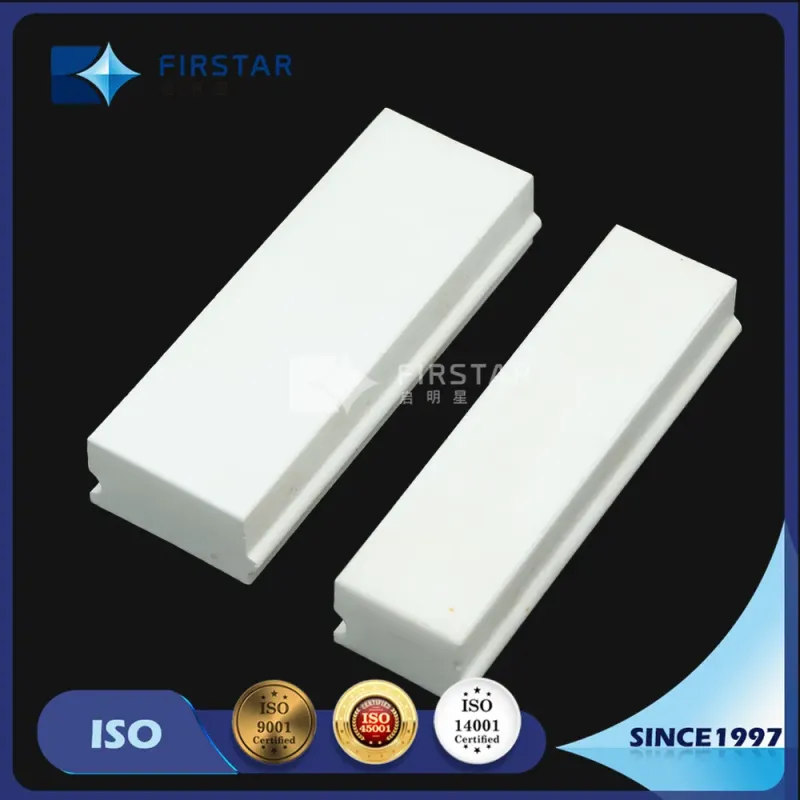

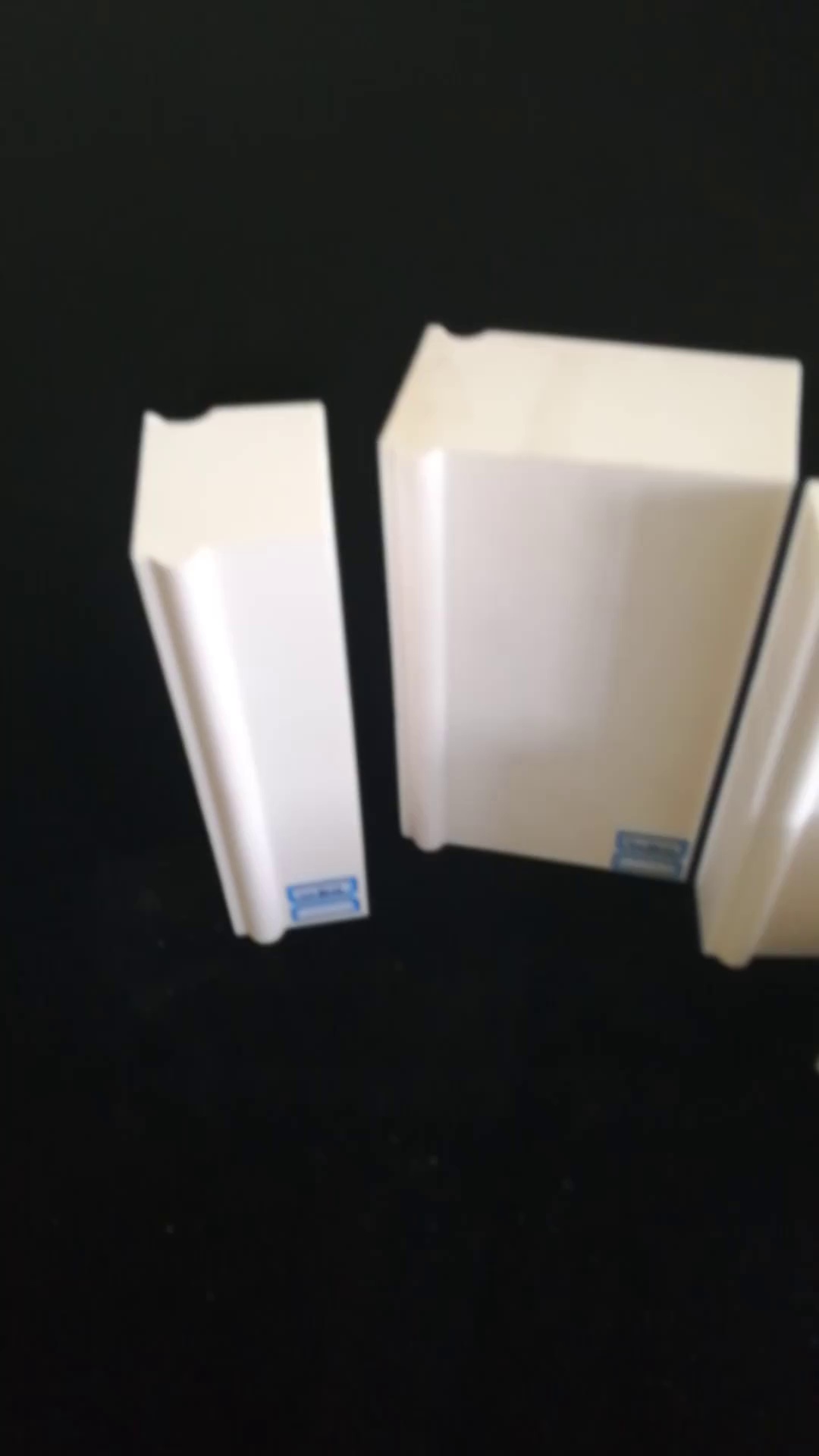

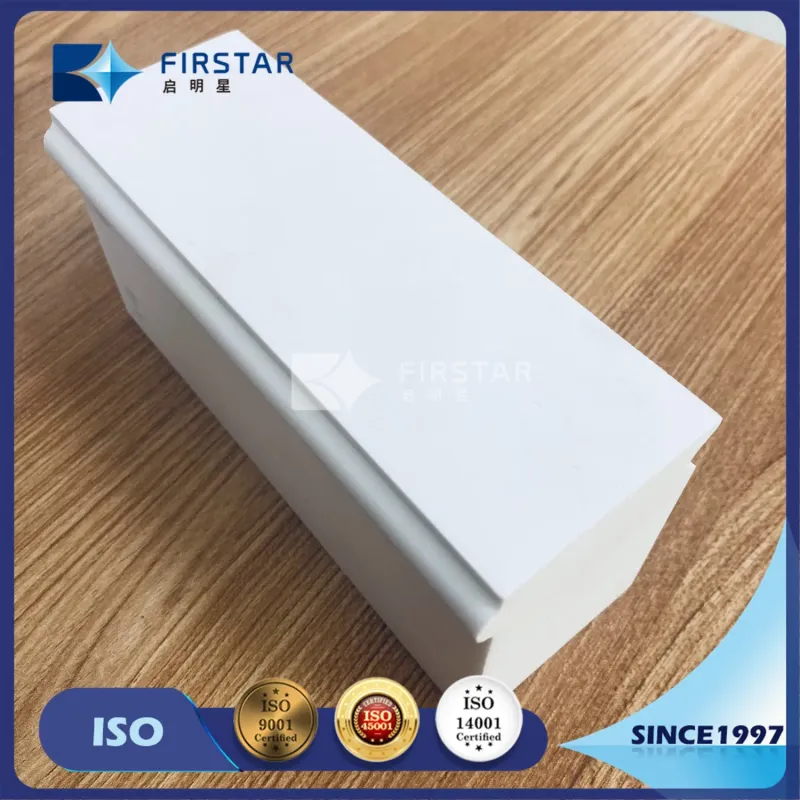

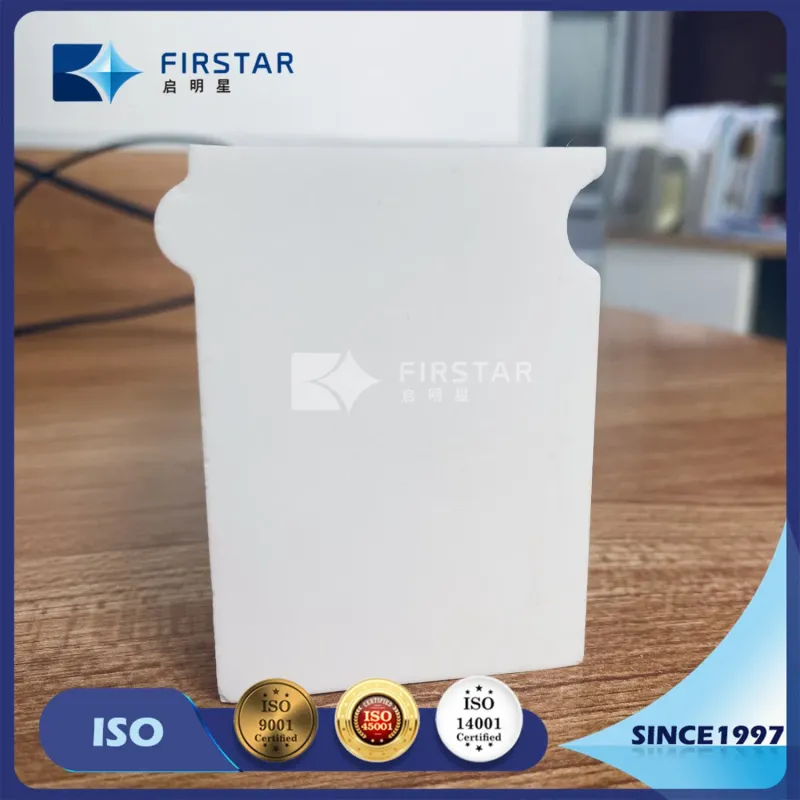

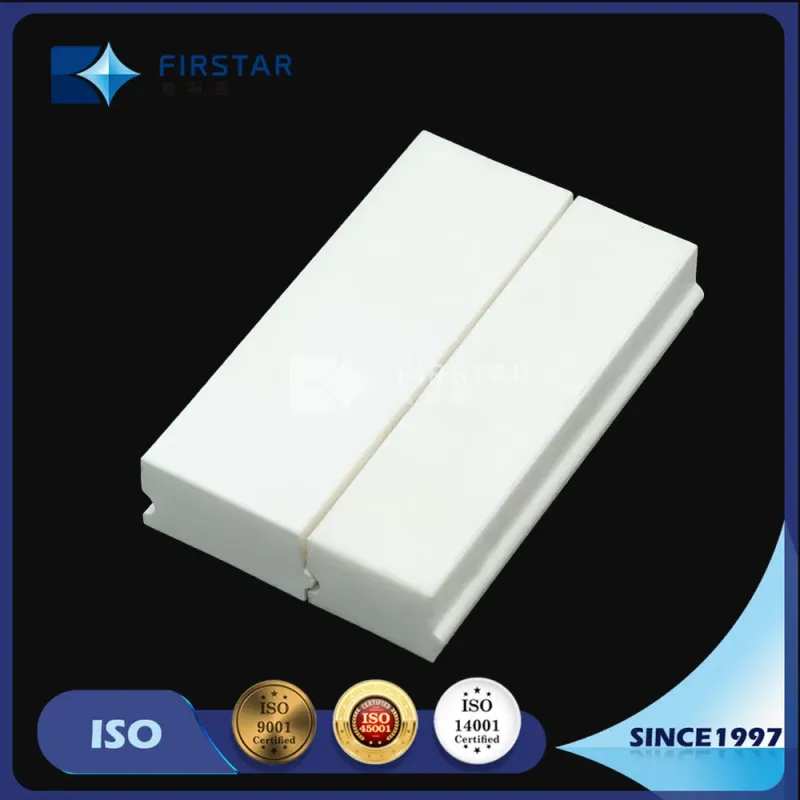

Thickness 40-60mm Ball Mill Wear Resistant Liners / Alumina Ceramic Lining Brick with Interlocking

92% Al2O3 China Conductive Tiles Mats is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot.

Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:

l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina T95: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA): increased strength and impact resistance

Mineral Processing equipment operates in some of the harshest and remote locations. It is crucial to the Mineral Processing industries that this equipment continues to operate efficiently and its lifecycle is maximised to minimise down time. By appropriately protecting equipment from the extreme wear caused by the high speed and flow rates of ore when processed as a slurry ensures better equipment longevity. Slurry is highly abrasive and can not only cause wear damage to wet processing equipment but also with the inclusion of chemicals and heat, there is constant risk of corrosion and dangerous leakage.

Wear Protection ceramic Linings are used throughout Mineral Processing to protect the steel surfaces of equipment from wear and corrosion. They are used on a range of equipment including pipes, tanks, chutes, pumps, flotation cells, thickeners, launders and feed spouts or chutes.

Product Parameters

Character	92	95	T95
Density(g/cm³)	≥3.6	≥3.65	≥3.7
Al2O3(%)	≥92%	≥95%	≥95%
ZrO2 +Y2O3	/	/	/
Bending Strength(MPa)	≥220	≥250	≥300
Compressive Strength (MPa)	≥1050	≥1300	≥1600
Fracture Toughness(MPa.m1/2)	≥3.2	≥3.2	≥3.5
Rockwell Hardness HRA	≥82	≥85	≥88
Vickers Hardness HV20(MPa)	≥950	≥1000	≥1100
Wear Volume(cm³)	≤0.25	≤0.20	≤0.15

Thickness 40-60mm Ball Mill Wear Resistant Liners / Alumina Ceramic Lining Brick with Interlocking

FAQ

1. Are you a trading company or a factory? We are a leading factory, manufacturing high alumina ceramic wear resistant liners in Zibo, China.
2. What is your monthly capacity? 800 ton per month.
3. What kinds of ceramic wear resistant liners do you manufacture? 92% alumina liner, 95% alumina liner, T95% alumina liner, zirconia tile liner, ZTA tiles, ceramic-rubber composite plates, wearing compound.
4. What is the delivery time? If we have stock, the delivery time is within 3 days after order confirmed. If there is no stock, it is usually 13 days.
5. Can you manufacture ceramic liner according to customers' design? Yes, we have 5 engineers and we can produce ceramic parts according to the drawings of the customers.
6. What is the packing? carton, and then wooden pallet or wooden box, 20~25 tons per 1*20"FCL.
7. What is the nearest port? Qingdao port.
