High Alumina Ceramic Lining Interlocking Brick
Description
Overview
Product Description

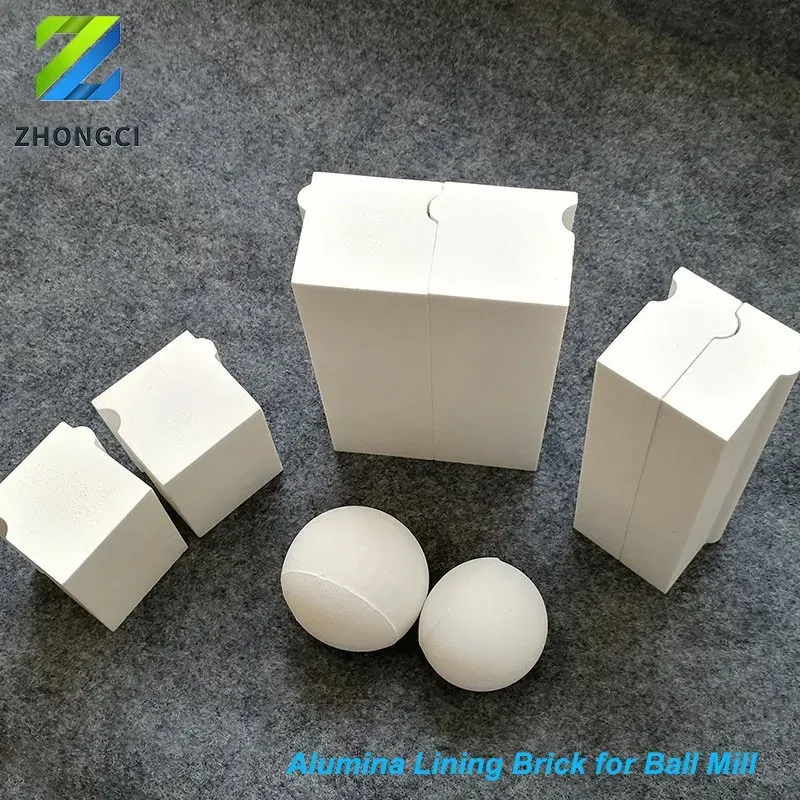

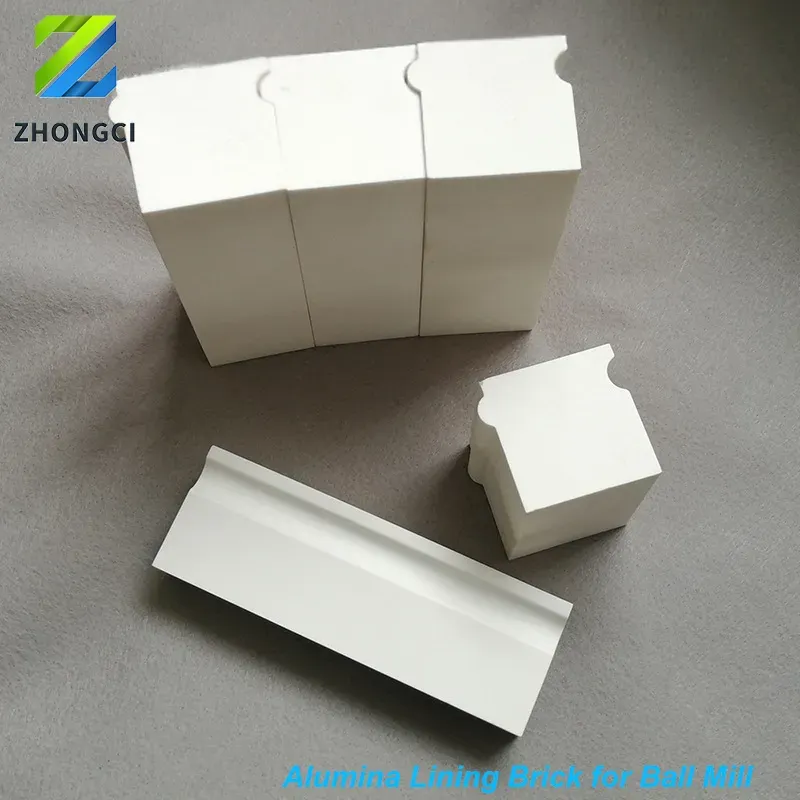

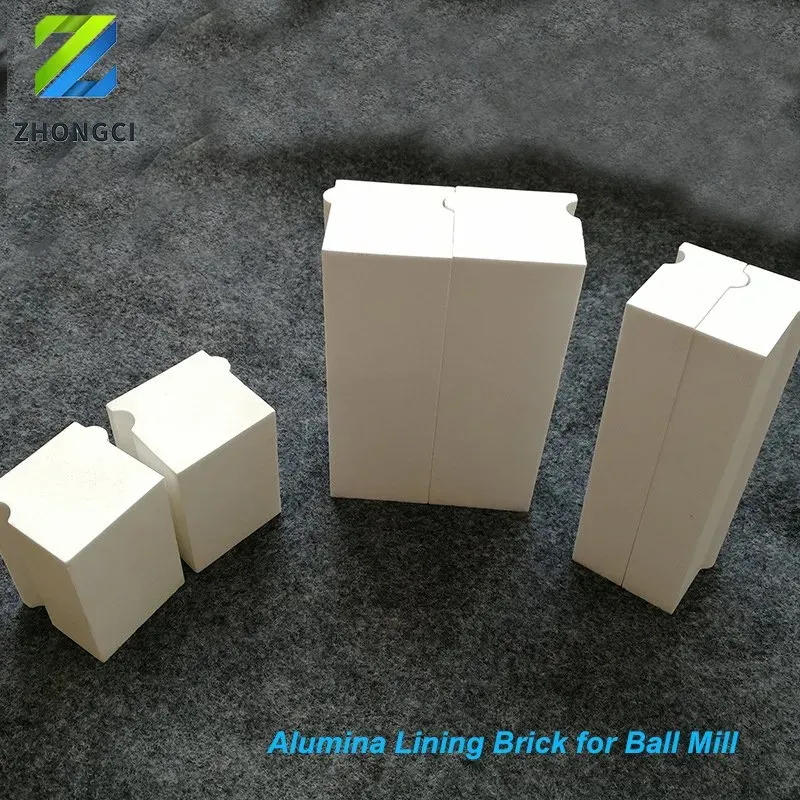

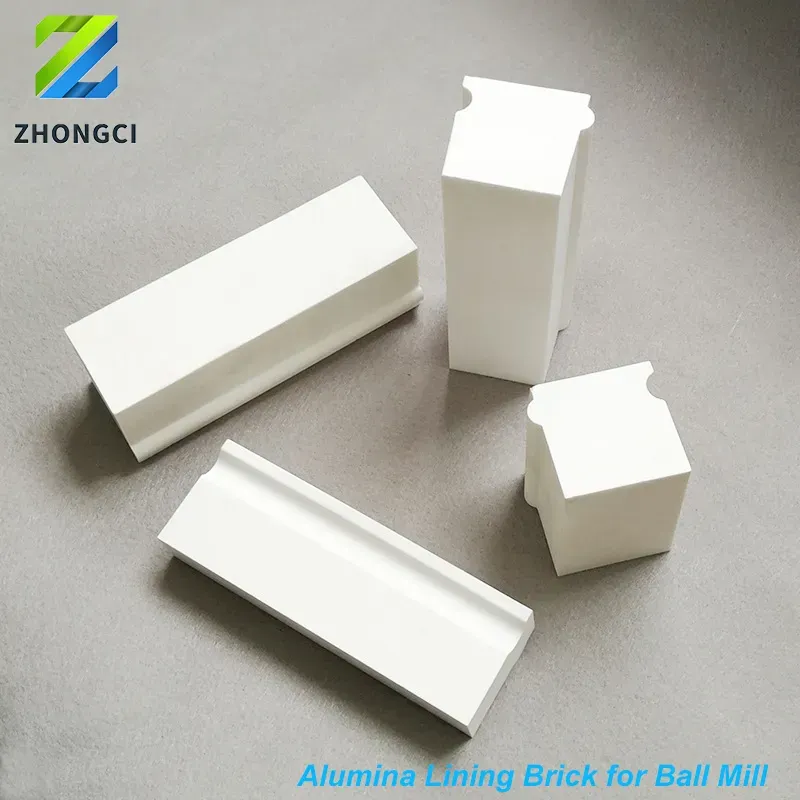

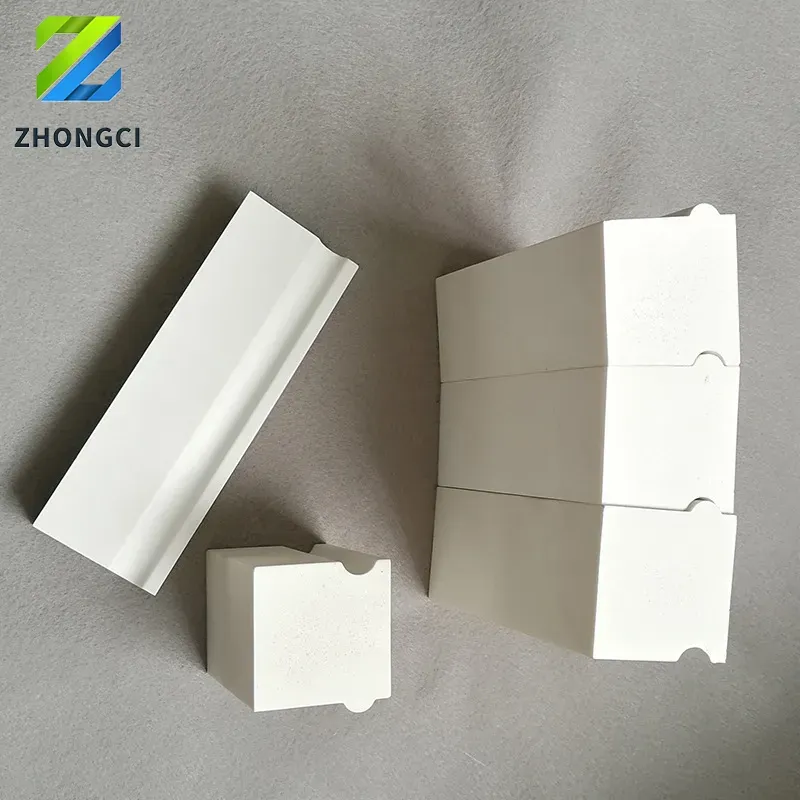

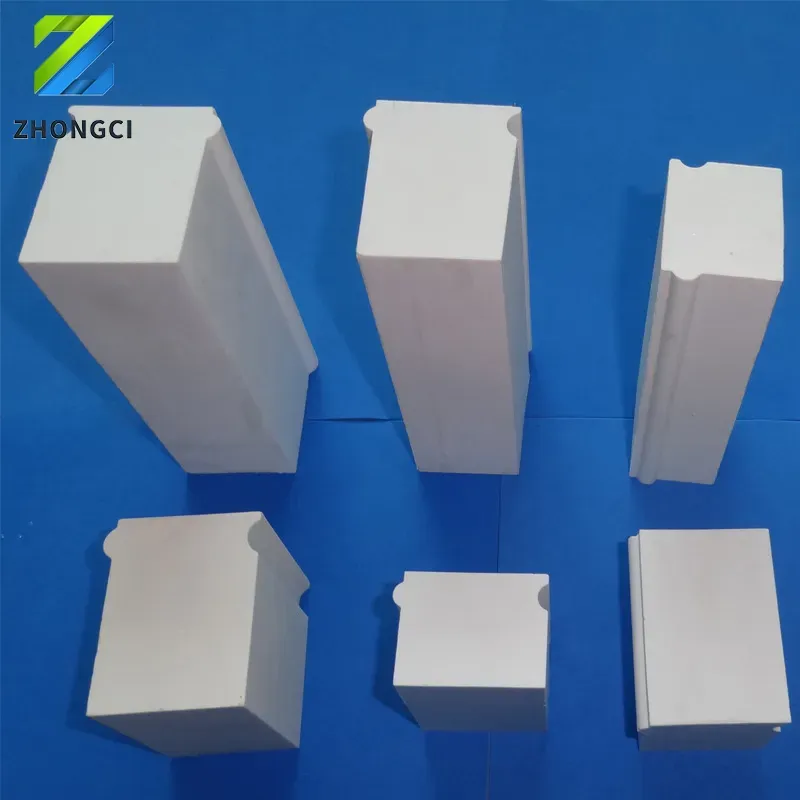

High Alumina Ceramic Lining Interlocking Brick for Cement Ball Mill Wear Liners
As a material, ceramic has beneficial anti-impact properties that prolong wear life and improve impact resistance. Ceramic wear liners are designed to be extremely resistant to abrasion even in high material flows and speeds, preventing material build-up.
Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
- Alumina 92: most common wear product with great wear resistance
- Alumina 95: increased wear performance
- Alumina T95: premium alumina for best wear resistance
- Zirconium toughened alumina (ZTA): increased strength and impact resistance
Alumina mill linings (alumina bricks and tiles) are the perfect solution for protecting grinding ball mills from wear, as they allow for a constant use over an extended period of time without any routine maintenance.
Feature: High performance abrasion resistance lining brick is one of our main products by the advanced technology with the perfect character in abrasion resistance, external appearance, complete specification, and easier application.
Rectangle brick
| L (mm) | W (mm) | H (mm) |
|---|---|---|
| 150 | 50 | 40 |
| 150 | 50 | 50 |
| 150 | 50 | 60 |
| 150 | 50 | 70 |
| 150 | 50 | 100 |
Application
Detailed Photos
Production Flow
Hot Selling Ceramics
Packaging & Shipping
Basic Info.
| Model NO. | zc-alb01 |
|---|---|
| Material | Aluminum |
| Type | Wear Resistant Ceramic |
| Al2O3 | 92% |
| Density | 3.83 G/Cm³ |
| Hv 20 | 1200 |
| Rock Hardness Hra | 90 |
| Bending Strength MPa | 330 |
| Compression Strength MPa | 1800 |
| Fracture Toughness Kic Mpam 1/2 | 4.2 |
| Transport Package | Carton Box + Pallet |
| Specification | 100X100X6~50mm, 150X100X6~50mm, etc. |
| Trademark | Zhongci |
| Origin | China |
| HS Code | 69091200 |
| Production Capacity | 10000 ton/Year |
