Basic Info.

Model NO. chemshun ceramic

Density 3.0~3.7g/Cc

Self Abrasion Loss <0.008%

Property High Hardness/Purity/Wear Resistant/Wear Impact

Size Available and Customized Size

Applied Equipment Ball Mill

Application Industry Ceramic/Cement/Paint/Porcelain/Pigment Industry

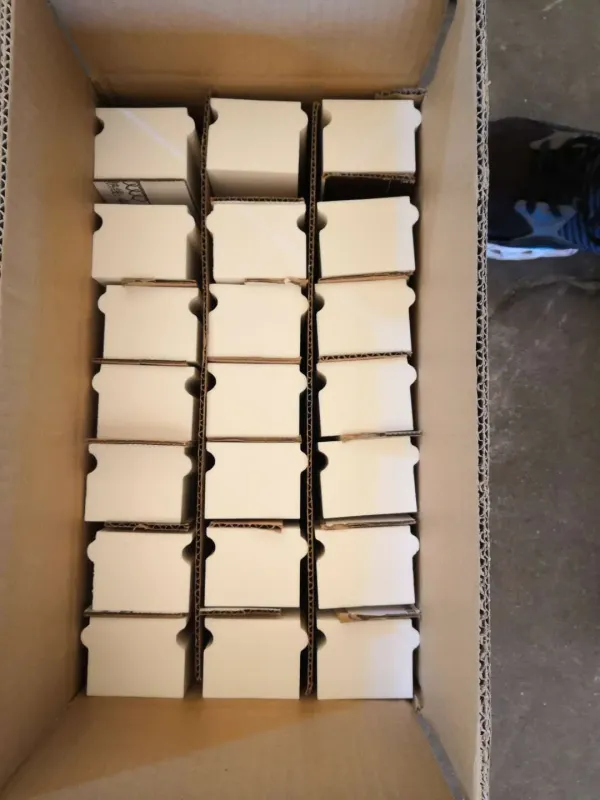

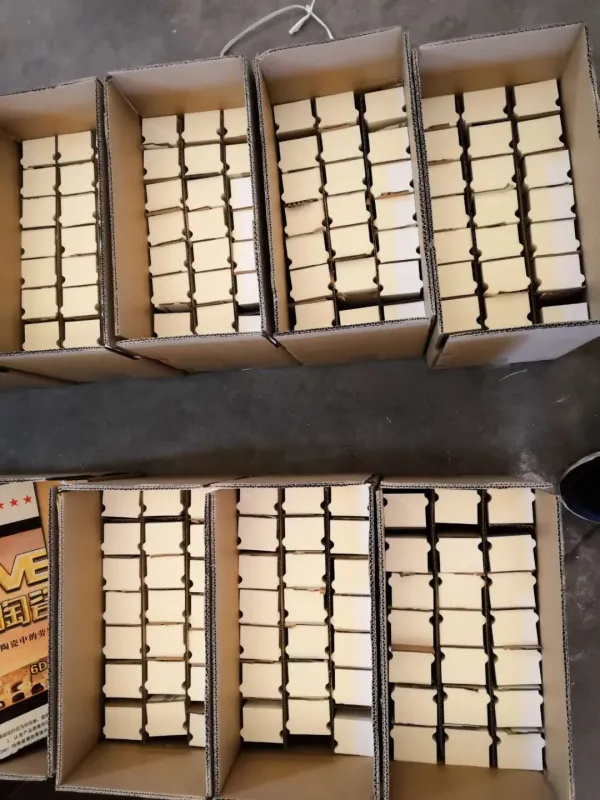

Transport Package Carton+Pallet

Specification 150x70x50mm

Trademark Chemshun

Origin Pingxiang, China

HS Code 69091200

Production Capacity 3500ton

Product Description

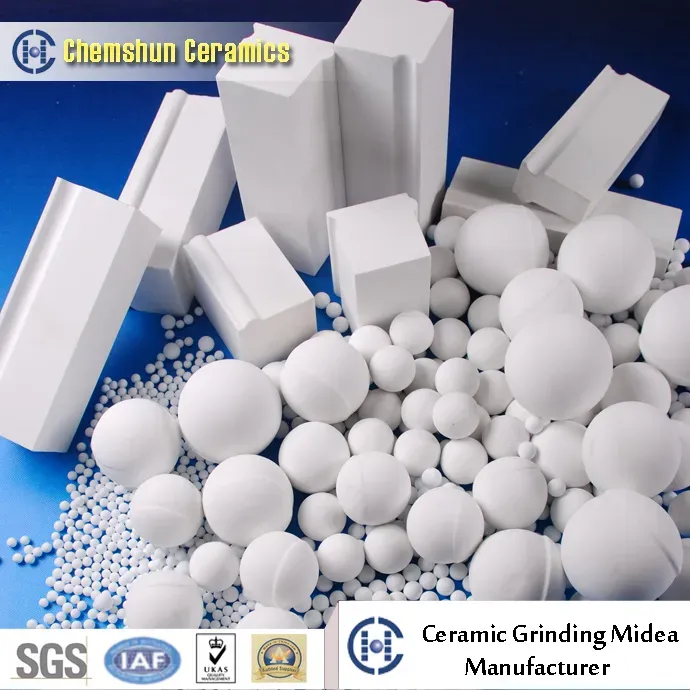

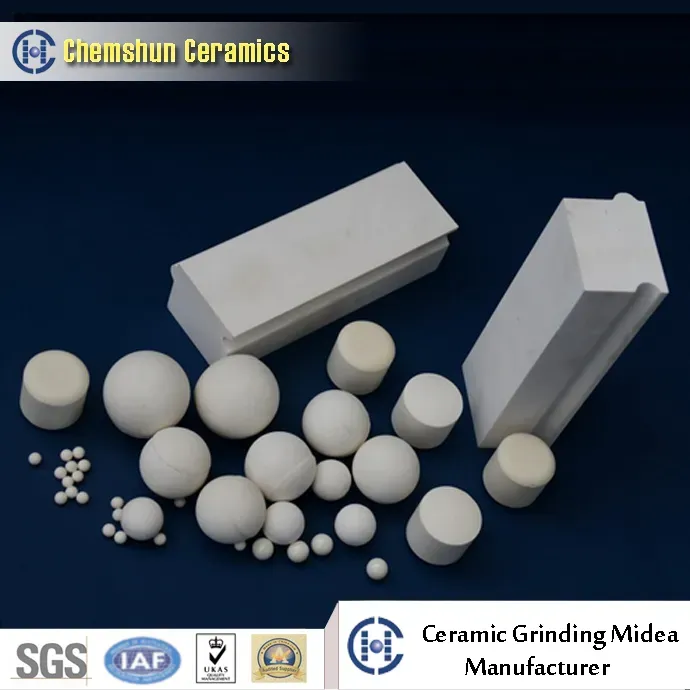

Alumina Lining Bricks

Ceramic Grinding Lining Brick can be divided into rectangular brick, trapezoidal brick and irregular brick as shape.

It has advantages of high hardness, wear resistant, anti corrosion, the neat degree good etc.

It is the best choice for ball mill wear-resistant lining and can effectively improve the grinding efficiency, reduce the grinding cost, reduce product pollution. It is widely used in ceramic, cement, paint, chemical, pharmaceutical, coating etc.

>>> Chemshun Ceramic Advantage:

Afford the standard and pre-engineered bricks
Professional technical team to afford CAD designs
Professional installation team to afford install service
Professional installation team to afford install service

>>> Chemshun Ceramic Product Salient Property:

Excellent wear and corrosion resistance property
Excellent wear and corrosion resistance property
Effectively improve the grinding efficiency
Effectively improve the grinding efficiency
Easy to handle size and weight
Fast and safe installation

Technical Data of Alumina grinding product from Chemshun

Properties	Typical Value
Alumina Content	95% 92% Microcrystal 92% 65%
Density	3.7g/cm3 3.65g/cm3 3.6g/cm3 3.0g/cm3
Water absorption	<0.01% <0.01% <0.01% <0.1%
Self Abrasion Loss	<0.008% <0.01% <0.01% <0.03%
Moh's hardness	9 scale 9 scale 9 scale 7~8 scale

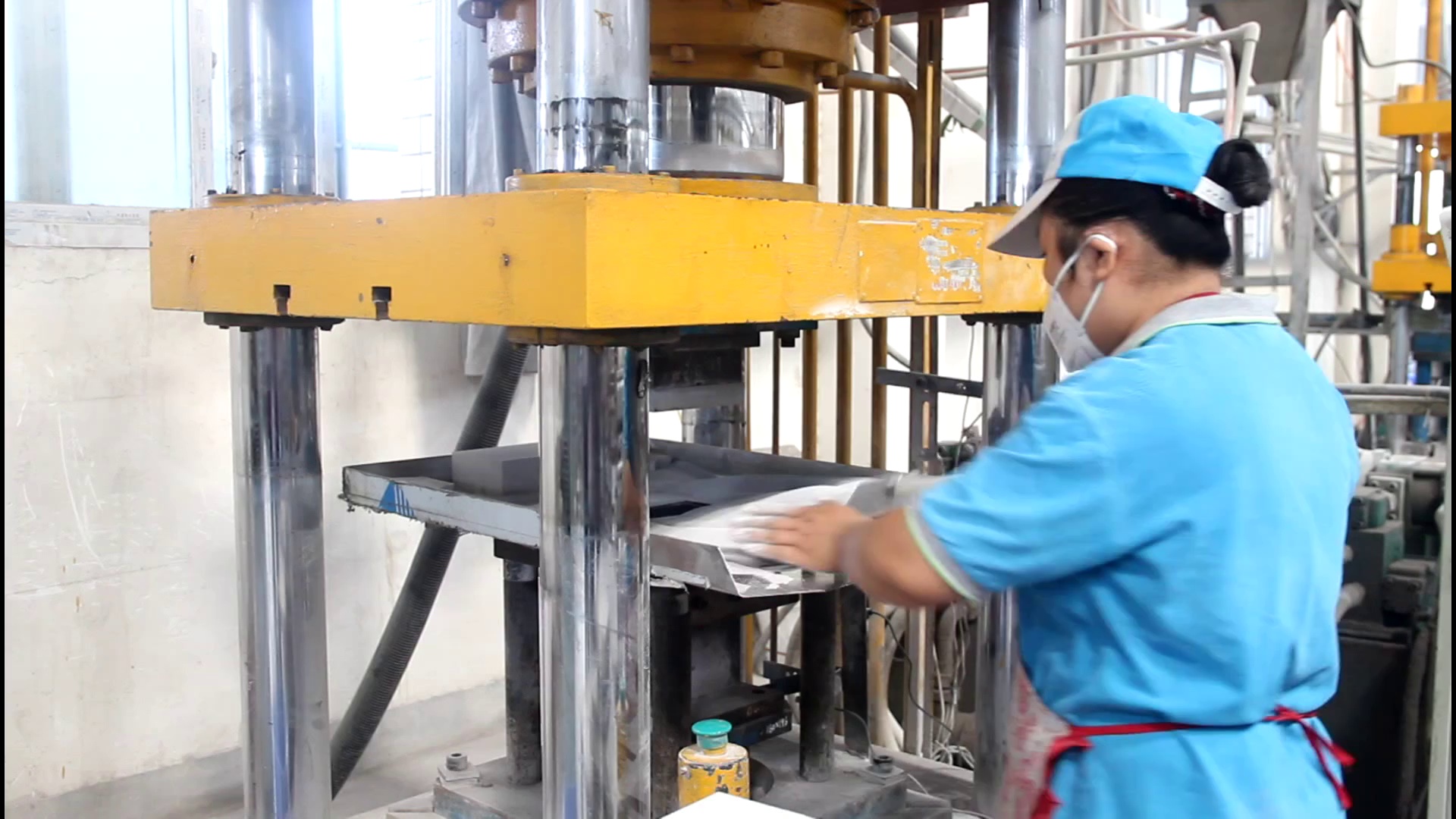

Balling method	Rolling&Cool-isostatic-pressing

Available size of lining brick from Chemshun

Item	LxHxW1/W2(mm)

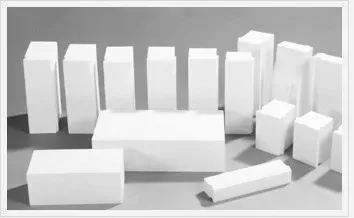

Rectangular brick	150x40/50/60/70/80x50
Half rectangular brick	75x40/50/60/70/80x50
Ladder brick	150x40/50/60/70/80x45/50
Thin brick	150x40/50/60/70/80x21/22.5
Half ladder brck	75x40/50/60/70/80x45/50

Application:

Ceramic Industry
Cement Industry
Paint Industry
Glass Industry
Porcelain Enamel Industry
Chemicals Industry
Pigment Industry
Pharmaceutical Industry

Service:

Any requirment about chemshun Alumina Ceramic Square Mosaic Tile, Ceramic Grinding Lining Brick, Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service.
