Self-Lubricating Shock Absorber Bearing Bush for Vehicles
Contact Now
Description
Basic Info
- Model NO. SF014, SF019
- Lubricant & Load Aero Dynamic Bearing
- Bushing Material Self-Lubrication
- Bearing Direction Radial
- Lubricating Way Oil-Lubrication
- Lubricating Film Thickness Thin Film Lubrication
- Apply Shock Absorber of Automobiles and Motorcycles
- Lead Free Available
- Advantage Wear Resistant
- Lubrication Self-Lubricated
- Transport Package Standard Export Packing
- Specification ISO
- Trademark Machinery
- Origin China
- HS Code 848330009
- Production Capacity 100 million / Month
Product Description

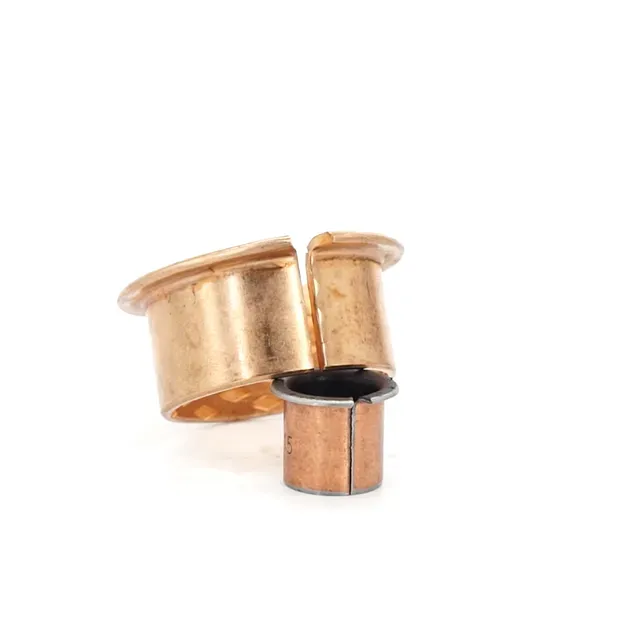

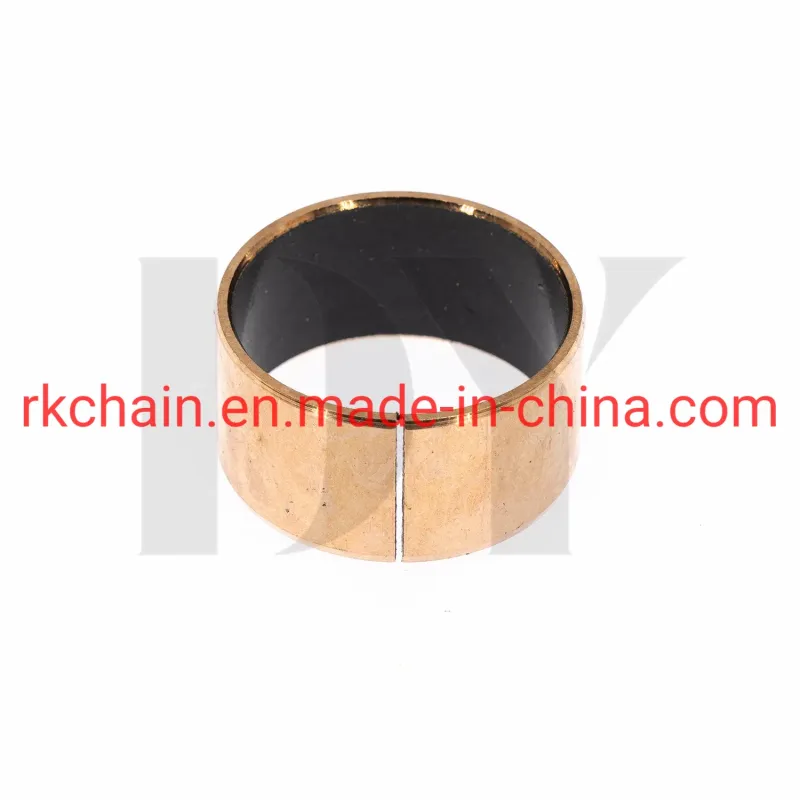

SF014, SF019 Shock Absorber Self-lubricating bearing
It is developed according to reciprocating motion of shock absorber and high pressure in flank. It can offer low friction coefficient and good anti-abrasion, be used in semi-dry condition. The product is applied to shock absorber of automobiles, motorcycles and pneumatic cylinder.
Note: SF019 without lead
Availability:

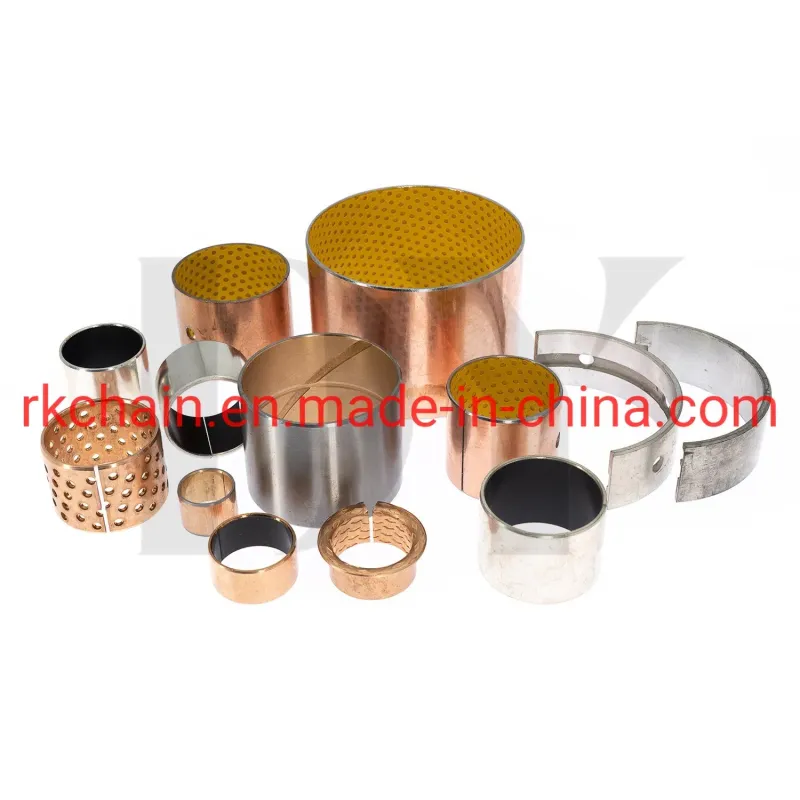

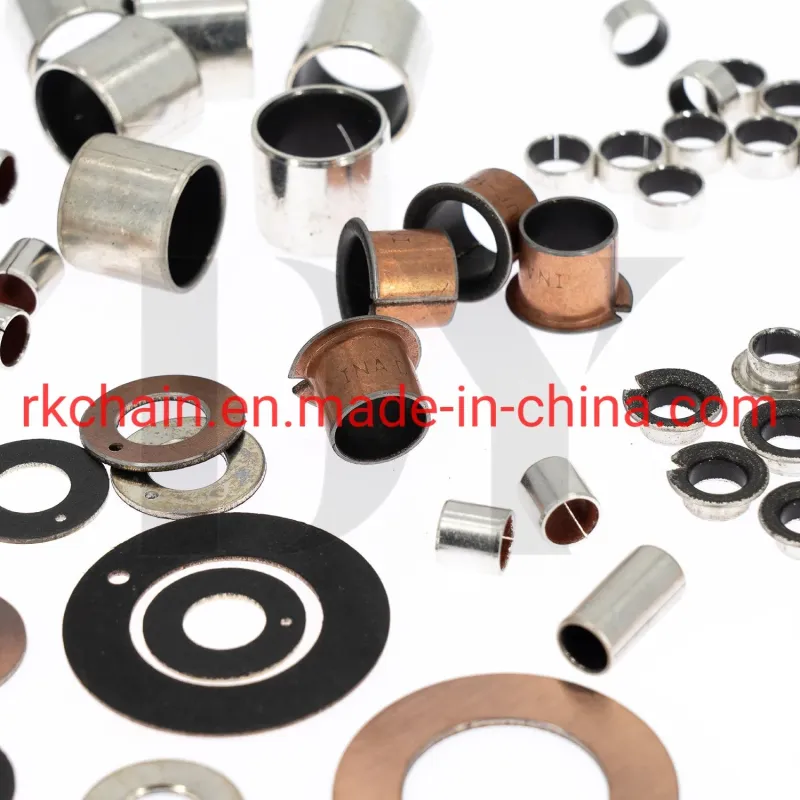

Cylindrical bushes, flanged bushes, thrust washers, strip and non-standard parts as the clients supplied drawing and etc.
Tolerance:
Recommended housing bore tolerance is H7, while the shaft diameter tolerance is F7 or H8.
Tech Data:
- Max load capacity P(Dynamic) 140N/mm²
- Maximum PV value (Dry) 3.6N/mm².m/s
- Max load capacity P(Static) 250N/mm²
- Maximum PV value(Oil) 50N/mm².m/s
- Max line speed V(Dry) 2.5m/s
- Working temperature -20°C~+280°C
- Max line speed V(Oil) 5m/s
- Thermal conductivity 40W/(m.k)
- Friction coef 0.08~0.20
- Coefficient of linear expansion 12*10⁻⁶/k
