Product ID: 68594742

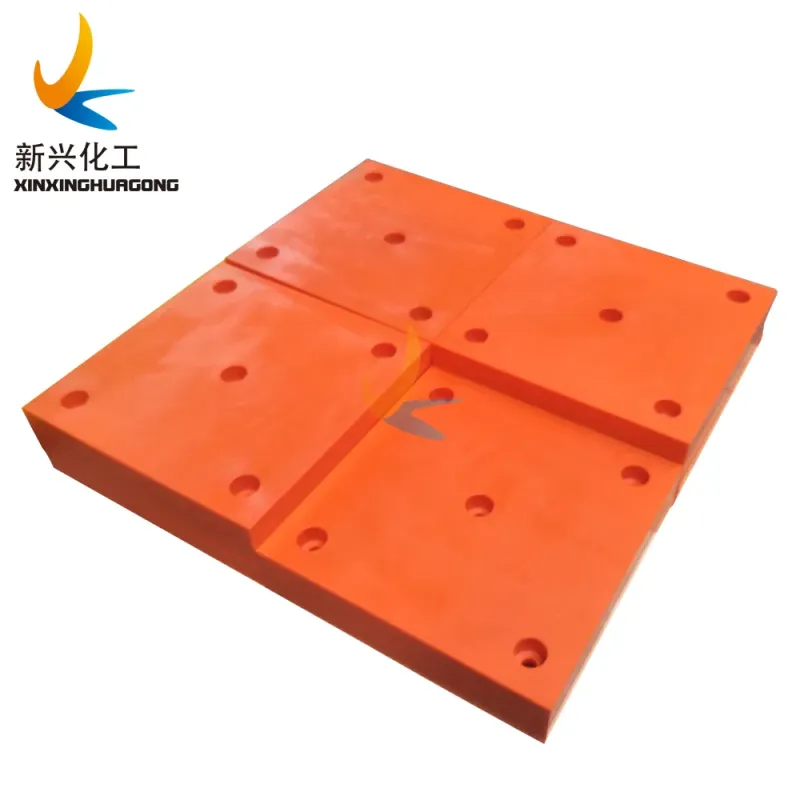

Multi-Color Anti-UV Waterproof Dock Sliding Pads for Marine Fender
Contact Now
Description
- Overview
- Product Description
Basic Info.
Model NO.
XX-121
Structure
Solid
Size
Customized
Breaking Elongation
> 300%
Density
0.93-0.97
Abrasion
80, Steel = 100
Friction Coefficient
0.12-0.15
Impact Strength
131mj/mm2
UV
Anti-Ultra Violet
Feature-1
Wear Resistant
Feature-2
High Impact Resistant
Feature-3
Chemical Resistant
Feature-4
Waterproof
Surface
Smooth
Transport Package
Plywood Pallet
Specification
(PE 1000 Virgin, PE 1000 Recycle) type
Trademark
XINXING
Origin
China
HS Code
3920109010
Production Capacity
500000pieces/Year
Product Description
Brief Introduction

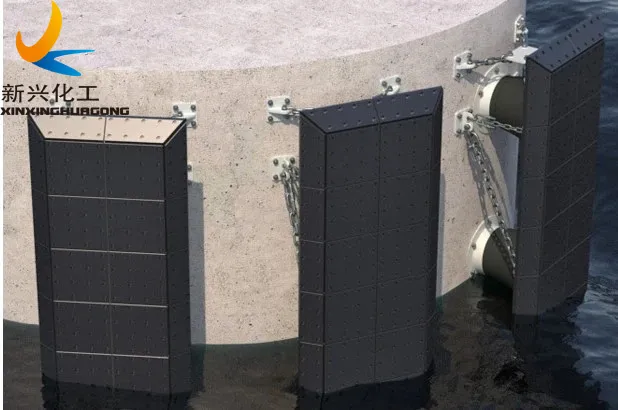

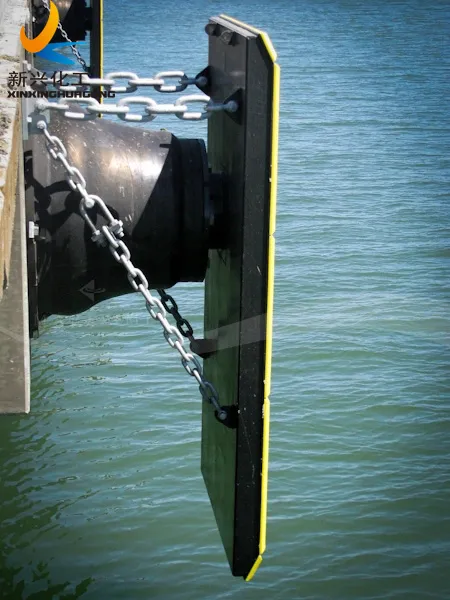

Marine Fenders are bumpers designed to absorb the kinetic energy of a vessel berthing against a jetty, quay or another vessel. They prevent damages to boats, vessels and berthing structures.
Well-designed docking fender systems absorb the ship's impact at docking, transforming ship berthing energies into reactions, transmitting to both the ships and berth structures.
There are different types and ranges of fenders, depending on many variables, including dimension and displacement of boats, maximum allowable stand-off, specific berthing structure, tidal variations and other conditions.

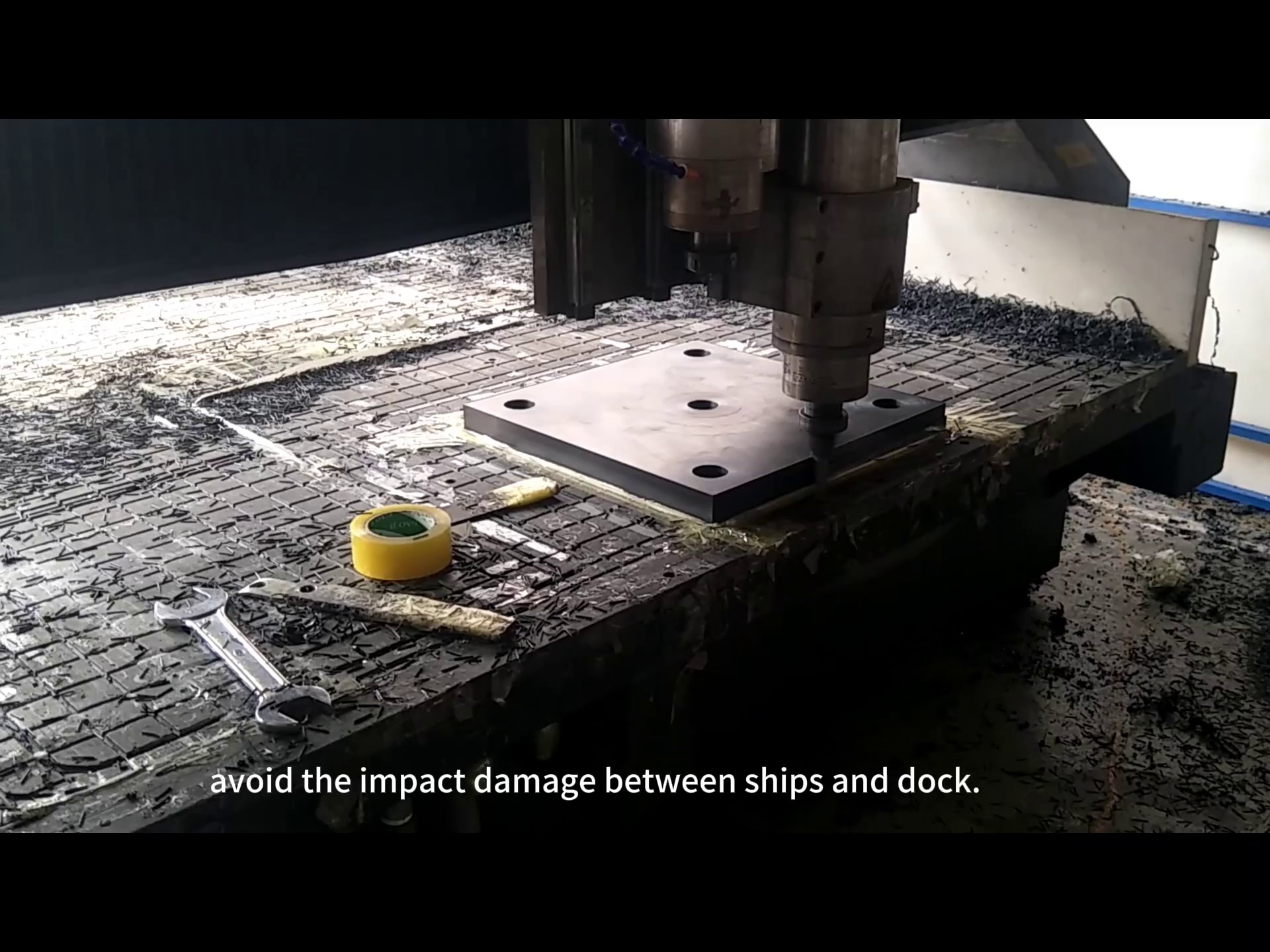

Ultra-high molecular weight polyethylene (UHMWPE) dock fender could avoid the impact damage between ships and dock.
On account of the high impact resistance performance, UHMWPE dock fender instead of the traditional steel ones is widely used in ports and docks at home and abroad.
Excellent Advantages of Marine Fender Pads
*Light weight
*Superior high impact strength
*High abrasion resistance
*Low co-efficient of friction
*Shock and noise absorption
*Excellent self-lubrication
*Good chemical resistance
*Excellent UV stability-highly suited to the harsh climate
*Ozone resistant
*100% recyclable
*Non toxic
*Temperature resistant (-100ºC to 80ºC)
*No moisture absorption

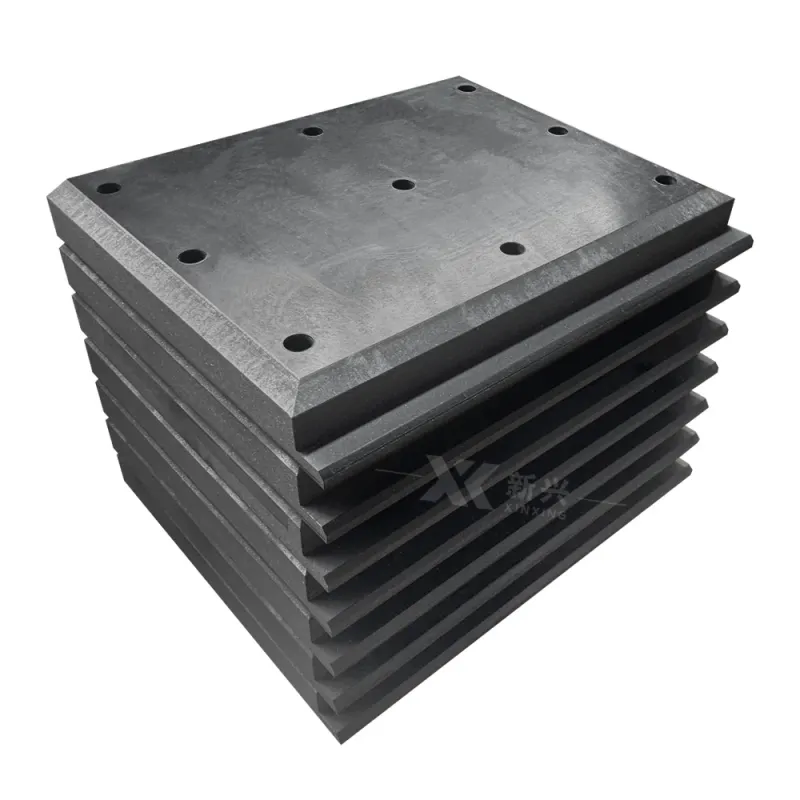

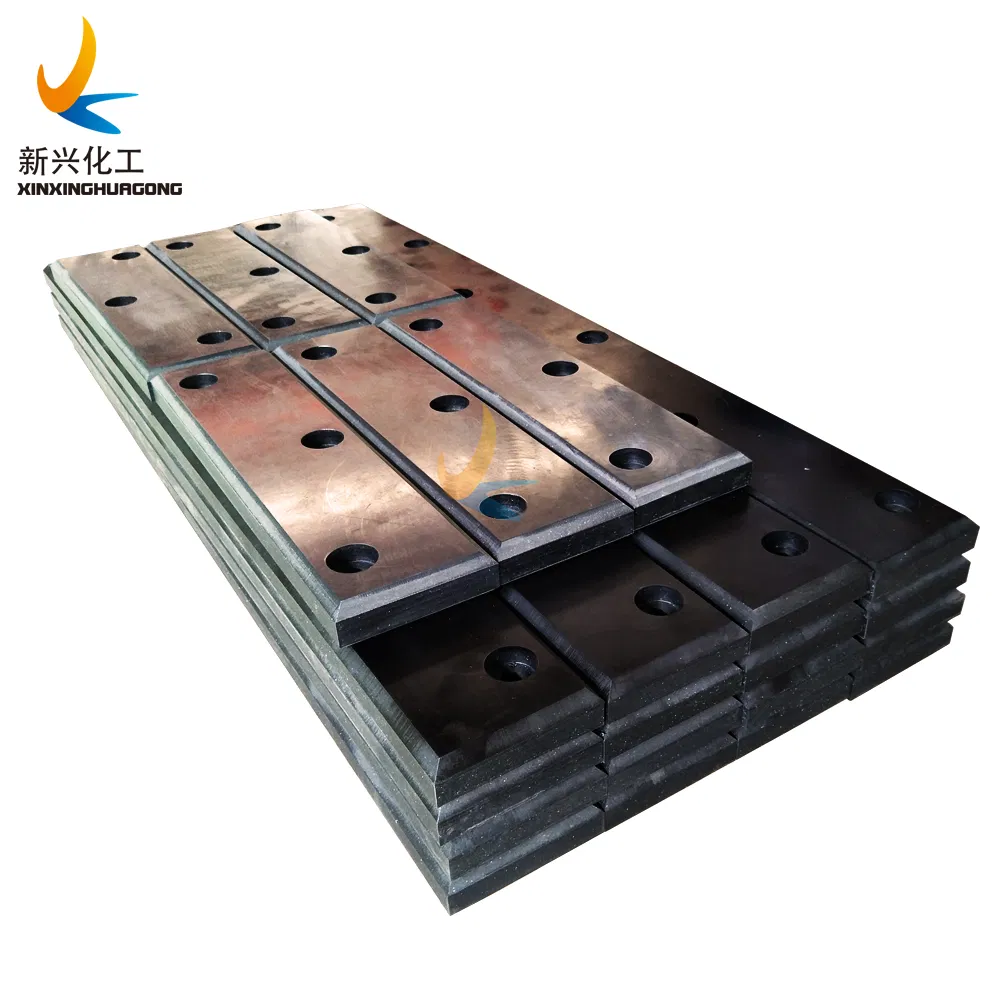

*It could be supplied pre-drilled for easy installation and chamfered to avoid snagging
*Anti-aging
Technical Data of Marine Fender Pads
| Properties of Virgin Grade Material | |||
| Property | Test Method | Virgin Material | Unit |
| Molecular weight | 3-9 million | g/mol | |
| Density | ISO 1183-1:2012/ DIN53479 | 0.92-0.98 | g/cm3 |
| Compression Strength | ISO 604:2002 | ≥32 | Mpa |
| Tensile Strength | ISO 527-2:2012 | ≥22 | Mpa |
| Elongation at break | ISO 527-2:2012 | ≥280 | % |
| Dynamic Friction coefficient | ASTM D 1894/ GB10006-88 | ≤0.18 | |
| Notched impact strength(Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | KJ/m2 |
| Vicat softing point | ISO 306:2004 | ≥80 | ºC |
| Hardness Shore-D | ISO 868:2003 | 61-66 | D |

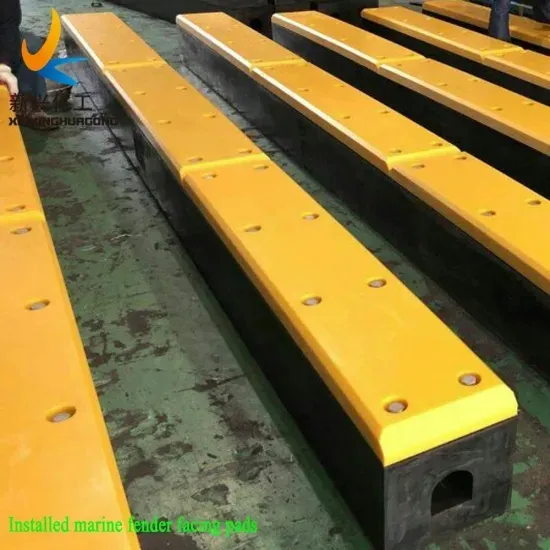

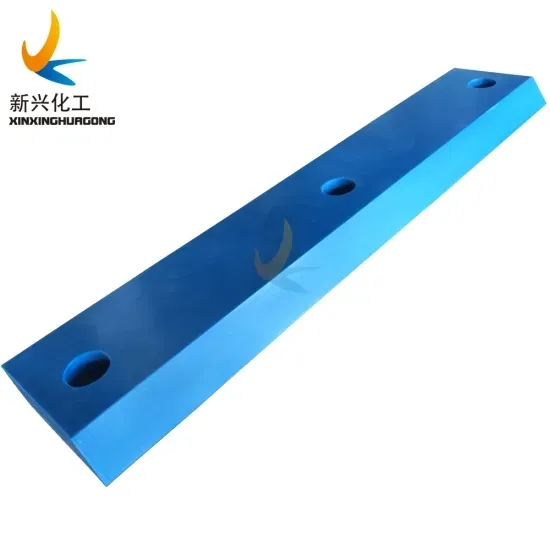

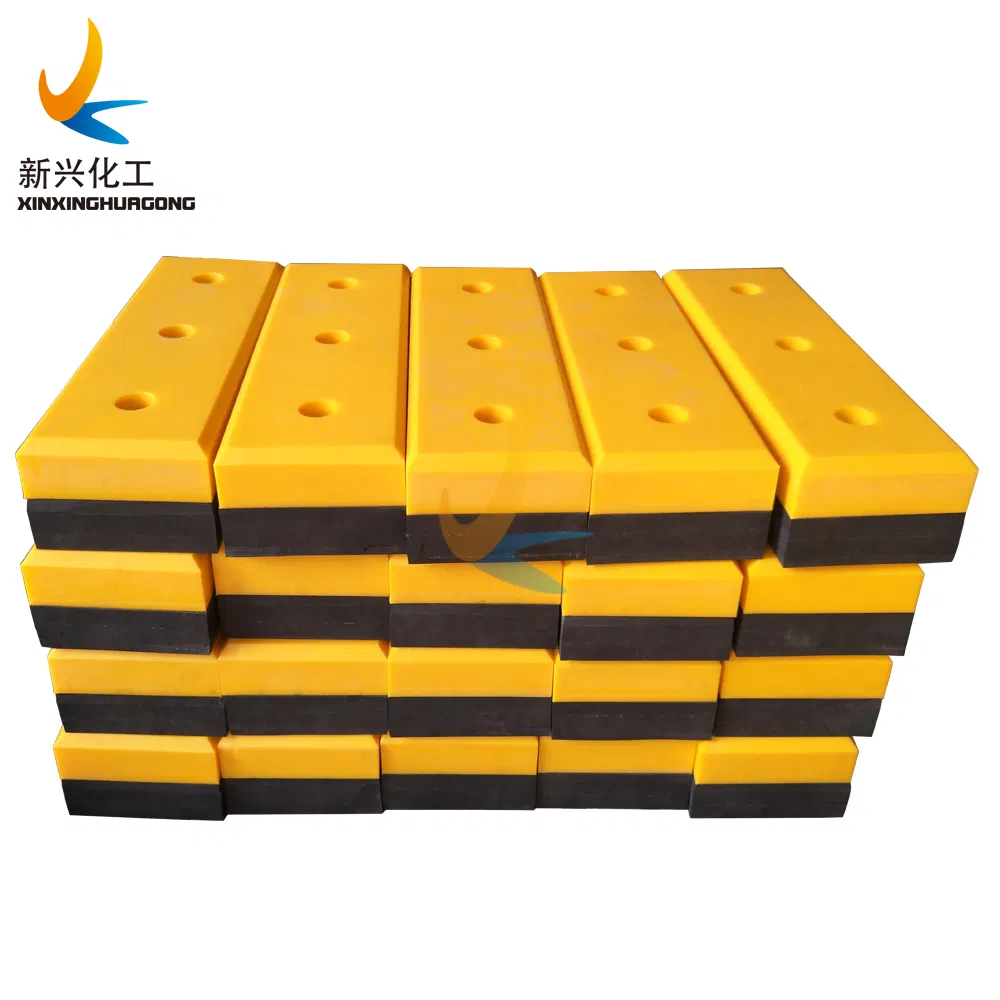

Specifications of Marine Fender Face Pad
| Material | UHMWPE/HDPE |
| Size | Customized, 1000mmx100mm to 6000mmx2000mm |
| Thickness | 6-300mm |
| Color | Black, blue, green, yellow, white, red etc. |
Key Specifications/Special Features:
Maintenance-free HDPE facing pads for marine port fenders have a standard tolerance and meets American society for testing and materials ASTM D4020 specifications.
Maintenance-free HDPE facing pads for marine port fenders are impact-resistant, chemical-resistant and moisture-resistant plastic material that have excellent abrasion-resistance and a low-friction surface.
Colours includes: white, blue, yellow, green, red, gray, orange and many others
Application
1.Harbor construction boats

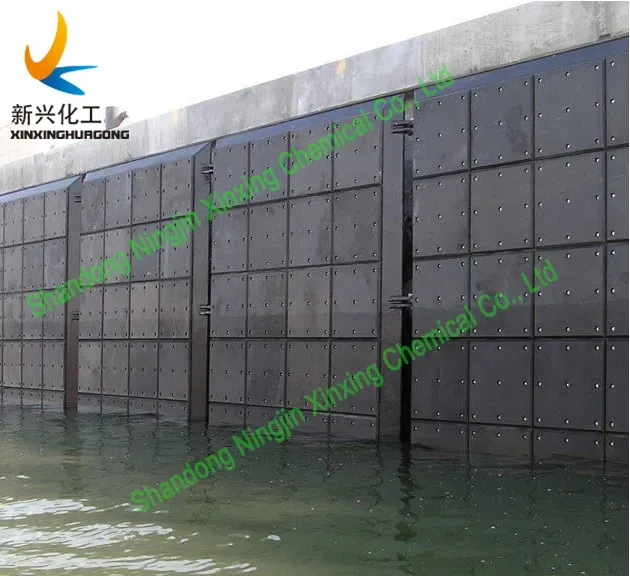

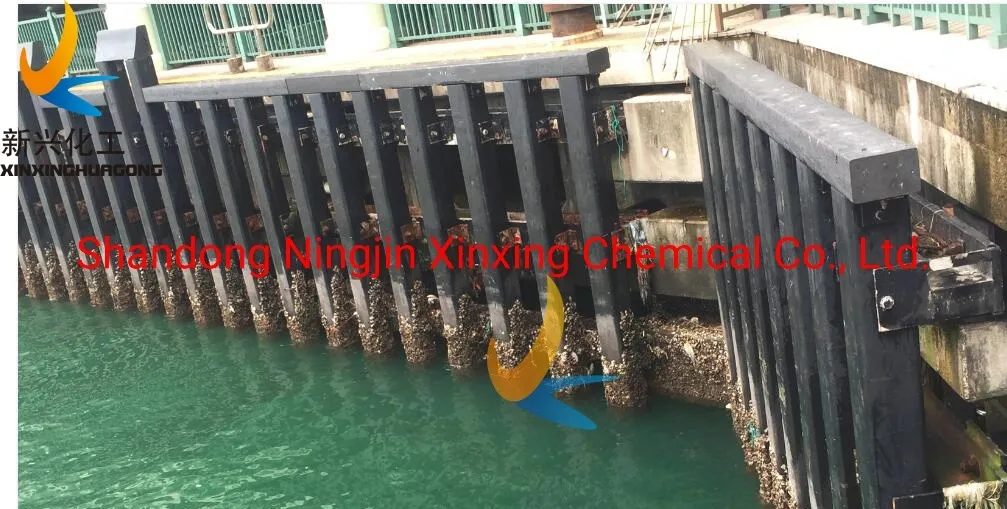

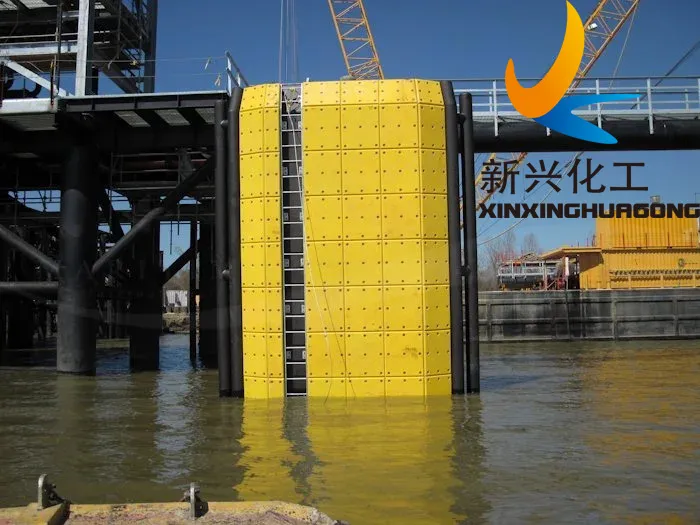

2.Individual profiles on quay walls
3.Rubbing strips
4.Wear pads to cover wood and rubber
5.Low friction bushings
6.Truck docks pilings
7.Fenders for dock plate protection
8.Wear plates and slides
9.Dredges
10.Floating docks
11.Slide wall fenders to protect
12.Wear plates where dock meets pillage
13.Dredge from barges
14.Bushings for pivots
About Shandong Ningjin Xinxing Chemical Co.,Ltd.

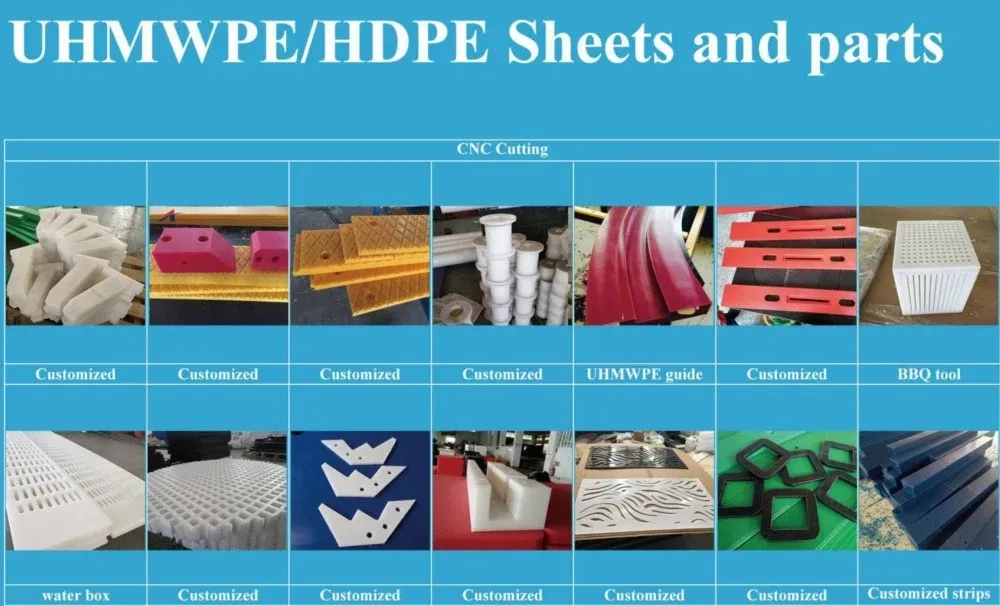

With the excellent experience of many years in manufacturing engineering plastics, Xinxing was established in 1989. Now, it becomes the largest and most professional manufacturer of Engineer plastics such as UHMWPE Sheets, ground protection mats, crane outrigger pads, UHMWPE fender pads, wear-resisting liners, HDPE Sheets and parts, PP sheets and parts and other engineer plastics.

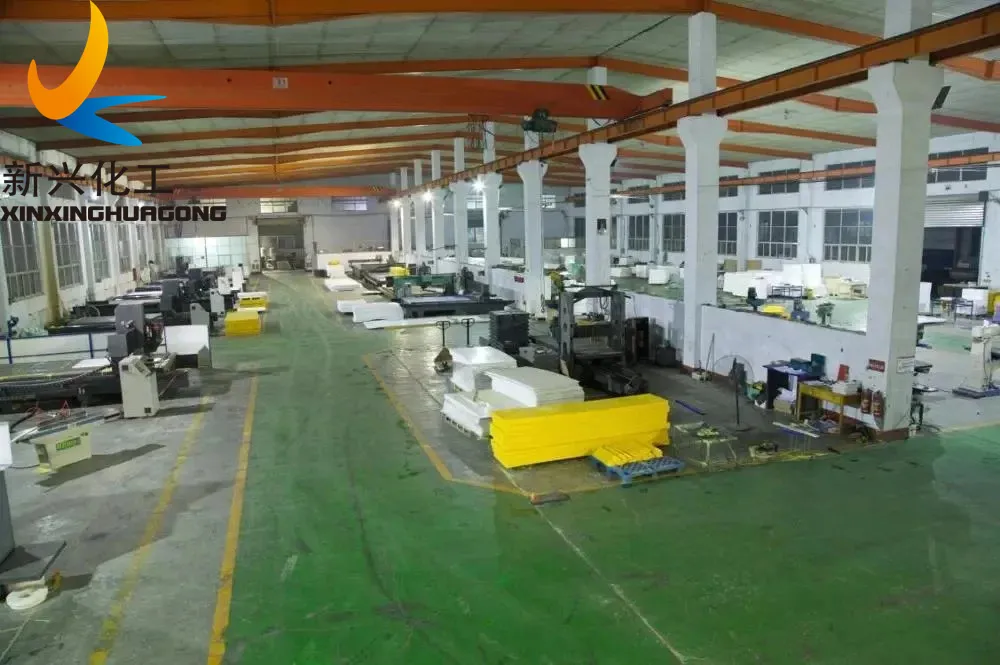

Our factory covers an area of 36000 square meters which has 7 big workshops for different products and application. Xinxing is the only manufacturer that produces both extruded and pressed plastic products in China and represents the most advanced productive forces and highest quality.
Our products are widely exported to many countries all over the world such as Indonesia, Malaysia, Korea, Japan, Russia, Germany, India, England, Italy, South America, Canada, Chile, etc.
Our management creed is "Quality first, Customer first, Keeping improving". We are willing to establish a wide and continuous cooperation with enterprises home and abroad. We sincerely hope to establish business relations with you.
FAQ
Q1. Are you trading company or fender pads manufacturer ?
A1. Yes,of course. We are factory, too.
Q2. Do you provide sample?
A2. Yes, we could offersample for free charge. But we are sorry that we do not pay the cost of freight.
Q3. How long is your delivery time?
A3. It mainly is according your quantity. Generally, it is 10 days if products are in stock. However, it is 15-20 days if products are not in stock.
Q4. What is your terms of payment?
A4. In summary, payment term is flexible. We accept T/T, L/C, Paypal and other terms. We a should open to dicuss.
Q5. Is there any warranty on the quality of your products?
A5. About this question, please don't worry. We have more than 20 years of experience in producing products widely used in Europe, Russia and other countries.
Q6. What about the after-sales service?
A6. You may rest assured that the quality of our products is always excellent. In addition, we will fix completely if our products have any problems that bring you some trouble.
Q7. Do you have complete inspection facilities ?
A7. Yes, of course. We will check the quality of the goods strictly before they are packed.
Q8. Are the specifications of your products all fixed?
A8. No, we can manufacture products of special specifications according to your requirements.
If you have any other needs, please have a look at our related products.
We sincerely look forward to establishing business relationship with you. Please contact me if you have any other questions. I would like to help you in time.
