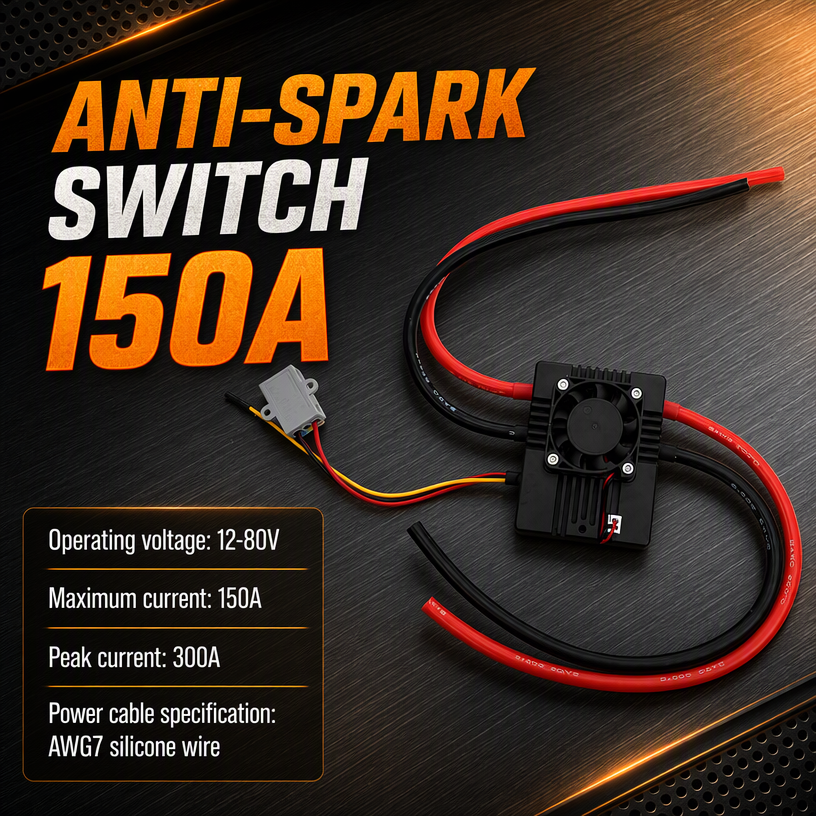

Anti-spark Switch 150A Anti Spark Module with Aluminum Base for Robot/Car/Boat
Contact Now
Description

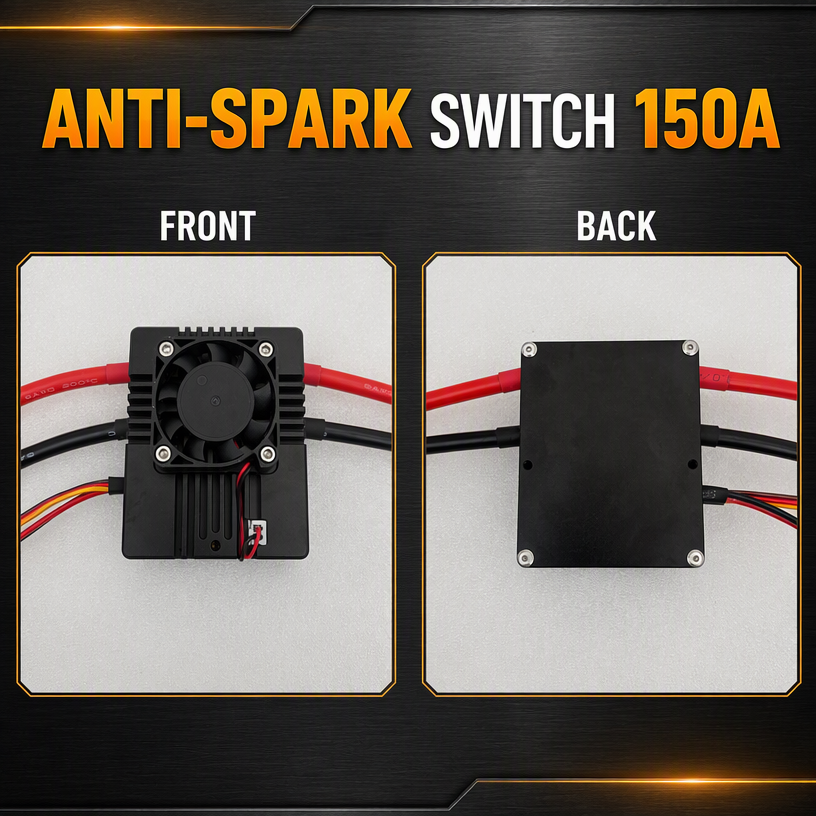

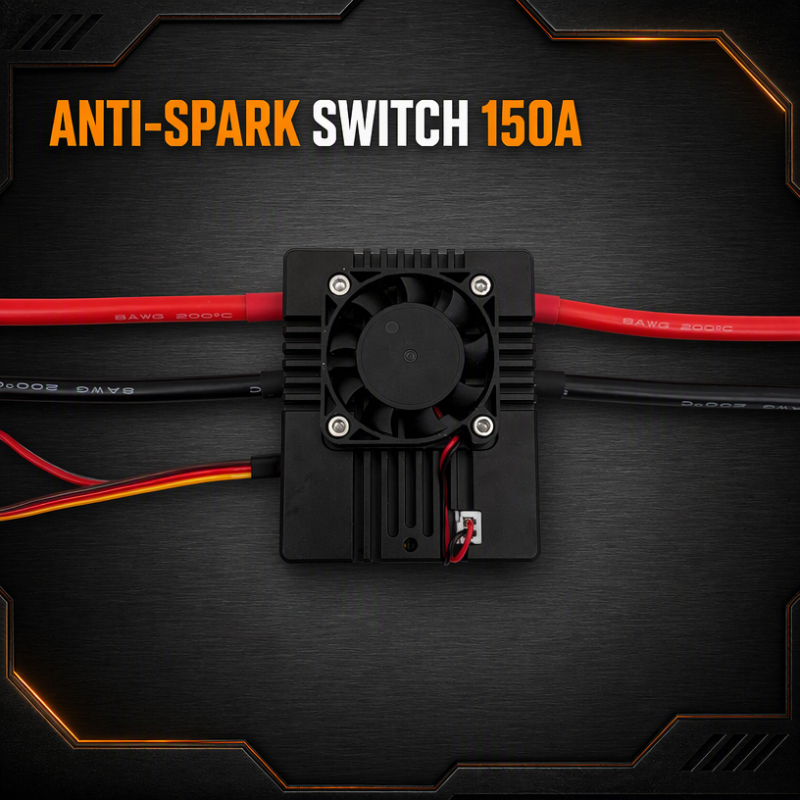

Anti-spark Switch 150A Anti Spark Module with Aluminum Base for Robot/Car/Boat
DC electronic Anti-spark switch is suitable for connecting batteries or other DC power sources.

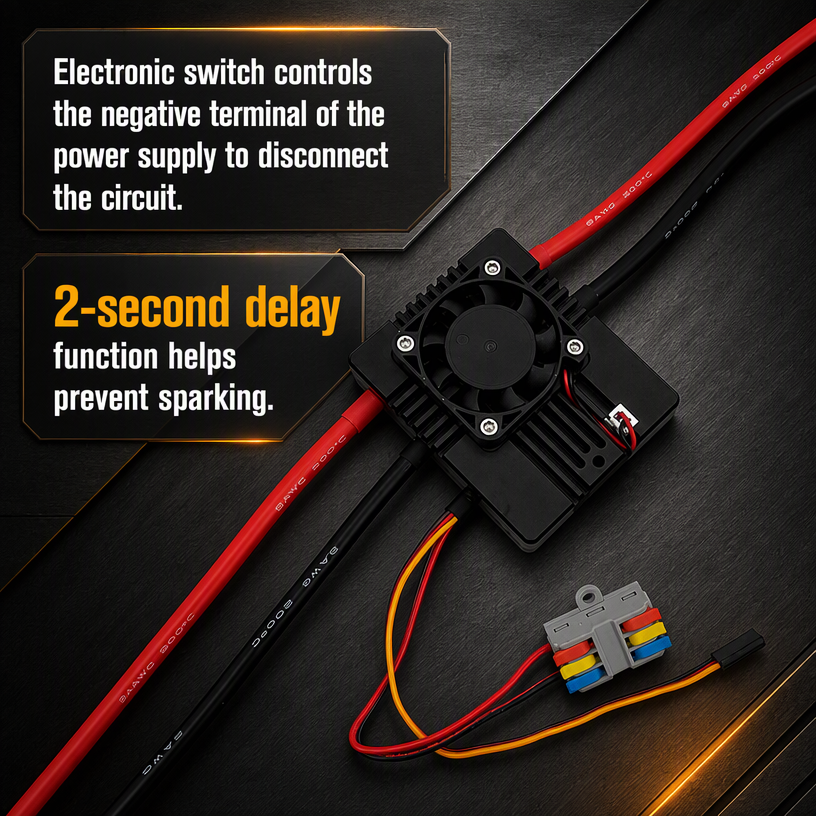

The electronic switch uses the control of the negative pole of the power supply to cut off the circuit. The switch adopts a 2-second delay function to prevent sparking.

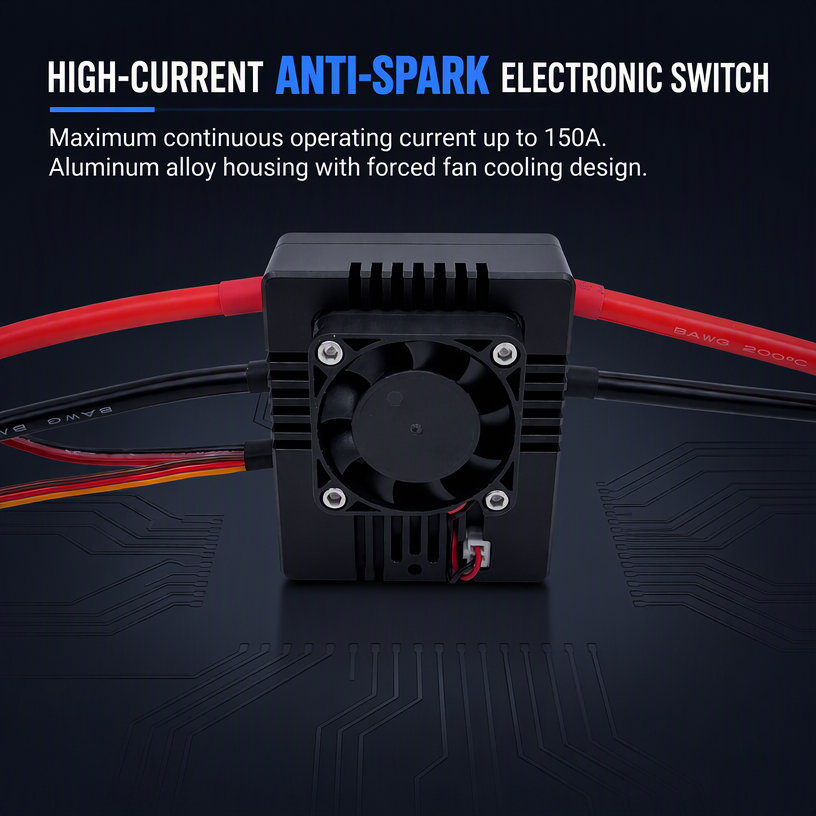

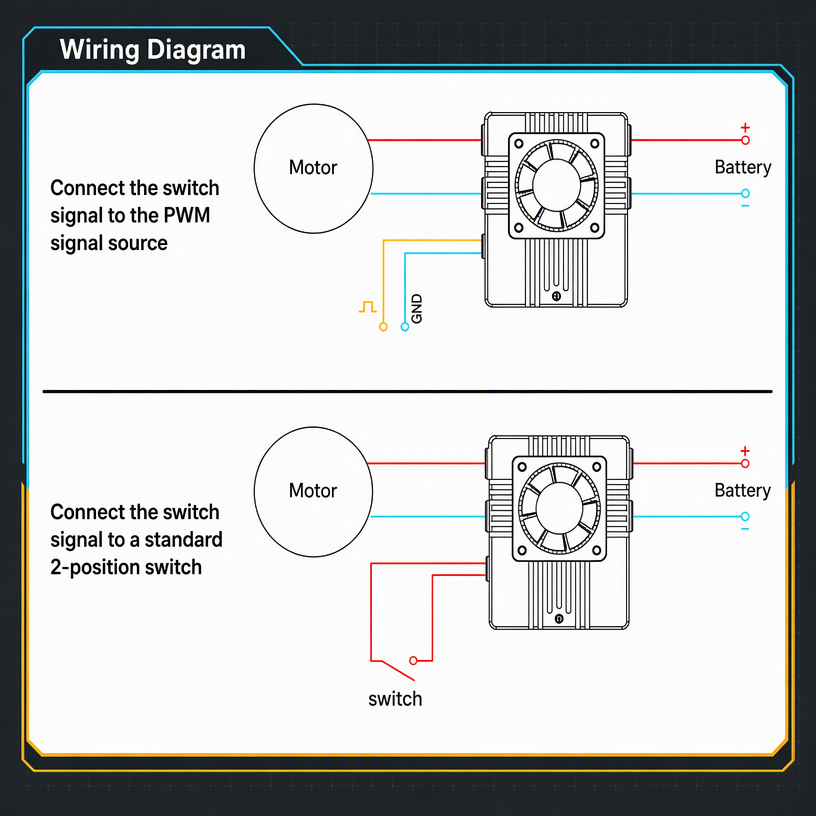

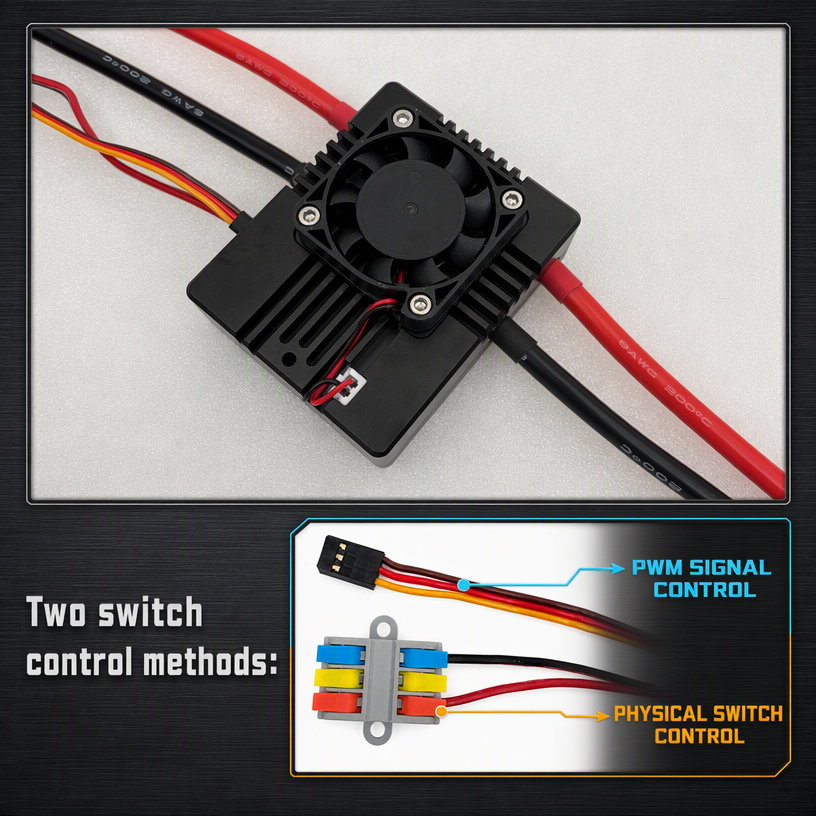

This product adopts two switch control methods, one is PWM signal control, and the other is physical switch control. The maximum continuous operating current of the switch can reach 150A, and the switch housing adopts an aluminum alloy shell with a fan for forced heat dissipation design.
| Model | KG200 | DC IN | 12-80V |
| Max current | 150A | Peak current | 300A |

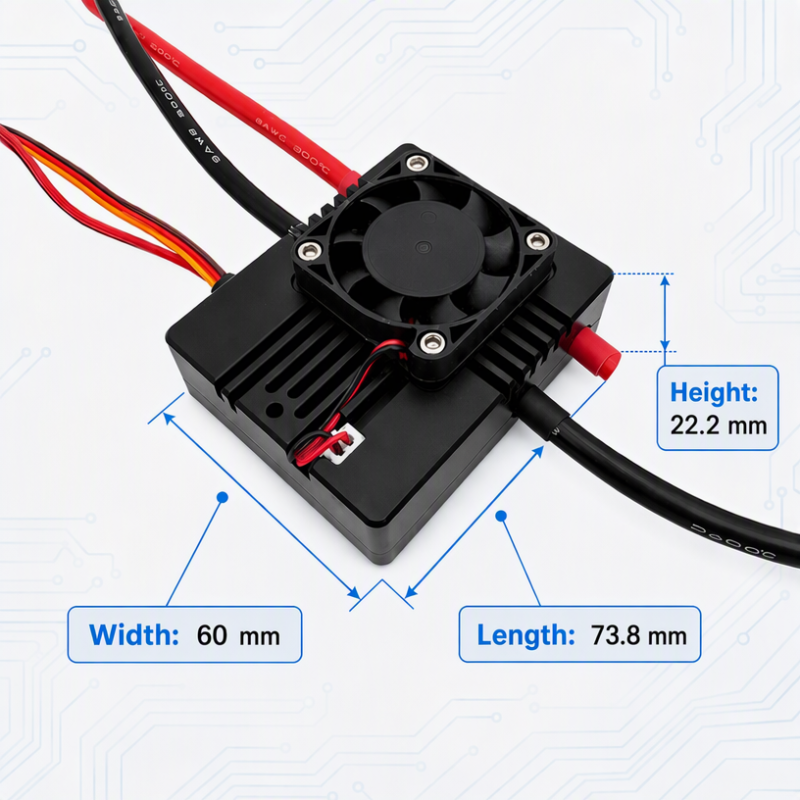

| Main power cable | AWG7 silicone wire | Size | 73.6 × 54 × 28.2mm |
| Cooling | Cooling fan and heat-dissipation fins | Color | Black |
Recommended application scenarios:
