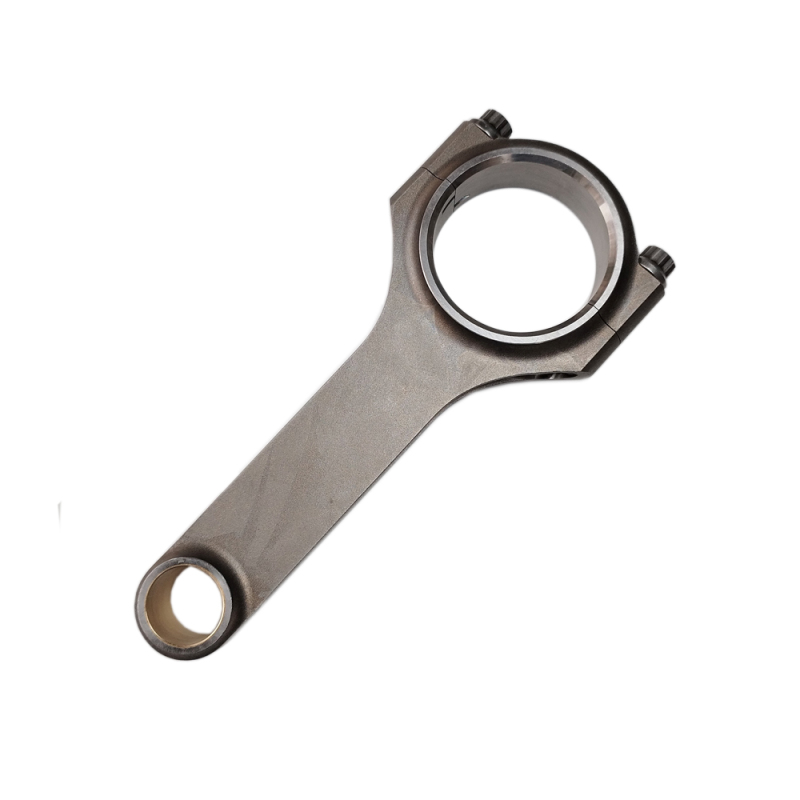

Toyota MR2 Celica 2.0L 3SGTE 138x22mm X beam Connecting Rods
Contact Now
Description
Connecting Rods for Toyota Celica 2.0L 3SGTE Main Sizes
| Brand: TAPPET |
 |
| Center to Center Length: 138mm/5.433" | |
| Big End Bore Diameter: 51.00mm/2.008" | |
| Big End Width: 26.80mm/1.055" | |
| Small End Bore Diameter: 22mm /0.866" | |
| Small End Width: 26.80mm/1.055" | |
| Beam Style: X-beam |
3S-GTE MR2 Turbo Conrods X beam Features
| Connecting Rod Bolt Diameter | 3/8" |
| Approximate Connecting Rod Weight | ~ |
| Advertised Horsepower Rating | 700hp |

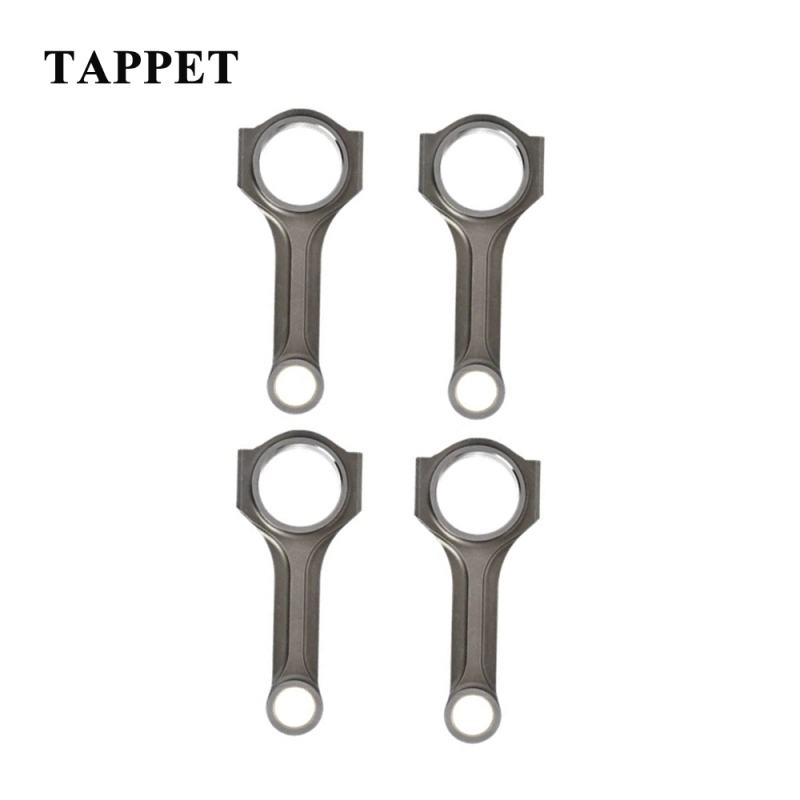

| Quantity | Sold as 4 pieces per set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes, Balance weighted +/- 1 gram per set |
| Magnafluxed | Yes |
| Private Label | Yes, available |
| Custom design | Yes, accept |
3S-GTE usage in Toyotas:
Year
Model
1986–1989
Celica GT-Four (ST165)
1990–1993
Celica GT-Four (ST185)
MR2 (SW20)
1994–1999
Celica GT-Four (ST205)
MR2 (SW20)
1997–2001
Caldina ST215 (GT-T)
2002–2007
Caldina ST246 (GT-Four)
