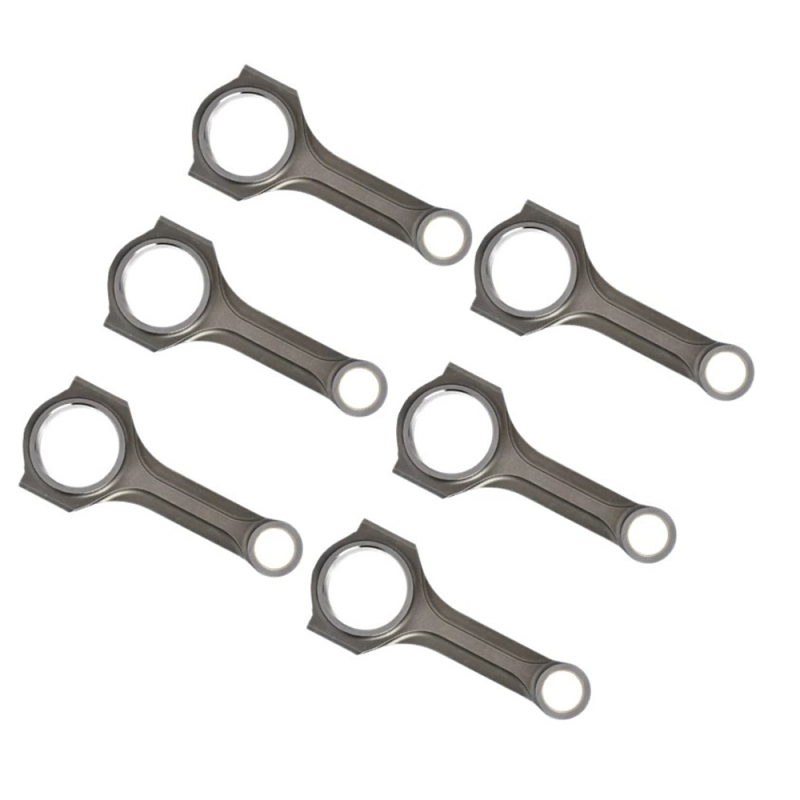

Toyota Land Cruiser 154mm X Beam Connecting Rods
Contact Now
Description
1FZ-FE Chrome-Moly Connecting Rods Main Sizes
| Brand: TAPPET |
|
| Center to Center Length: 154.02mm/6.063" | |
| Big End Bore Diameter: 60.53mm/2.383" | |
| Big End Width: 27.80mm/1.094" | |
| Small End Bore Diameter: 26.005mm /1.023" | |
| Small End Width: 27.80mm/1.094" | |
| Beam Style: X-beam |
Connecting Rods for Toyota 1FZ 1FZFE 154mm Features
| Connecting Rod Bolt Diameter | 7/16 " |
| Approximate Connecting Rod Weight | XXX |
| Advertised Horsepower Rating | 1000hp |
| Quantity | Sold as 6 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
Toyota Land Cruiser L6 4.5L 1FZ Connecting Rod Description
1FZ-FE Chrome-Moly Connecting Rods are manufactured from 4340 forgings to the same exacting standards. Connecting Rods for Toyota 1FZ 1FZFE 154mm are Heat treated, stress relieved, shot peened, 100% CNC Profiling, 100% CNC Drilling & Tapping and 100% individually magnafluxed. Toyota Landcruiser 1FZ FE X beam connecting rods are designed for 1000 horsepower engine builds.
The Toyota Landcruiser 1FZ FE X beam connecting rods are Balanced to Within a +/- 1 Gram Tolerance Per Set.
Toyota Land Cruiser L6 4.5L 1FZ Connecting Rod Fits for following VEHICLE:
| Year | Model |
| 1992-2009 | Land Cruiser (J70) |
| 1992-2006 | Land Cruiser (J80) |
| 1998-2007 | Land Cruiser (J100) |
| 1995-1997 | Lexus LX450 |
