Stainless Steel Wire Rope Mesh Ferrule
Description
Overview
Basic Info.
Model NO. TD-L-166
Material Stainless Steel Wire
Application Protecting Mesh, Screen, Construction Wire Mesh, Decorative Mesh, Fence Mesh
Hole Shape Diamond
Technique Woven
Features High Corrosion Resistant
Wire Diameter 1.2mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, etc
Structure 7X7,7X19
Advantage Longer Life
Sample Sample Available
Special Service Customized
Delivery Time 5-30days
Transport Package Woden Case
Specification Customizable
Trademark Tengde
Origin Hebei, China
HS Code 7314140000
Production Capacity 100000 Square Meters/Year
Packaging & Delivery
Package Size 20.00cm * 20.00cm * 20.00cm
Package Gross Weight 15.000kg
Product Description

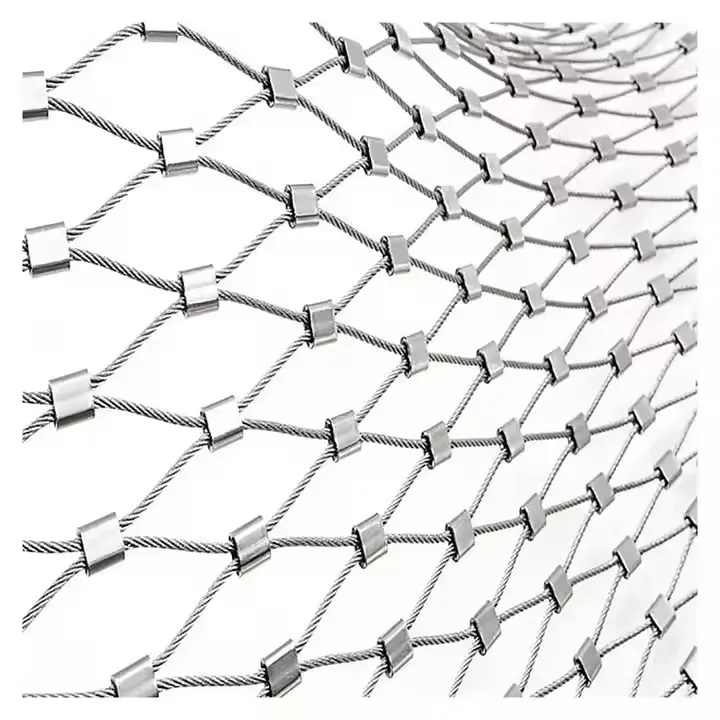

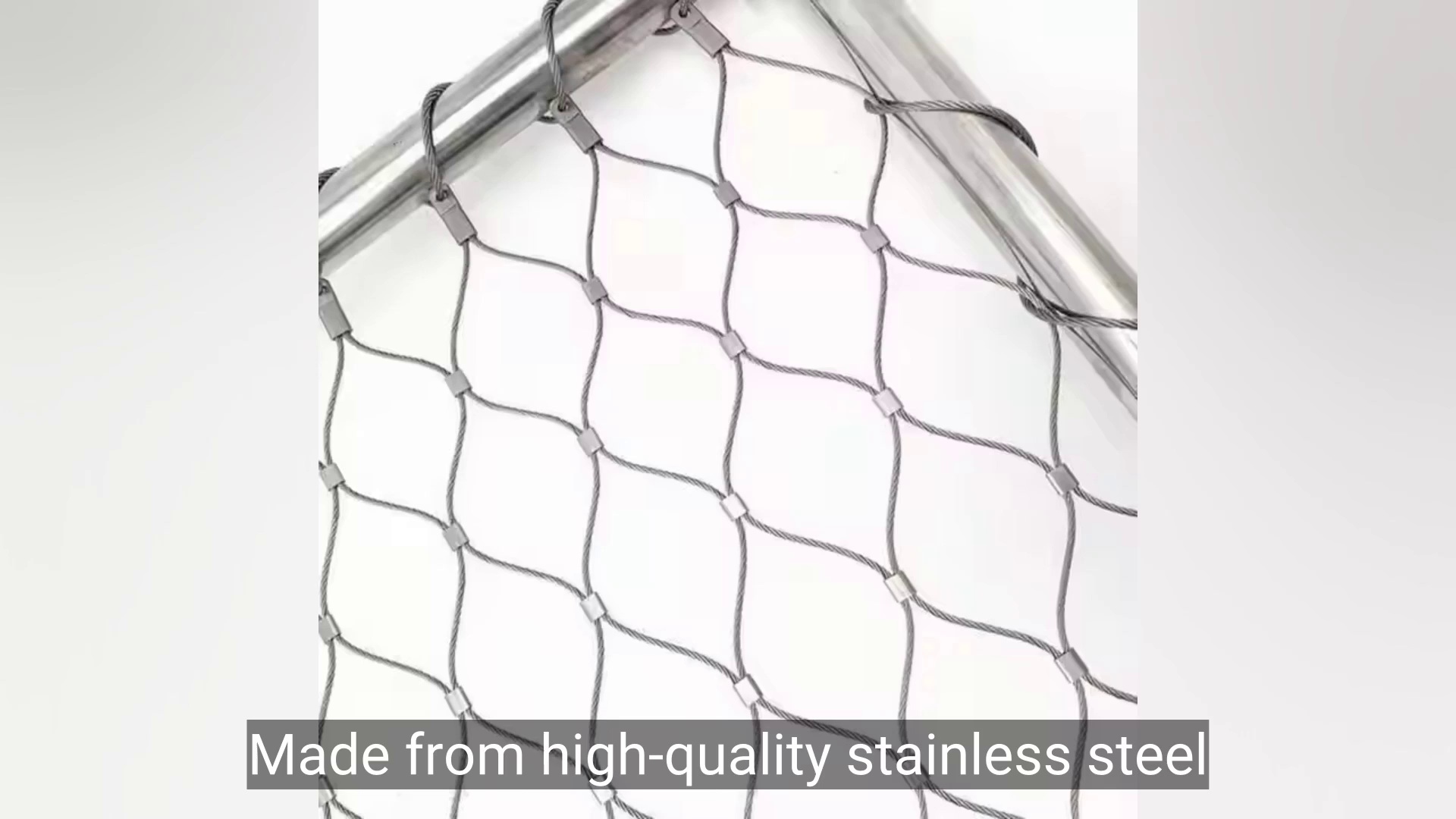

WIRE ROPE MESH (also called cable mesh) made from high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.
The stainless steel rope net is made of stainless steel wire. The material of the wire is stainless steel: 201, 304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required. Two conventional types of stainless steel rope mesh:
Buckle type
Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
Woven type
The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generally for animal enclosures in zoo applications because it is easier to see through it when viewing the animals.
Cable diameter
| inch | mm | inch | mm | lbs. |
|---|---|---|---|---|
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Product Advantage
Application

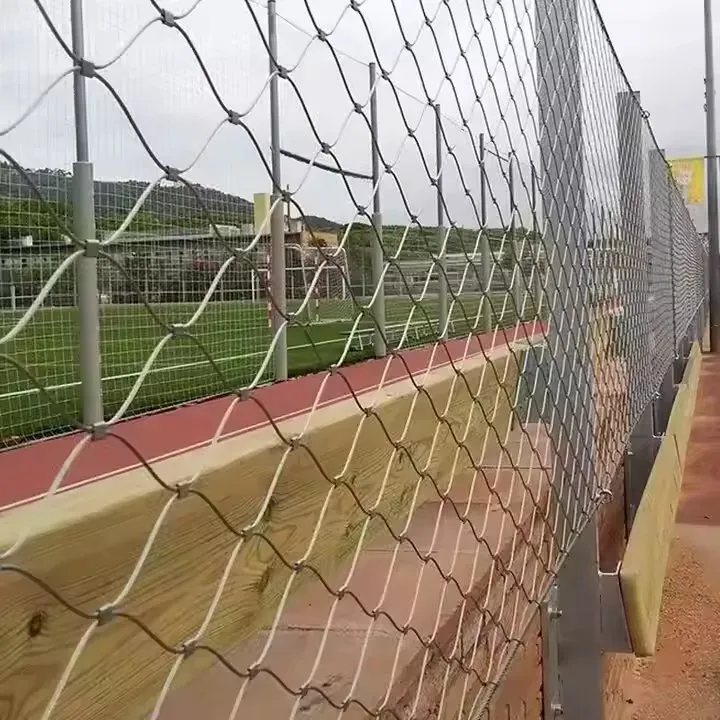

Stair fall protection net, green plant climbing protection net, high-altitude falling object protection net, stainless steel rooftop fence, balcony fence protection, amusement park protection net, animal cage net, animal enclosure net, bird language forest protection net, bird garden sky net, amusement park protection net, performance venue fence net, sports talent enclosure net, park greening protection net and other municipal construction nets.
