Product ID: 68563603

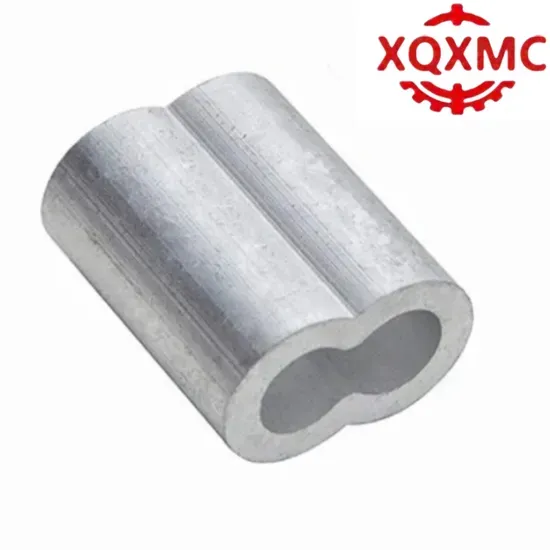

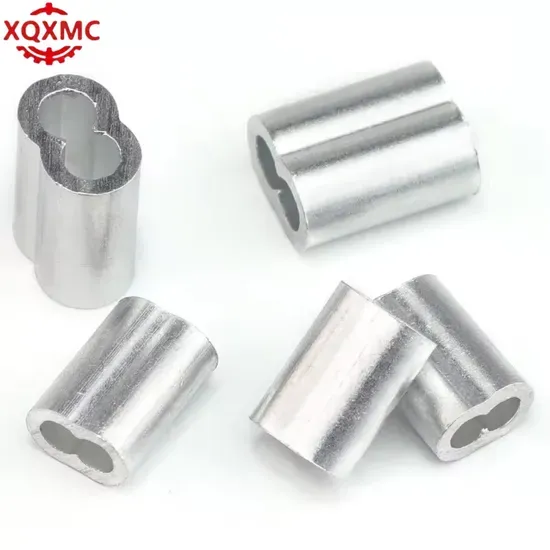

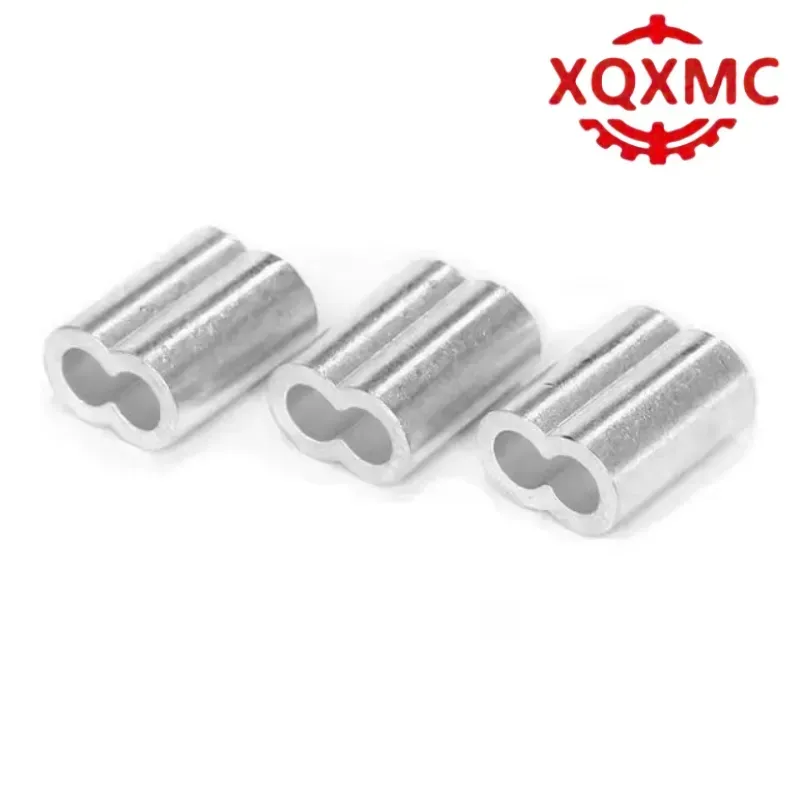

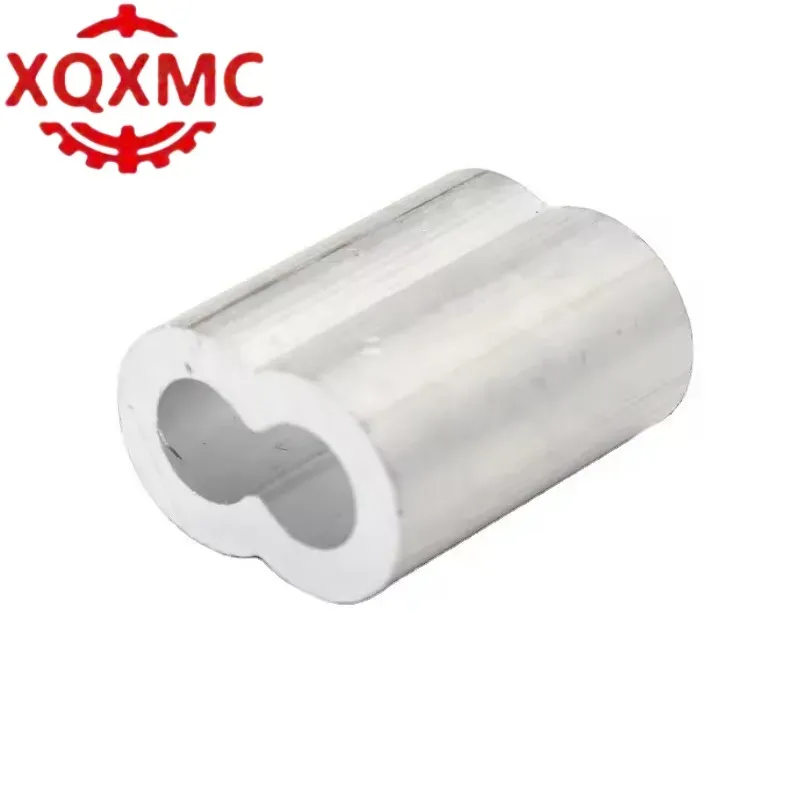

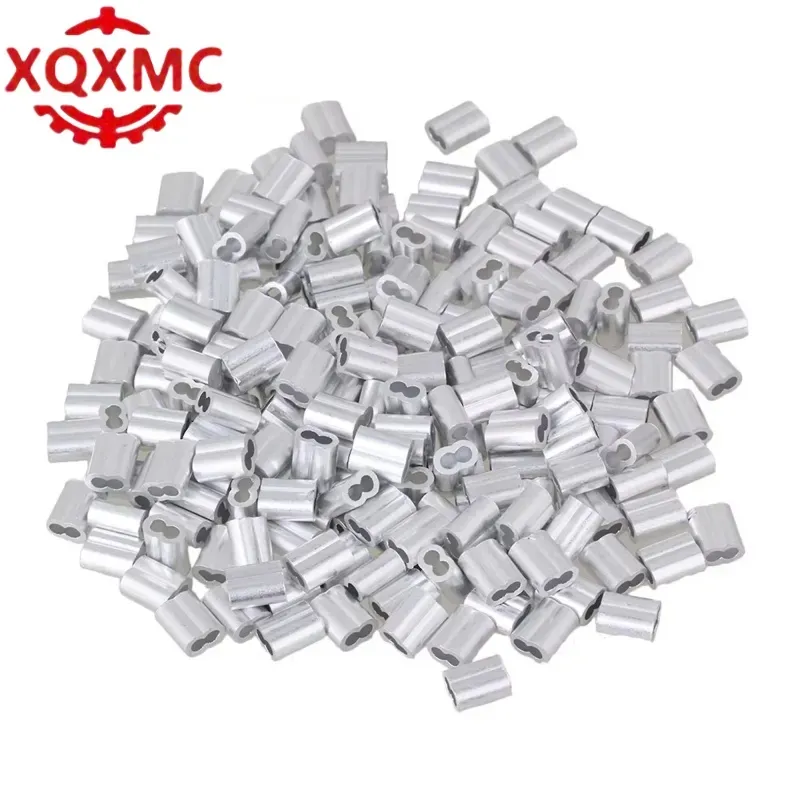

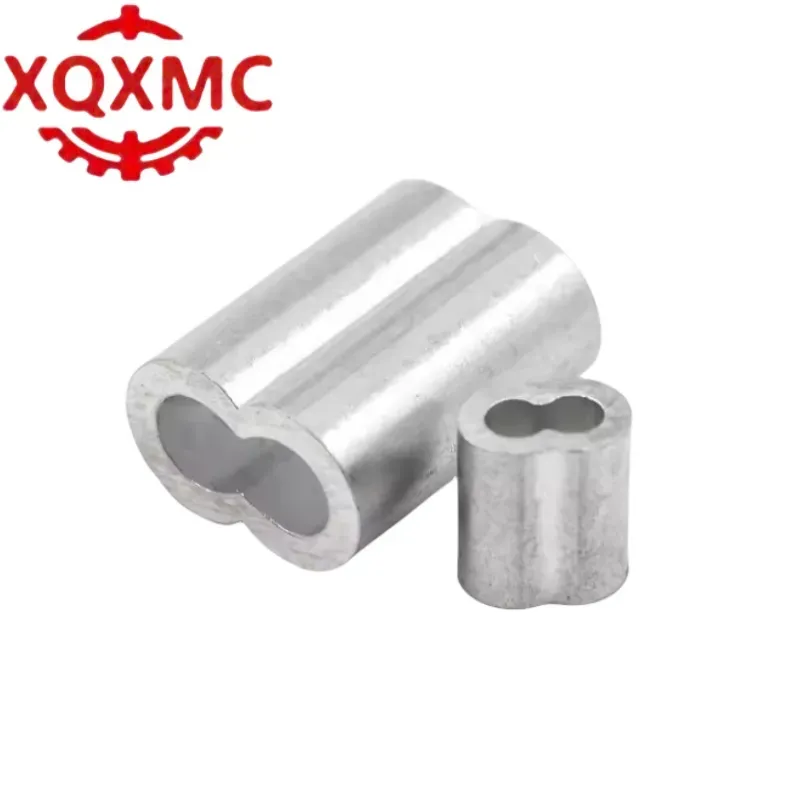

Double Cable Crimps Sleeves 8-Shaped US Type Hourglass Aluminum Cable Ferrule
Contact Now
Description
Basic Info.
Model NO.
ALUMINIUM HOURGLASS SLEEVES
Usage
Electrical Appliance, Motor, Machinery, Car
OEM Service
Available
Export Markets
Global
Business Type
Manufacturer and Trading Company
Design Team
3-5 Members
Quality
100% Inspection
Technology
Drop Forged, Polished
Delivery Time
30-45days After Order Confirmation
Country of Origin
Chinese Mainland
Application Scenario
Can Be Used in Daily Industry or Heavy Industry
Transport Package
Woven Bags, Cartons or by Customer Requirements
Specification
From 8mm to 56mm
Trademark
XQX
Origin
Qingdao Shandong China
HS Code
7326909000
Production Capacity
100000 Pieces/Month
Packaging & Delivery
Package Size
36.00cm * 24.00cm * 12.00cm
Package Gross Weight
20.000kg
Product Description
ALUMINIUM HOURGLASS SLEEVES
| Size | Dimensions(mm) | Weight 1000pcs kg |
||||
| A | B | C | D | L | ||
| 1.19 | 1.59 | 3.18 | 3.60 | 5.20 | 9.50 | 0.276 |
| 1.58 | 1.98 | 3.97 | 4.40 | 6.40 | 9.50 | 0.433 |
| 1.98 | 2.38 | 4.76 | 5.20 | 7.90 | 9.50 | 0.645 |
| 2.38 | 3.18 | 6.35 | 7.10 | 10.30 | 12.70 | 1.45 |
| 3.18 | 3.97 | 7.94 | 8.70 | 12.70 | 15.80 | 2.70 |
| 3.97 | 4.76 | 9.53 | 9.30 | 14.30 | 17.40 | 3.67 |
| 4.76 | 5.56 | 11.11 | 11.11 | 16.70 | 25.10 | 7.18 |
| 5.56 | 6.35 | 12.70 | 12.70 | 19.00 | 26.90 | 10.00 |
| 6.35 | 7.14 | 14.29 | 13.50 | 20.60 | 28.50 | 11.76 |
| 7.14 | 7.94 | 15.88 | 14.30 | 22.20 | 30.10 | 13.62 |
| 7.94 | 9.53 | 19.05 | 17.50 | 26.20 | 31.70 | 20.94 |
| 9.53 | 11.11 | 22.23 | 19.10 | 29.40 | 36.50 | 28.18 |
| 11.11 | 12.70 | 25.40 | 23.80 | 36.50 | 42.80 | 52.00 |
| 12.7 | 14.29 | 28.58 | 27.00 | 41.30 | 50.80 | 80.15 |
| 14.29 | 15.88 | 31.75 | 28.60 | 44.50 | 53.90 | 99.88 |
| 15.88 | 17.64 | 34.93 | 31.80 | 49.20 | 63.50 | 139.78 |
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Application
|

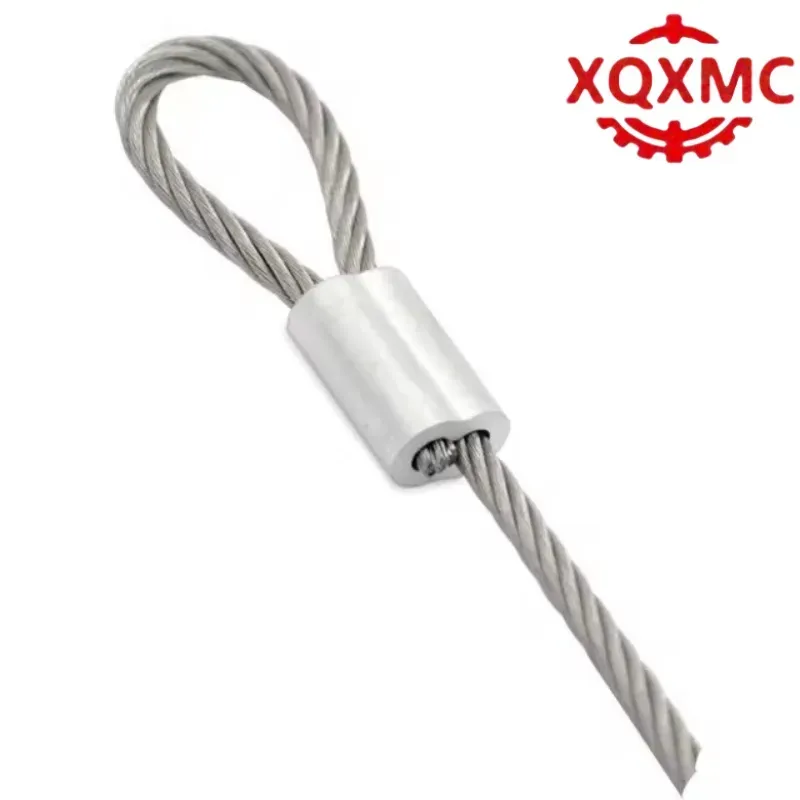

Swaging the wire rope
|
|
Shape
|
Hourglass
|
|
Alloy Or Not
|
Is Alloy
|
|
Model Number
|
SL980364-SL980508
|
|
Brand Name
|
H-Quality/OEM
|
|
Tolerance
|
±1%
|
|
Brand
|
H-Quality/OEM
|
|
Material
|
Aluminium Alloy
|
|
Part No.
|
SL980364-SL980508
|
|
Weight
|
0.276g-139.78g
|
|
Color
|
Customized Color
|
|
Machining
|
High Precision CNC Machining
|
|
Tolerance
|
Metal Material
|
|
Technology
|
Extruded + Precision Machining + Surface Treatment
|
Wire Rope Clip size are compatible with the Wire Rope diameter,inappropriate selection of wire rope clip size will cause damage to the wire rope or insufficient clamping force.Incorrect installtion of wire rope clip will result in 40% reduction of working efficiency. Furthermore, bigger diameter of rope shall.apply more wire rope clips with appropriate tail length to ensure the consistent working load limit.
Sling made by using wire rope clip are not suitable for lifting purposes, only use it for static load securing.other:Special specifications and marks can be made according to customers requirements.
method of application
The saddle shall be placed on the live end of the wire rope, with the U-bolt on the dead-end side,Use at least two or three wire rope clips to secure the ends properly to the length of the rope, and tighten nuts evenly one by one until reaching the recommended torque.
