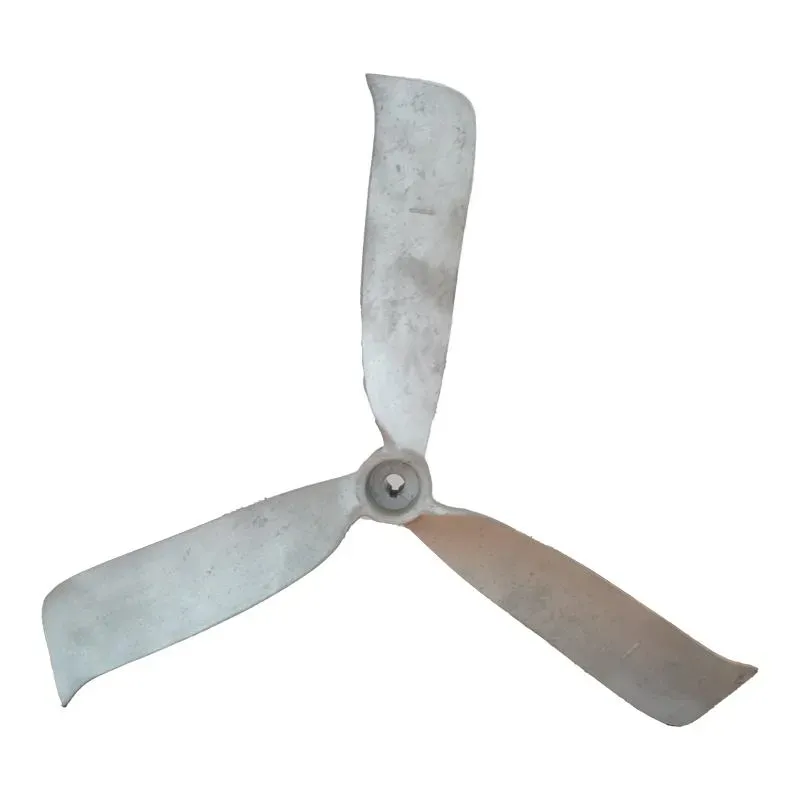

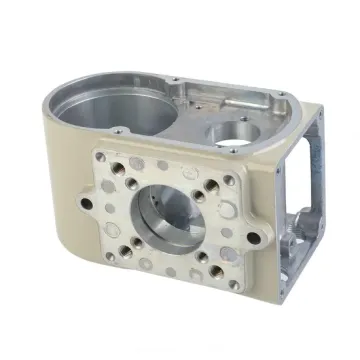

OEM Large Fan Aluminum Casting Mould Parts
Description
Overview
Basic Info.
| Model NO. | SC02 |
| Sand Core Type | Resin Sand Core |
| Application | Agricultural Machinery Parts |
| Machining | CNC Machining |
| Material | Copper and Copper Alloy |
| Surface Treatment | Sand Blast |
| Surface Roughness | Ra6.3 |
| Standard | ASTM |
| Certification | CE, ISO 9001:2000 |
| Weight | 50g-500kgs |
| Machining Tolerance | 0.002mm, 0.005mm, 0.01mm |
| Drawing Format | 2D: Pfd, Dwg; 3D: STP, Igs |
| Sevice | OEM, ODM |
| Transport Package | Box, Carton, Crate, Pallets |
| Specification | as customer request |
| Trademark | as customer request |
| Origin | Made in China |
| Production Capacity | 600ton/Month |
Packaging & Delivery
| Package Size | 69.00cm * 15.00cm * 69.00cm |
| Package Gross Weight | 4.900kg |
Product Description
Qingdao ACES is a professional OEM manufacturer with extensive experience in sand casting, gravity casting, die casting, CNC machining, and surface treatment, especially for high-precision tolerance requests.
Material
| GB | ISO | EN | DIN | AA |
|---|---|---|---|---|
| Al-Si(Mg) | ZAlSi7Mg | AlSi7Mg(Fe) | EN AC-42100 | AlSi7Mg |
| ZAlSi7MgA | AlSi7Mg | EN AC-42100 | AlSi7Mg | 3.2371 |
| ZAlSi12 | AlSi12 | EN AC-44100 | AlSi12 | 3.2581 |
| ZAlSi9Mg | AlSi10Mg | EN AC-43300 | AlSi9Mg | 3.2373 |
| Al-Si-Cu (Mg,Ni) | ZAlSi5Cu1MgA | AlSi5Cu1Mg | EN AC-45300 | AlSi5(Cu) 3.21.34 |
| ZAlSi7Cu4 | AlSi6Cu4 | EN AC-4500 | AlSi6Cu4 | 3.2151 |
| ZalSi9Cu2Mg | - | EN AC-46200 | - | 354 |
| AlSi7Mg1A | - | EN AC-42100 | - | A357.0 |
Material
| GB | ASTM | EN | DIN | ISO |
|---|---|---|---|---|
| Gray Iron | HT150 | A48 CL20B | EN-GJL-15 | GG15 |
| HT200 | A48 CL25B | EN-GJL-20 | GG20 | Cr.20 |
| HT250 | A48 CL35B | EN-GJL-25 | GG25 | Cr.25 |
| HT300 | A48 CL45B /50B | EN-GJL-30 | GG30 | Cr.30 |
| HT350 | A48 CL55B | EN-GJL-35 | GG35 | Cr.35 |
| Ductile Iron | QT400-18 | A536 60-40-18 | EN-GJS-400-18 | GGG40.3 |
| QT450-10 | A536 60-45-12 | EN-GJS-450-10 | - | Cr.450-10 |
| QT500-7 | A536 70-50-05 | EN-GJS-500-7 | GGG50 | Cr.500-7 |
| QT600-3 | A536 80-55-06 | EN-GJS-600-3 | GGG60 | Cr.600-3 |
| QT700-2 | A536 100-70-03 | EN-GJS-700-2 | GGG70 | Cr.700-2 |
| QT800-2 | A536 120-90-02 | EN-GJS-800-2 | GGG80 | Cr.800-2 |
Company Introduction
Qingdao ACES is an OEM manufacturer, mainly for casting parts, CNC machining parts and sheet metal stamping parts. We have wide experience in producing and exporting metal parts, not only for OEM parts but also have the professional team for ODM. For casting process parts, ACES has the in-house chemical and physical inspection equipment such as carbon-silicon analyzer, spectrometer, digital display universal tension machine, induction and resistance furnaces. Die casting equipment is from 180 ton to 900 ton pressure machine. The main casting processes are the sand casting for iron, aluminum, brass parts; die casting for aluminum alloy and zinc alloy parts; gravity casting and investment casting processes for aluminum, magnesium alloy, copper, steel and other metal parts. Besides the casting, ACES also provides the customers with more comprehensive services. Various machining equipment will meet different precision machining requests, such as NC lathe, CNC precision automatic lathe, vertical CNC machine, horizontal CNC machine center, CNC engraving machine, 4-axis and 5-axis CNC machine center. From the sample developing to the mass production, the quality is strictly controlled from each operator to the professional inspection team. The quality control tools such as CMM inspection, flow chart, control plan, PPAP and CPK analysis are also widely used in our workshop. To create best value for each customer is our constant pursuit. High quality, on-time delivery, excellent services are the key factors of our management. Based on the professional team, ACES will offer you one-stop metal manufacturing OEM service from raw castings to machining, stamping including various surface treatment. Welcome to contact us if you have any concerning demands. Looking forward to being one of your long-term partners.
Packaging & Shipping
ACES always designs the suitable package for each part during sample development according to the part structure, qty per lot and customers requirement.
