Overview

Basic Info.

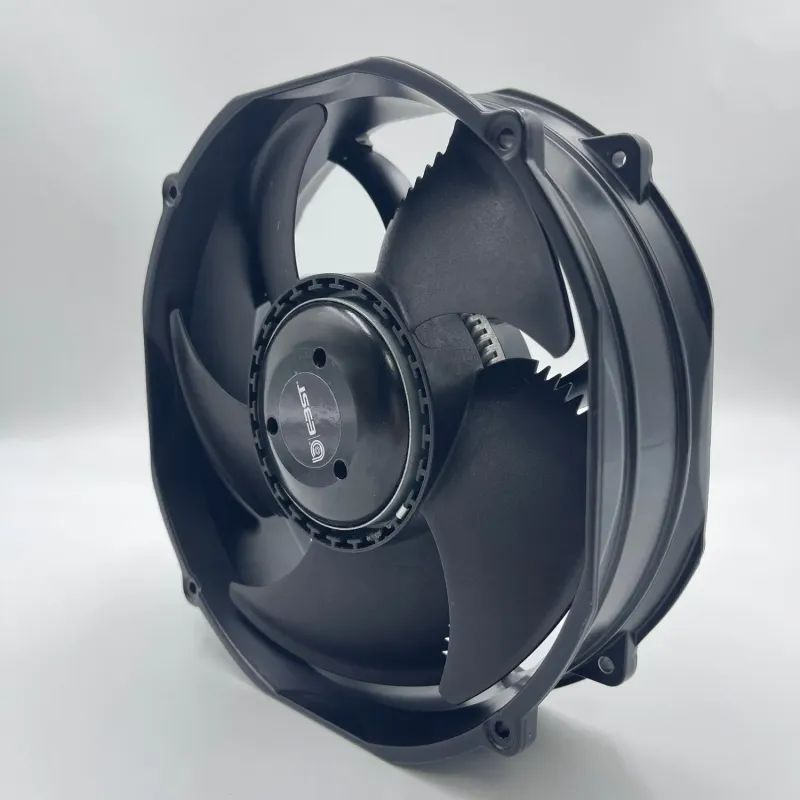

• Model NO. A180P. D002
• Flow Direction Axial Flow
• Certification RoHS, CE, CCC, CNAS, UL, Reach
• Control Input 0-10VDC/PWM
• Type of Protection IP 54
• Insulation Class F
• Bearing Maintenance-Free Ball Bearings
• Approval CCC

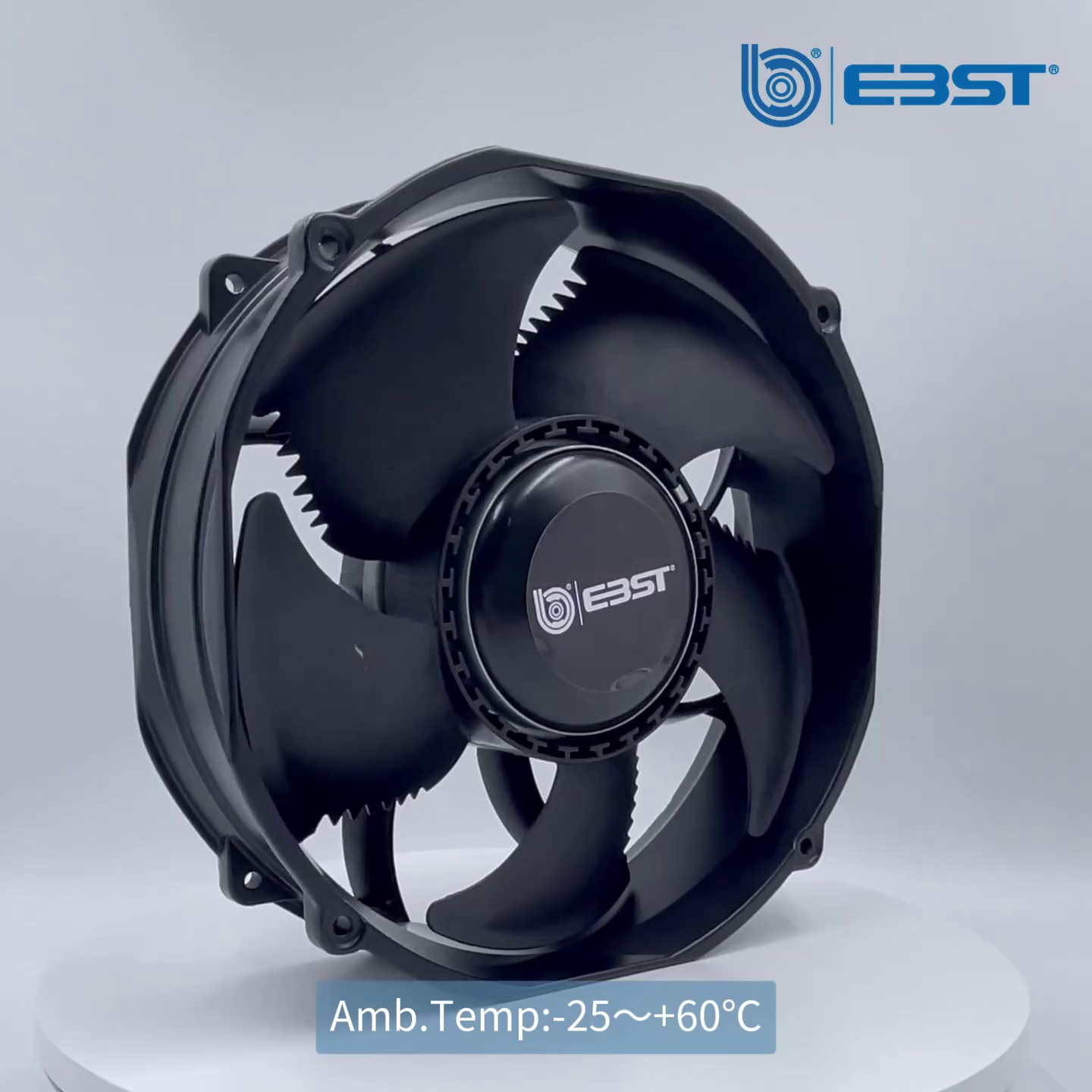

• Amb.Temp -25~+60ºC
• Transport Package Carton
• Specification Customized
• Trademark EBST
• Origin China
• HS Code 8414593000

Product Description

[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan.

[ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume.

[ High Reliability ] Motors have F class insulation, and been tested for 3 months of 60ºC high temperature test and 40,000 hours of life test, which ensure worse-free quality.

[ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more.

[ Variety of Models ] Available in dimensions of : 180mm~305mm, this allows for air flow rates of up to 3150m3/h and static pressure of up to 500Pa.

Product Parameters

• Impeller Material Nylon with Glass Fiber
• Rotation Direction Clockwise (viewed from rotor side)
• Control Input 0-10VDC / PWM
• Protection Rating IP54
• Insulation Class F
• Bearing Type Maintenance-free Ball Bearings
• Certification CCC
• Operating Temperature -25°C to +60°C

Model

Ps[Pa] vs Airflow[m3/h] vs Speed[rpm] vs Power[W]

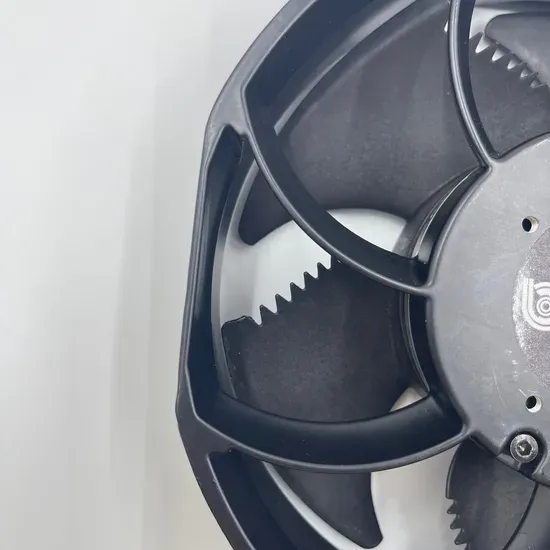

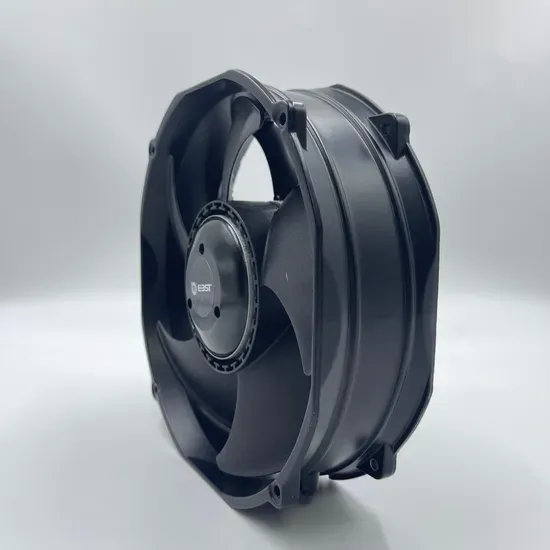

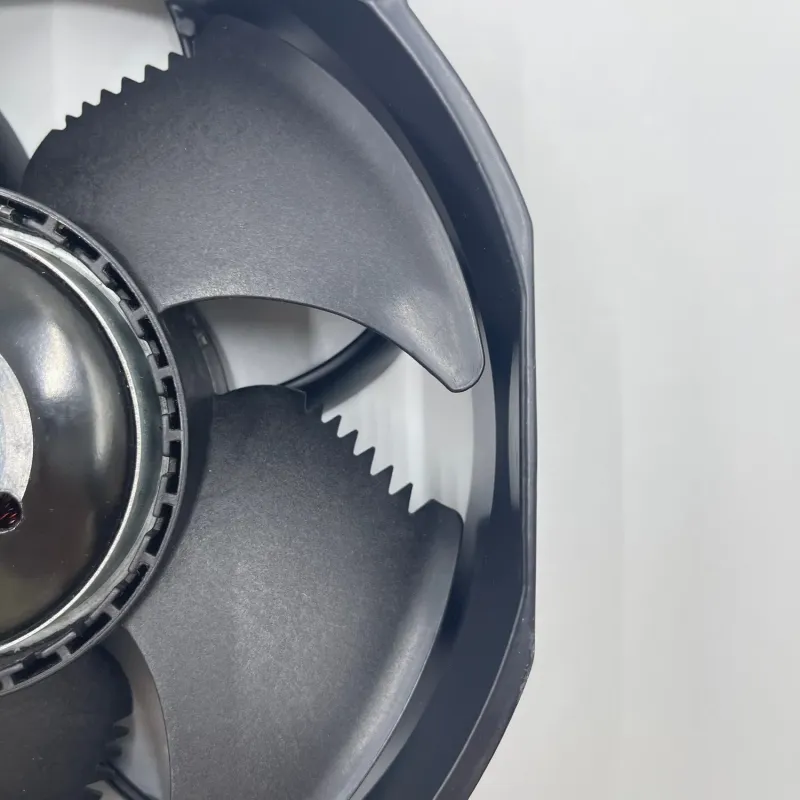

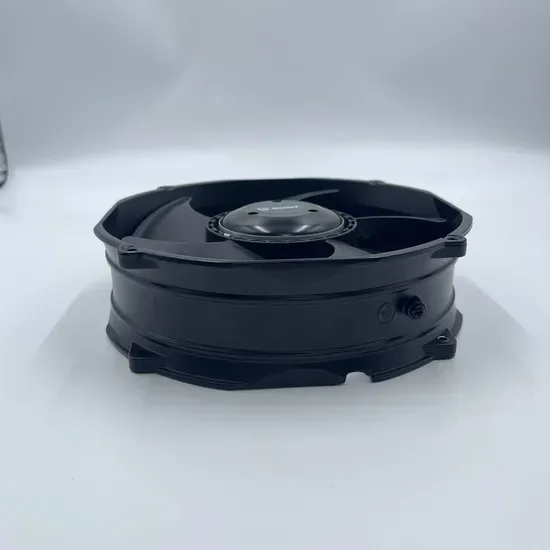

Detailed Photos

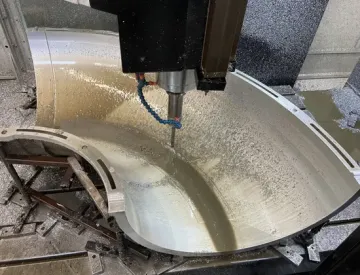

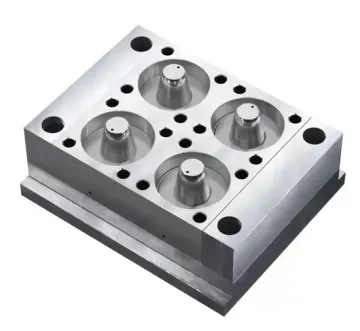

Our Advantages

Company Profile

Zhongshan EBS Technology Co., Ltd. is a member of Broad-Ocean Motor Group (stock code: 002249). It is a modern enterprise integrating R & D, manufacturing and sales with an acute focus on intelligent small and medium-sized fans. The main products are AC / DC / EC external & internal rotor motor fans, which are widely used in fresh air purification, heating, ventilation, air conditioning, refrigeration, rail transit, power communication, IT data center(IDC), energy storage, humidification, dehumidification and more.

EBST is located in Zhongshan City, Guangdong Province of southern China, covers an area of more than 70 thousand square meters. EBST values technical input, and has set up a 100-person R&D team integrating fluid design, motor development and electronic control experts. With over 30 years' experience of motor R&D and manufacturing and over 20 years' experience of fan design and manufacturing, we has obtained more than 3000 invention and utility model patents.

EBST is the ISO9001 international quality system certified enterprise, we have equipped complete experiment and testing facilty, and set a sound production management system. With a number of automated production lines, the annual output has achieved 2 million units. And our products have been verified by the market, with an annual shipment of more than 1 million units. The products have passed CE, UL and CCC certifications and hot sold globally.

Looking into the future, EBST will continue to take "Becoming a leader in the green fan industry" as its corporate vision, closely combine with market demand to provide global customers with personalized ventilation solutions and various ventilation products with high technology and cost-effectiveness.
