Basic Info.

• Model NO. ZSM-7375
• Mould Cavity Multi Cavity
• Plastic Material ABS
• Process Combination Type Compound Die
• Application Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware, Toy
• Runner Hot Runner
• Design Software AutoCAD
• Installation Fixed
• Certification ISO
• Standard HASCO
• Customized Customized
• After-sales Service 24hrs Online Service
• Transport Package Plastic Film+Wooden Case
• Specification Custom
• Trademark Zhishing
• Origin Guangdong Dongguan
• HS Code 8480719090
• Production Capacity 2000 Sets/Year

Product Description

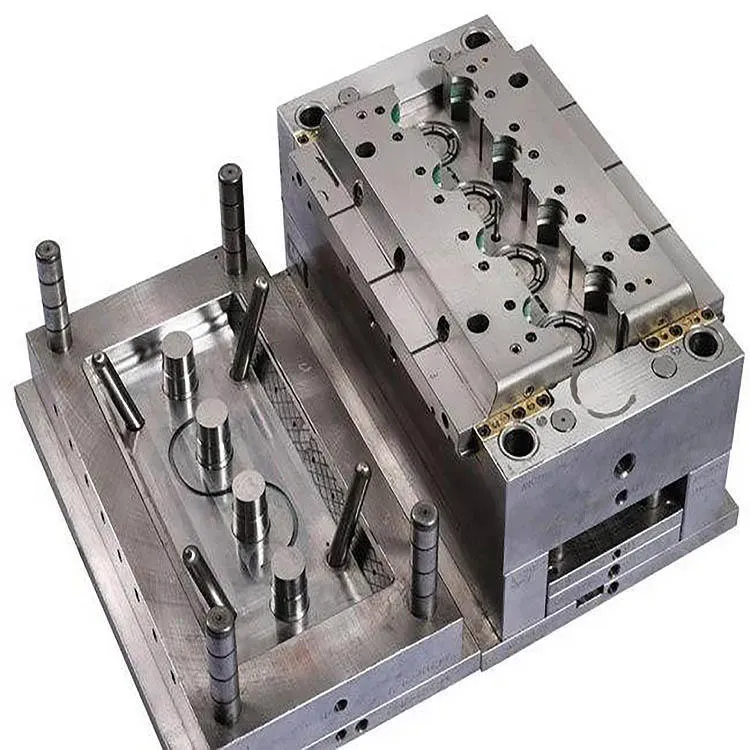

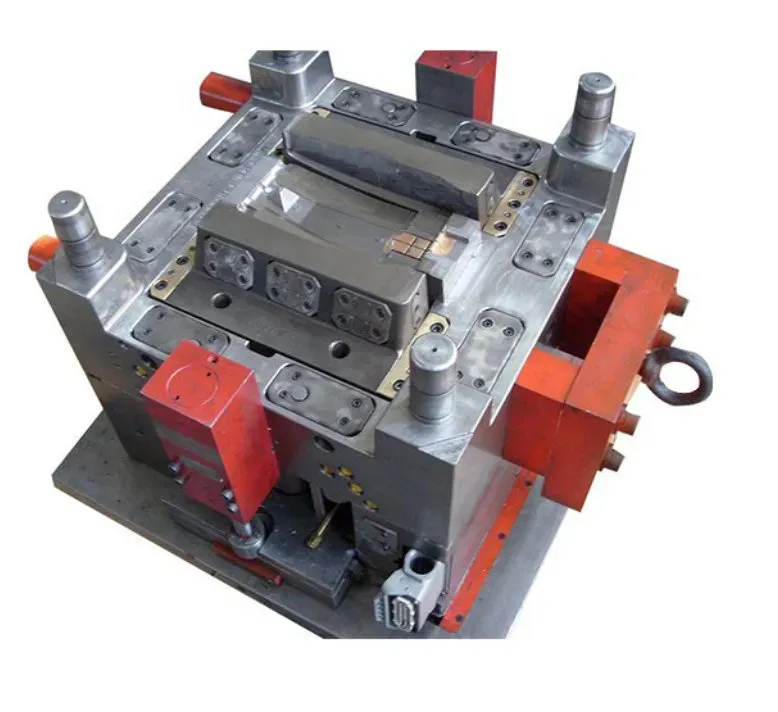

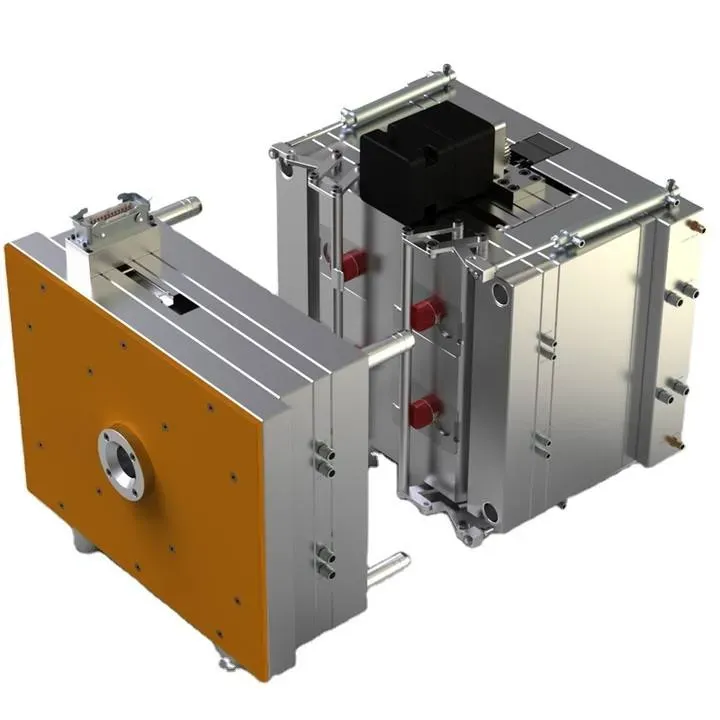

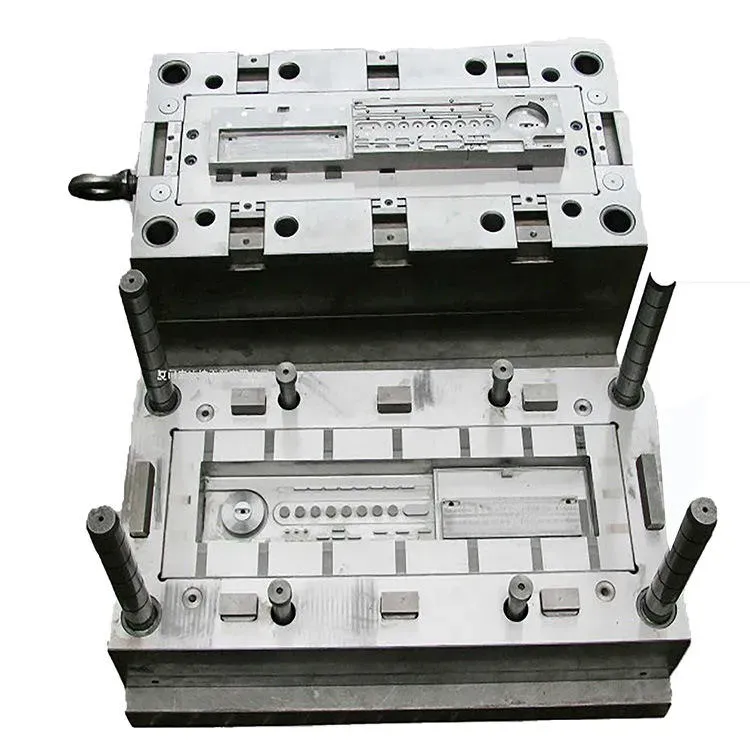

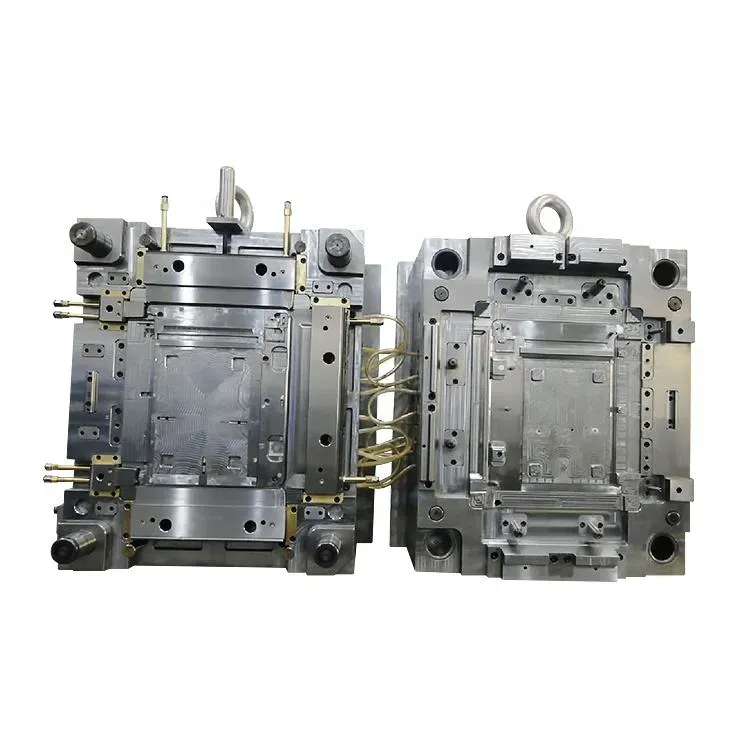

Plastic Injection Mold

• Product Material ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA, PVC, TPE, TPU etc
• Material of Steel 738, 718, NAK80, S136, P20 etc
• Surface Requirement Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing, Brushing
• Tolerance Request UP to (±0.005mm)
• Mould Life 500000-1200000 shoots
• Multi Injection Single/Double/multi color
• Design Software Pro/E, UG, Catia, Woodwork, Moldflow, AutoCad
• Injection System Hot /Cold Runner
• Inserts(cavity and core) H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or the material you required
• Mold Cavity 1*1, 1+1, 1*2, 1+1+1, etc
• Gate type Side gate, Sub gate, Pin point gate, Edge gate etc
• Ejector System Stripper plate, Lifter, Push bar, Ejection pin etc
• Steel Standard FINKL, Assab, DAIDO, LKM, Buderus
• Cooling Baffles/Sprin Piple/3D printing water line
• Standard Parts/Cylinders DME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/Merkle
• Design Capability DFM, Mould flow analysis, Product optimization, Full 2D & 3D mould design, Reverse engineering, Collaborative design with customer's idea
• Documents / Reports Provided Fully drawing, Weekly Processing Report, Steel Dimension report, Processing Report, Sample Dimension Report
• Certificate ISO9001 ISO14001
• MOQ 1 sets
• Lead Time 6-10 weeks or according to the order requirement
• Payment 40% Deposit, 30% Before Product Inspection, 30% Before Shipment
• Port of loading SHUNDE/GUANGZHOU/SHENZHEN

Our Staffs:

Mould Trade Process:

FAQ:

• Q: Are you a factory or trading company?

  A: We are a professional manufacturer of injection mold for above 30 years in Donguan China.

• Q: Can you do Assemble?

  A: Of cause we could do. Our factory with assembly room.

• Q: I have an idea for a new product, but not sure if it can be manufactured. Can you help?

  A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.

• Q: My products have already been developed on CAD. Can you use the drawings?

  A: Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models and mould tools - this can save time and money in producing your parts.

• Q: Can I test my idea/product before committing to mould tool manufacture?

  A: Sure, we can use CAD drawings to make models and prototyping for design and functional evaluations.

• Q: What shall we do if we do not have drawings?

  A: Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Length, Height, Width), CAD or 3D file will be made for you if placed order.

• Q: What type of mould tool do I need?

  A: Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.

• Q: How can we guarantee the quality?

  A: 24Hours online services, end to end design scheme; Always a pre-3 times test before package; Always final Inspection before shipment; Always provide technical support for all the time.

• Q: How long is your delivery time?

  A: Generally 5-7 days for plastic products. 25 days around to make a simple molds, complicated ones can be 30~50 days. We use our company DHL, TNT, UPS account to ensure the fast product delivery time.

• Q: How many times try out?

  A: 3 times and every time 2 sets sample with free delivery via DHL.

• Q: What should we do if we receive defective products?

  A: Once receive defective product, please send us the photos, we will feedback to our engineers and QC departments and solve the problems ASAP.

• Q: What is your terms of payment ?

  A: Paypal, T/T. or you want.
