Solar Mounting System for Aluminum Panel Metal Flat Roofs
Description
Overview
Basic Info.
| Model NO. | HINA |
| Material | Aluminum Alloy |
| Type | Roof Bracket |
| Standard | DIN, ASTM/ASME, JIS, En, ISO, as, GB |
| Finishing | Zinc, HDG, Sandblasting |
| Certificate | ISO 9001:2015 |
| Delivery Time | 7-30days |
| Installation Site | Flat Roof, Ground |
| Wind Load | 60m/S |
| Snow Load | 1.6kN/M2 |
| Panel Layout | Portrait or Landscape |
| Transport Package | 20-25kg/Cartons+900kg/Pallets |
| Specification | SS304, AL6005-T5 |
| Trademark | HINA |
| Origin | China |
| HS Code | 7318159090 |
| Production Capacity | 500ton/Month |
Packaging & Delivery
| Package Size | 20.00cm * 25.00cm * 20.00cm |
| Package Gross Weight | 10.000kg |
Product Description

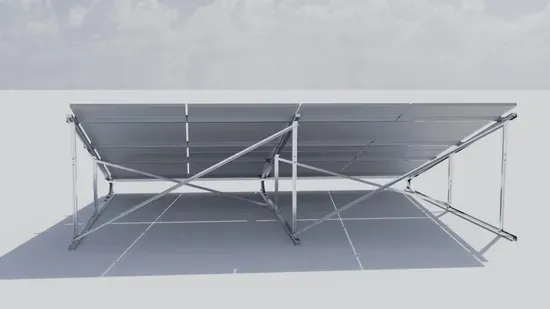

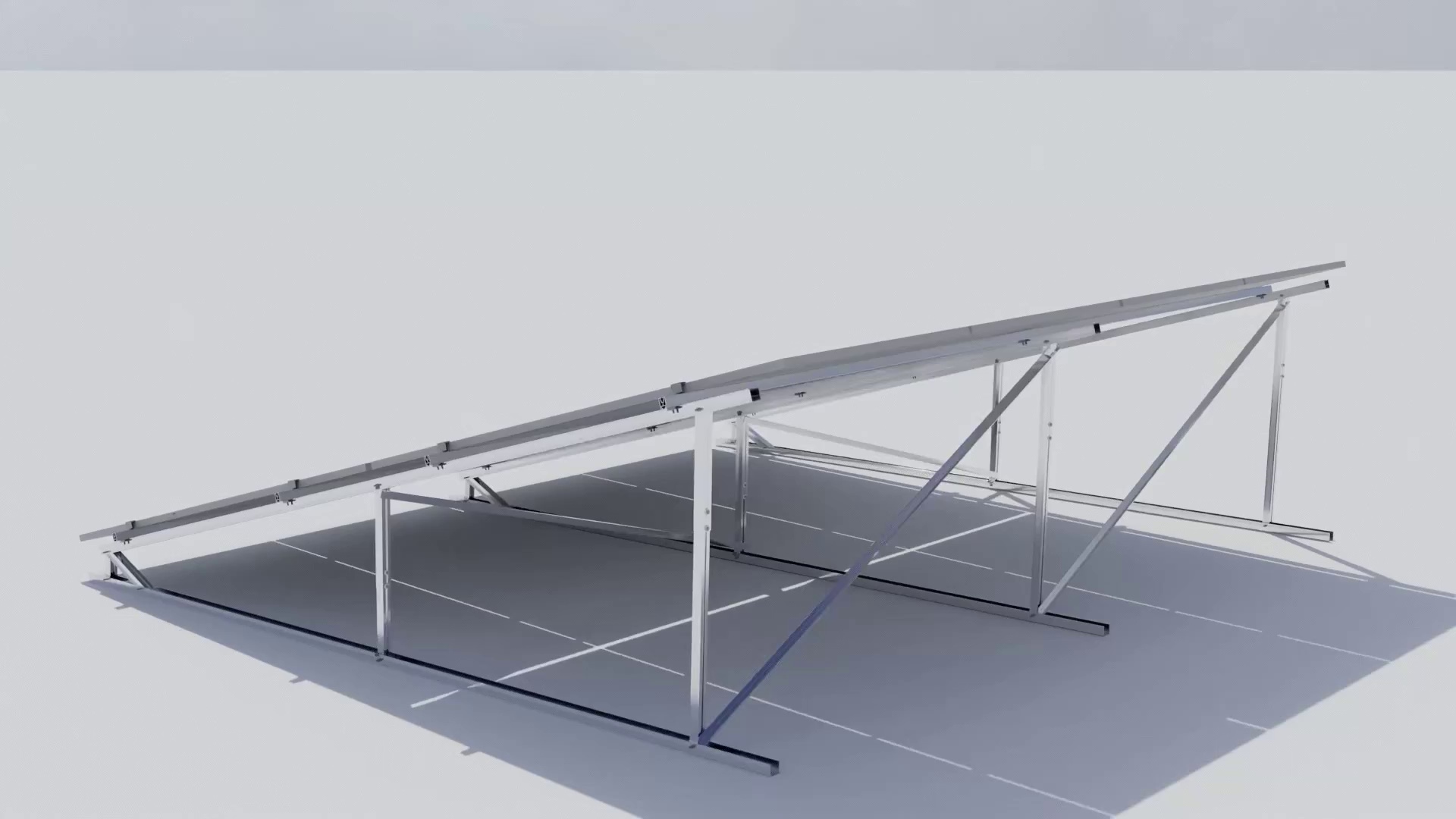

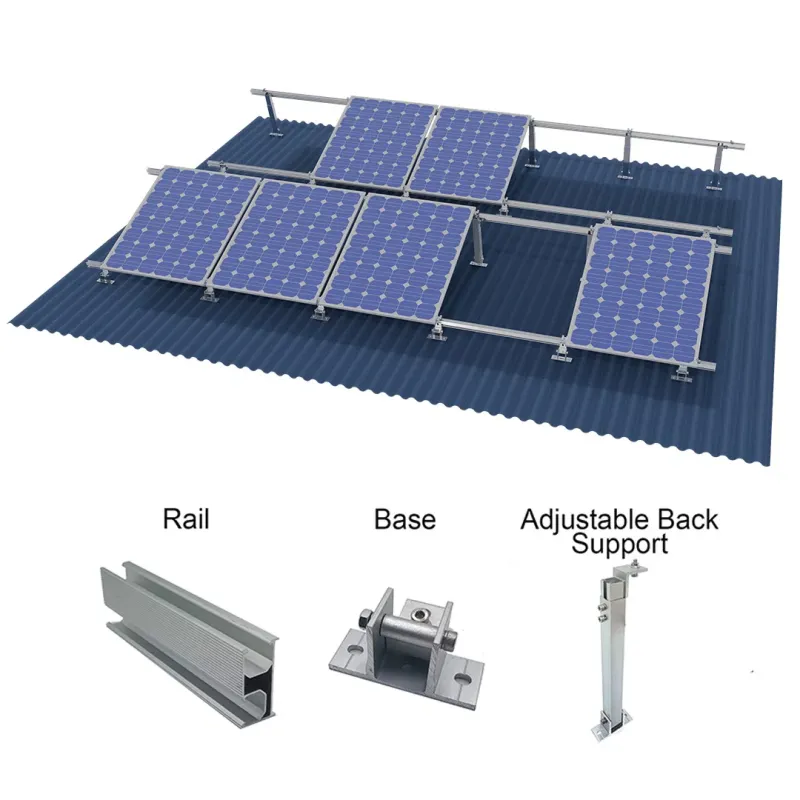

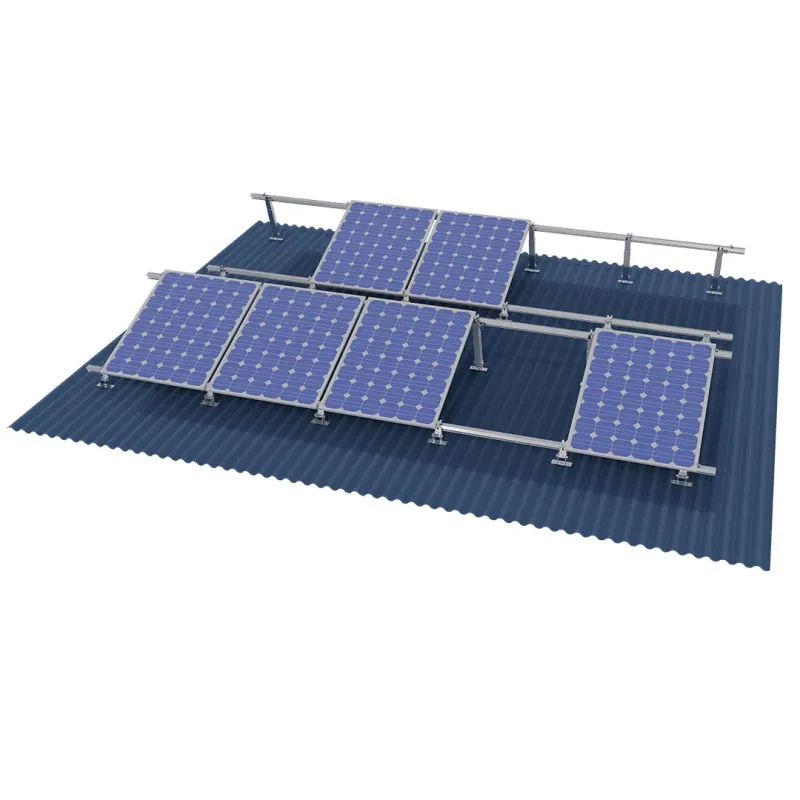

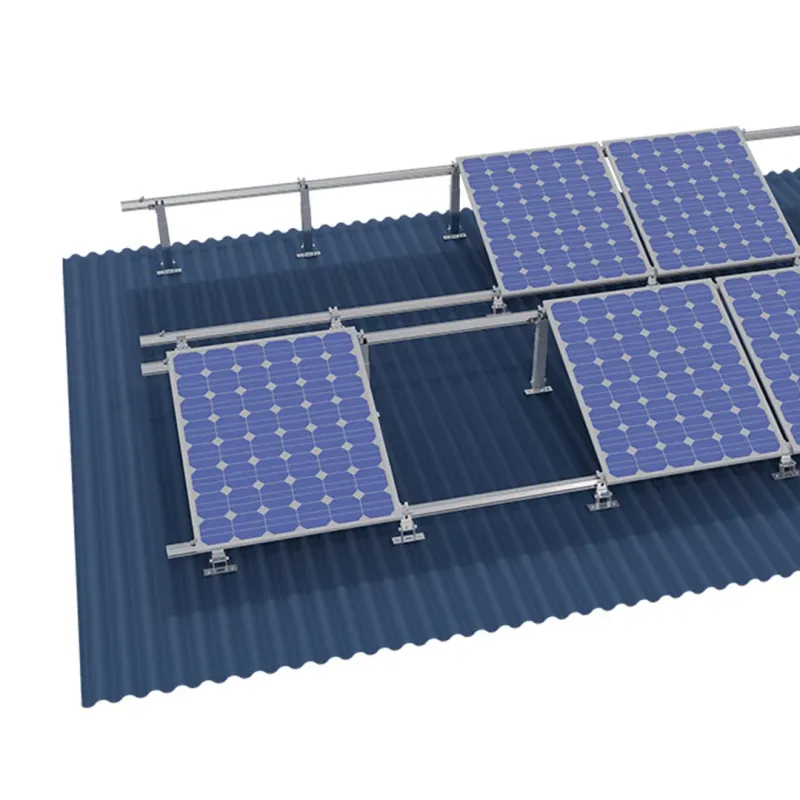

Aluminum Panel Metal / Flat Roof Solar Mounting System Pv Solar Racking And Mounting
A solar tile roof mounting system blends solar energy generation with architectural elegance, designed to mimic traditional roofing while producing clean electricity. Unlike bulky rack-mounted panels, these systems use low-profile solar tiles that integrate smoothly with existing shingles or tiles, maintaining a sleek roofline.
Key advantages include:
- Aesthetic Design - Discreet, uniform appearance ideal for residential and heritage buildings.
- Weather Resistance - Durable materials (such as zinc-aluminum-magnesium coated frames) ensure corrosion protection.
- Easy Installation - Modular mounting clips and rails allow quick assembly without roof penetrations.
- High Efficiency - Optimized tilt angles maximize sunlight capture even on complex roof shapes.
Technical Parameters
| System Name | Solar Metal Roof Mounting System |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955:2017 |
| Installation Site | Flat Roof, Ground |
| International Building Code | IBC 2009 |
| Tilt Angle | 5-10° |
| California Building Code | CBC 2010 |
| Wind Load | 60m/s |
| Hook Material | AL6005-T5 |
| Snow Load | 1.6KN/M2 |
| Fastener | SUS304 |
| Applicable Solar Module | Framed |
| Small Components | AL6005-T5(Anodized) |
| Panel Layout | Portrait or Landscape |
| Warranty | 10-year warranty |
Our Services
Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers' specification and performance.
Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective: Competitive prices with professional factory supply
Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection.
Customized Ideal Fasteners: Customized services according to the samples and drawing offered
