Overview

Basic Info.

Model NO. ALICO-1MW-SYSTEM
Condition New
Certification ISO, CE
Application Home, Industrial, Commercial
Specification Normal, OEM
Mounting Support Roof or Ground Solar Mount Bracket
Solar Inverter Grid-Tied & Hybrid Inverter
System Type 1 MW Solar System
Transport Package Carton/Wooden Box
Trademark Alicosolar
Origin Jiangsu, China
HS Code 85414020
Production Capacity 1.2 Gw/Year

Product Description

Product Parameters

Name	Quantity
Solar Panel	Mono 550Watt PV Module - 1818 Pieces
DC Disconnect Switch	IP66 1000VDC 16A - 2 Set
On-Grid Inverter	120KW Three Phase - 9 Set
AC Disconnect Switch	IP 66 1000VDC 32A - 1 Set
DC Cable	6 mm² - 4000 Meters
MC4 Connector	6 mm² 1000VDC - 10 Pairs
Mounting System	Standards Pitched Roof (Customized Optional) - 1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool - 10 Set

Note: Product dimensions and physical appearance in this data sheet are nominal. Alicosolar reserves the right to make product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

On Grid System Configuration

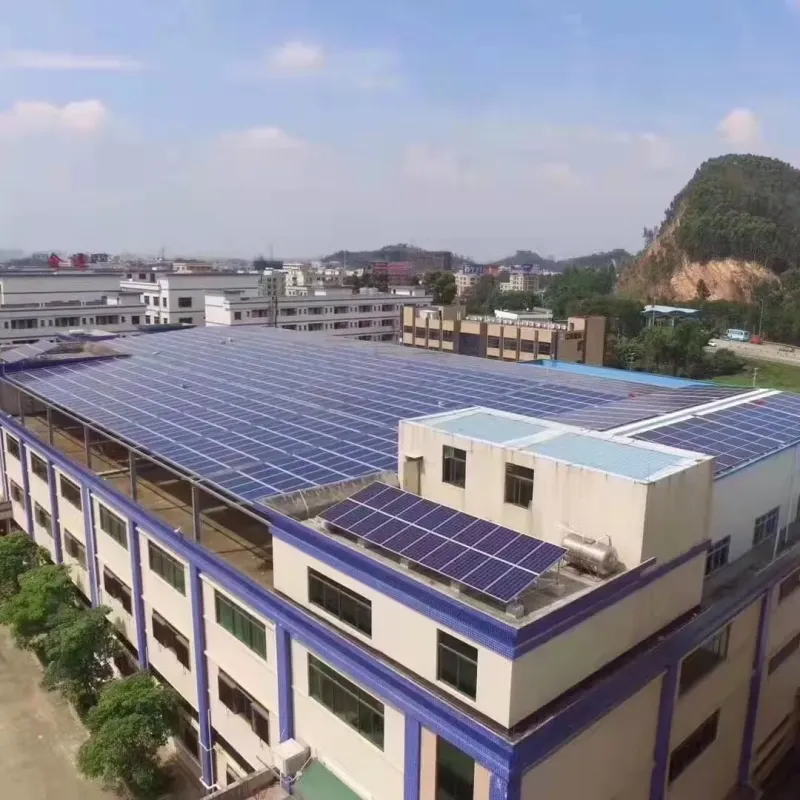

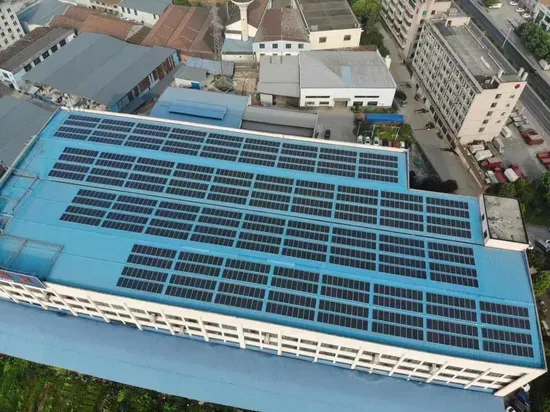

Alicosolar 1MW Solar Panel Plant Structure for Flat Roof and Open Field Mounting Solar Power System

1. Solar Panel
2. On Grid Inverter
3. Switch Box
4. Power Meter

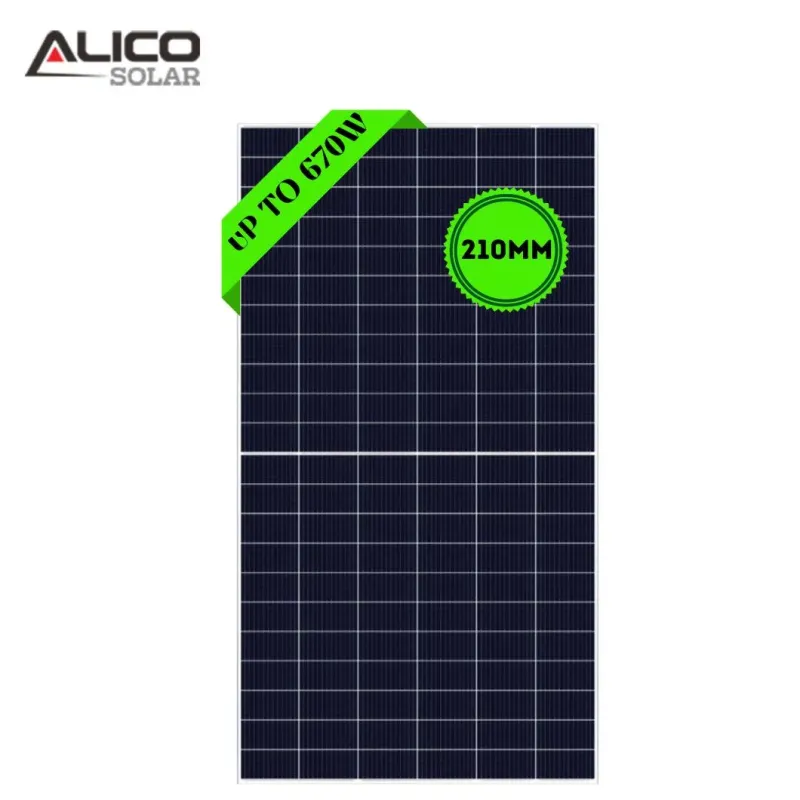

Mono Solar Panels

Peak Power Watts: 455-690 Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard
12 years warranty quality
30 years warranty power

On-Grid Inverter

Max. DC Input Power: 5.8 KW
Max. DC Input Voltage: 600 V
MPPT Voltage Range: 90-520 V
Rated Grid Voltage: 208/240 V (US); 230 V (EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi, Lan or GPRS.

App Available for PC, IOS & Android
