Glass Solar Roof Tiles with BIPV Flat Solar System
Contact Now
Description
Overview
Basic Info.
| Model NO. | XSDFM-120-T |
|---|---|
| Application | Photovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall, Roof |
| Max. Power | 120W |
| Optimum Operation Voltage | 9.62V |
| Optimum Operating Current | 12.89A |
| Open- Circuit Voltage | 11.07V |
| Short-Circuit Voltage | 13.57A |
| Module Operating Temperature Range | -40-85 |
| Max. System Voltage | DC 1000/ 1500V (IEC) |
| Max. Fuse Current | 25A |
| Power Tolerance Range | 0-5W |
| Rated Operating Temperature of The Cell | 44 Degree |
| Max. Power Temperature Coefficient | -0.26 % |
| Open-Circuit Voltage Temperature Coefficient | -0.24% |
| Short-Circuit Voltage Temperature Coefficient | 0.04% |
| Transport Package | Wooden Box |
| Specification | 1630*440*29mm |
| Trademark | x-solar |
| Origin | China Jiangyin |
| HS Code | 8541420000 |
| Production Capacity | 50000 Pieces Per Year |
Packaging & Delivery
| Package Size | 165.00cm * 45.00cm * 3.00cm |
|---|---|
| Package Gross Weight | 9.500kg |
Product Description

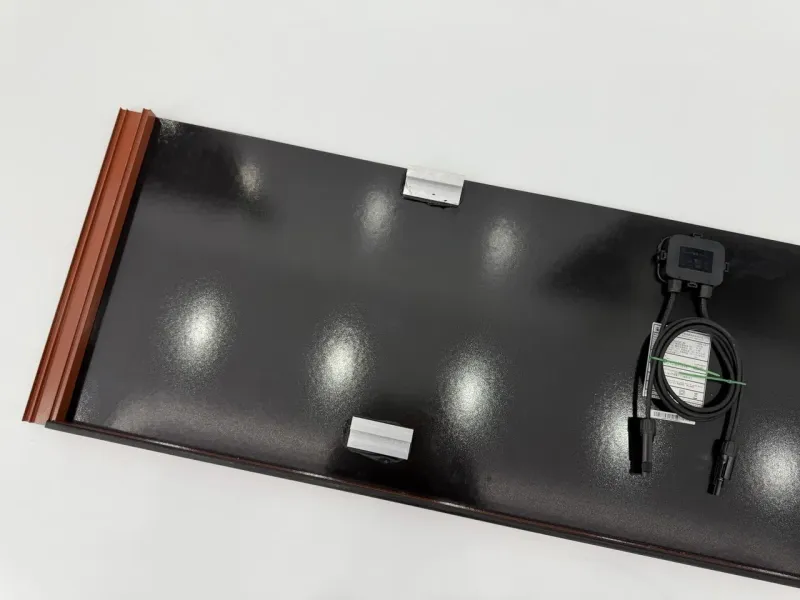

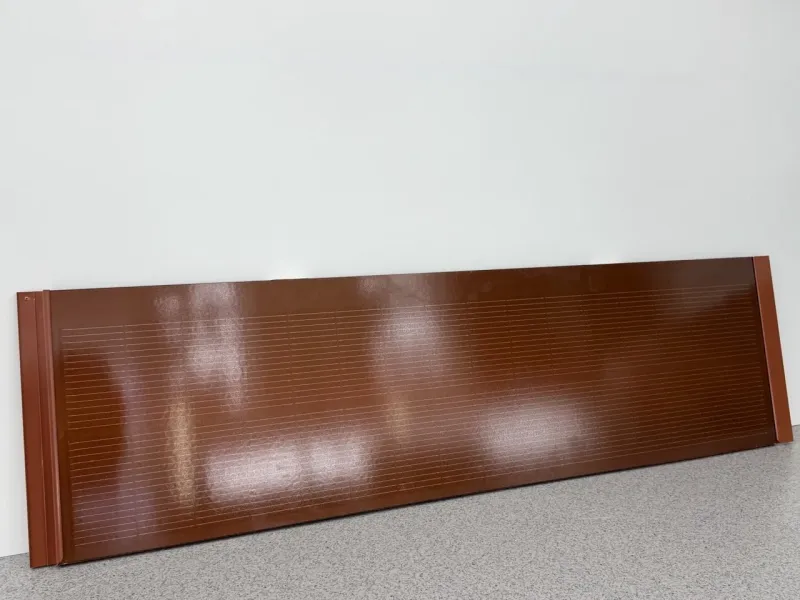

120W Flat Tile Modules Solar Panel For Roof Material
Product Parameters
Product Advantage
Product Application
Basic information
| Basic information | Data |
|---|---|

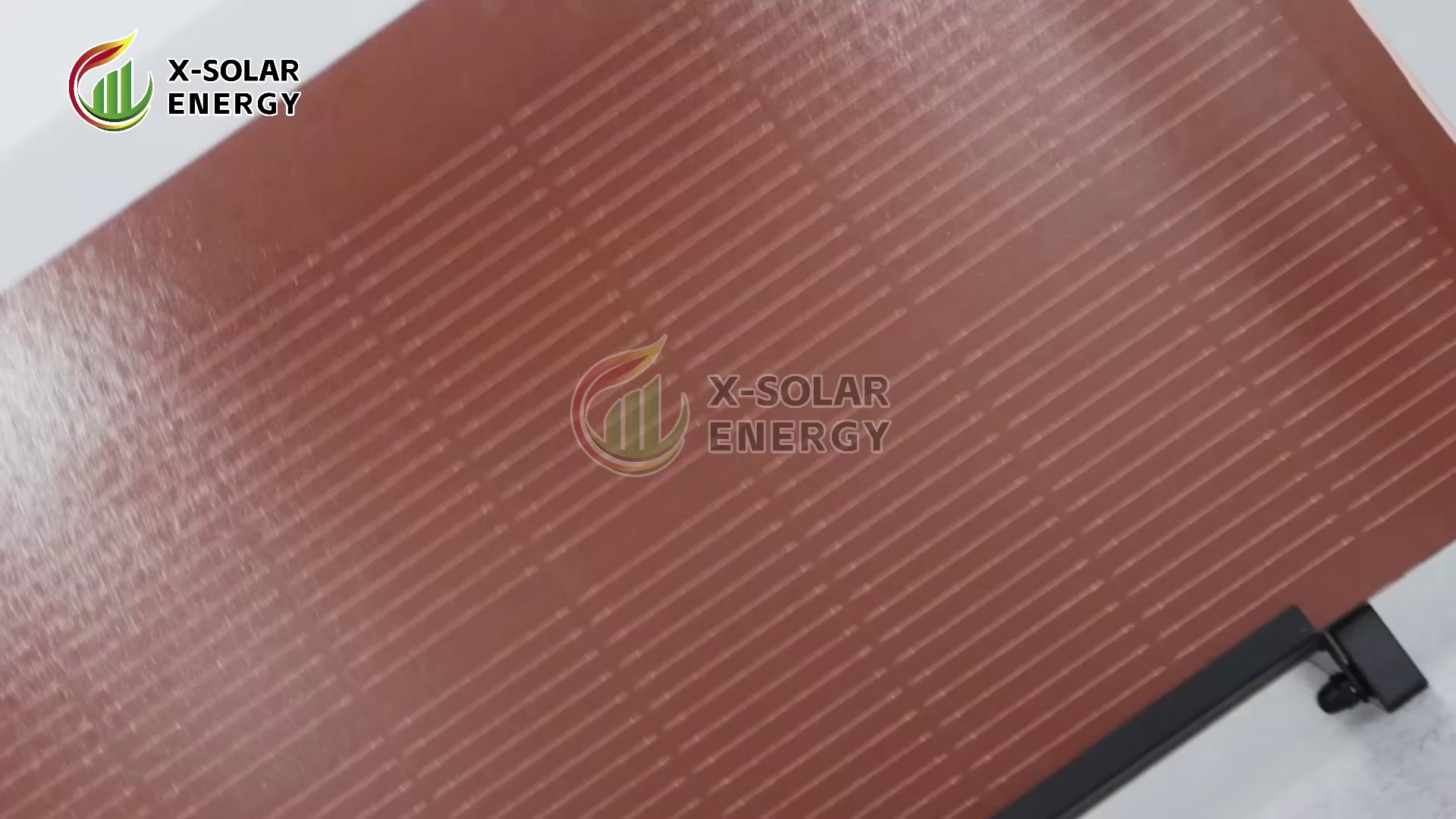

| cell type | TOPCon cell 182*91 mm |
| cell arrangement | 32 pcs(2*16) |
| module size | 1630*440*29 mm |
| Module weight | 9.5KG |
| Junction box | Enclosure rating IP68 |
| Output cable | 4mm2, 500mm cable net length. cable length can be customized |
| Connector registration | MC4 compatibility |
| Frame | N/A |
| Front static load (snow pressure) | 2400Pa |
| Rear static load (wind pressure) | N/A |
Packing Details
| transportation | Platform Lorry | Platform Lorry | Container |
|---|---|---|---|
| size | 13m | 17.5 | 40 degree |
| pallet | 22 | 63 | 40 |
| piece/pallet | 45 | 42 | 42 |
| Total pieces | 1990 | 2646 | 1764 |
