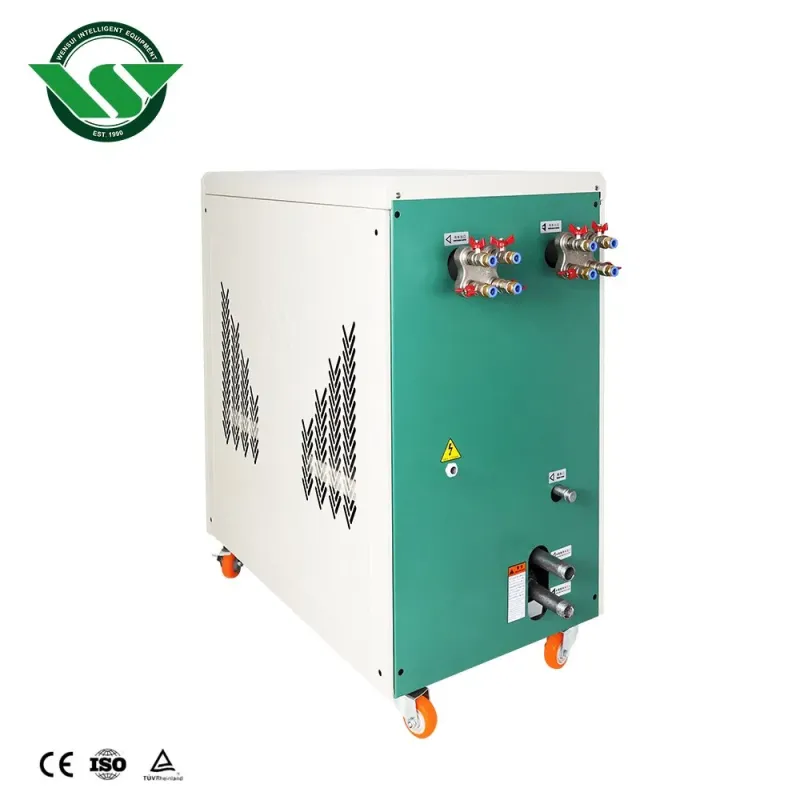

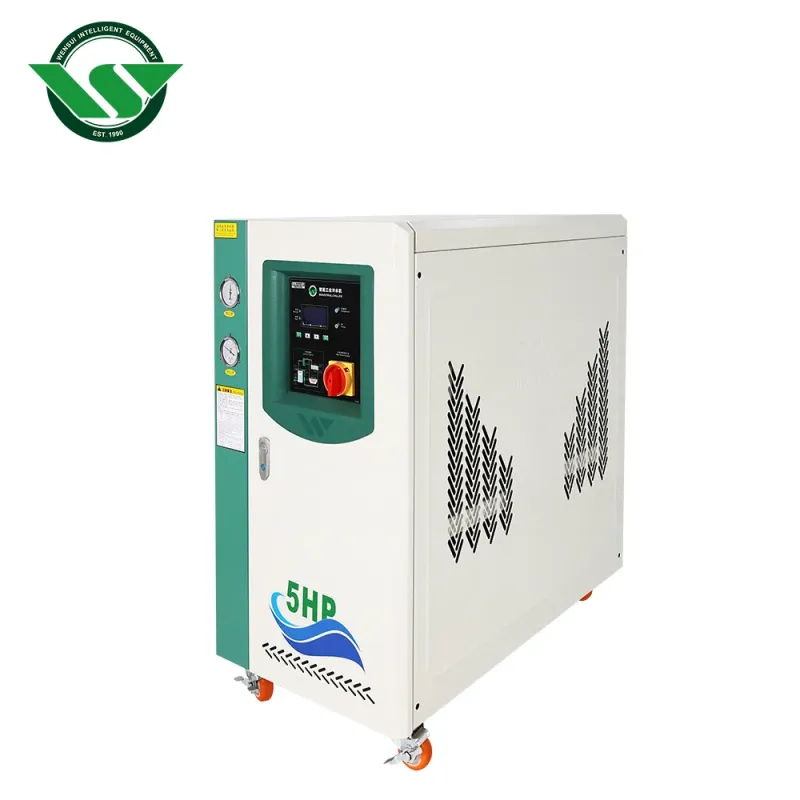

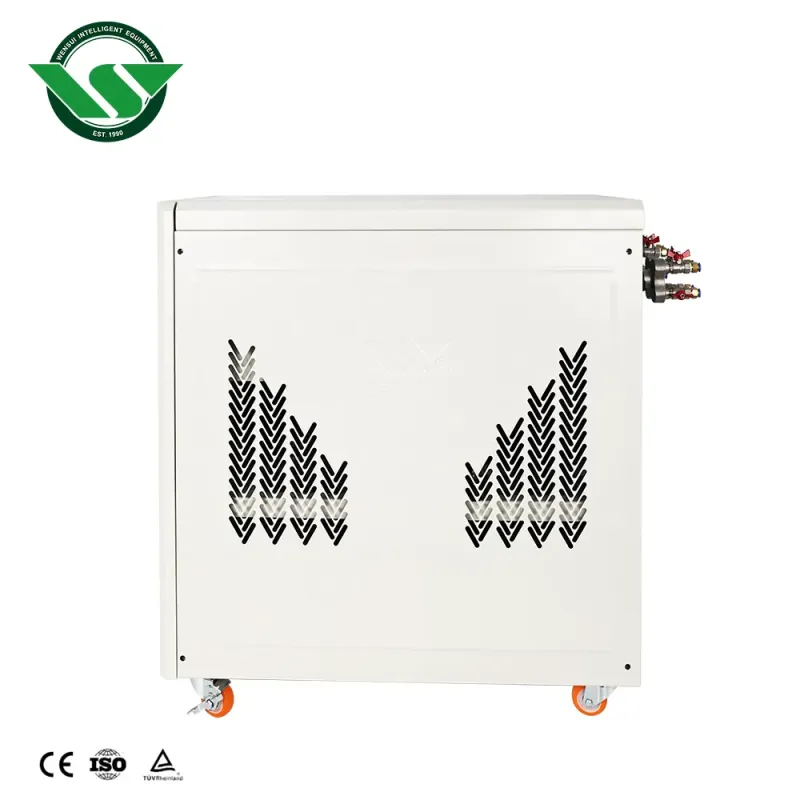

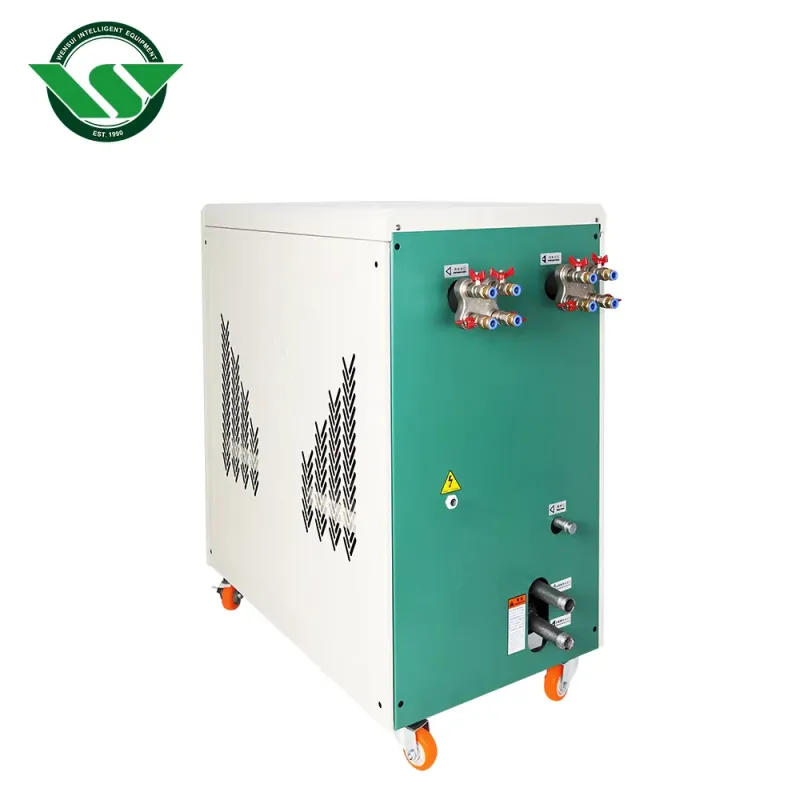

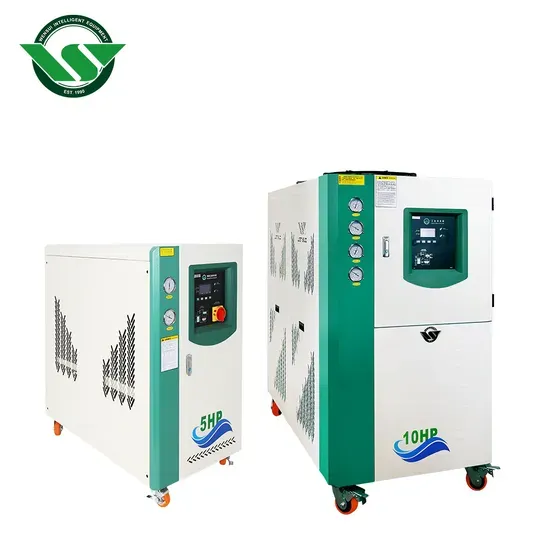

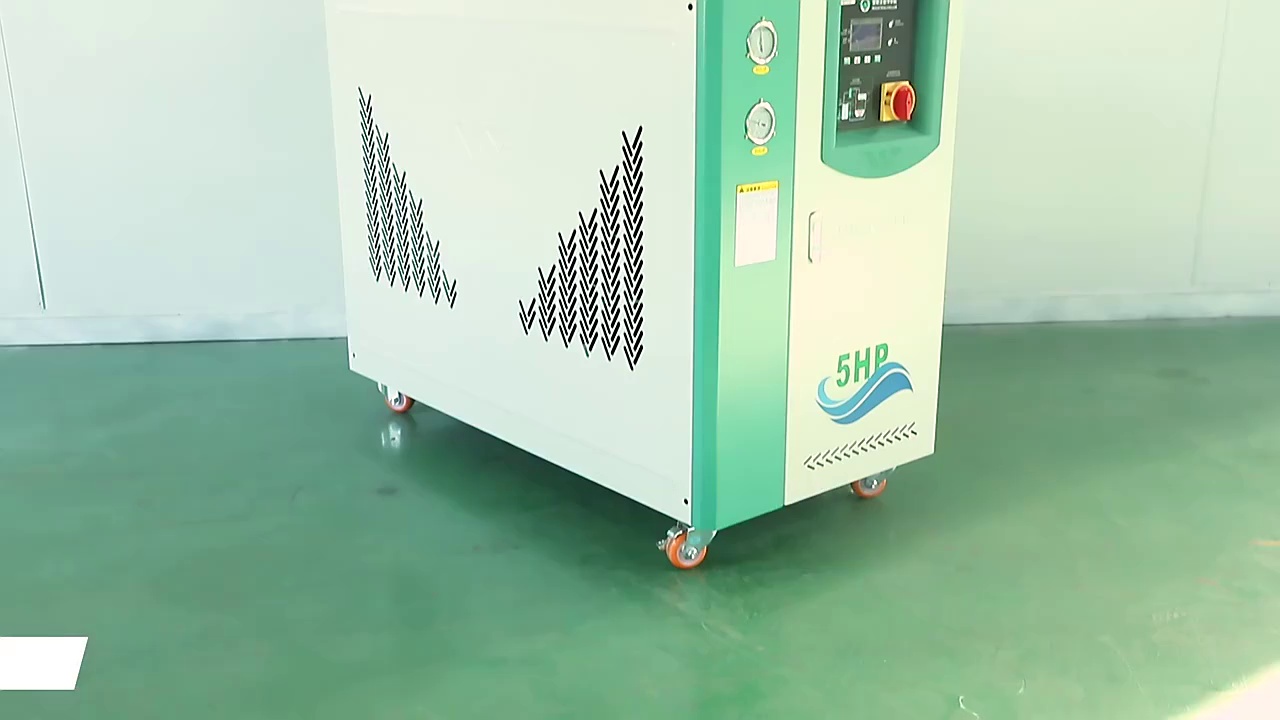

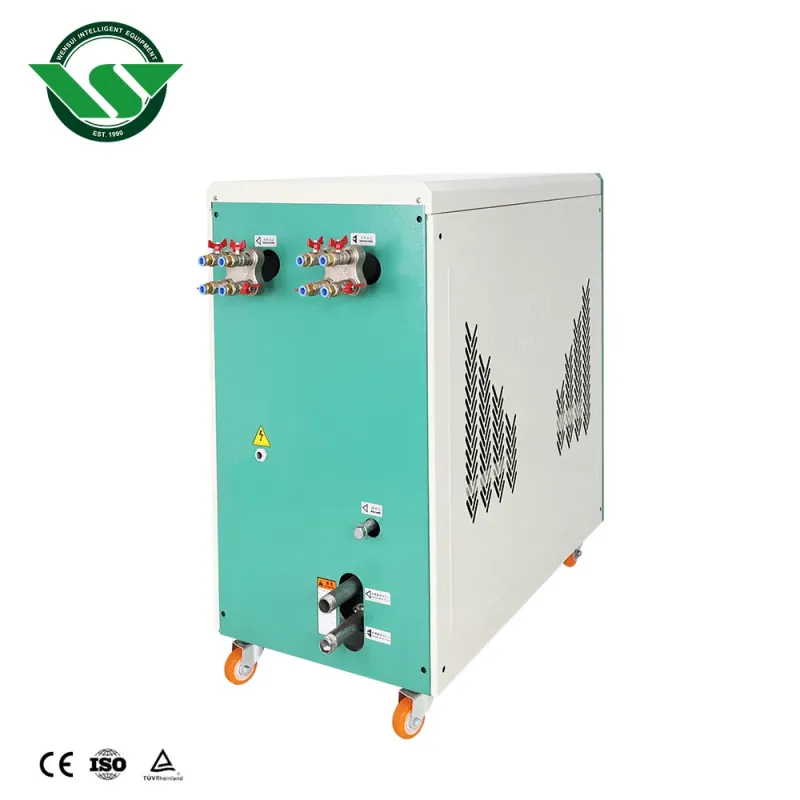

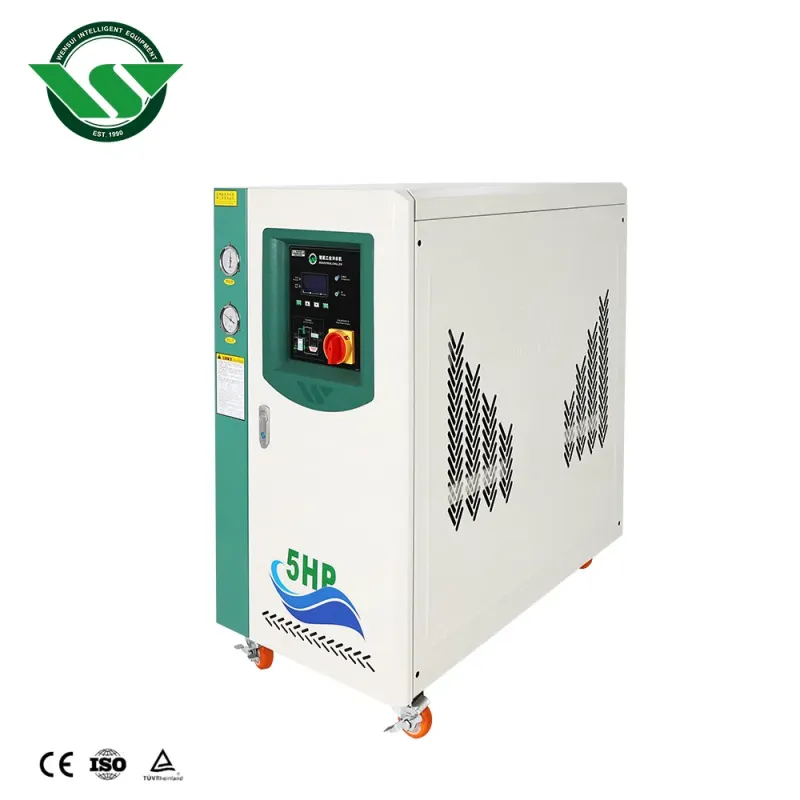

12HP Injection Mould Plastic Machine with 5HP Water Chiller
Contact Now
Description
Overview
| Model NO. | WSIW-05 |
|---|---|
| Type | Water-Cooled |
| Cooling Method | Water-cooled |
| Unit Structure | Integral |
| Selected Voltage | 380V/50HZ |
| Compressor Number | 1 |
| Noise Level | Low |
| Application Fields | Plastic |
| Certification | CE |
| Condition | New |
| Key Word | Water Chiller |
| Application | Plastic Products |
| Capacity | 15kw/H 12900kcal/H |
| Power | 4.5kw 5HP |
| Transport Package | Wooden |
| Trademark | WENSUI |
| Origin | China |
| Production Capacity | 10000PCS/Month |
Product Description
Product Parameters
| Model | WSIW-5 WSIA-5 | WSIW-10 WSIA-10 | WSIW-15 WSIA-15 | WSIW-20 WSIA-20 | WSIW-25 WSIA-25 | WSIW-30 WSIA-30 | WSIW-40 WSIA-40 |
|---|---|---|---|---|---|---|---|
| Refrigeration Capacity (kW/h) | 15 | 30.5 | 45 | 61 | 69 | 92 | 122 |
| Refrigeration Capacity (kcal/h) | 12900 | 26230 | 38700 | 52460 | 59340 | 79120 | 104920 |
| Compressor Type | Scroll Type | ||||||
| Input Power (kW) | 4.5 | 4.5*2 | 4.5*3 | 9*2 | 10*2 | 9*3 | 10*3 |
| Horse Power (HP) | 5 | 5*2 | 5*3 | 10*2 | 12*2 | 10*3 | 12*3 |
| Evaporator Type | Shell and tube Evaporator | ||||||
| Pipe Diameter (Inch) | 1 | 2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 |
| Refrigerant Type | R22 | ||||||
| Refrigerant Quantity (kg) | 2.5 | 5 | 7.5 | 10 | 11 | 12 | 18 |
| Controlled by | Expansion Valve | ||||||
| Water Cooled Condenser Type | Shell and tube | ||||||
| Pipe Diameter (Inch) | 1 | 1-1/2 | 1-1/2 | 2 | 2-1/2 | 2-1/2 | 2-1/2 |
| Water Flow (L/min) | 40 | 80 | 120 | 160 | 200 | 240 | 300 |
| Air Cooling Condenser Type | Finned Cooler | ||||||
| Blower Power (kW) | 0.2*2 | 0.4*2 | 0.8*2 | 0.8*2 | 0.8*2 | 0.8*3 | 0.8*3 |
| Water Tank (L) | 50 | 70 | 125 | 140 | 140 | 150 | 180 |
| Pump Power (kW) | 0.75 | 1.5 | 2.2 | 4 | 4 | 4 | 4 |
| Max Flow Rate (L/min) | 57 | 225 | 225 | 420 | 650 | 650 | 650 |
| Max Pressure (kg) | 1.2 | 1.9 | 1.9 | 2.1 | 2.1 | 2.1 | 2.1 |
| Cooling Water Outlet (Inch) | 1/2*4 | 2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 |
| Cooling Water Inlet (Inch) | 1/2*4 | 2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 |
| Total Air-cooled Power (kW) | 5.25 | 10.5 | 15.7 | 22 | 24 | 31 | 34 |
| Total Water-cooled Power (kW) | 5.65 | 11.3 | 17.3 | 23.6 | 25.6 | 33.4 | 36.4 |
| Protection System | Overload, High/Low pressure, Anti-freezing, Reverse Phase and Low Temperature Protection | ||||||
| Dimensions (Water Cooling) (cm) | 109*58*100 | 155*70*128 | 206*81*141 | 210*86*144 | 210*84*144 | 265*95*160 | 265*115*160 |
| Dimensions (Air Cooled) (cm) | 131*63*115 | 183*91*160 | 196*106*160 | 220*105*165 | 220*105*190 | 255*115*190 | 305*95*195 |
