          Product ID: 68591625

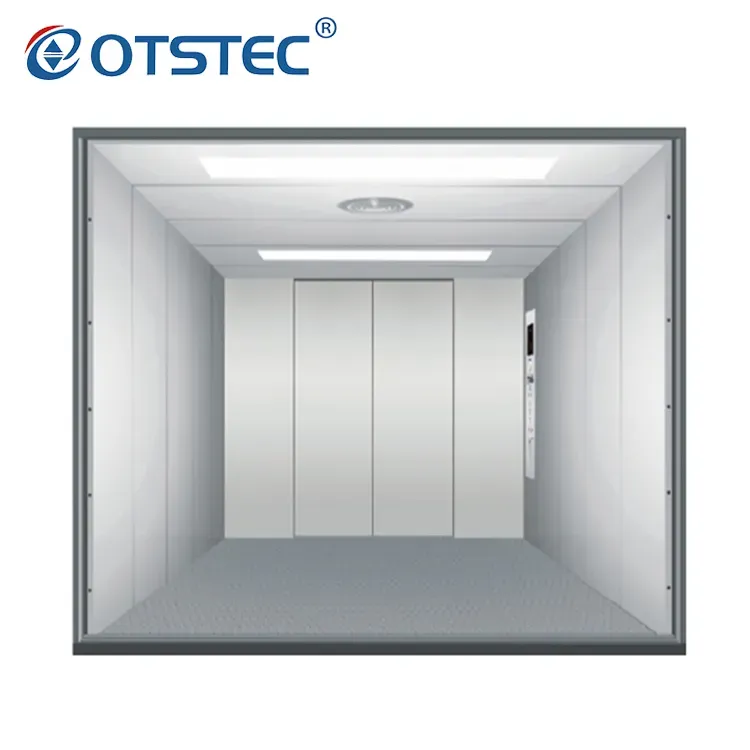

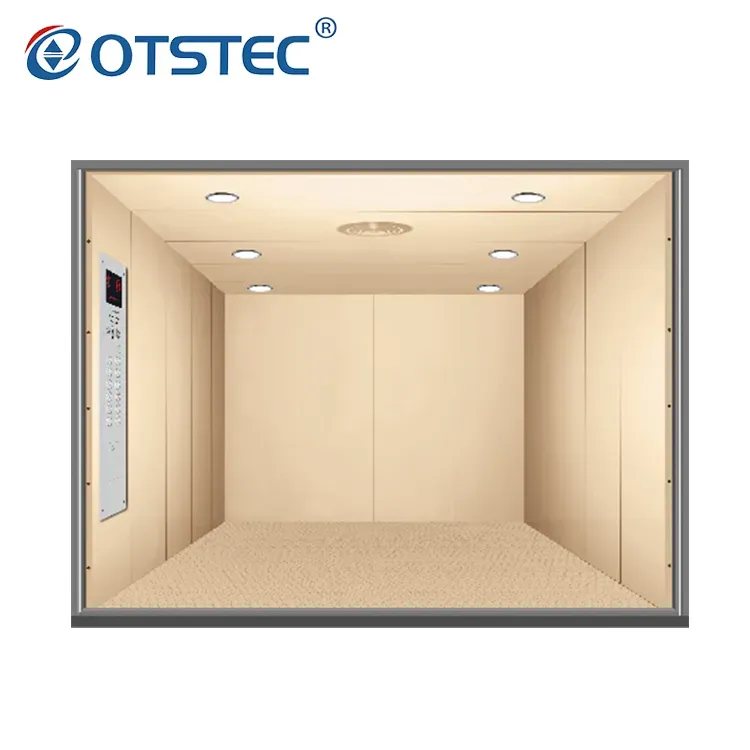

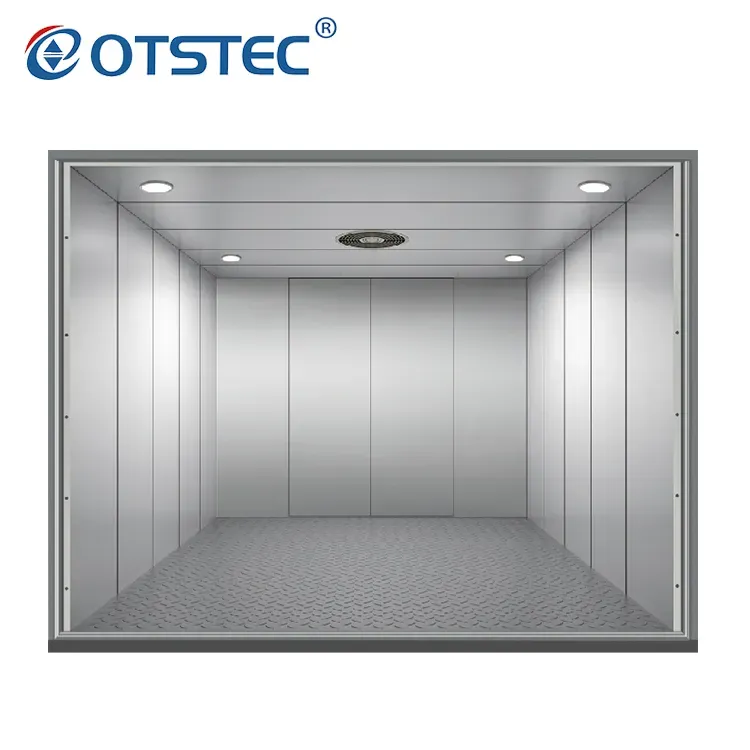

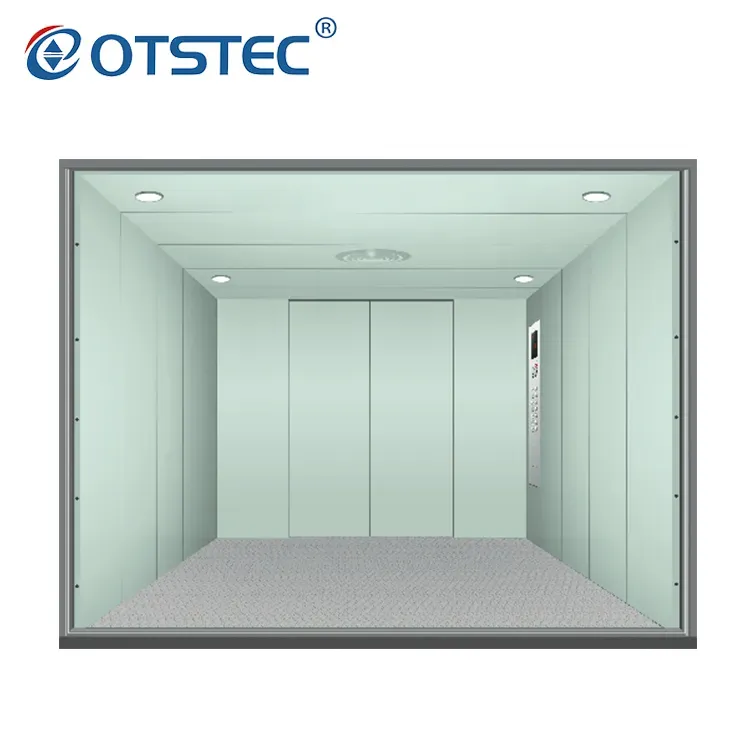

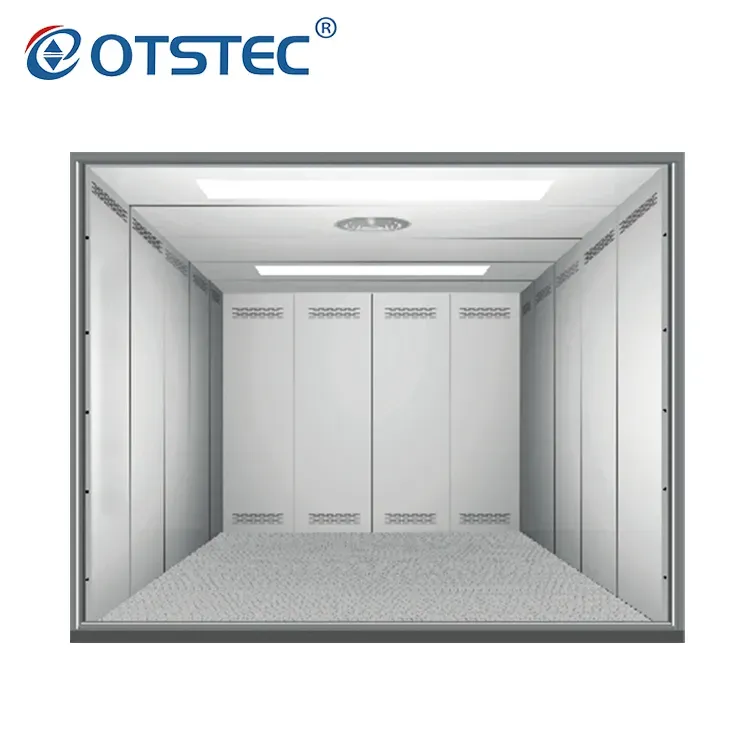

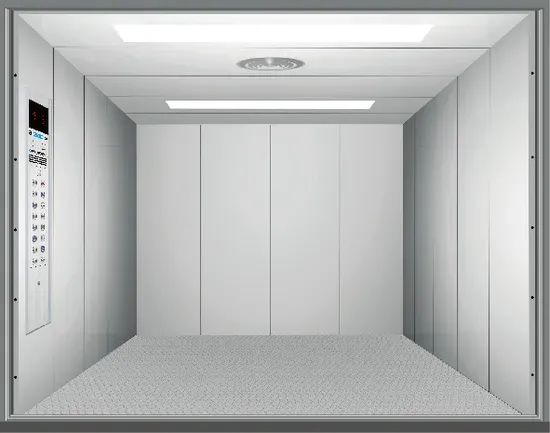

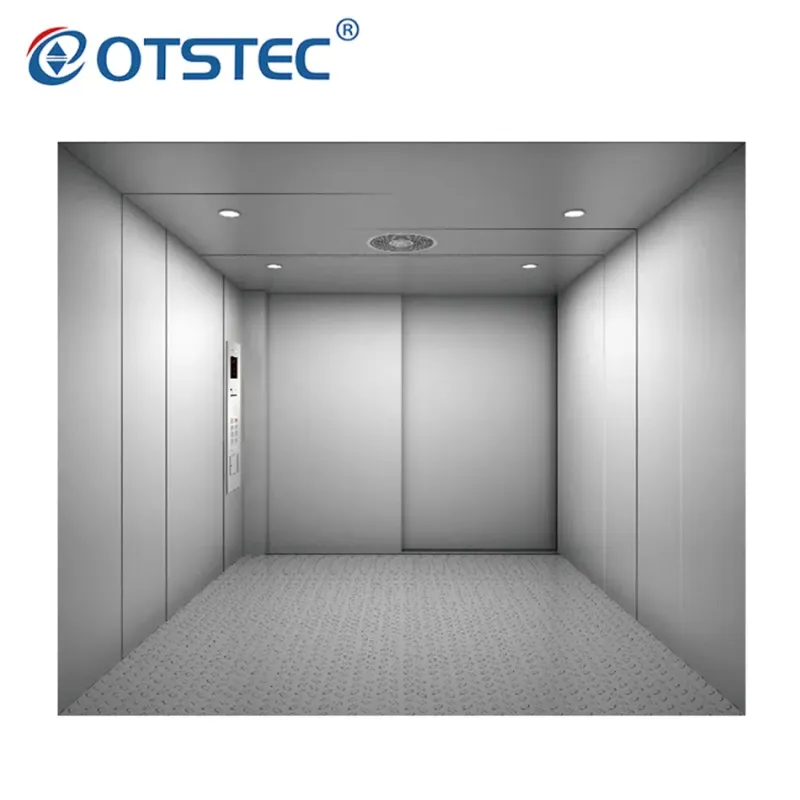

          Big Capacity Warehouse Freight Elevator

          Contact Now

          Description

          Overview

          Basic Info.

          • Model NO. OTN-30
          • Type Heavy Loading / Transport Goods
          • Load Capacity 2000kg - 5000kg
          • Speed 0.25m/S - 1.0m/S
          • Drive Mode AC
          • Open & Close Type Automatic
          • Lift Mechanism Lift Chain
          • Deceleration Device With Deceleration Device
          • Guide Rail T Guide
          • Elevator Door Automatical Opening Door
          • Door Knife Single / Double
          • Attendant Without Attendant
          • Certification ISO / CE / Bl / TUV / SGS
          • Traction Machine Permanent Magnet Synchronous Gearless Type
          • Material Painted Steel & Hairline Stainless Steel
          • Operation System Full Collective Selection Operation
          • Optional Function ARD, IC Card, Remote Monitor
          • Transport Package Solid Wooden Case
          • Specification 20GP / 40HQ
          • Trademark OTSTEC
          • Origin China
          • HS Code 842810
          • Production Capacity 3000 Sets / Year

          Packaging & Delivery

          • Package Size 150.00cm * 60.00cm * 60.00cm
          • Package Gross Weight 50.000kg

          Product Description

          Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room

          Product Parameters

          Small Machine Room

          Loading Passenger Loading Capacity (Kg) Speed (m/s) Car Size (W*D*H mm) Shaft (Min.) W*D mm Overhead Height W*D mm Rise (Max.) (m)
          6 450 1.0 1100*1100*2400 1700*1800 4500 45
          8 630 1.0-1.75 1400*1100*2400 2000*1800 4500 95
          10 800 1.0-2.5 1400*1300*2400 2000*2000 4500 120
          13 1000 1.0-3.0 1600*1500*2400 2200*2200 4500 150
          16 1250 1.0-4.0 1950*1400*2400 2600*2100 4500 180
          21 1600 1.0-4.0 1950*1750*2400 2600*2450 4500 180

          Machine Room less

          Loading Passenger Loading Capacity (Kg) Speed (m/s) Car Size (W*D*H mm) Shaft (Min.) W*D mm Overhead Height W*D mm Rise (Max.) (m)
          6 450 1.0 1100*1100*2400 1900*1500 4500 45
          8 630 1.0-1.75 1400*1100*2400 2200*1500 4500 95
          10 800 1.0-2.5 1400*1300*2400 2200*1700 4500 120
          13 1000 1.0-2.5 1600*1500*2400 2400*1900 4500 150
          16 1250 1.0-2.5 1950*1400*2400 2750*1800 4500 180
          21 1600 1.0-2.5 1950*1750*2400 2750*2150 4500 180

          1. Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass;

          2. Capacity: 250KG, 320kg, 400kg;

          3. Speed: 0.4m/s, 1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s

          4. Type: Traction home elevator, Strong drive home elevator, Steel belt home elevator, Knapsack frame structure home elevator;

          5. Machine Room: Machine Roomless (MRL)

          6. Control system: Monarch

          Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room

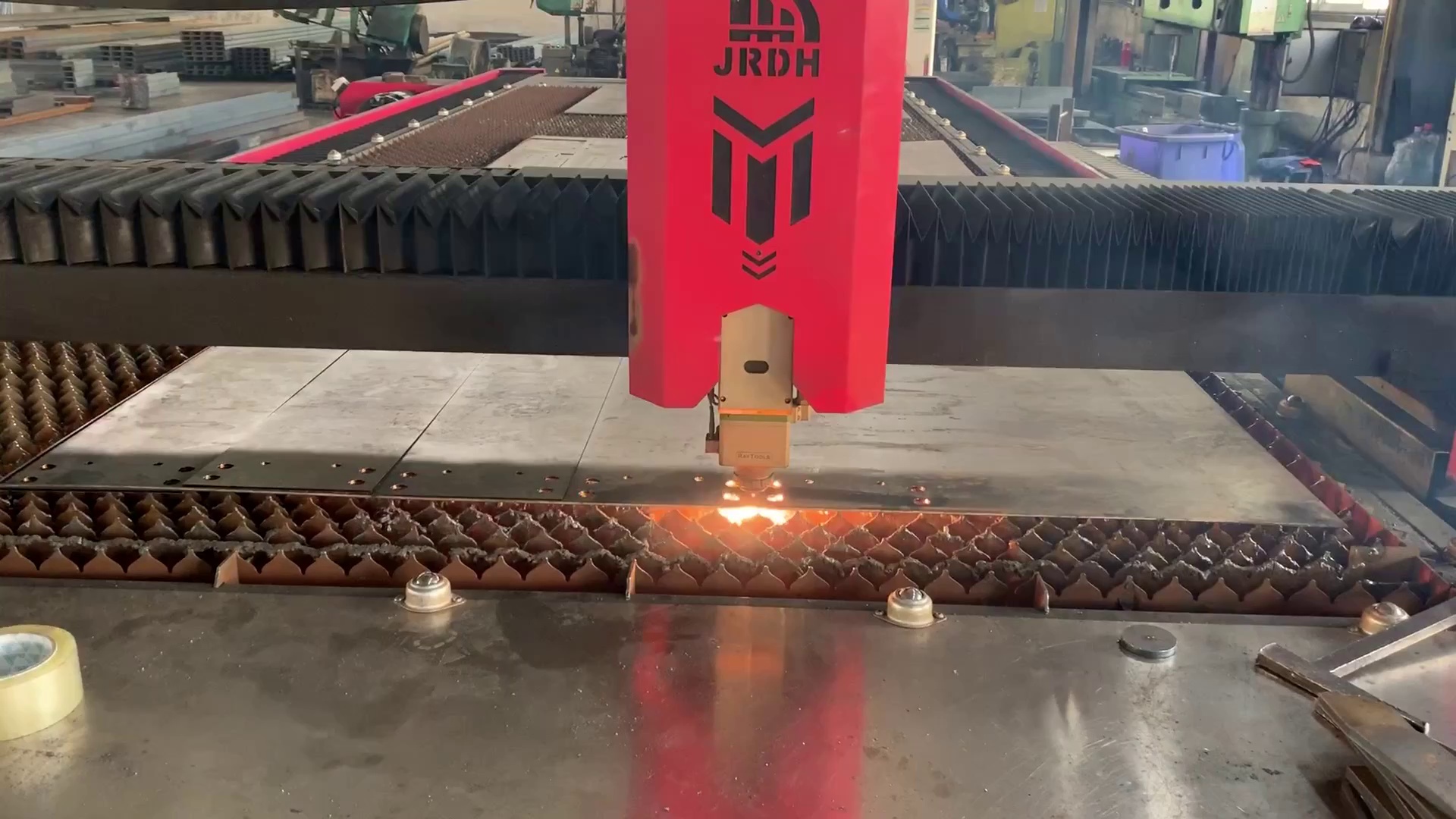

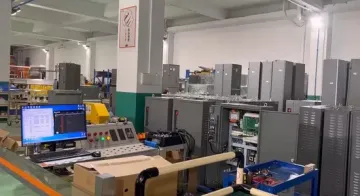

          Production Process

          Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room

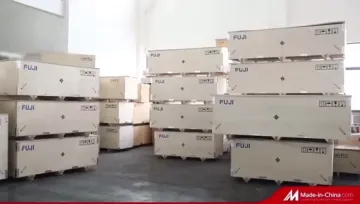

          Packaging & Shipping

          Big Capacity Warehouse Car Goods Freight Lift Cargo Elevator with Machine Room
