Sydney 800kg 1.75m/s Passenger House Panoramic Cargo Residential Elevator

Video

Product ID: 68591652

Sydney 800kg 1.75m/s Passenger House Panoramic Cargo Residential Elevator

Contact Now

Description

Basic Info.

Model NO.

16K050

Persons

5~22 Persons

Speed

1.0m/S~4.0m/S

Control Mode

Collective Selective Control

Position of Computer Room

Elevator Door

Center Opening Door

Door Knife

Single

Deceleration Device

With Deceleration Device

Attendant

Without Attendant

Elevator Type

Passenger Elevator

Machine Room Type

with Machine Room

Door Open Way

Center Open, Side Open

Door Open Size

700mm~1300mm

Door Height

2100mm (Standard)

Main Power

AC 380V, 3 Phase 50Hz

Lighting Power

AC 220V, 1 Phase, 50Hz

Production Time

15~30 Days

Warranty

18 Months After Shipment

Certification

En 81-20: 2014, En 81-50: 2014

Transport Package

1 Set One 20FT Container

Specification

Plywood box

Trademark

SYNEYor OEM

Origin

Zhejiang, China

HS Code

8428101090

Production Capacity

11000 Sets Per Year

Product Description

Product description

Syney 800kg 1.75m/s Passenger House Panoramic Cargo Residential Elevator

This passenger elevator has an exact and effective control system by using the most advanced electronic technology. In additon to this, Syney lifts adopt the latest environment-friendly technonoly in manufacturing, as well as safety device and signal device. Syney passenger lift series can offer you distinctive nobility and luxury, which is the symbol of taste. That is why Syney is suitable for high-grade business building, hotel and luxurious mansions, etc.

Features
1. Safe and reliable
    Syney passenger elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Space configurability
    From the view of space saving, Syney passenger elevator make new layout of machiine room, improved the space availability.
3. Energy saving and environment friendly
    Syney passenger elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
4. High performance
    Syney passenger elevator is euipped with stable control system with maximum capacity 1600kg. Intelligent lift dispatching system provides the best solution for customer riding.
5. Free custom-made
    Customers can choose their favorite and customized apperance for their own elevators
    from aspects of car finish, design, ceiling and floor materials.

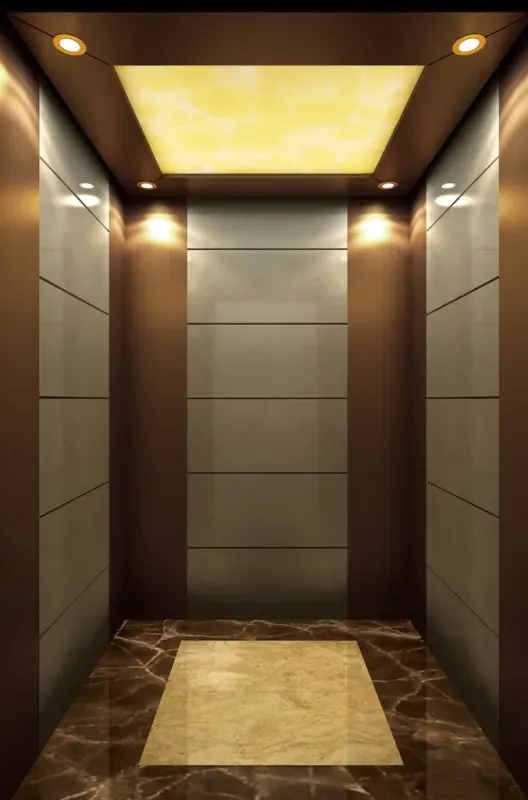

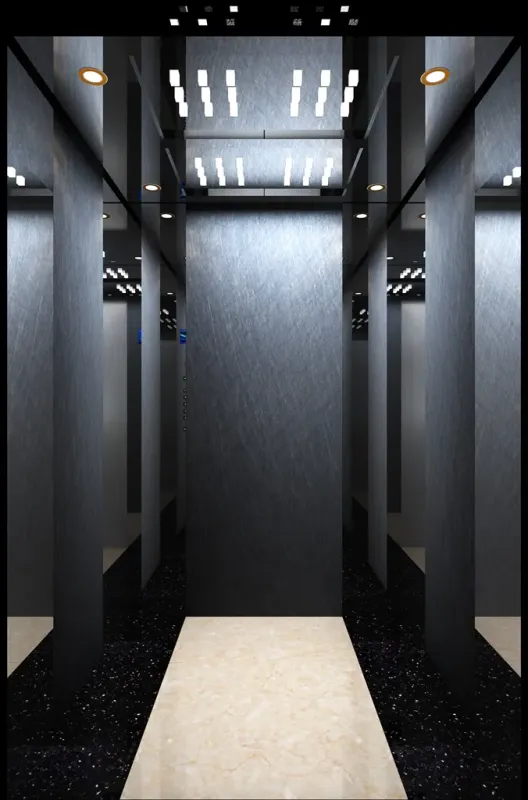

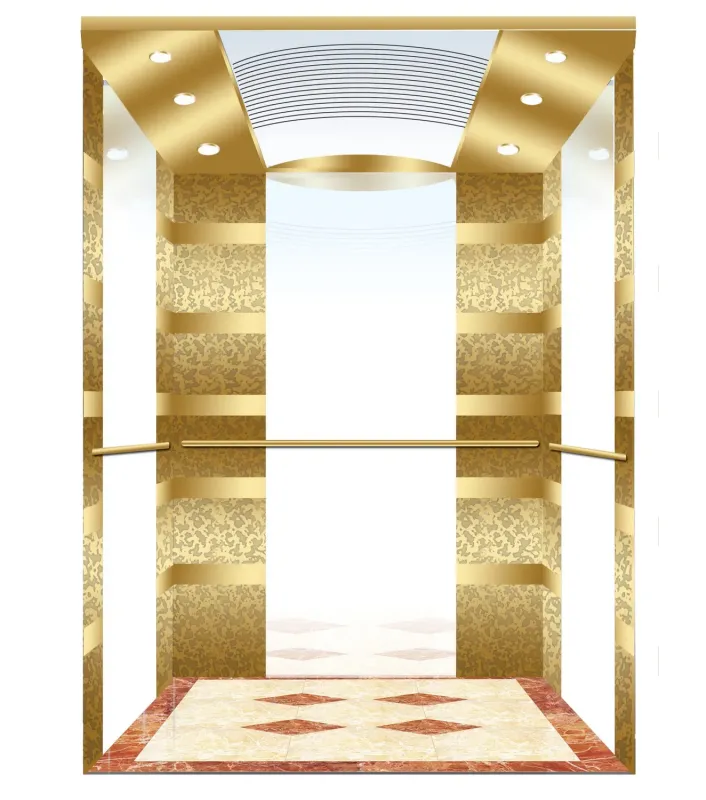

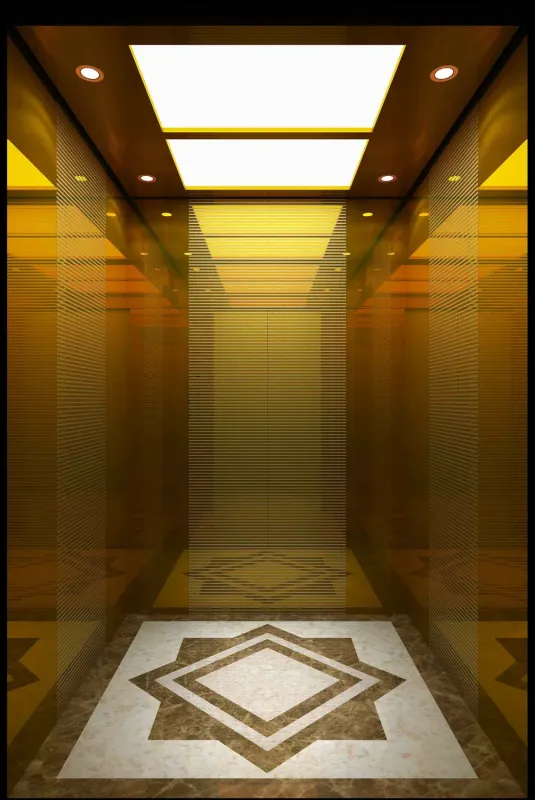

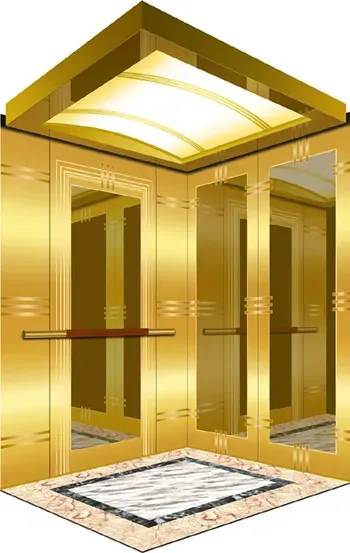

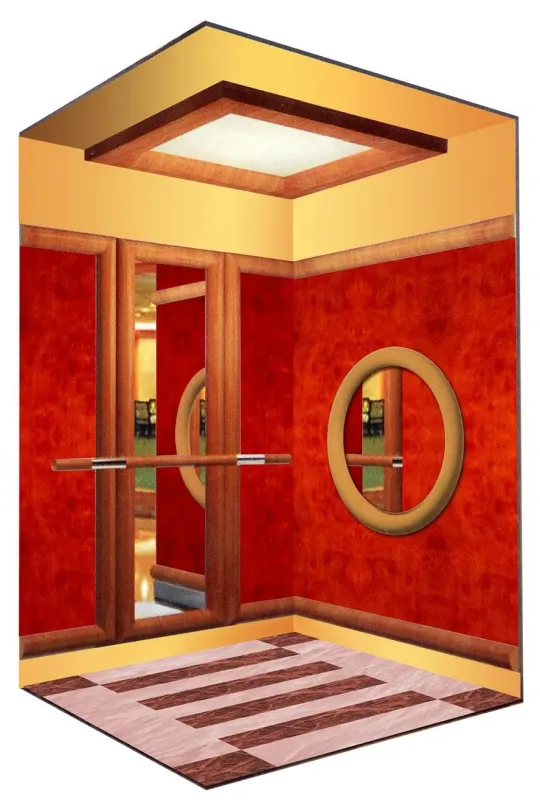

Passenger elevator cabin design

Syney 800kg 1.75m/S Passenger House Panoramic Cargo Residential Elevator

Standard functions

No.	Function	No.	Function
1	Collective Selective	24	Door lock stop when running
2	Close door interrupted auto return	25	Level adjust
3	Overload Alarm	26	Auto stop
4	Full load bypass drive	27	Floor signal auto-amend
5	Motor overheat protect	28	Door switch protect
6	Machine room emergency electric operation	29	Anti-slid protect
7	Top floor terminal protect	30	Door switch button
8	Car display	31	Landing door/car door lock at certain period
9	Reset Running	32	Landing door open at present floor
10	Car emergency lightening	33	Speed feedback
11	Car top inspection	34	Reverse running protect
12	Door close time extending protect	35	Shaft position self study
13	5 part interphone	36	Brake feedback inspection
14	Reverse direction register cancel	37	Standby switch
15	Car Alarm bell	38	Car lightening and fan control
16	Fault register cancel	39	Fault self-diagnosis
17	CPU self protect	40	Running direction signal
18	Auto level	41	Fault history record
19	CAN communication protect	42	Service floor setting
20	Fault auto level	43	Floor display setting
21	Level switch protect	44	Auto return main floor
22	Low speed protect	45	Auto return main floor when fire alarm
23	Shaft self-study diagnosis	46	Contactor feedback detection

FAQ:
1. How to get fast reply for inquiry?
Send complete information to us, like below example:

Shaft	Not designed	Under construction or Finished
Elevator type	tell us the capacity you need or for how many persons, also you can refer to our standard size as below	Passenger, panoramic, cargo or home type
Machine room		With or without
Capacity/persons		1000kg/13persons
Floor/stop/door		6 floors 6 stops 6 doors
Speed		1.0m/s
Cabin door		one cabin door
Shaft size		(W)2200*(D)2100
Overhead height		4500mm (possible to change)
Pit depth		1500mm
Each floor height		≥2700mm
Decoration
Cabin		Stainless steel
Cabin wall		Stainless steel
Main landing door		Stainless steel
Other landing door		Painted steel
Floor		PVC tile
Other requirements		any special requirement, just let us know

Parameters

Capacity	Speed	Cabin Size			Shaft Size					Max Travel	Min Floor H
DL	V	Width	Depth	Open	Width	Depth	Pit	OH	MRH	Max R	Min D
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(m)
630	1	1400	1150	800*2100	2000	1800	1500	4500	2300	50	2.7
	1.5						1600	4600		70
	1.75						1700	4700		90
800	1	1350	1400	800*2100	2000	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2050	2100	1900	5000	2500	100
	2.5				2050	2100	2100	5200	2500	120
1000	1	1600	1400	900*2100	2200	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2300	2100	1900	5000	2500	100
	2.5				2300	2100	2100	5200	2500	120
1150	1	1800	1400	1000*2100	2400	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2500	2150	1900	5000	2500	100
	2.5				2500	2150	2200	5200	2500	120
1350	1	2000	1500	1100*2100	2600	2200	1500	4500	2500	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2700	2250	1900	5000		100
	2.5				2700	2250	2200	5200		120
1600	1	2000	1700	1100*2100	2600	2400	1500	4600	2500	50
	1.5						1600	4700		70
	1.75						1700	4800		90
	2				2700	2450	1900	5100		100
	2.5				2700	2450	2200	5300		120

Note:
Above standard specification is only for reference.  If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.

2. Proccedure to place order
      1) confirm the elevator specification and drawing;
      2) sign contract with Syney;
      3) production arranged after contract confirmed and payment received;
      4) after products finished, inform the customer about the delivery time and book ships;
      5) arrange delivery and send documents to customer after shippment;
      6) follow up with customer for after sale service.

3. Product warranty
    The warranty for elevators is 18 months after delivery.

4.  How do you provide after sale service
     1) for installation, factory will provide installation manual for your technicians to be familiar with.
     2) for commissioning, factory can provide remote guiding.
     3) for special projects, factory will send engineers to site to help installing.
     4) for all our agents, Syney welcome you to send your technicians to our factory to get training. Syney will cover the accomodation and transportation in our city.

5. How to report the after sale problems
    1) please tell us the contract number or product serial number, factory can check the product specifications according to the code.

Syney Electric (Hangzhou) Co., Ltd. is a professional enterprise integrating R&D, design, manufacture, marketing, installation and customer service. The company applies whole set of advanced equipments and specializes in design and manufacture of products including passenger elevator, panoramic elevator, bed elevator, cargo elevator, home elevator, car elevator, escalator, moving walks, etc. Syney sales network expands to over 50 countries in Europe, Asia, Africa and America.

Certificates
CE Certificate of Elevator with machine room and Elevator without machine room, and UCMP device
CE Certificate of energy-efficiency of lifts: Grade A
EAC Certificate Elevator with machine room and Elevator without machine room

Syney 800kg 1.75m/S Passenger House Panoramic Cargo Residential Elevator

From the raw material getting into factory to finished products getting out to customers, Syney has a strict operation system to control each steps.

No rejected raw material will be accpeted!
When raw material comes to factory, QC department will check all the materials, once any fault items found, it will be returned to suppliers at once. Only qualified material will get into raw material warehouse.

Production management
Every week, production department will make the production plan and update the schedule of online products. There is daigital board in each workshop showing the production plan everyday. In this way, from workers to managers all clearly know which project is online now.
Every moring, managers will guide the workers to run for 15 minutes first to refresh. Then check the machines status before operation and check again after one day job.

Packing
All parts are packed in solid plywood boxes, which can stand long time sea shipping and fumigation free. For some important parts like control cabinet, door operator and motor, parts will be covered by a strong film first, with desiccant, before put into boxes.

Quality control
1) All raw materials will be checked before get into warehouse. And bulk electronic product do sampling inspection. All parts must have qualified certificate from suppliers. QC1 is responsible for this.
2) During production stage, QC2 will check commissioning for each elevator, escalator and moving walks.
3) After elevator and escalator finished, QC3 will test the match of elevator motor and control cabinet, and the running condition of escalator and moving walks.
4) After packed, QC4 will check package condition for each parts, and takes photo for further reference.
5) When delivery, QC5 will check if all parts packed in container to avoid any missing, and takes photo for further reference.
