Overview

Basic Info.

Model NO.	DM-BE001
Driving Type	AC Elevator
Capacity	>1000kg
Persons	11 - 19
Speed	<1.00m/s
Control Mode	Signal Control
Position of Computer Room	up
Elevator Door	Center Opening Door
Door Knife	Single
Deceleration Device	With Deceleration Device
Attendant	With Attendant
Power	3phase 380V ,3phase 220V or Customized
Control System	Monarch ,Step System,Blue Light
Cabin Material	Glass ,Hairline Stainless Steel,Golden Etched,etc
Open Way	Center Opening , Side Opening,Manually Operated
Open Size	600mm-1000mm ,Customized According to Shaft
Ropping	2:1 ,1:1
Machine	Machine Room,Machine Roomless,Small Machine Room
Control	Vvvf
Doors	2-40 Floors
Cabin	Size Can Be Customized
Design	Modern
Traction Machine	Geared or Gearless Machine
Material	Wooden or Marble Design
Transport Package	Export Wooden Case
Specification	10CMB
Trademark	DEMAN
Origin	Jiangsu, China
HS Code	8431310090
Production Capacity	2000 Units/Year

Product Description

DEMAN traction type Bed elevator applies new generation permanent synchoronous and gearless host and high performance digital variable frequency technology and grou computer combined control technology,It can save more than 33% of the energy,What is more,It saves the mechanical energy loss in the traditional gearbox transmission and further enchances the efficiency.

Customize Size Medical Bed Lift Wheelchair Hospital Elevator 800kg~1600kg

Detailed Photos

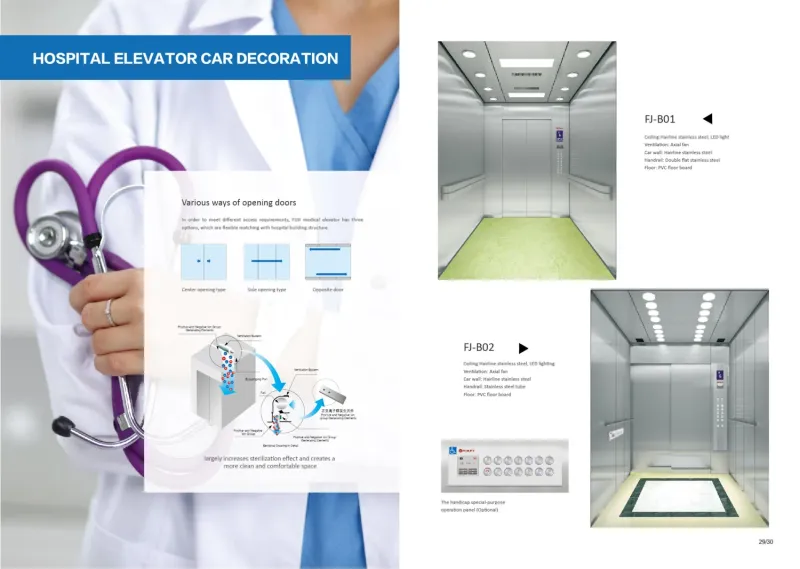

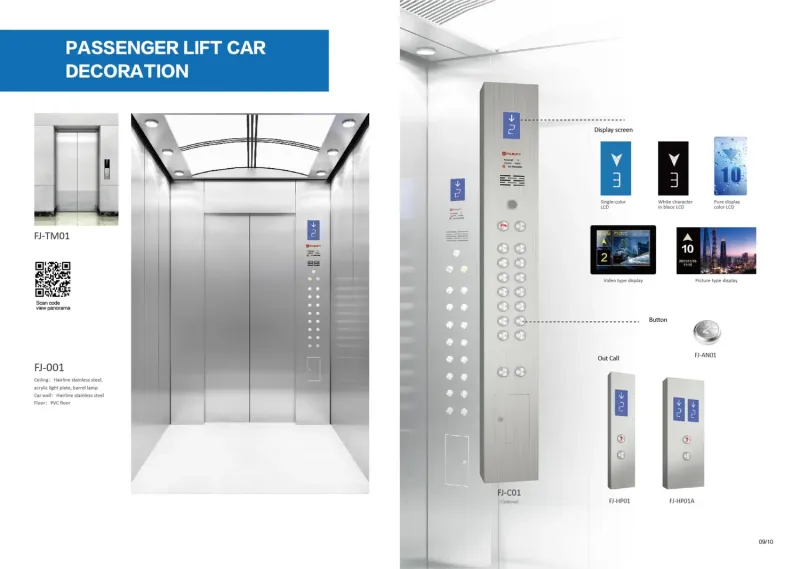

*The car cabin decoration can be choosed

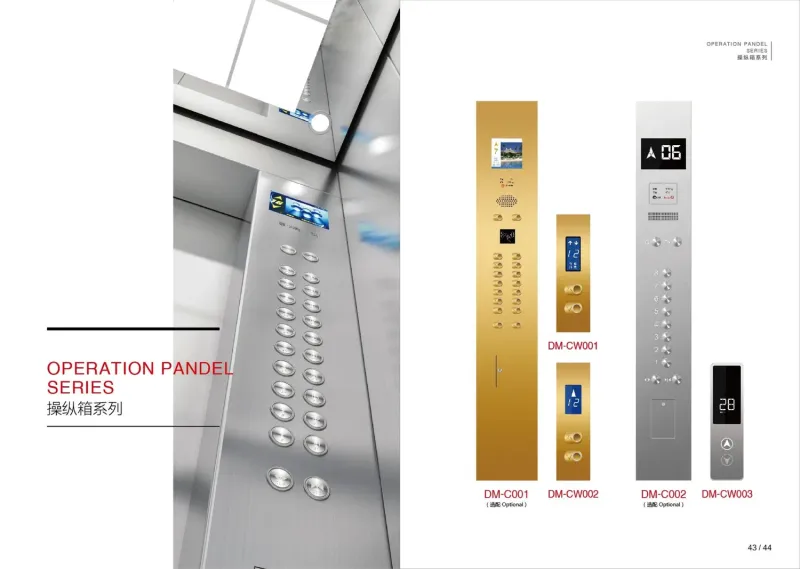

*The Human-machine interface

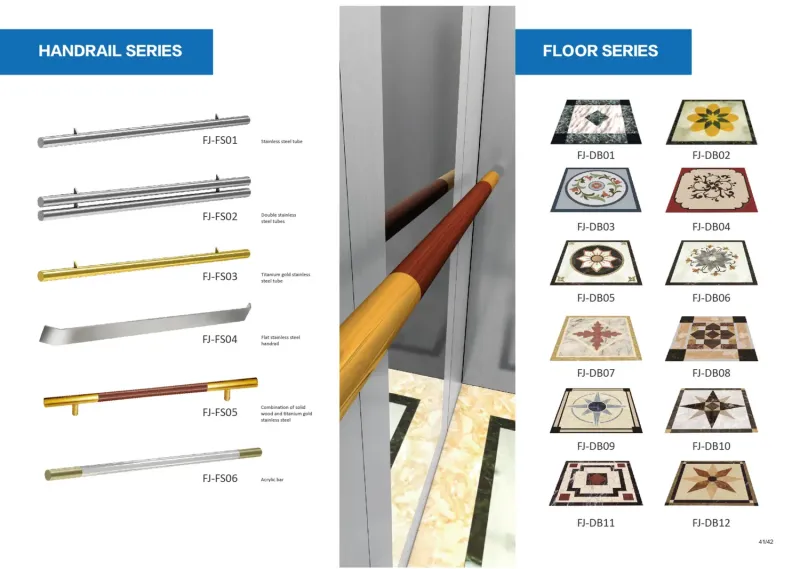

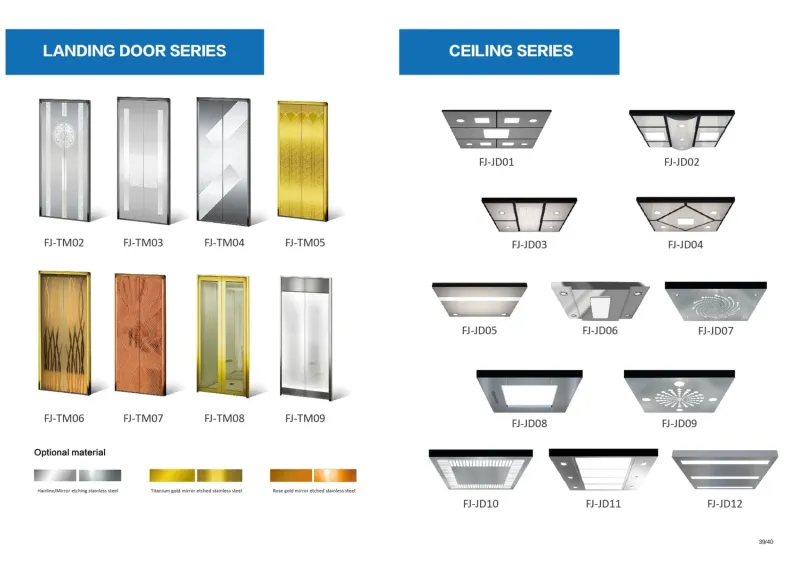

*The attachment of decoration

*The Control System:

Our factory uses Microcomputer group supervision management system.

Duty on/off rush-hour running mode:IT satisfies the running requirements in the rush hours of duty on/off the public occasions in the office and etc, Even operationn mode:It adopts the minimized waiting period dstribution principle with the prompt and reasonable elevator response, Idle running model:The elevators have been evenly distributed in the designated area to wait for call in idle times in order to guarantee the quick and timle response towards the outer calls

*Traction Motor System:

Motanari Brand , Shunda Brand , XIZI brand, FAXI brand , Blue light brand , and other chinese motor brand can be choosen

Product Parameters

Loading capacity(kg)	Speed(m/s)	car net size(mm)	Door opening way	Door-opening size(mm)	Hoistway net size(mm)	Machine room size(mm)
450/6	0.5	Width: 1150 Depth: 1100	Center opening	Width: 700 Height: 2100	Width: 1700 Depth: 1750	Width: 1700 Depth: 1750
630/8	1.0	Width: 1400 Depth: 1100	Center opening	Width: 800 Height: 2100	Width: 2000 Depth: 1750	Width: 2000 Depth: 1750
800/10	1.5	Width: 1400 Depth: 1350	Center opening	Width: 800 Height: 2100	Width: 2000 Depth: 2000	Width: 2000 Depth: 2000
1000/13	1.0	Width: 1600 Depth: 1500	Center opening	Width: 900 Height: 2100	Width: 2200 Depth: 2200	Width: 2200 Depth: 2200
1150/15	1.5	Width: 1700 Depth: 1500	Center opening	Width: 1000 Height: 2100	Width: 2300 Depth: 2200	Width: 2300 Depth: 2200
