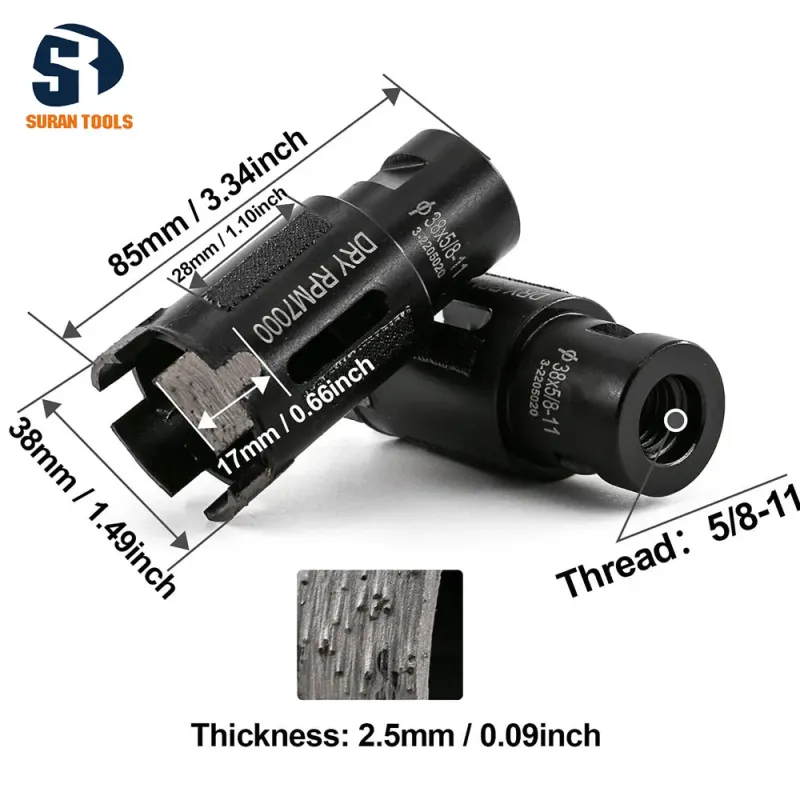

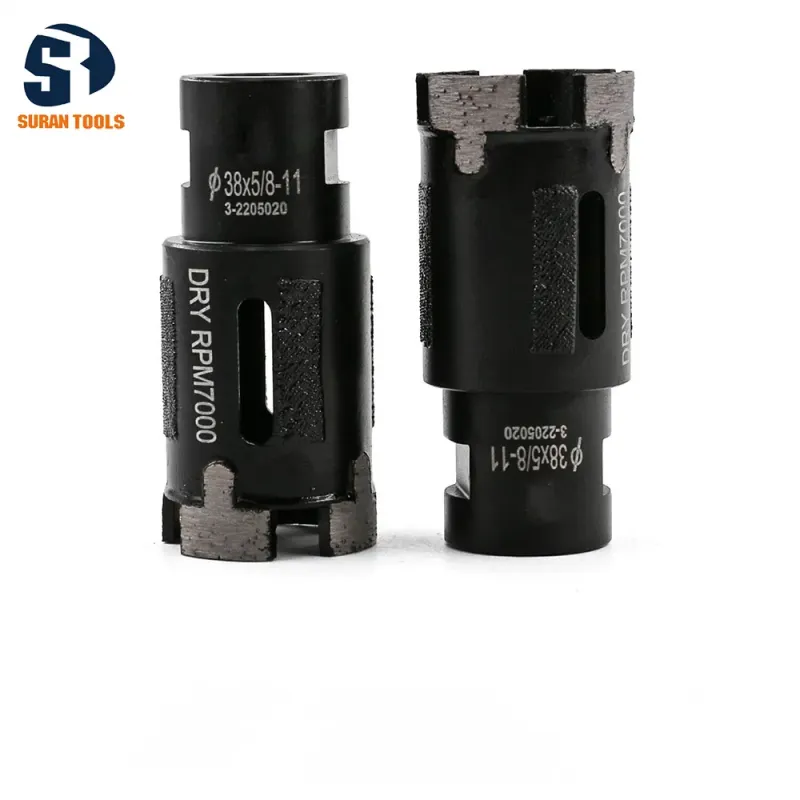

38mm Wet Dry Diamond Core Drill Bits for Stone and Granite
Description
Overview
Basic Info.
- Model NO. Diamond Core Bits
- Certification CE
- Processing Sintered/Vacuum Brazed
- Thread M14/5/8"-11
- Surface as Your Request
- Service OEM, ODM, etc.
- Item No. Dcba018
- Transport Package White Box/Color Box/Carton/Pallet
- Specification DCBA
- Trademark SURAN, OEM or ODM
- Origin China
- HS Code 8207901000
- Production Capacity 1000000 Pieces/Year
Product Description
How to choose core bits
- Decide on the material to be cored. Diamond core drill bits are commonly used for coring concrete, granite, ceramic tiles and other hard materials. The formula of the diamond core drill bit depends on the material you want to drill.
- Find out the diameter of the hole you need and the working condition is wet or dry, as well as the thread type and working length.
- Choose the right diamond core drill bit for your tool. Different cutting materials use different formula of diamond core bit segments. Diamond core drill bits are manufactured for single drills, conventional drills.
- Consider buying diamond core drill bits in large quantity. The working life of diamond core drill bits is short, because the heat generated by drilling will eventually wear out the diamond from the diamond segment. If you plan to use diamond core drill bits for many projects, this will save you money.
- Check the product label carefully. Don't just choose the first diamond core drill bit you see. Some products have clearly marked their intended use, such as drill granite, ceramic, etc.
Art. No.
| Art. No. | Outer Diameter | Effective Depth | Segment Height | Connection |
|---|---|---|---|---|
| DCBA 032 | 32 (1.25") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 042 | 42 (1.65") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 047 | 47 (1.85") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 052 | 52 (2") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 057 | 57 (2.24") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 068 | 68 (2.68") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 072 | 72 (2.83") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 082 | 82 (3.22") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 092 | 92 (3.62") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 102 | 102 (4") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
| DCBA 112 | 112 (4.4") | 60/70 | 7/8/9/10 | M16/M14/1/2"BSP |
Packaging & Shipping
Packing & Delivery: Double Blister/White Box/Color Box/Carton/Pallet
About Suran Tools Co., Ltd.
Suran Tools Co.,Ltd. is engaged in manufacturing and exporting diamond saw blade, laser welded diamond saw blade, diamond cup wheel, diamond tuck point blade, flexible polishing pad, diamond sanding block, diamond core bit, core bit adapter, TCT saw blade etc. The company holds the managerial idea that "Quality proves strength, details reach to success", The company introduces the most advanced equipments. We have our own QC system, R&D Dept, so we can produce according to customer's samples, drawings and the specifications. Our Engineers and artwork designers are ready to provide you more qualified products and after-sales service. We have long time business relationship with customers in European, South American, Africa, Asia, Middle East, We sincerely welcome you to visit our company or contact us for cooperation.
Our Advantages
- Rich experience: More than 20 years' R&D, abundant stone cutting experience.
- Good sharpness: Our granite diamond saw blade positioned in providing higher cutting efficiency for clients, and adjusting lifespan as per clients' requests on the basis of sharpness guaranteed first.
- Stable quality: Product spirit of striving for perfection, detailed training management system, stable and high quality production team, make our products keep better stability.
