High Quality Diamond Wet Core Drill Bits for Concrete
Description
Basic Info.
Certification: ISO9001
Manufacturing Arts: Welding
Transport Package: Common Packing or Customized Packing
Specification: Europe standard EN 13236: 2001
Trademark: OEM and ODM
Origin: China
HS Code: 82071910
Production Capacity: 30000PCS/Month
Product Description

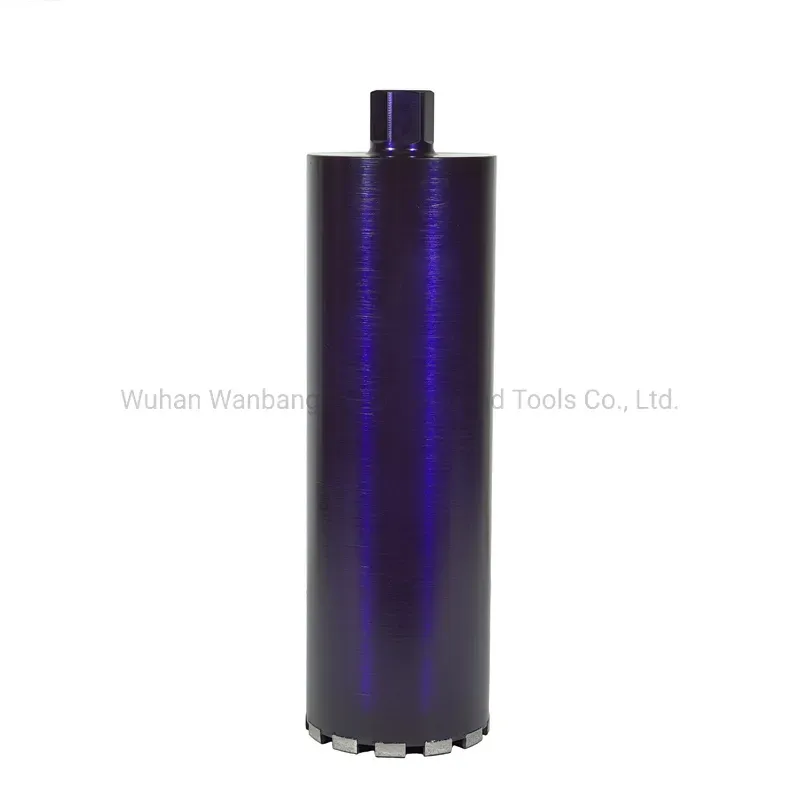

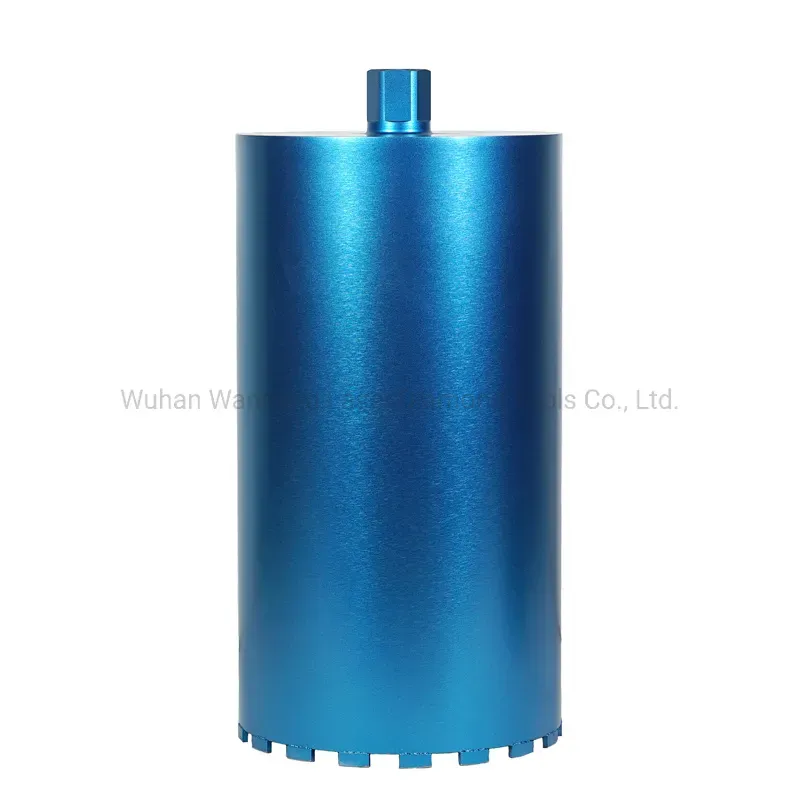

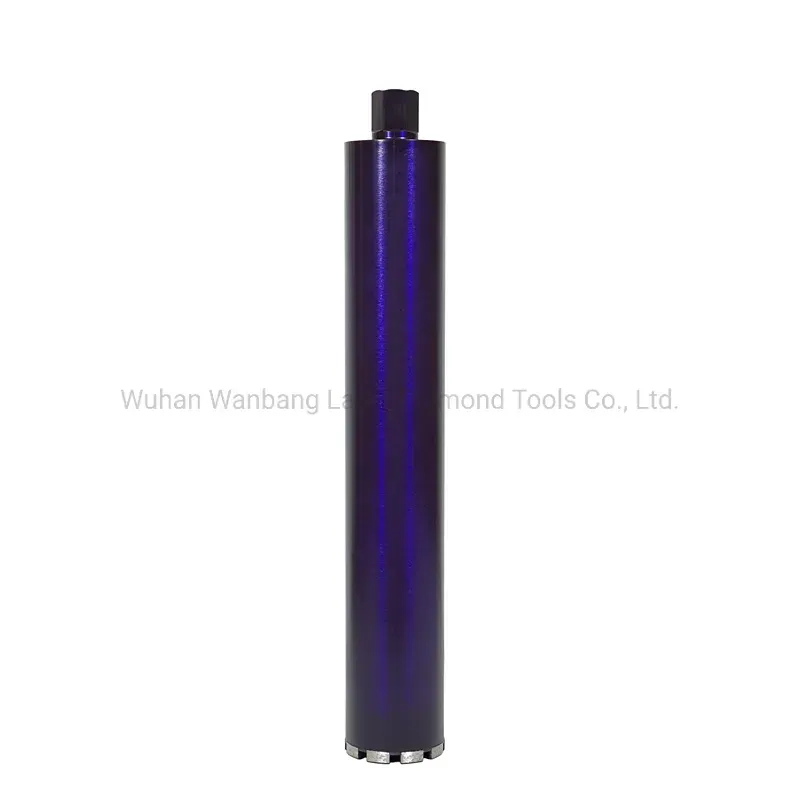

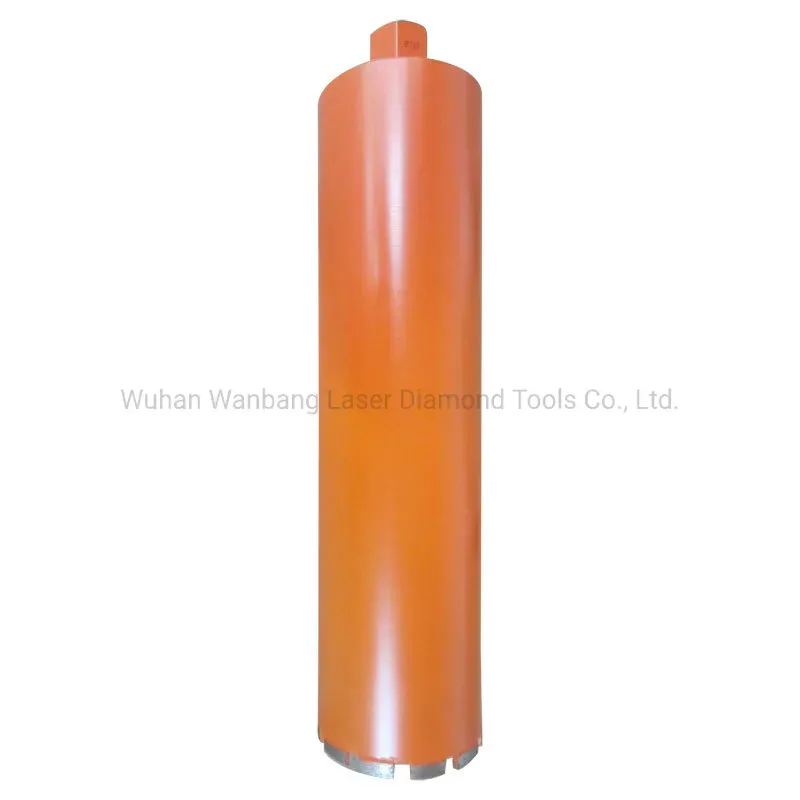

Professional Performance Diamond Wet Core Drills for Reinforced Concrete
Application: Engineering construction, wall, concrete, reinforced concrete, granite, asphalt
- Thinner diamond segment and thinner tube wall can easily reduce the resistance and increase the drilling speed
- Provide 20% higher drilling performance in the widest range of heavily reinforced concrete, particularly in difficult operating conditions.
- Drilling stable with small wobbling.
- 16" and 18" drilling depth standard
- Superior cutting speed and long life in a variety of applications.
- Laser welded up to 20".

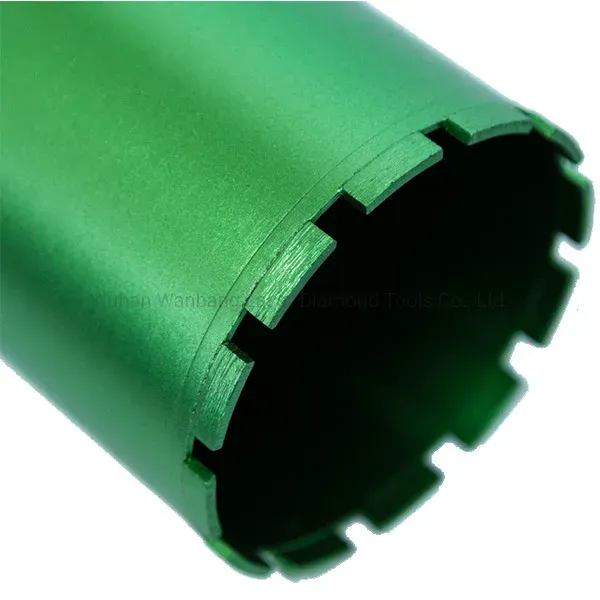

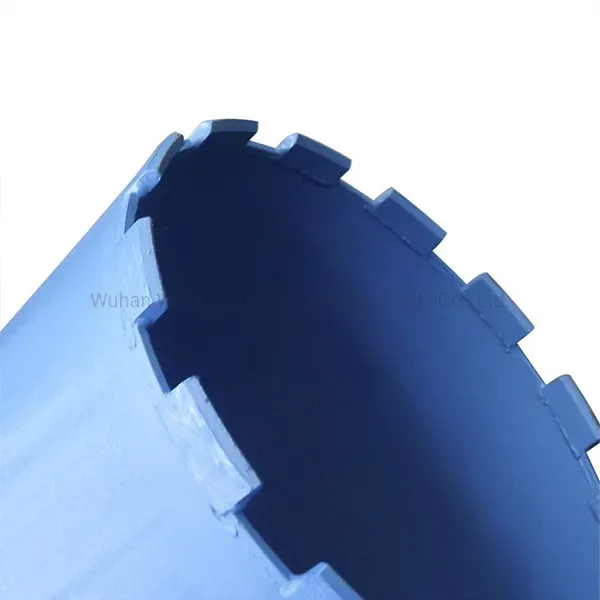

- Sharp "roof top" segments and "flat top" segments standard on 2" to 20" diameter.
Core Drills for Wet Use
| Diameter | Segments size | Thread | Drilling Depth | Quality Grade | Cutting materials |
|---|---|---|---|---|---|
| 42mm | 22*3.5*10 | 1- 1/4" UNC / 1/2" BSP / M14 / M16 | 450mm | Pro. | Reinforced concrete |
| 52mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 62mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 72mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 82mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 92mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 102mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 112mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 122mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 127mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 132mm | 24*3.5*10 | 450mm | Pro. | Reinforced concrete | |
| 142mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 152mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 162mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 172mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 182mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 200mm | 24*4.0*10 | 450mm | Pro. | Reinforced concrete | |
| 225mm | 24*4.5*10 | 450mm | Pro. | Reinforced concrete | |
| 250mm | 24*4.5*10 | 450mm | Pro. | Reinforced concrete | |
| 300mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 350mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 400mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 450mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 500mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 550mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete | |
| 600mm | 24*5.2*10 | 450mm | Pro. | Reinforced concrete |
About the Company
WUHAN WAN BANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacturer in professional diamond tools, Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
