Green Concrete Core Drill Bit
Description
Basic Info
- Model NO. DY-04
- Length 82/145/200/380/450
- Type Core Drill Bit
- Material Diamond
- Usage Masonry Drilling, Concrete
- Advantage Fast Cutting Speed
- Color as Your Requirements
- Sample Cost Free
- Sample Production Time 5-7days
- Bulk Order Time 20-25days
- Payment Term 30% Advance, 70% Balance
- Industry Experience 8years
- Transport Package Blister Package, White Box
- Specification 25-350mm
- Trademark DY-Tools
- Origin Jiangsu Province, China
- HS Code 8207191000
- Production Capacity 100000/Month
Product Description
Wet Core Bit for Concrete and Hard Masonry
High performance wet core bits engineered to drill high PSI concrete and reinforced concrete. Both drilling speed and lifetime have been vastly increased. Ideal for:
- High PSI concrete
- Concrete with medium steel reinforcement
- Other hard masonry
In our lab tests, these bits drilled 50% faster and lasted 35% longer than the general purpose counterparts. High powered dedicated core drills are highly recommended as equipment.
Features
- Fast cutting, long life
- Thread: 1 1/4''-7 UNC female thread, 1/2'' BSP
- Welded: Laser welding, High frequency welding
- Type: Wet Drilling
- Segment type: flat segments, roof segments, turbo segments, crown segments
- Other length and thread can be produced as required.

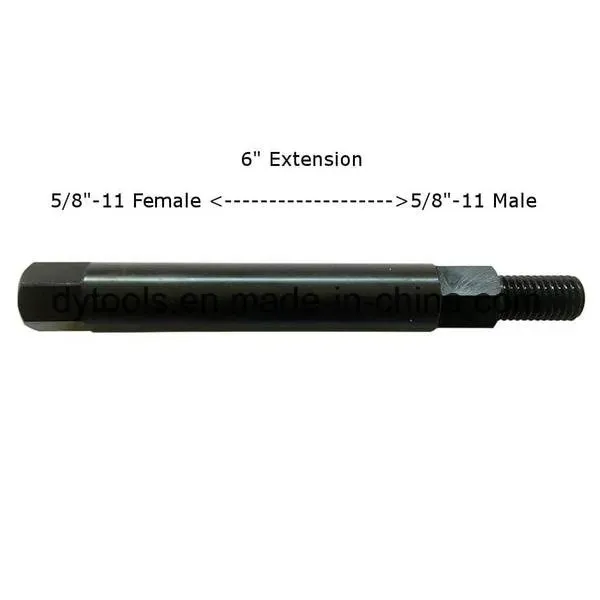

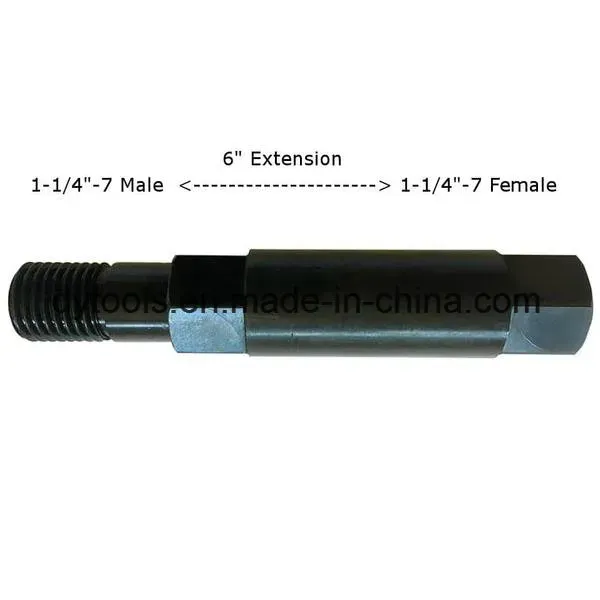

Using a drill with a different arbor? We have the adapters to make it work!

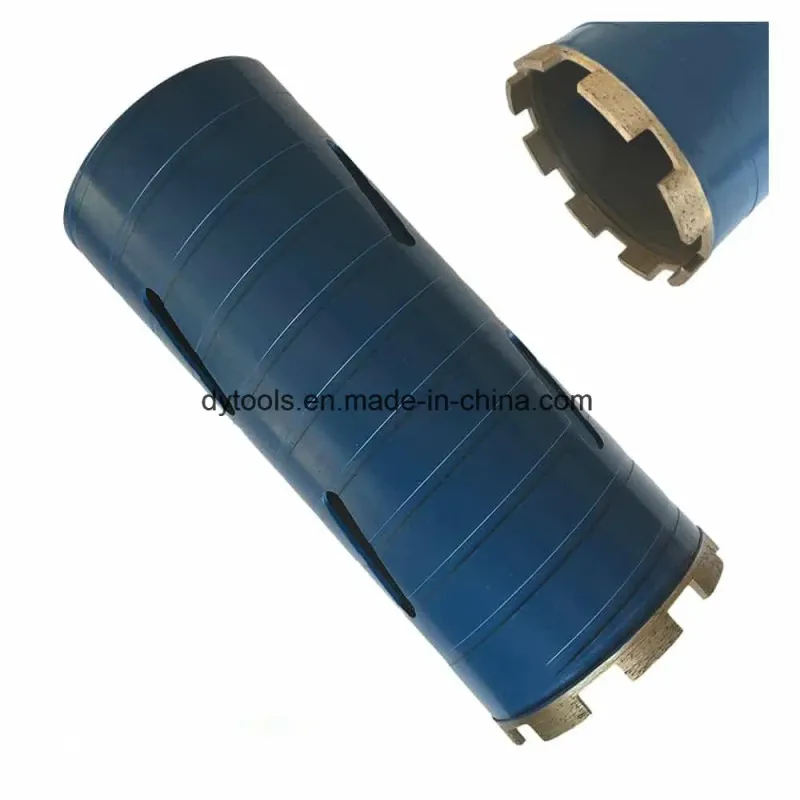

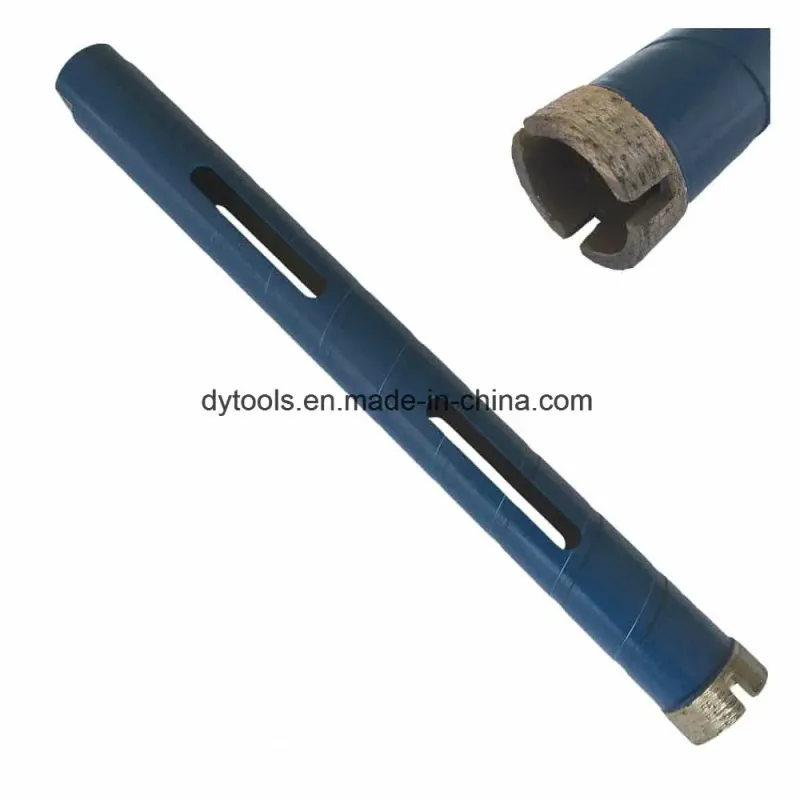

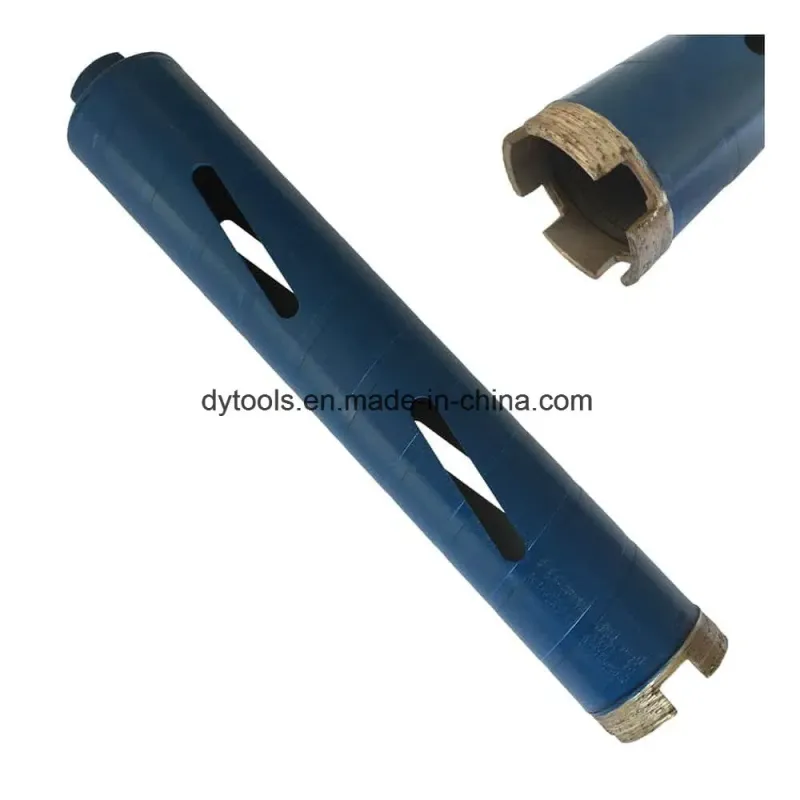

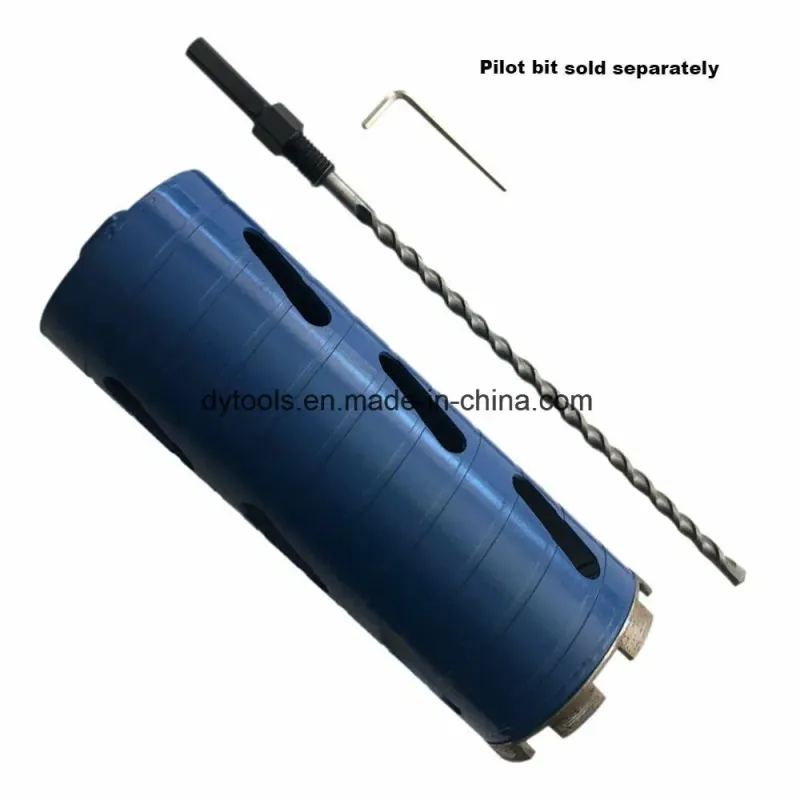

Product Picture
Technical Details
| OD | Segment Number | Segment Dimension | Tube Thickness | Valid Length | Connection |
|---|---|---|---|---|---|
| 25 | 3 | 12*3.5*9 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 32 | 4 | 16*3.5*9 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 36 | 4 | 16*3.5*9 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 42 | 4 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 47 | 5 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 52 | 5 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 57 | 5 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 62 | 6 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 67 | 6 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 72 | 7 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 77 | 7 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 82 | 8 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 92 | 8 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 102 | 9 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 107 | 9 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 112 | 10 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 117 | 10 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 122 | 10 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 127 | 10 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 132 | 11 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 142 | 11 | 24*3.5*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 152 | 12 | 24*4.0*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 162 | 12 | 24*4.0*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 172 | 13 | 24*4.0*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 182 | 13 | 24*4.0*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 200 | 15 | 24*4.0*10 | 2.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 225 | 16 | 24*4.0*10 | 2.5mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 250 | 17 | 24*4.0*10 | 3.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 300 | 21 | 24*4.5*10 | 3.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
| 350 | 23 | 24*4.0*10 | 3.0mm | 82/145/200/380/450mm | 5/8''-11 UNC 1/4"-7 |
Shipping
Our Factory
Our factory was established in the 1980s, and has a long history of more than 20 years. We are now a high technology company with the capability of production, sales, and research of new technology. Our factory is supported with a powerful technology team, advanced production line, and inspection equipment. We strictly conform to ISO9001-2000 quality control system. Inspection between processes follows the EN standard. We supply the diamond saw blade, diamond core drill bit, diamond grinding wheel and so on. Our products have exported to Europe, America, Asia and enjoyed good reputation. Hope fully to be your trustworthy supplier in China.
Our Service 4F:
- 1. Free sample cost.
- 2. Free replacement of damaged goods.
- 3. Free design of new packaging for customers.
- 4. Free testing of product quality for customers.
