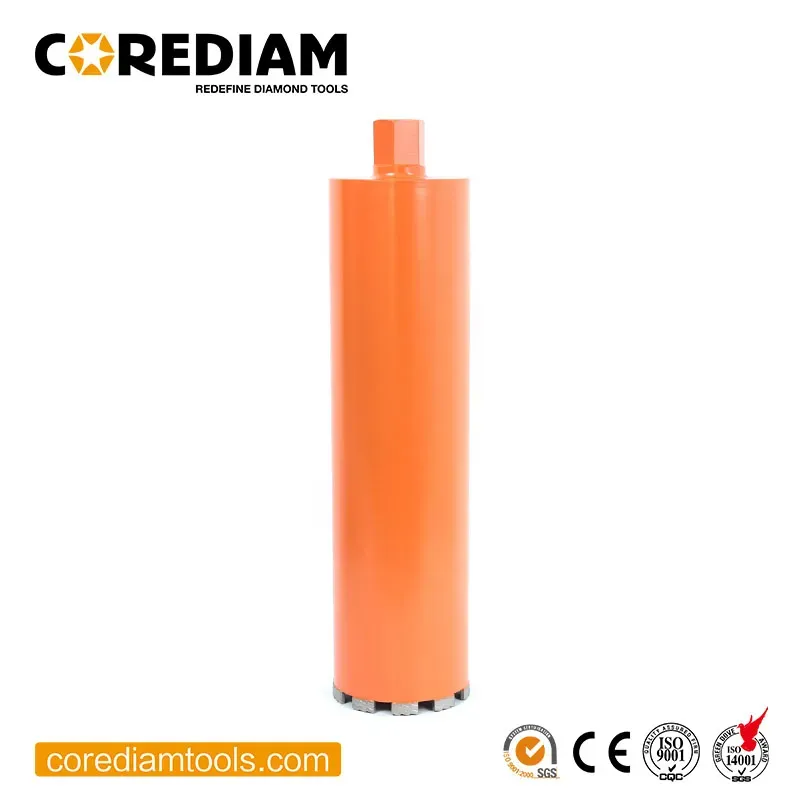

Lightning Segment Diamond Core Drill Bits (10mm Segment Height)
Description
Overview
Model NO. CWDF
Manufacturing Technology Laser Welding
Segment Height 10mm
Application Wet Drilling Concrete, Reinforced Concrete
Install Equipment Stand Driller, Hand-Held Driller
Transport Package Carton, Pallet
Specification 52mm-250mm
Trademark COREDIAM
Origin China
HS Code 82071910
Production Capacity 2000 Pieces Per Month
Product Description
Product name: diamond core drill bits
Segment types: Lightning segment
Production Process: Laser welding
Product Usage: Drilling different hardness of concrete, reinforced concrete
Drilling type: Wet drilling
Use equipment: Core drilling machine, Hand drill
1. The wet core drill is laser welded by advanced laser welding production line, which ensures the core bits have high welding strength.
2. Common sizes of laser welded diamond core drill are ranging 1" (25mm) to 14" (350mm) in size.
3. The core drill is used for professionally wet drilling kinds hardness of concrete, reinforced concrete.
4. Lightning segment design achieves the sharp and fast drilling performance.
5. Segments height, working length and connection type can be adjustable on your request.
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
|---|---|---|---|---|
| CWDF5245010 | 52mm | 10 | 1-1/4" UNC | 450mm |
| CWDF7745010 | 77mm | 10 | 1-1/4" UNC | 450mm |
| CWDF10245010 | 102mm | 10 | 1-1/4" UNC | 450mm |
| CWDF11745010 | 117mm | 10 | 1-1/4" UNC | 450mm |
| CWDF12745010 | 127mm | 10 | 1-1/4" UNC | 450mm |
| CWDF15245010 | 152mm | 10 | 1-1/4" UNC | 450mm |
| CWDF25045010 | 250mm | 10 | 1-1/4" UNC | 450mm |
Features
- Laser welded technology.
- Lightning segment.
- Different Quality level to choose.
- Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
- Sharp and fast drilling speed with stable long lifespan.
Product details:
Packaging & Shipping
1. Through the white box packaging, the company logo can be marked on the diamond lightning segment core drill bits.
2. We could ship by Commercial Express, like UPS, DHL, FedEx, we could also ship by air, by sea, by land as your request.
