Vacuum Brazed Diamond Hole Saw for Granite and Marble
Description
Basic Info
| Model NO. | SVCD |
| Manufacturing Technology | Vacuum Brazing |
| Segment Height | 3/5mm |
| Application | Drilling Tile, Granite, Marble and Natural Stone |
| Installing Equipment | Hand-Held Drillers |
| Transport Package | Carone, Case, Pallet |
| Specification | 20mm-102mm |
| Trademark | COREDIAM |
| Origin | China |
| HS Code | 82071910 |
| Production Capacity | 2000 Pieces Per Month |
Product Description

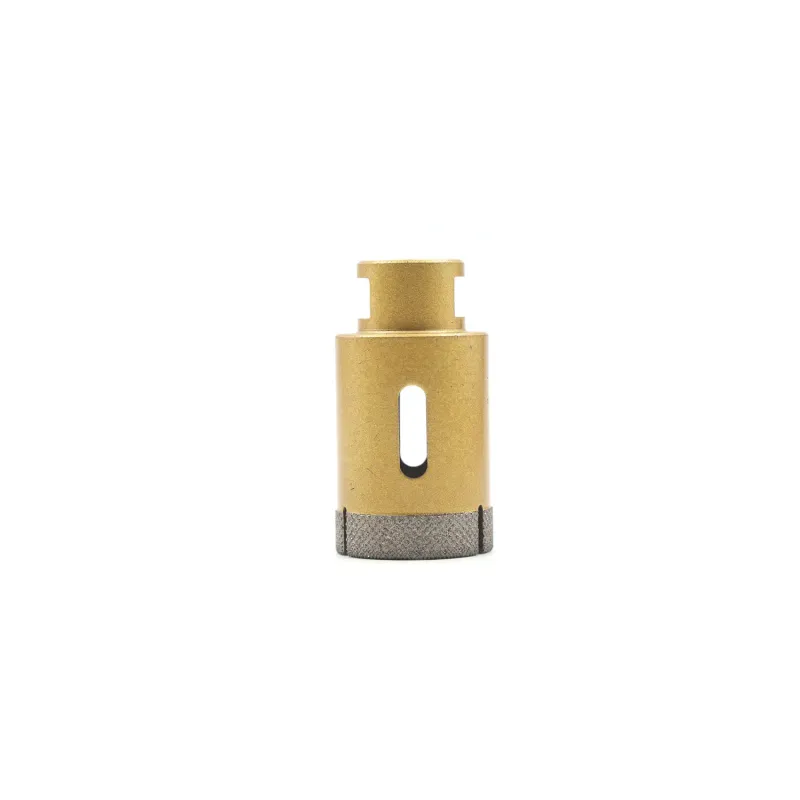

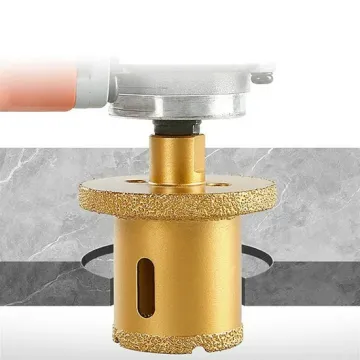

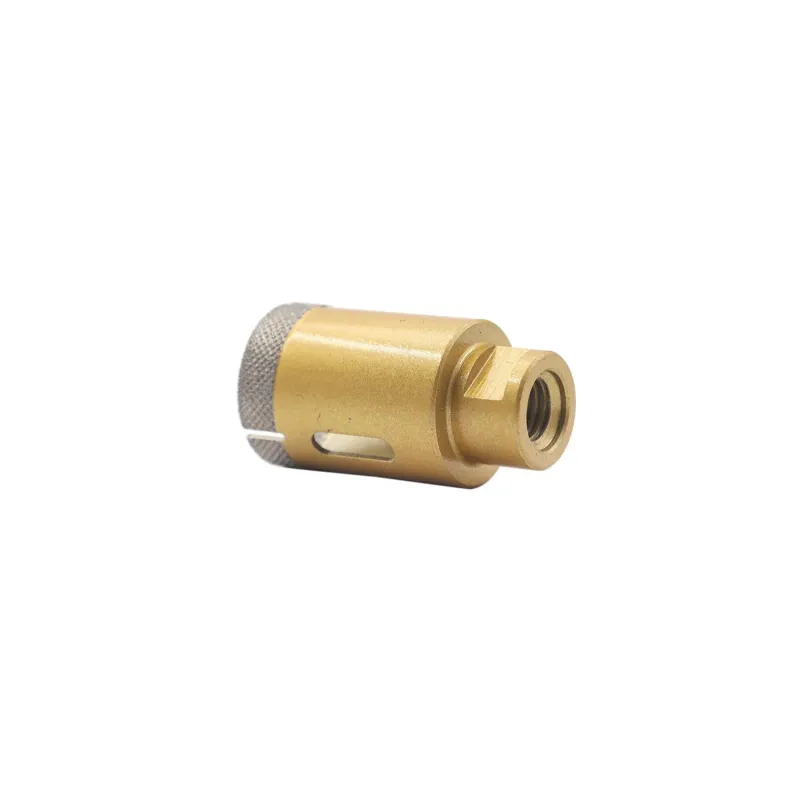

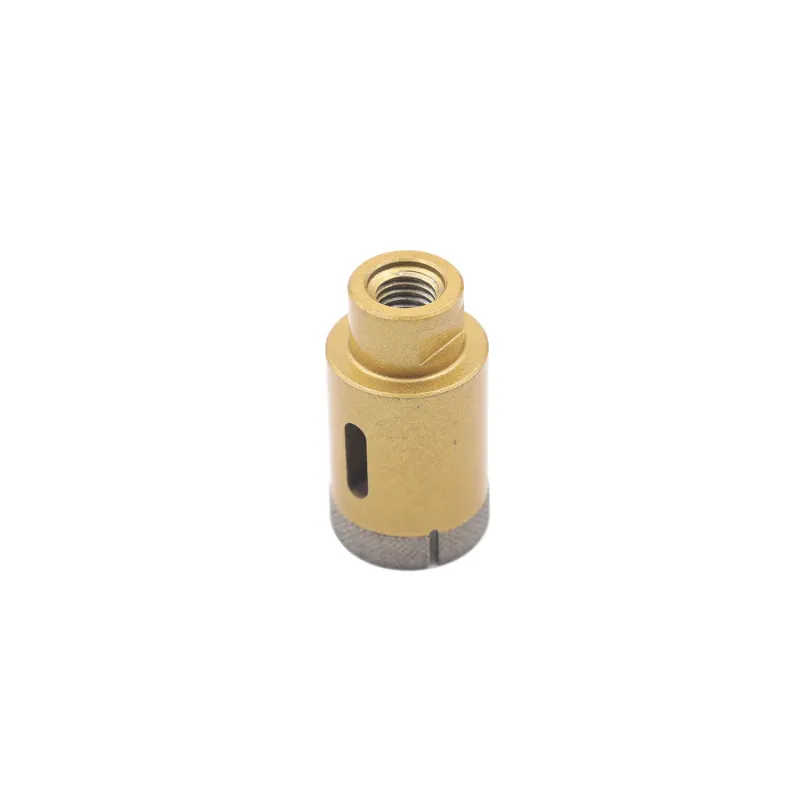

1. Vacuum brazed stone core drill introduction
Vacuum brazed core drill is brazed in vacuum equipment, which ensures diamonds have the good combination with the tube. Common sizes of vacuum brazed core bit are ranging from 20mm to 102mm in size. Vacuum brazed core bits is used for professionally drilling kinds of natural stones, tiles
2. Specification
| Item No. | Diameter | Segment Height | Arbor | Total Length |
|---|---|---|---|---|
| SVCD020 | 20mm | 3/5 | 5/8"-11 / M14 | 80mm |
| SVCD032 | 32mm | 3/5 | 5/8"-11 / M14 | 80mm |
| SVCD038 | 38mm | 3/5 | 5/8"-11 / M14 | 80mm |
| SVCD042 | 42mm | 3/5 | 5/8"-11 / M14 | 80mm |
| SVCD052 | 52mm | 3/5 | 5/8"-11 / M14 | 80mm |
| SVCD068 | 68mm | 3/5 | 5/8"-11 / M14 | 80mm |
| SVCD085 | 85mm | 3/5 | 5/8"-11 / M14 | 80mm |
| SVCD102 | 102mm | 3/5 | 5/8"-11 / M14 | 80mm |
3. Features
- Manufacturer technology: Vacuum brazed
- Suitable: drilling tile, granite, marble and other natural stones with superior efficiency.
- Advantage: excellent drilling speed and reasonable lifespan.
- Drilling performance: drill the stones with a clear edge.
4. Delivery time
- 1 weeks for samples after order confirmed.
- 2-3 weeks for batch order after payment confirmed.
5. Corediam service
We accept customized lengths and segments for wet core drills. Also, we help to design the total solution of core drilling projects.
6. OEM package

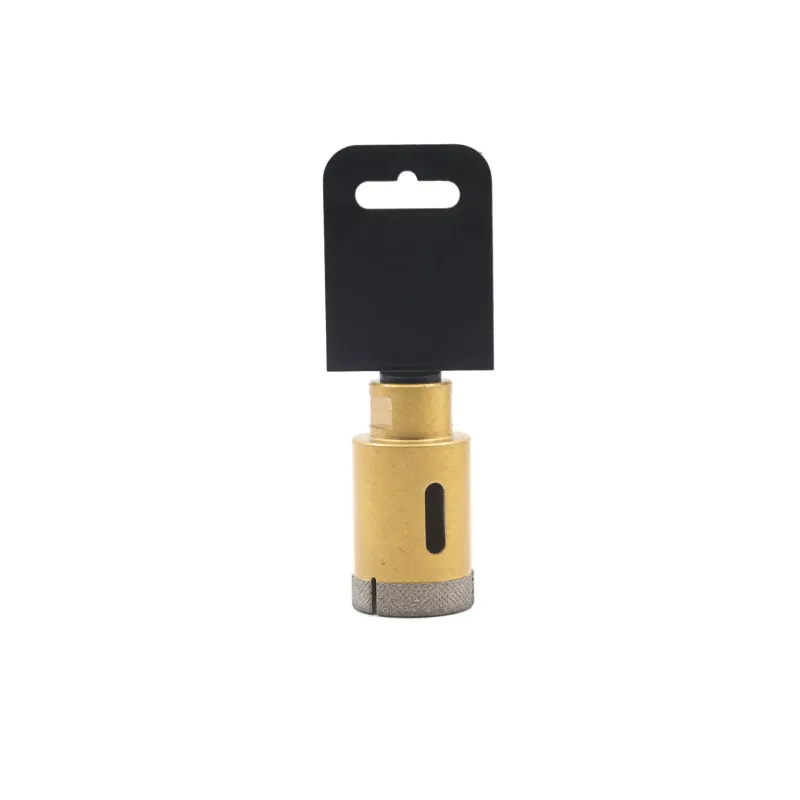

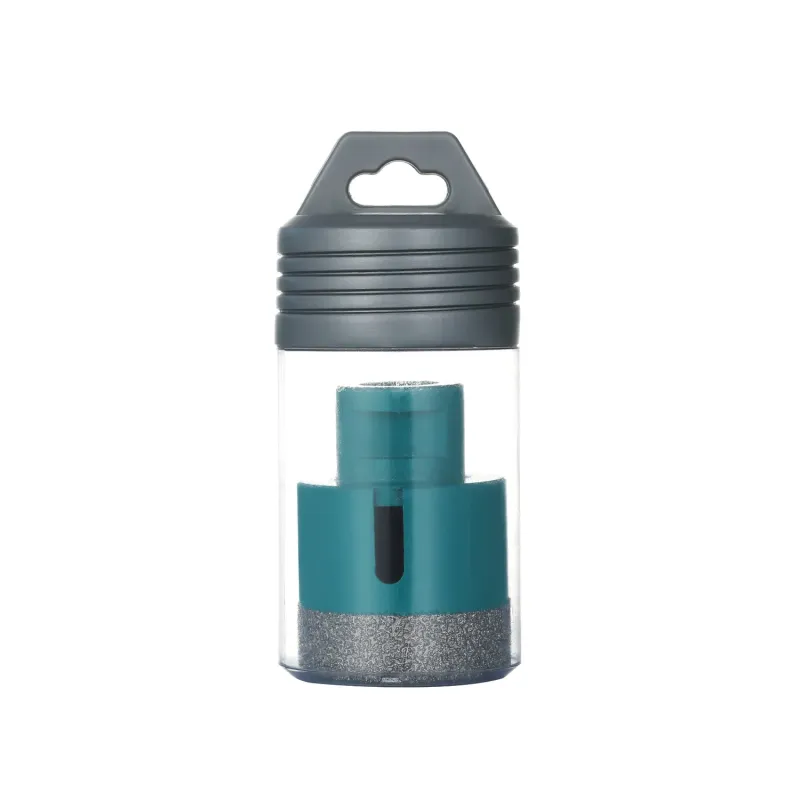

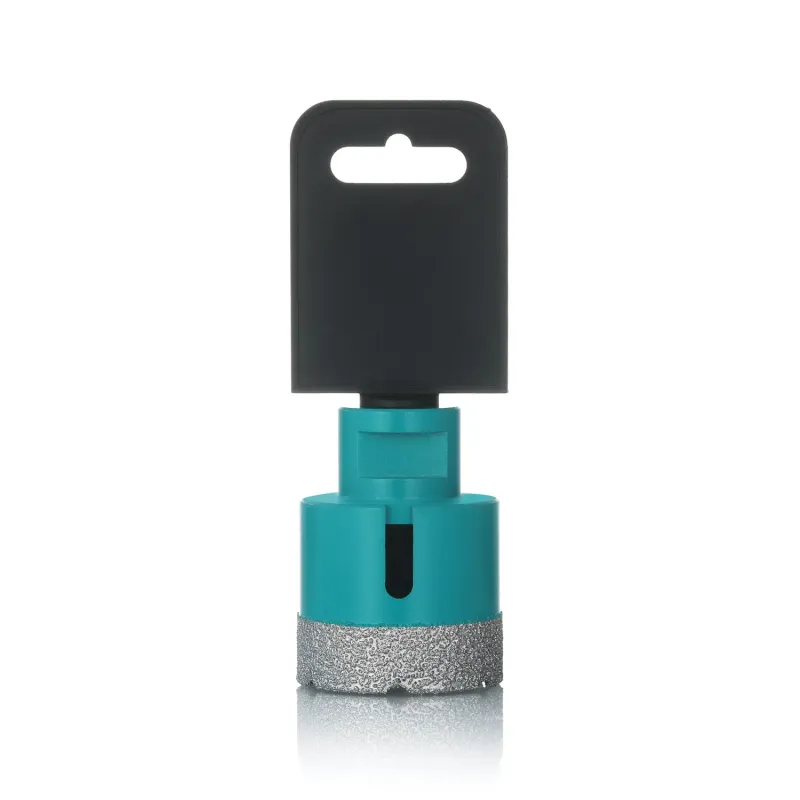

Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
7. Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
