U Segment Laser Welded Diamond Wall Saw Blade for Reinforced Concrete Wall Cutting
Description
Basic Info.
Model NO. 600mm
Application Reinforced Concrete
Applications Wall Demolition, Opening Window Holes and Doorway
Segment Thickness 4.8mm/5.2mm/Customized
Segment Height 12/13mm
Materials High Purity Diamond and Prealloyed Powder
Transport Package Common Packing or Customized Packing
Specification 500mm, 600mm, 800mm, 900mm, 1200mm
Trademark OEM and ODM
Origin Wuhan, Hubei Province, China
Production Capacity 10000PCS/Month
Product Description

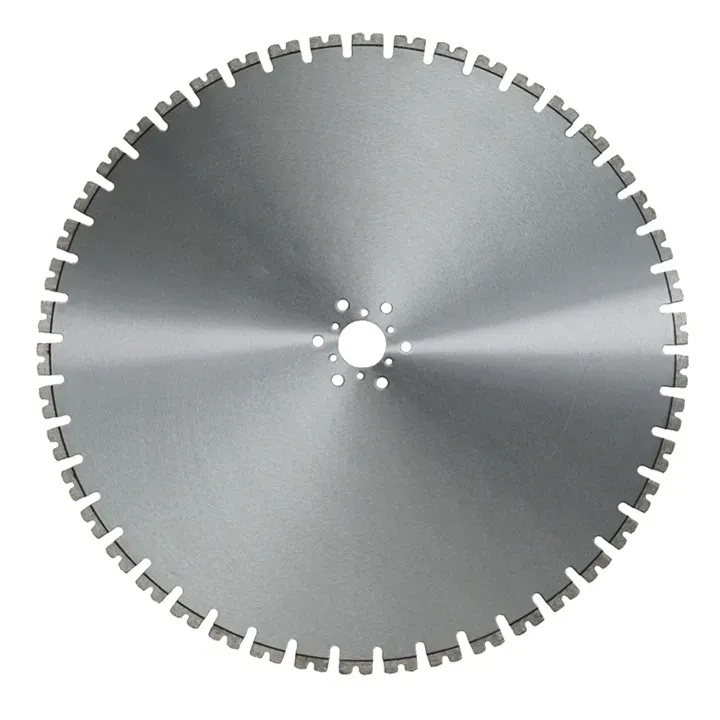

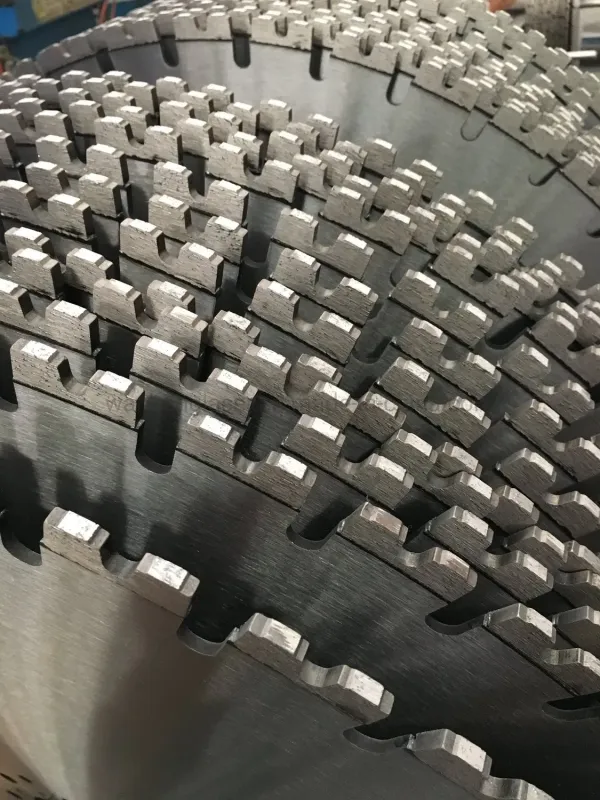

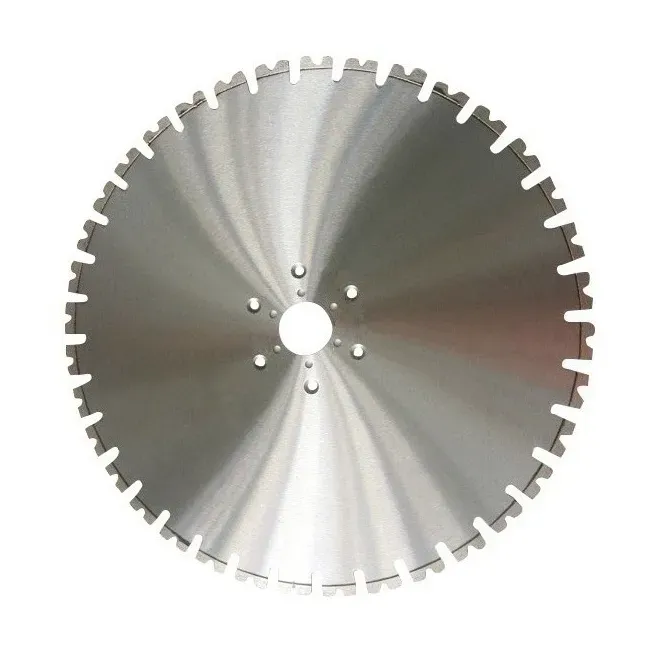

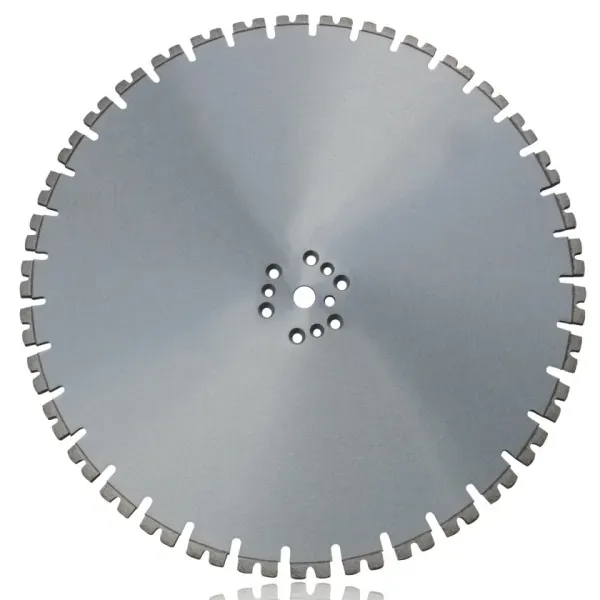

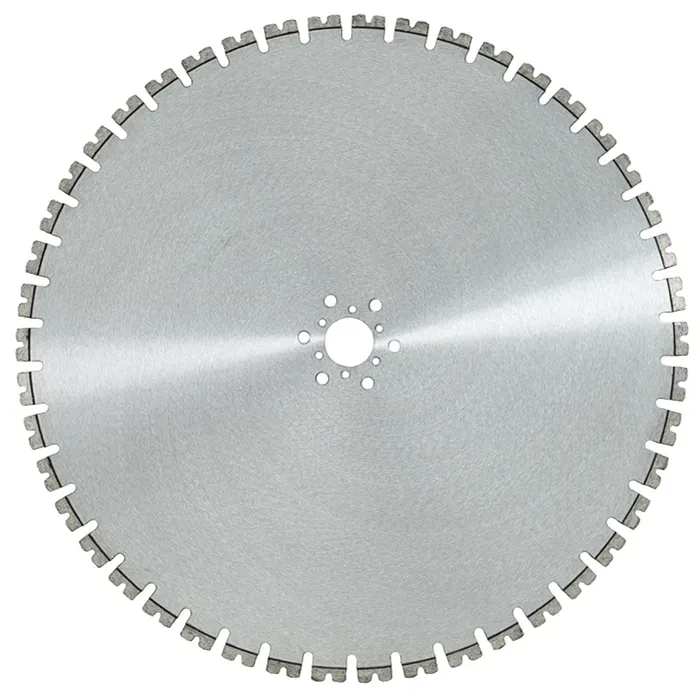

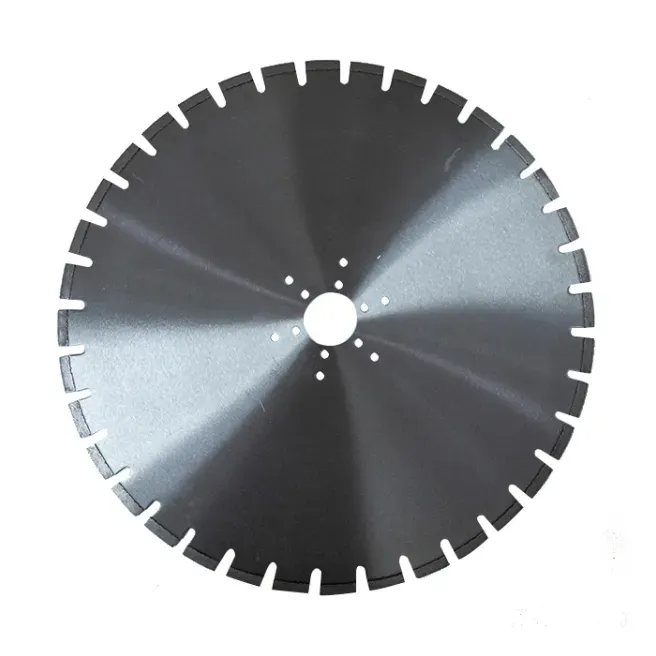

"U" Segment Laser Welded Concrete Cutting Diamond Saw Blade for Reinforced Concrete wall saw blades
Application: Expert for demolition reinforced concrete construction, including the partial modification and buildings and walls delimotion, opening window holes, doorways, demolition of reinforced concrete bridges etc.
- Higher quality diamond and long life / fast cutting
- Wet cutting
- Different quality grade: premium, professional
- Custom arbor sizes and pin holes are available.
- Other special specifications and colors can be produced by clients' require
Specifications:
| Diameter | Seg. LxT(mm) | Seg. height | Cutting Materials | |
|---|---|---|---|---|
| 24" | 600mm | 40*4.8 | 13mm | Concrete/reinforced concrete |
| 26" | 650mm | 40*4.8 | 13mm | Concrete/reinforced concrete |
| 28" | 700mm | 40*4.8 | 13mm | Concrete/reinforced concrete |
| 32" | 800mm | 40*4.8 | 13mm | Concrete/reinforced concrete |
| 36" | 900mm | 40*4.8 | 13mm | Concrete/reinforced concrete |
| 42" | 1050mm | 40*4.8 | 13mm | Concrete/reinforced concrete |
| 48" | 1220mm | 40*4.8/5.2 | 13mm | Concrete/reinforced concrete |
| 60" | 1500mm | 40*4.8/5.2 | 13mm | Concrete/reinforced concrete |
| 64" | 1600mm | 40*4.8/5.2 | 13mm | Concrete/reinforced concrete |
High quality diamond saw blade use for cut all kinds of non-metal material, marble, granite, tile, ceramic sandstone and so on, . Diamond cutting saw blade with different specification from 105mm~3000 mm can be supplied according to customers' requirements.
Company Information:

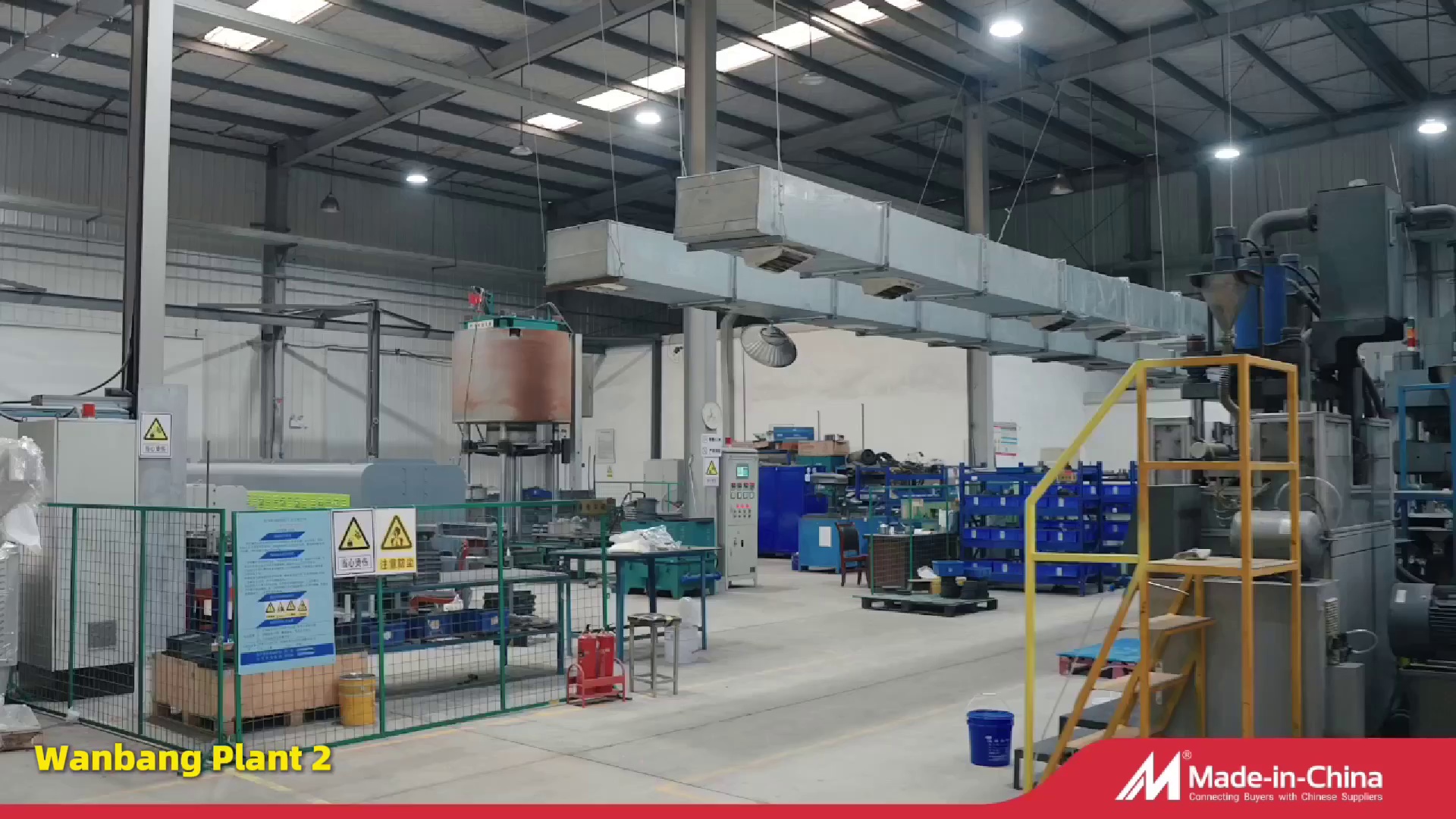

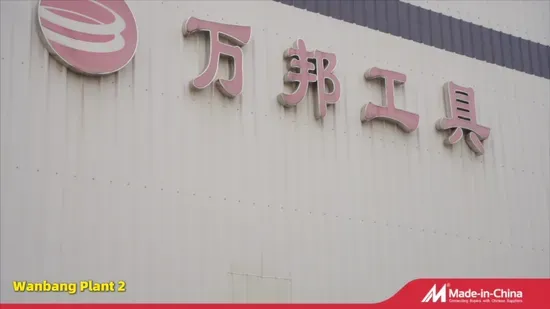

WUHAN WAN BANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacturer in professional diamond tools, Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.
