Alumina Wear Resistant Lining Vulcanized in Rubber with Steel Backing
Description
Overview
Basic Info.
- Material: Aluminum
- Type: Wear Resistant Plate
- Color: White
- MOQ: 50kg
- Delivery Time: 15~25 Days as Your Request
- Samples: Free Samples Can Be Provided
- Transport Package: Safe Carton with Pallet
- Specification: as your request
- Origin: China
- HS Code: 6909120000
- Production Capacity: 18000 Tons/Years
Product Description

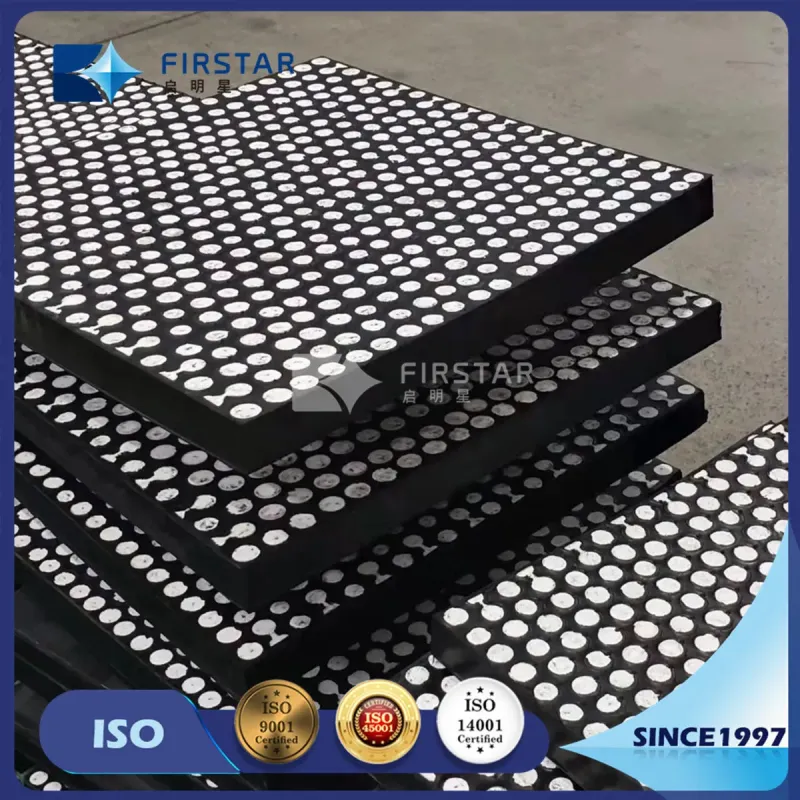

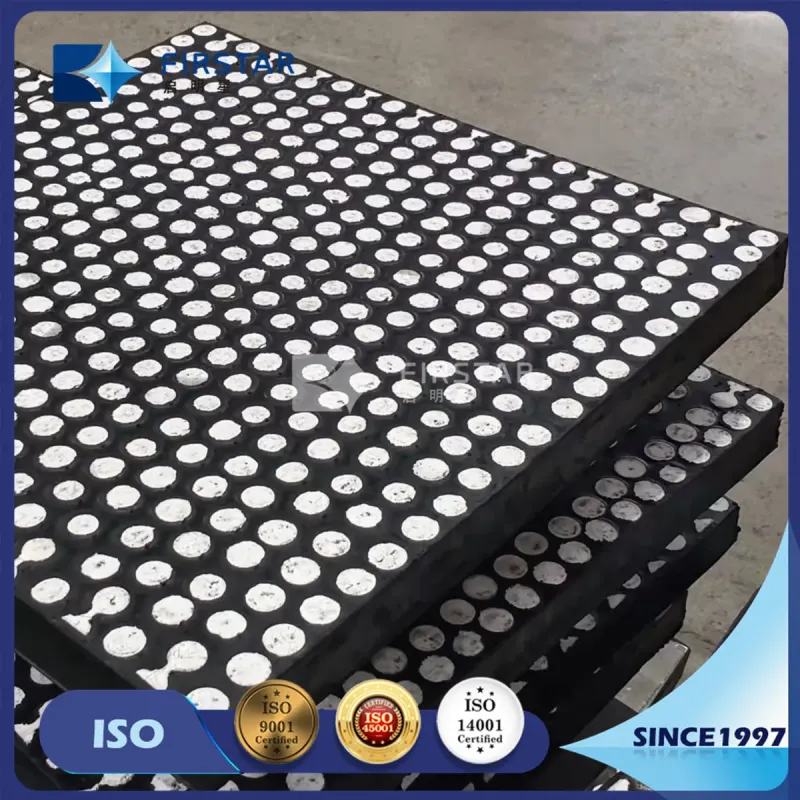

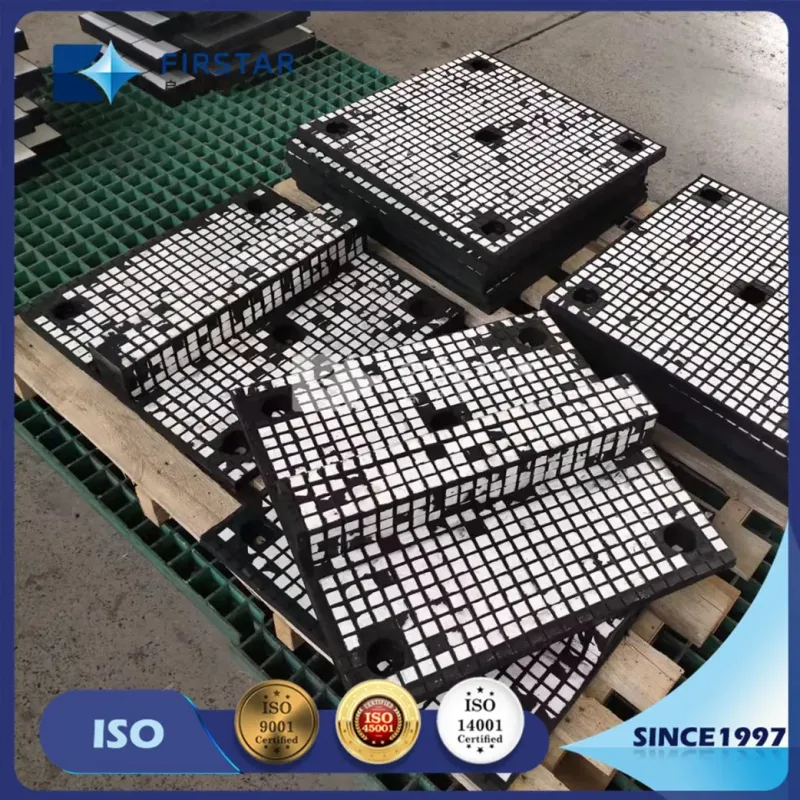

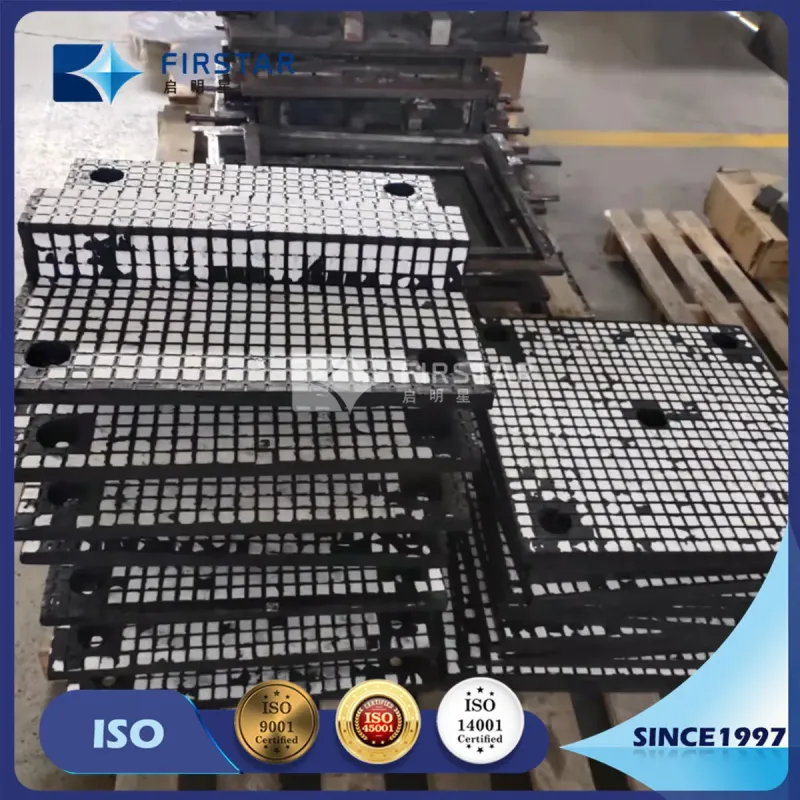

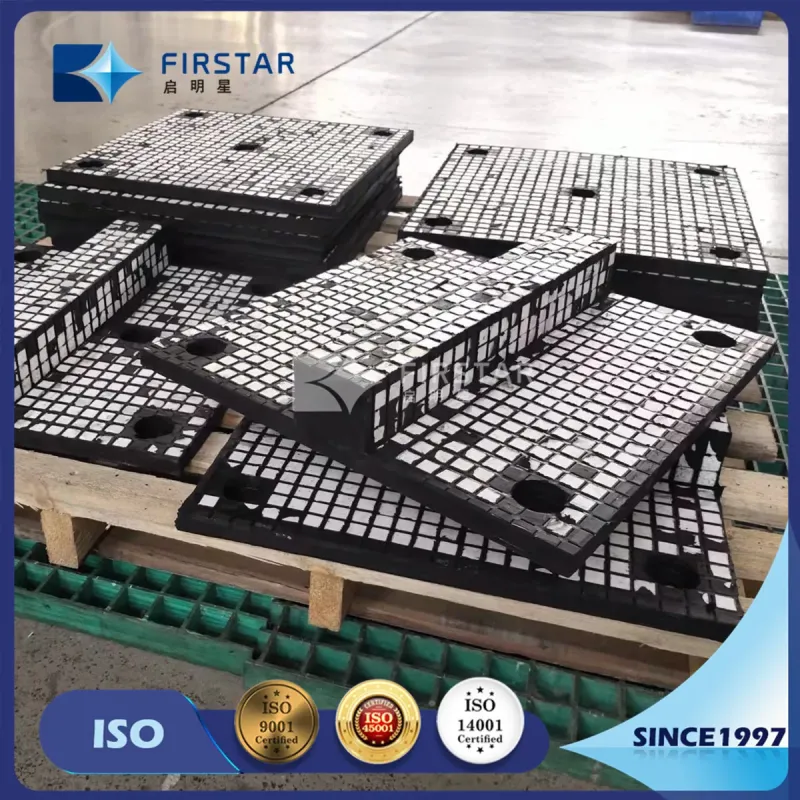

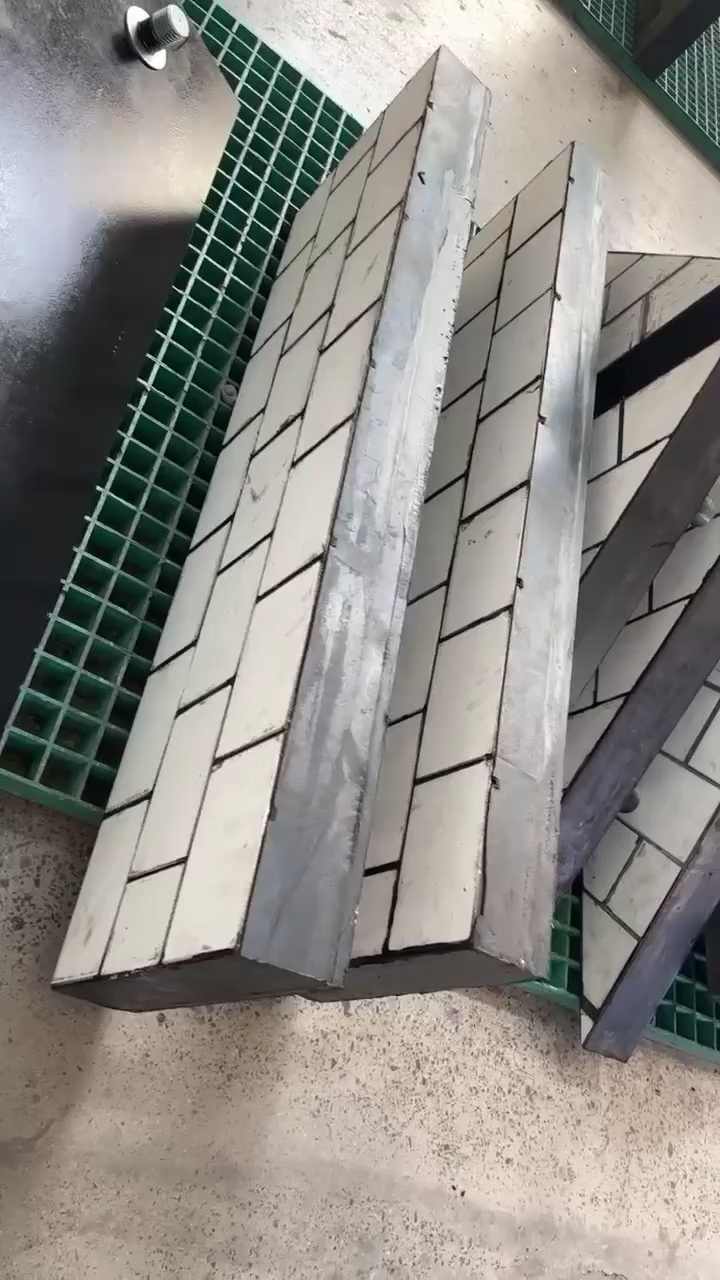

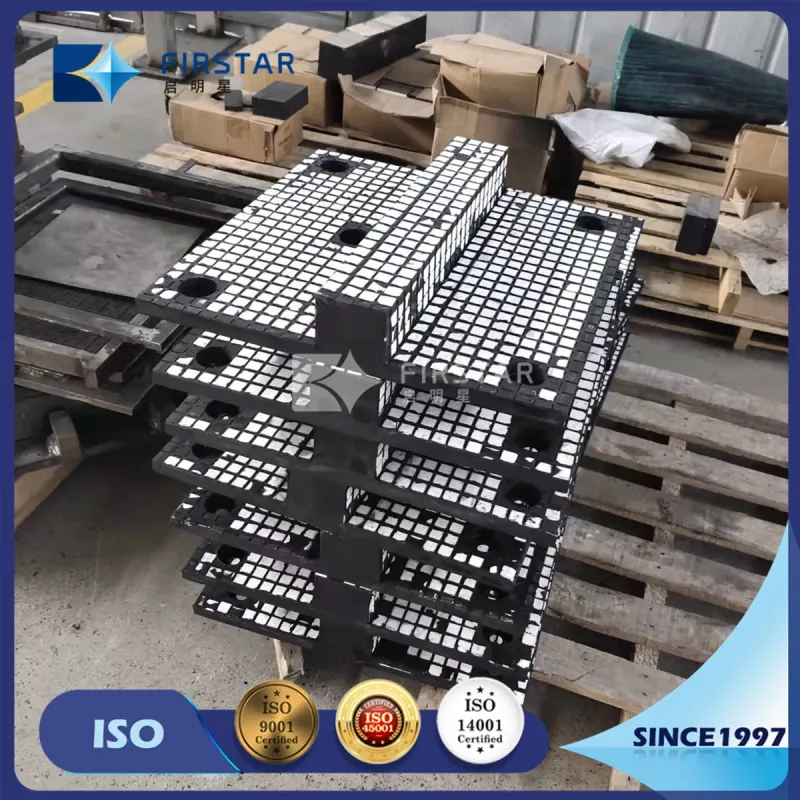

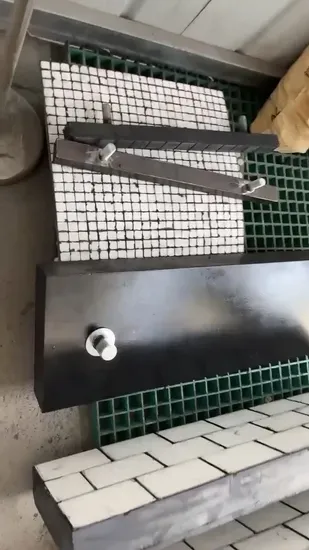

Wear and Impact Resistant Conveyor Chute Wear Liner Alumina Ceramic Rubber Wear Plate
The Conveyor Chute Wear Resistant Ceramic Rubber Liner is made of high alumina ceramics and high-quality natural rubber compounded by a special process. The excellent shock absorption properties of natural rubber help to achieve a certain impact resistance, thereby preventing the tiles from cracking in the high impact area, which has a very superior effect compared with the ceramic lining tiles directly bonded to the steel plant. Compared with wear-resistant steel, the characteristics of high-quality Conveyor Chute Wear Resistant Ceramic Rubber Liner make it more resistant to wear and impact. Their service life is much longer than previous wear-resistant lining products, and can last for multiple shutdown cycles without causing serious wear or failure.
Technical Data Sheet
| S.No. | Material | Attributes | Properties |
|---|---|---|---|
| 1 | Ceramic Tiles | Material | 92%, 95%, T95%,99%, ZTA,RBSIC |
| 2 | Rubber | Component | natural rubber, nitrile-butadiene rubber,Flame Retardant,others |
| Density | ~1.4g/cm3 | ||
| Tensile strength at break | ≥15Mpa | ||
| Elongation at break | ≥250% | ||
| Shore Hardness | 45-65 | ||
| Adhesive between tile and rubber | 1.2-3.0 Mpa | ||
| Adhesive between rubber and equipment | ≥3.8 Mpa | ||
| Thermal conductivity.(normal temperature) | 2w/m·k | ||
| Aging period | ≥15 Years | ||
| Working temperature | -50ºC - 200ºC | ||
| 3 | Steel plate | Material | Q235A |
| Density | 7.85g/cm3 | ||
| Thickness | 5-6mm | ||
| 4 | Adhesive | Appearance | Brown glutinous liquid |
| Solid content | 20±3% | ||
| Viscosity | ≥2.5 Mpa | ||
| Peel strength | 48h N/2.5cm≥120 | ||
| Compressive strength | ≥850 Mpa | ||
| Working temperature | -20ºC - 100ºC |
