Overview

Basic Info.

• Model NO. JCHX-M0043
• Certification GB, ISO, CE, RoHS
• Application Home
• Material Steel
• Type Roof Bracket
• Coating Hot DIP Galvanized/Zn-Al-Mg
• Grade Q235/355, S250/350 etc.
• Wind Load 0-60m/s
• Snow Load 0-3kN/m²
• Sample Free
• Design Free
• Repurchase Rate 20%
• Customized Available
• Installation Site Roof
• Feature Quick Installation
• Foundation Concrete, Ground Screw
• Ground Clearance 500-2000mm
• Colors Silver
• Tilt Angle 0-45deg
• Transport Package Pallet or Carton Box
• Specification Custom
• Trademark JCHX
• Origin Tianjin, China
• HS Code 7308900000
• Production Capacity 10000

Packaging & Delivery

• Package Size 25.00cm * 22.00cm * 27.00cm
• Package Gross Weight 500.000kg

Product Description

Material: Carbon Steel

Grade: Q235/355 S250/350 ,etc

Size: Custom

Wall Thickness: 1.2-5mm

Coating: Hot dip Galvanized/Zn-Al-Mg

Weight/Piece: 12.4-65 kg

Accessory List: Guide rails, Connectors, bolts, washers and other accessories

Customization: Yes

MOQ

MOQ: 1000 Watts

Service Life: over 25 year

Transport Package: Bundled straps, wooden boxes, or wooden pallets

Spot Inventory Quantity: 10000 Tons

Annual Capacity: 1000000 Tons per year

Delivery Time: 3-45 Days

Samples: Free

Payment Method: TT, alipay, wechat, bank card, etc

Accept OEM or not: can accept oem odm

Production Capacity: 2000 Ton/Week

Country Of Origin: Tianjin China

Corrosion Resistance: very strong

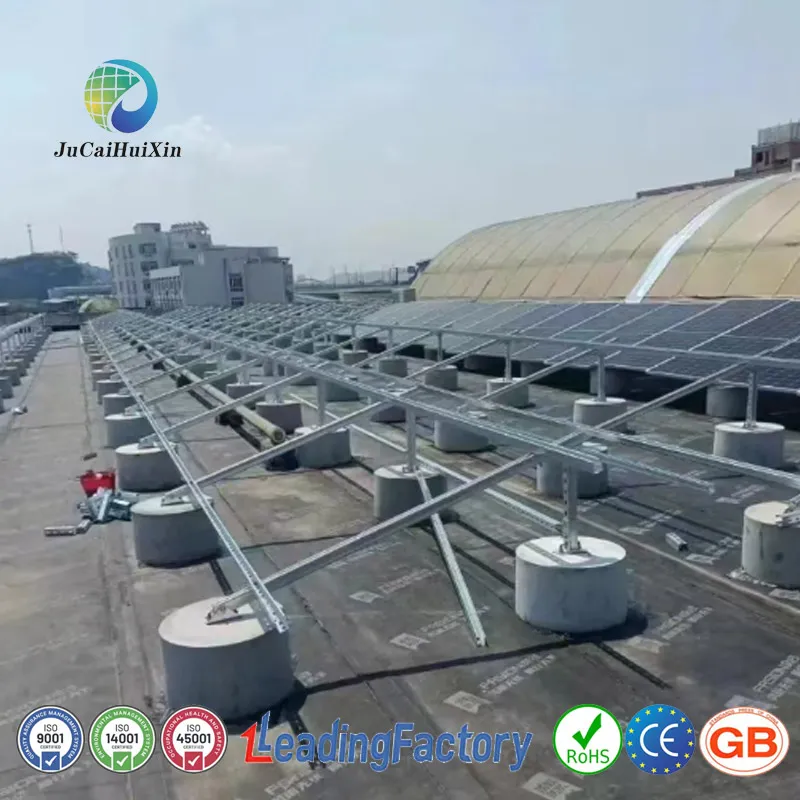

Jchx-Ec 1MW Rooftop Tilting Solar Panel Mounting Brackets

Product Description

Jchx-Ec 1MW Rooftop Tilting Solar Panel Mounting Brackets have those advantages:

1. Superior Corrosion Resistance

Made with hot-dip galvanized steel (coating thickness ≥55μm), the brackets withstand harsh environments like coastal regions or industrial zones. The zinc layer self-heals minor scratches, ensuring a lifespan of 25+ years without rust.

2. Adaptable Free-Design Flexibility

Multi-hole adjustability: Adjustable connection plates allow dynamic height and angle changes to fit varying roof tile thicknesses (e.g., 10-50mm). Custom configurations: Supports flat roofs, sloped tiles, and hybrid designs, with pre-drilled holes for quick assembly and compatibility with most solar panels (e.g., 400W-670W).

3. Zero Roof Penetration & Structural Safety

Uses non-invasive clamping or ballasted mounting (for flat roofs) to avoid drilling into waterproof layers. This preserves roof integrity and complies with building codes for load distribution (≤25kg/m² for ballasted systems).

4. High Wind/Snow Load Capacity

Engineered to withstand 60 m/s wind speeds and 1.5 kN/m² static loads (tested per SANS 10160-3). Reinforced joints and bolt-tightening protocols (e.g., torque-controlled installation) enhance stability in extreme weather.

5. Low Maintenance & Cost Efficiency

No repainting or anti-corrosion treatments required. Pre-assembled components reduce labor costs by 30% compared to traditional welded systems.

Installation steps

1. Positioning drilling: Mark the position of roof beams using a positioning template, drill holes 8mm in diameter (only need to penetrate the tiles, no need to cut).
2. Fixed base: Insert the stainless steel expansion bolt and lock the torque to 20N·m (provided with insulating gasket to prevent cold bridge effect).
3. Mounting rail: Snap connection rail, adjust level and lock (compatible with third-party brand rails such as Iron Ridge).

Warm tips (Tips):

• Safety Warning: Wind speed needs to be less than 10m/s during installation to avoid the risk of working at height.
• Maintenance advice: check bolt tightness annually, fresh water rinsing for salt deposits is recommended for coastal areas.
• Accessory compatibility: Customized bases are available (e.g. helical piles for tundra areas).

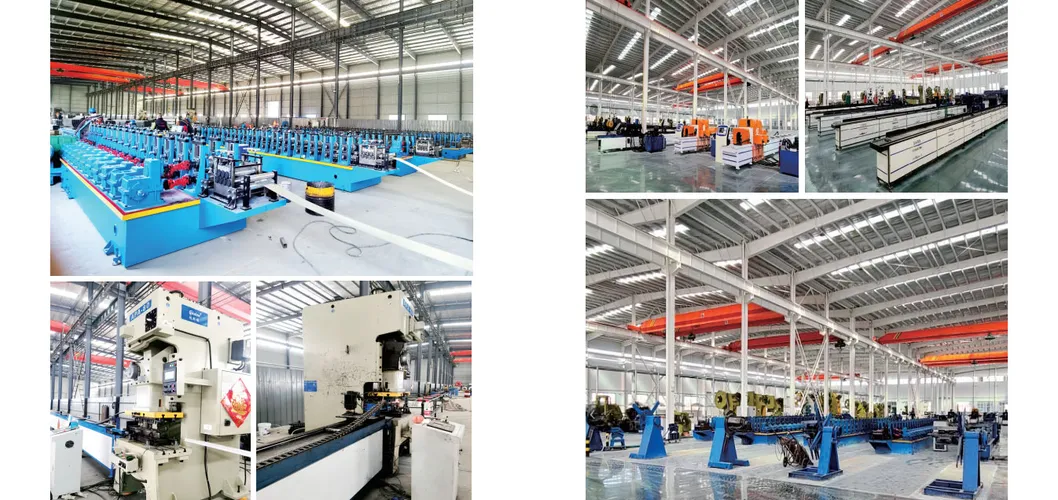

Our Factory

JucaiHuixin - Global Expert in Intelligent Photovoltaic Bracket Manufacturer

Core Strength Supporting a Green Future

With 4 years of industry expertise, a new benchmark in photovoltaic manufacturing has risen in Daqiuzhuang Town, Tianjin, the industrial heart of North China.

• √ 10,000 square meter Intelligent Manufacturing Base: A 10,000 square meter physical factory with a registered capital of 50 million, ensuring robust capabilities.
• √ Advanced Production Matrix: 10 internationally advanced CZU steel automated production lines, producing 200,000 tons of profiles annually.
• √ National Team Certification: Dual-certified as a AAA+ contract-abiding and creditworthy enterprise, and a AAA model of integrity in business.

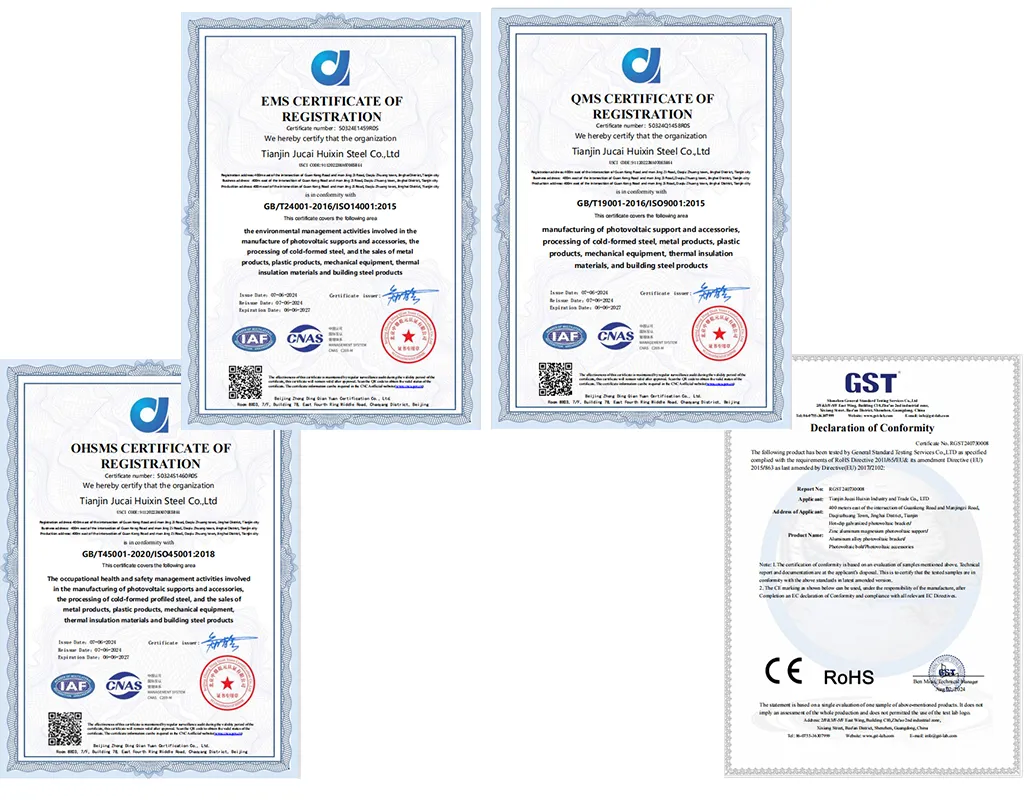

• √ International Passport: A grand slam of global authoritative certifications including ISO triple system, CE, and Rohs.

Ace Product Matrix Meeting All Scenario Needs

Four Guardians Photovoltaic Bracket Systems

• Hot-dip Galvanized Series: Super corrosion resistance, protecting power stations for over 25 years.
• Zinc-Aluminum-Magnesium Series: Self-repairing black technology, the first choice for harsh environments.
• Aviation Aluminum Series: Lightweight and high-strength, perfect for rooftop projects.
• Stainless Steel Series: Salt spray resistant, expert for offshore projects.

Popular Warriors Star Products

• ✓ BIPV Building Integrated Photovoltaic Waterproof Bracket
• ✓ Ground Array: Reinforced system dedicated to large power stations.
• ✓ Photovoltaic Carport: A tri-integrated solution for power generation, parking, and charging.
• ✓ Single-axis Tracking System: Intelligently tracks sunlight, increasing power generation by 30%.

Application

• Ground power station: suitable for sand, grass, gravel and other complex terrain.
• Rooftop system: compatible with color steel tile, concrete, and tile roofs without destroying the waterproof layer.
• Agricultural photovoltaic: provide integrated solutions of shading and power generation for greenhouses and fish ponds.
• Off-grid projects: Ideal for powering communication base stations and ranches in remote areas.

JCHX Project

National Project Preferred Brand

• ✓ Ningxia Million Kilowatt-level Photovoltaic Oxygen Production Super Project
• ✓ CR Power 90,000 kW Wind-Solar-Storage Integrated Demonstration Project
• ✓ Jinzhai Revolutionary Old District Hundred Megawatt Poverty Alleviation Power Station
• ✓ Zhangjiakou, Ecological Photovoltaic Project

★ Five-star Service Commitment ★

(Service Visualization)

• 1v1 Exclusive Butler: Full escort from design to installation guidance.
• 24-hour Cloud Escort: Uninterrupted global time zone response.
• 0 Yuan First Experience Service: Free design + sample experience.

Get Your Exclusive Sun-tracking Solution Now

JucaiHuixin - Making Every Ray of Sunshine Valuable!

FAQ

• Q: Does it fit curved shingles? Support! 3 types of curved bases (radius of curvature 15°/30°/45°) are available, please specify the requirement in your order.
• Q: How is the waterproof performance verified? UL2703 certification report and 45psf water pressure test video are provided (refer to TileTrac's test standard).
• Q: What is the minimum order quantity (MOQ) and lead time? MOQ 300 sets, 48 hours shipment from stock, 15 days delivery for customized items (expedited service available).
