Overview

Basic Info

Model NO. 3-AAAAA-Tungsten-Carbide Bush
Standard Parts Customize
Universal Customize
Type Bushing
Material Alloy
Size 125X82X15 150X90X20 or Customized
Grade K10 K20 K30 etc.
Raw Material Tungsten Carbide
Iregular Support for The Iregular Order
Transport Package Standard Packing for Cemented Carbide Seal Rings
Specification customized
Trademark RYDMET CARBIDE
Origin China
HS Code 82090030
Production Capacity 50000PCS

Product Description

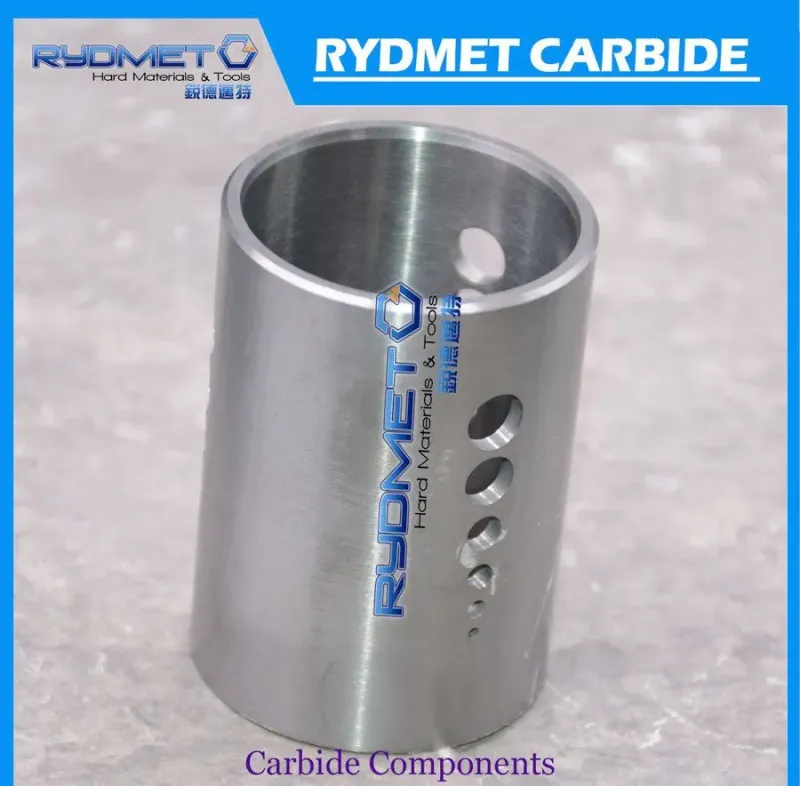

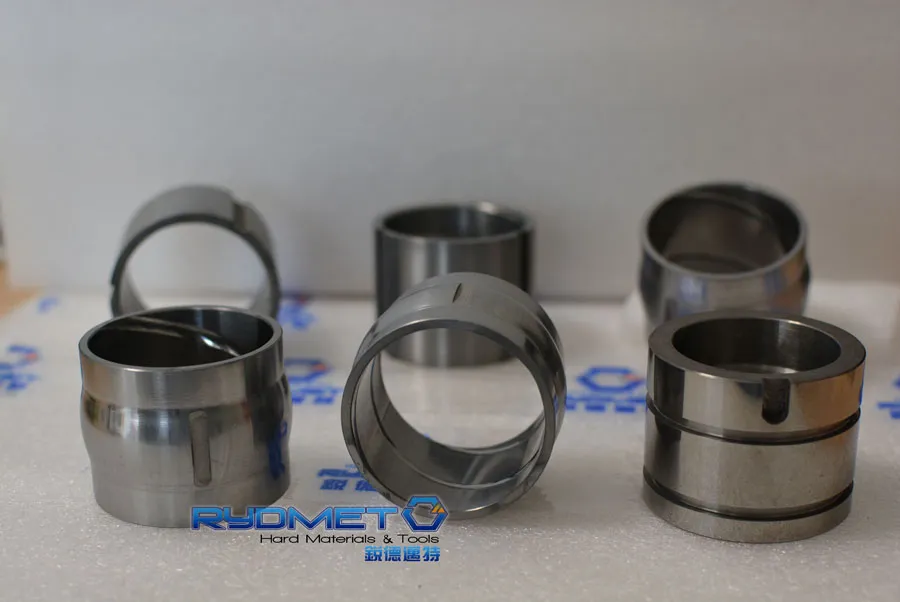

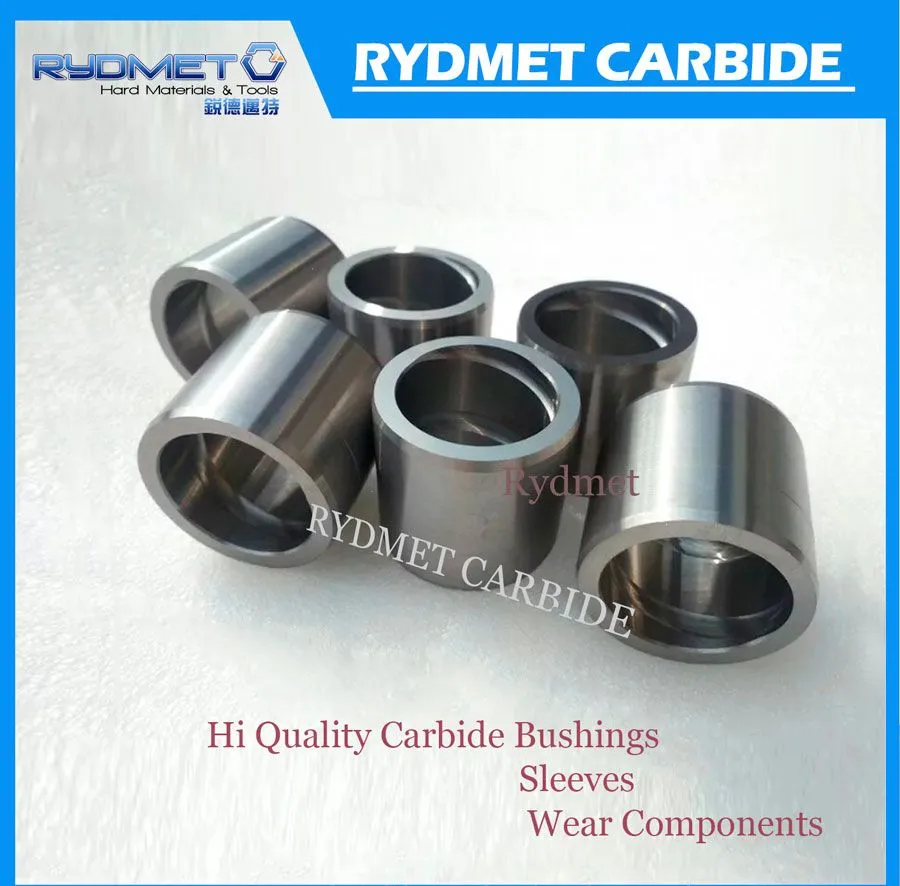

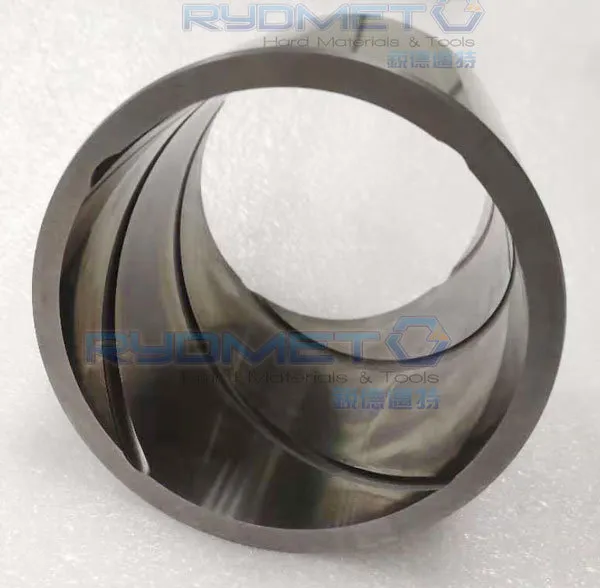

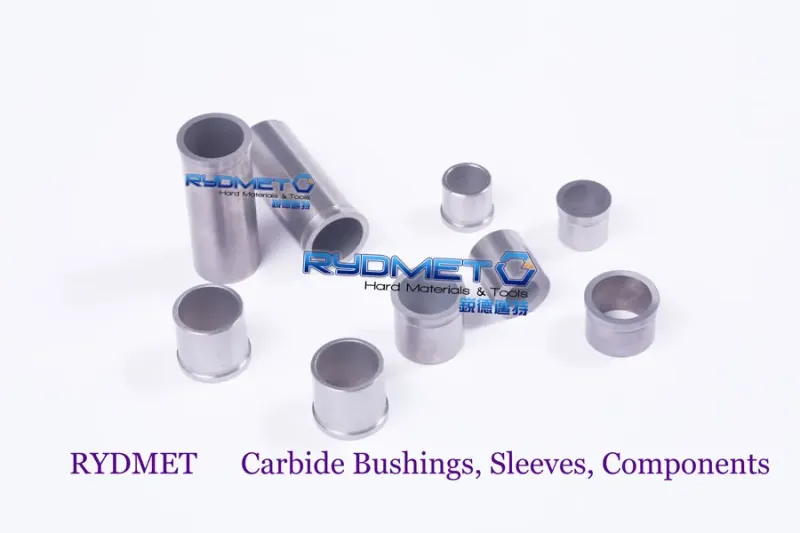

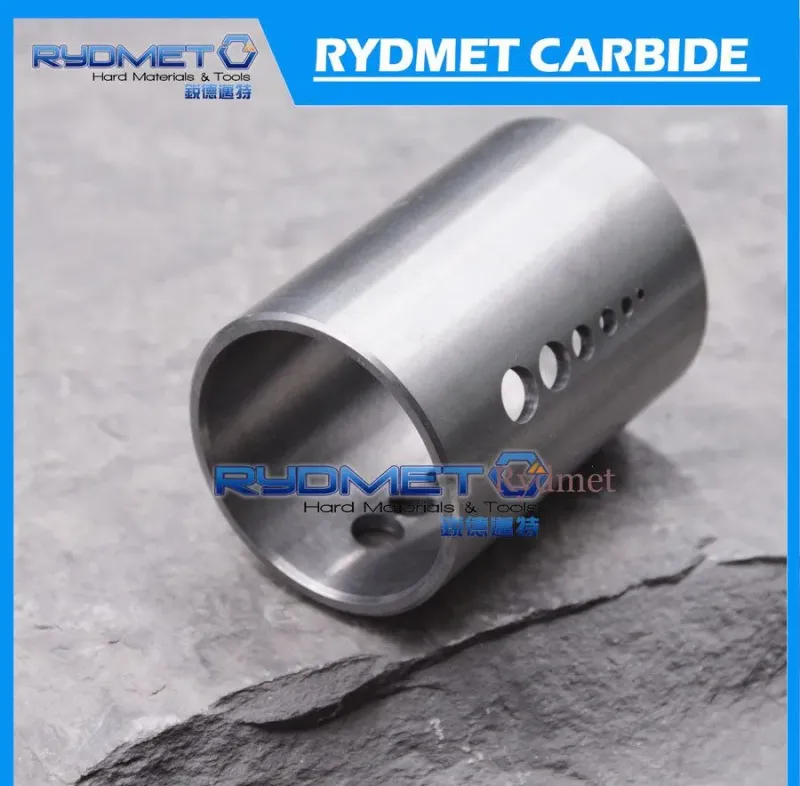

OEM Customized High Wear-Resistant Cemented Tungsten Carbide Bush for Oil Mining Industry

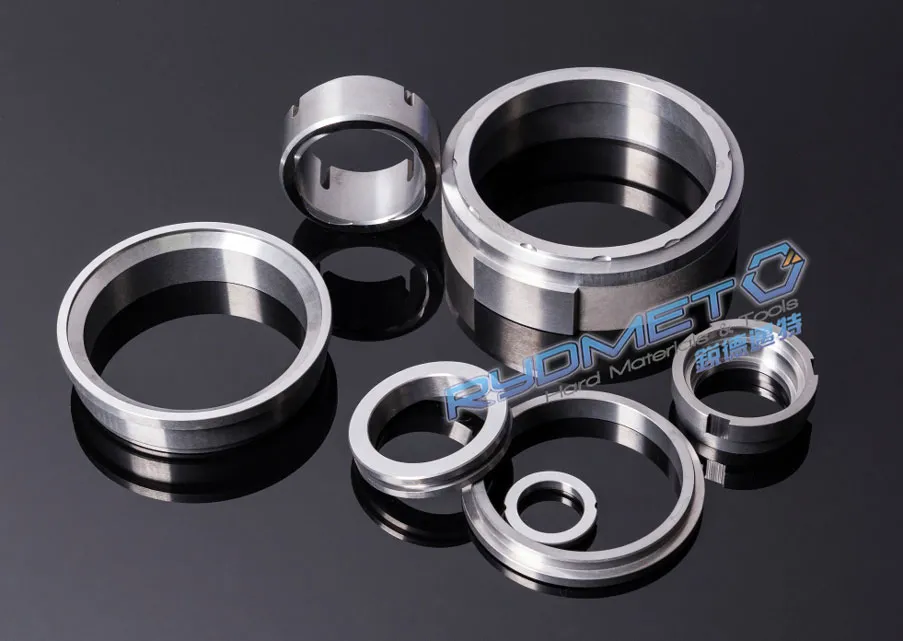

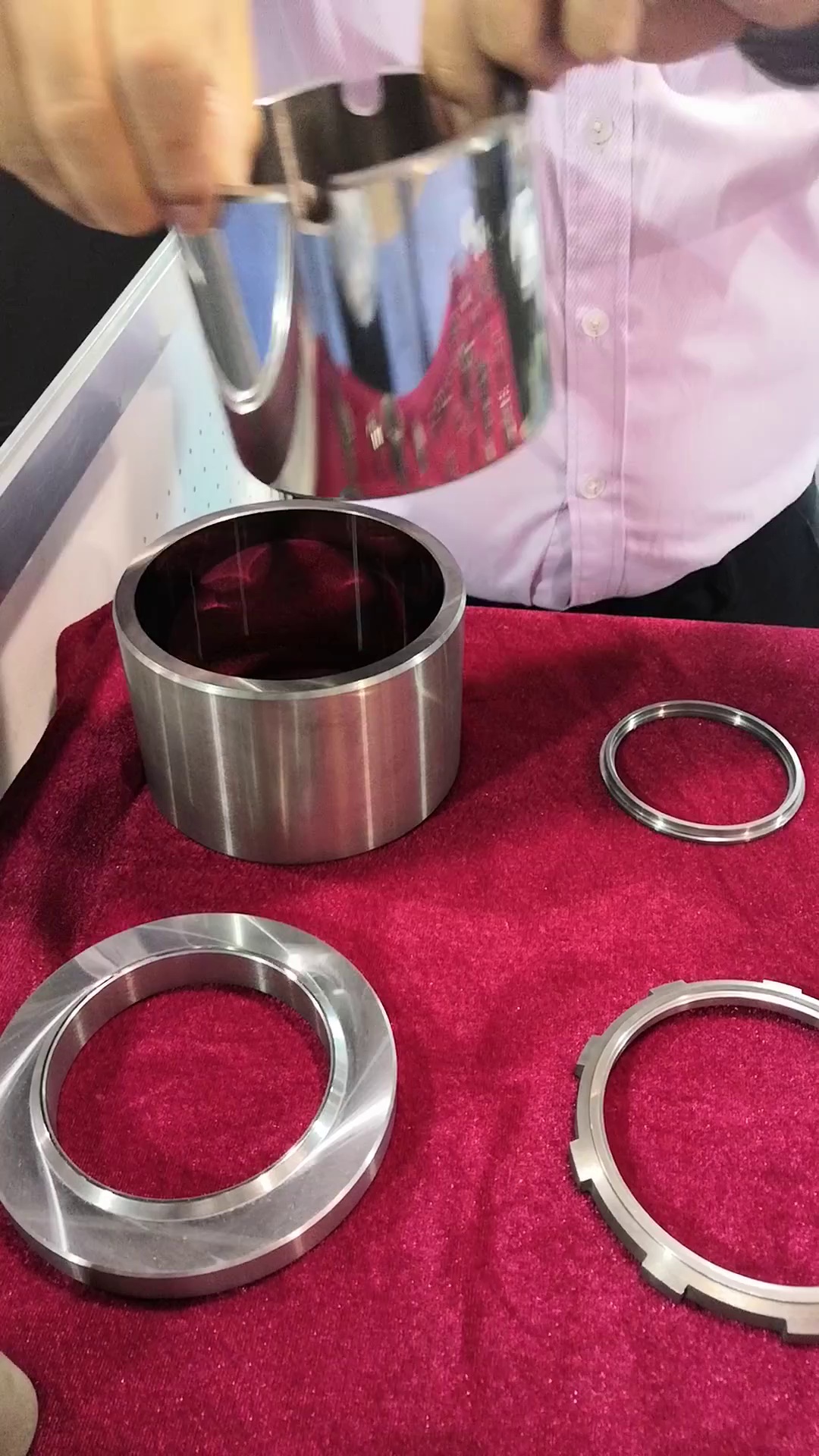

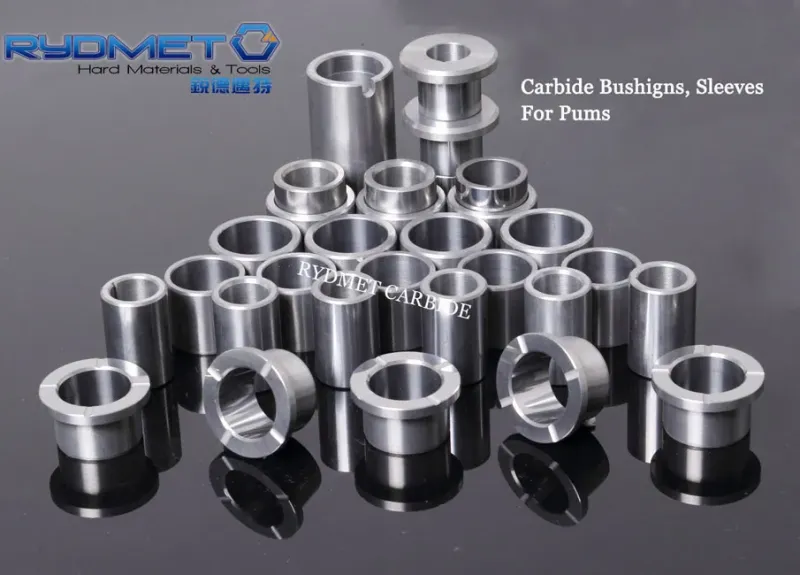

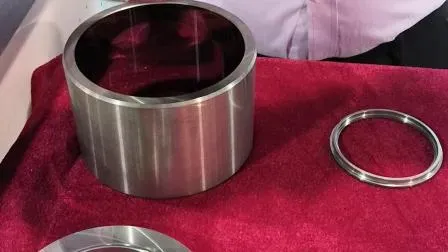

Tungsten Carbide bushings are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries. Mechanical seal rings are developed to withstand high temperature, high pressure & highly corrosive chemical attack. We manufacture Rings in various shapes like Plain Ring, DA type, T-shape, L-shape and in shapes as per customers requirement. Tungsten Carbide sleeves are generally made with Cobalt as binder material. Nickel bonded Rings also can be supplied.

Rydmet Standard Carbide Grade Chart for Wear Parts, Components

Grade Code	Binder Content & Type	Hardness (Ra)	Hardness	Density (g/cm3)	Transverse Rupture Strength (TRS)	Grain Size
RD06X	6% Co	91.5	1530	14.95	2,300	Fine
RD08X	8% Co	90.8	1450	14.75	2,500	Fine
RD15X	15% Co	88.9	1250	13.9	2,700	Fine
RD06M	6% Co	90.3	1380	14.95	2500	Medium
RD08M	8% Co	89.5	1300	14.75	2600	Medium
RD011M	11% Co	89.2	1270	14.3	2,650	Medium
RD015M	15% Co	87	1070	14.0	2,650	Medium
RD06S	6% Co	93	1790	14.95	2,600	Submicron
RD10S	10% Co	91.8	1580	14.45	2,650	Submicron
RD10C	10% Co	88	1160	14.5	2,700	Coarse
FC11C	11% Co	87.5	1110	14.45	2,800	Coarse
RD06N	6% Ni	90	1350	14.9	1,800	Medium
RD08N	8% Ni	88.5	1700	14.7	1,900	Medium
RD10N	10% Ni	88	1160	14.5	1,930	Medium
RD12N	12% Ni	87.5	1110	14.1	1,950	Medium
RD06N2	6% Ni+Cr	89	1250	14.2-14.9	1,600	Medium
RD08N2	8% Ni+Cr	88.5	1210	14.0-14.8	1,700	Medium
RD06UF	6% Co	94	2010	14.9	3,800	Ultra-fine
