Taper Lock Bushing Cast Iron for V Pulleys
Description
Overview
Basic Info.
- Model NO. 1008-8065
- Application Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
- Surface Treatment Phosphating
- Material Cast Iron
- Bore Standard Bore
- Size Standard Size
- Key Word Taper Lock Bush
- OEM Support
- Transport Package Neutral Package, Wooden Case
- Specification Standard or Customized
- Trademark Mighty
- Origin Sichuan, China
- HS Code 8483900090
- Production Capacity 25000PCS/Month
Product Description

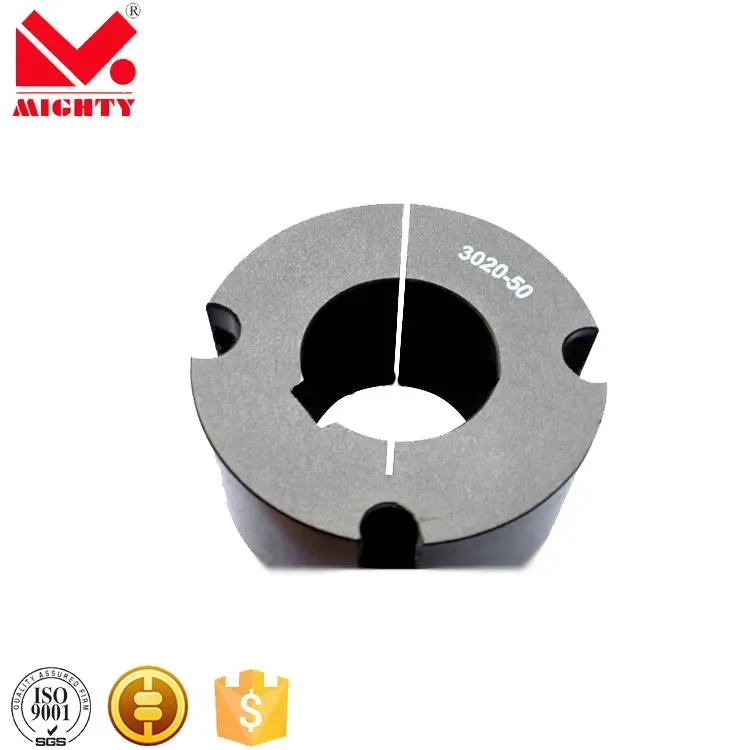

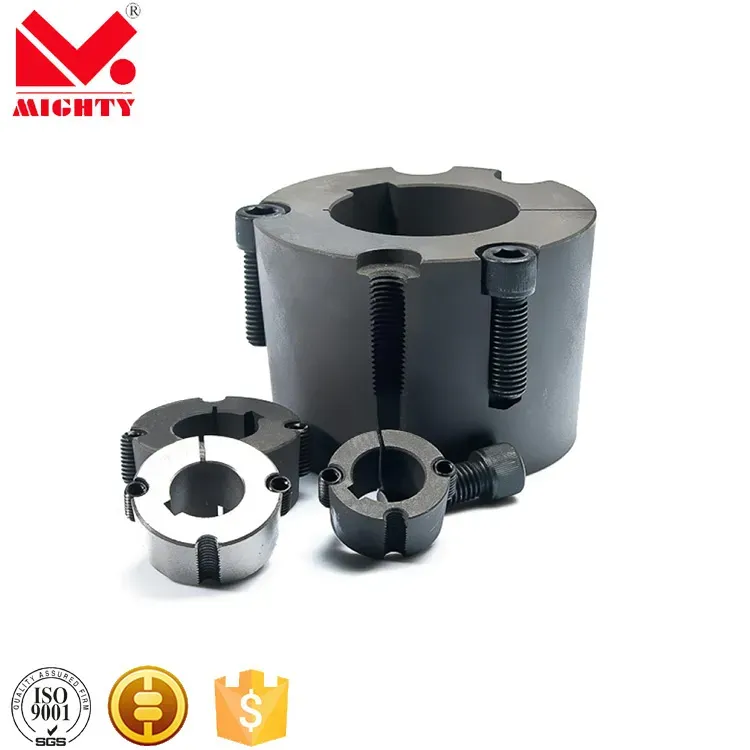

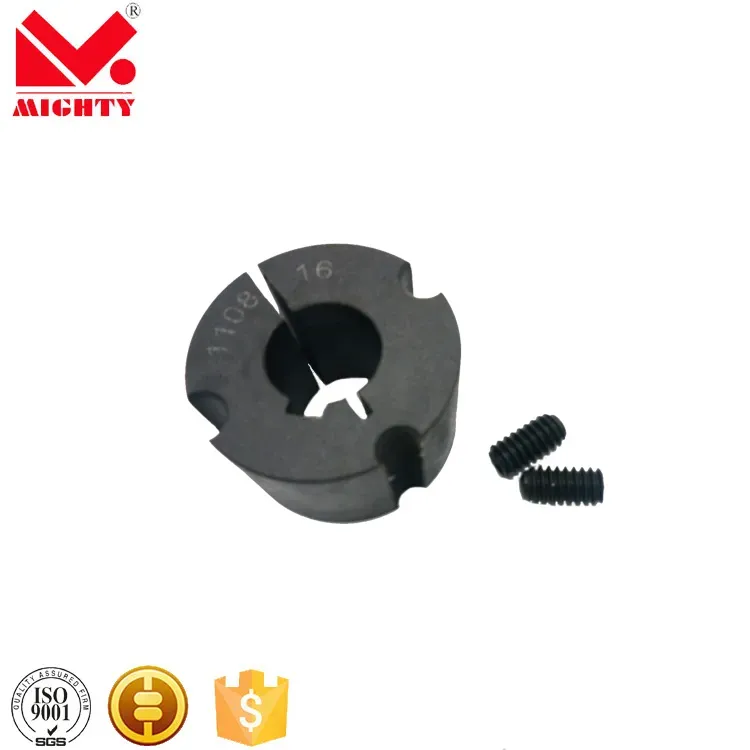

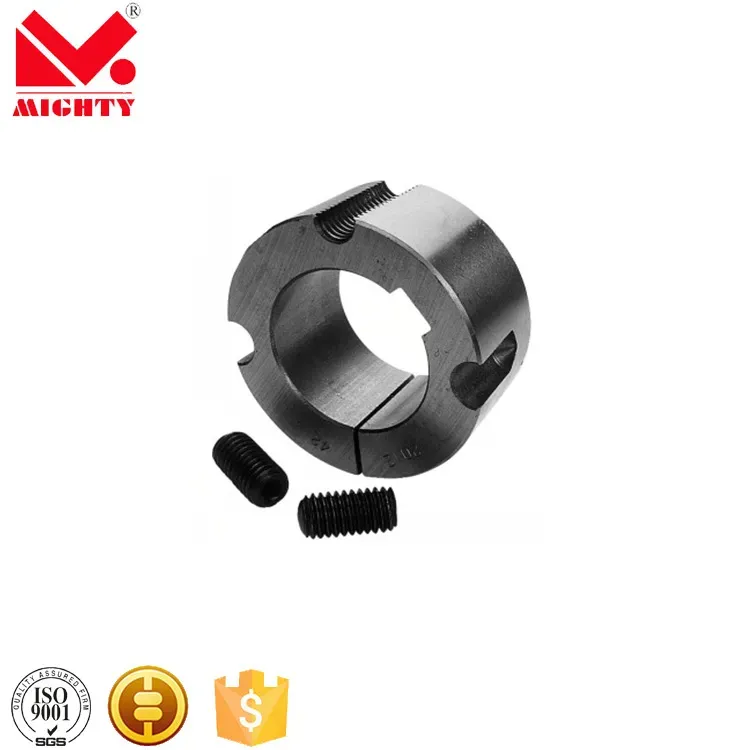

Taper bushings (inch and metric sizes) have a flanged design and feature a 4° taper with conventional or reverse mounting. They are stocked in popular finished bore sizes and minimum plain bore for custom reboring.
Use a tapered or QD bushing with sheaves, pulleys, sprockets and many other power transmission applications. Flanged quick-disconnect bushings feature a completely split design to help provide easy installation and disassembly. A tapered bushing with straight edges uses an internal screw to help drive the bushing into the shaft, while a split taper has a flange and a key on the bushing to help provide more drive.
- 1. Material: High grade cast iron GG25; Steel C45.
- 2. Surface Treatment: phosphating or original color without finishing.
- 3. Model NO.: 1008 1108 1210 1215 1310 1610 1615 2012 2017 2517 2525 3020 3530 3535 4040 4545 5050
- 4. Bore Diameter: 10-80mm, customized.
- 5. Taper Lock Bush: Easy-on and easy-off.
- 6. Machined to high precise tolerance.
- 7. A full range of both metric and imperial sizes taper bushes are available.
- 8. Complete short reach range available, for compact lightweight assemblies.
- 9. Different bores with keyway are available in metric and in inches.
Detailed Photos
Product Parameters
Packaging & Shipping

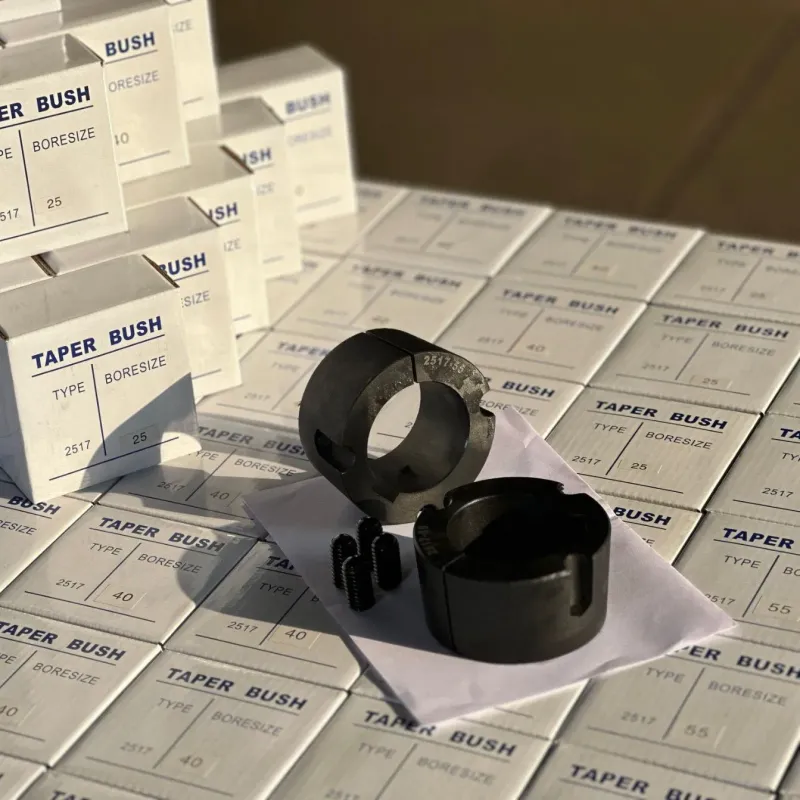

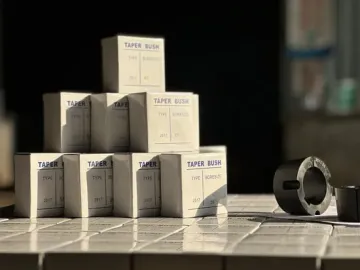

Package
Standard suitable package / Pallet or container. Polybag inside export carton outside, blister and Tape and reel package available. If customers have specific requirements for the packaging, we will gladly accommodate.
Shipping
10-20 working days after payment receipt confirmed (based on actual quantity). Packing standard export packing or according to customers demand. Professional goods shipping forward.
