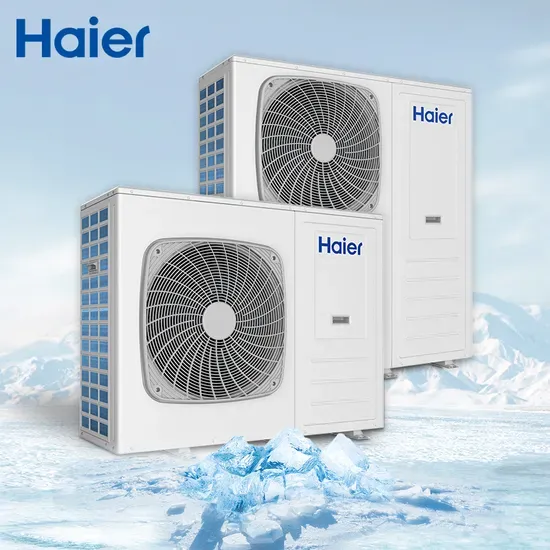

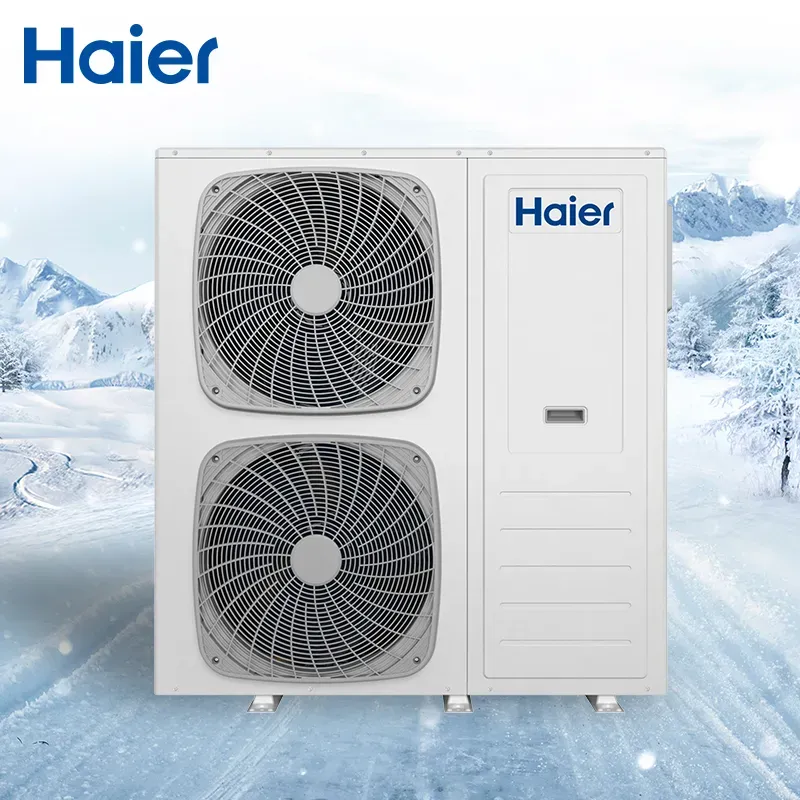

China Domestic High COP Smart WiFi 8kW-16kW R290 Full DC Inverter Heat Pump System
Description
Overview
Basic Info.
Model NO.: HPM-Nd2
Heat Source Type: Air Source Heat Pump
Item: Evi DC Inverter R290 Air to Water Heat Pump for He
Keyword: Air to Water Heat Pump
Function: House Heating Cooling Hot Water
Refrigerant: R290
Heating Capacity: 8~16kw
Compressor: Evi DC Inverter Compressor
Ambient Temperature: Minus 30~43 Degree
Power Supply: 220-240V/50Hz/1pH
Installation: Freestanding
High Cop: 2.9-3.2
Color: White or OEM
Feature: Easy Install
OEM Service: Support
Noise: <51dB(a)
Max Water Temp: 24-75degree
Transport Package: Carton
Specification: 8-16kw
Trademark: Haier
Origin: China
HS Code: 8418612090
Production Capacity: 5000pieces/Month
Packaging & Delivery
Package Size: 136.20cm * 56.70cm * 128.70cm
Package Gross Weight: 171.000kg
Product Description

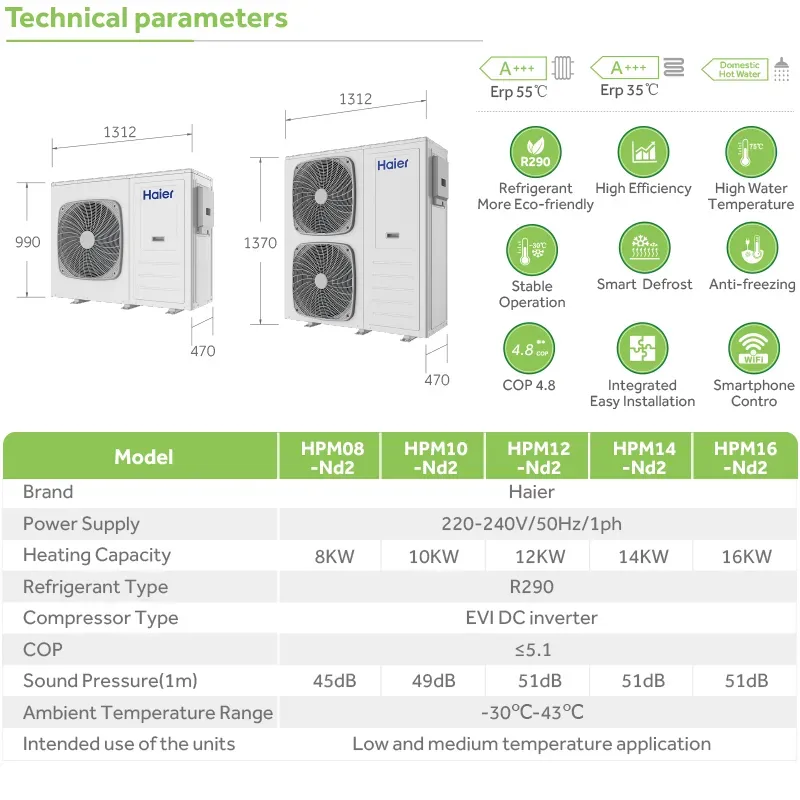

Model
HPM 08-Nd2
HPM 10-Nd2
HPM 12-Nd2
HPM 14-Nd2
HPM 16-Nd2
Intended use of the units
Low and medium temperature application
Power supply
V / Ph / Hz: 220-240/1/50
Heating (AT7/6, WT30/35)
Capacity: 8, 10, 12, 14, 16 kW
Rated power input: 1.62, 2.08, 2.45, 2.74, 3.25 kW
COP: 4.95, 4.8, 4.9, 5.11, 4.92
Heating (AT7/6, WT47/55)
Capacity: 8, 10, 12, 14, 16 kW
Rated power input: 2.42, 3.03, 3.43, 4.24, 5.0 kW
COP: 3.3, 3.3, 3.5, 3.3, 3.2
Cooling (AT35, WT23/18)
Capacity: 8, 10, 11.4, 14, 16 kW
Rated power input: 1.63, 2.15, 2.78, 2.74, 3.33 kW
COP: 4.9, 4.65, 4.1, 5.11, 4.8
Cooling (AT35, WT12/7)
Capacity: 8, 10, 11.4, 14, 16 kW
Rated power input: 2.5, 3.33, 4.07, 4.52, 5.51 kW
COP: 3.2, 3.0, 2.8, 3.1, 2.9
SCOP
Average climate 35°C: A+++, A+++, A+++, A+++, A+++
Average climate 55°C: A+++, A+++, A+++, A+++, A+++
SEER
Fan coil application 7°C: 4.5, 4.5, 4.5, 5.1, 5.1
Cooling floor application 18°C: 6.3, 6.5, 6.2, 7.0, 7.0
Refrigerant
Type: R290
Charge: 1.3, 1.3, 1.35, 1.95, 1.95 kg
E-Heater Backup
kW: 3.0, 3.0, 3.0, 6.0, 6.0
Sound Pressure(1m)
dB: 45, 49, 51, 51, 51
Water pump
Rated water flow: 1.38, 1.72, 2.06, 2.41, 2.75 m³/h
Total water head: 12.5, 12.3, 12, 11.5, 11.1 m
Available water head: 9, 8.8, 8.5, 8, 7.6 m
Maximum working pressure of refrigerant
Mpa: 0.85/3.2
Water side safety valve
Mpa: 0.6, 0.6, 0.6, 0.6, 0.6
Water proof grade
/: IPX4
Water side connection
in: 1, 1, 1, 1, 1
Net dimension
W*D*H: 1312x470x990, 1312x470x1370 mm
Package dimension
W*D*H: 1362x567x1167, 1362x567x1560 mm
Ambient temperature range
Cooling: 10-48 °C
Heating: -30-35 °C
DHW: -30-43 °C
Leaving water temperature range
Cooling: 5-25 °C

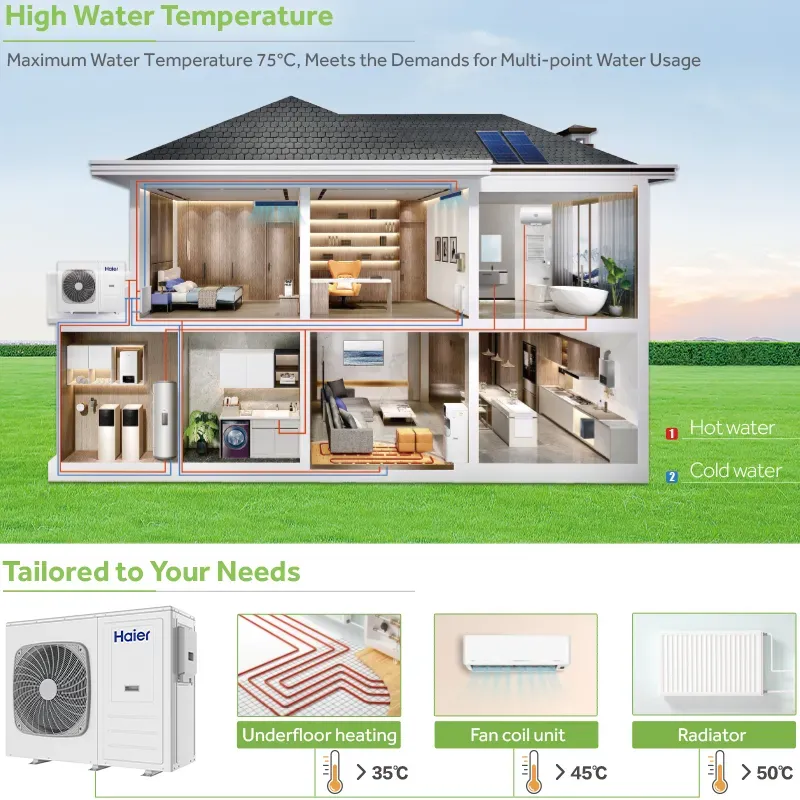

Heating: 24-75 °C
DHW: 30-60 °C
Product Features

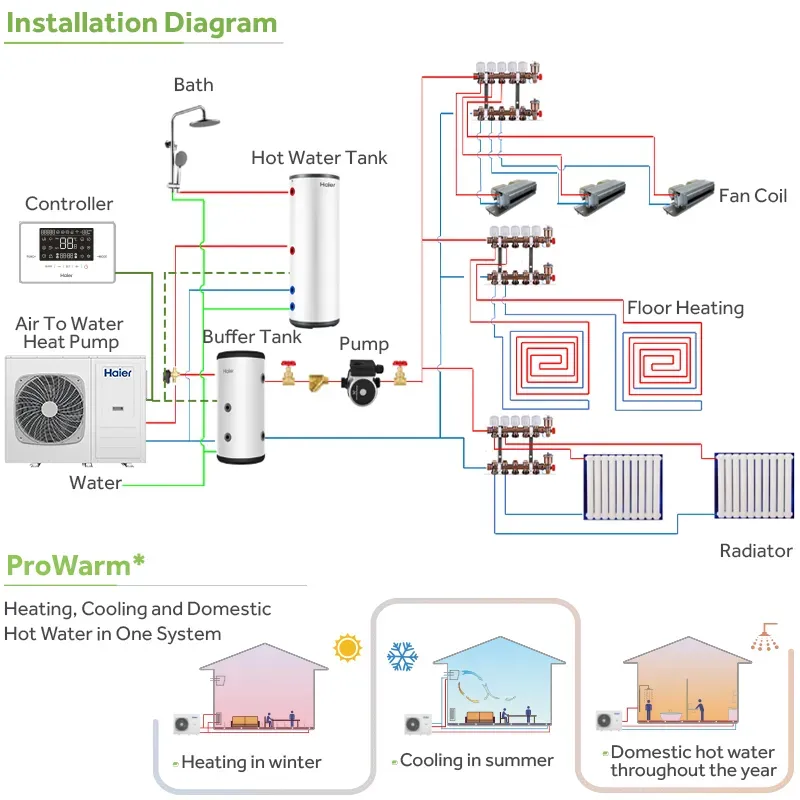

I HEATING, COOLING AND DOMESTIC HOT WATER IN ONE SYSTEM Haier ProWarm* is an integrated system that provides everything your home needs: heating, cooling, and domestic hot water. It is also the ideal alternative for traditional gas or fuel oil heating, allowing you to enjoy delightfully warm and perfectly hot water throughout the year.
I FOUR TECHNOLOGIES FOR ENERGY-SAVING PERFORMANCE The technologically advanced Haier ProWarm* takes a step ahead in efficiency and sustainability.
