Overview

Basic Info.

• Model NO. HPM-Nd2
• Heat Source Type Air Source Heat Pump
• Item Evi DC Inverter R290 Air to Water Heat Pump for He
• Keyword Air to Water Heat Pump
• Function House Heating Cooling Hot Water
• Refrigerant R290
• Heating Capacity 8~16kw
• Compressor Evi DC Inverter Compressor
• Ambient Temperature Minus 30~43 Degree
• Power Supply 220-240V/50Hz/1pH
• Installation Freestanding
• High Cop 2.9-3.2
• Color White or OEM
• Feature Easy Install
• OEM Service Support
• Noise <51dB(a)
• Max Water Temp 24-75degree
• Transport Package Carton
• Specification 8-16kw
• Trademark Haier
• Origin China
• HS Code 8418612090
• Production Capacity 5000pieces/Month

Product Description

China Wholesale Prices New Energy High Temperature High COP Household Domestic Hot Water EVI Full DC Inverter R290 Air Source Monoblock Air To Water Heat Pump For Heating And Cooling

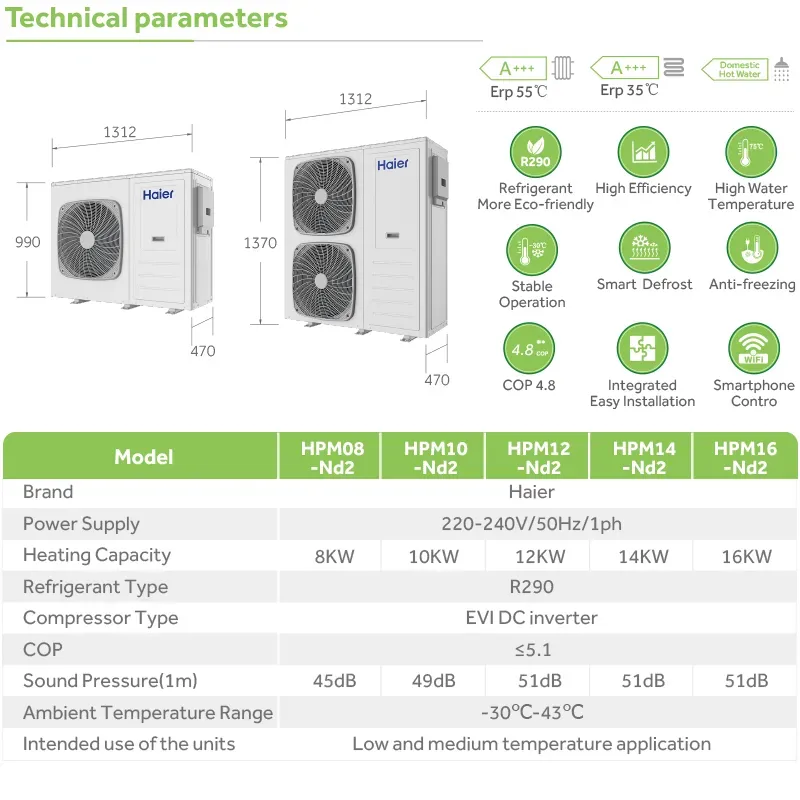

Model

• HPM 08-Nd2
• HPM 10-Nd2
• HPM 12-Nd2
• HPM 14-Nd2
• HPM 16-Nd2

Intended use of the units

• Low and medium temperature application

Power supply

• V / Ph / Hz: 220-240/1/50

Heating (AT7/6, WT30/35)

• Capacity: 8, 10, 12, 14, 16 kW
• Rated power input: 1.62, 2.08, 2.45, 2.74, 3.25 kW
• COP: 4.95, 4.8, 4.9, 5.11, 4.92 kW/kW

Heating (AT7/6, WT47/55)

• Capacity: 8, 10, 12, 14, 16 kW
• Rated power input: 2.42, 3.03, 3.43, 4.24, 5.0 kW
• COP: 3.3, 3.3, 3.5, 3.3, 3.2 kW/kW

Cooling (AT35, WT23/18)

• Capacity: 8, 10, 11.4, 14, 16 kW
• Rated power input: 1.63, 2.15, 2.78, 2.74, 3.33 kW
• COP: 4.9, 4.65, 4.1, 5.11, 4.8 kW/kW

Cooling (AT35, WT12/7)

• Capacity: 8, 10, 11.4, 14, 16 kW
• Rated power input: 2.5, 3.33, 4.07, 4.52, 5.51 kW
• COP: 3.2, 3.0, 2.8, 3.1, 2.9 kW/kW

SCOP

• Average climate 35°C: 4.9, 4.9, 4.9, 5.2, 4.9
• Average climate 55°C: 3.85, 3.85, 3.85, 3.9, 3.9

Season space heating energy efficiency class

• Average climate 35°C: A+++, A+++, A+++, A+++, A+++
• Average climate 55°C: A+++, A+++, A+++, A+++, A+++

SEER

• Fan coil application 7°C: 4.5, 4.5, 4.5, 5.1, 5.1
• Cooling floor application 18°C: 6.3, 6.5, 6.2, 7.0, 7.0

Refrigerant

• Type: R290
• Charge: 1.3, 1.3, 1.35, 1.95, 1.95 kg

E-Heater Backup

• kW: 3.0, 3.0, 3.0, 6.0, 6.0

Sound Pressure(1m)

• dB: 45, 49, 51, 51, 51

Water pump

• Rated water flow: 1.38, 1.72, 2.06, 2.41, 2.75 m³/h
• Total water head: 12.5, 12.3, 12, 11.5, 11.1 m
• Available water head: 9, 8.8, 8.5, 8, 7.6 m

Maximum working pressure of refrigerant

• Mpa: 0.85/3.2

Water side safety valve

• Mpa: 0.6, 0.6, 0.6, 0.6, 0.6

Water proof grade

• IPX4

Water side connection

• in: 1, 1, 1, 1, 1

Net dimension

• W*D*H: 1312x470x990, 1312x470x1370 mm

Package dimension

• W*D*H: 1362x567x1167, 1362x567x1560 mm

Ambient temperature range

• Cooling: 10-48 °C
• Heating: -30-35 °C
• DHW: -30-43 °C

Leaving water temperature range

• Cooling: 5-25 °C

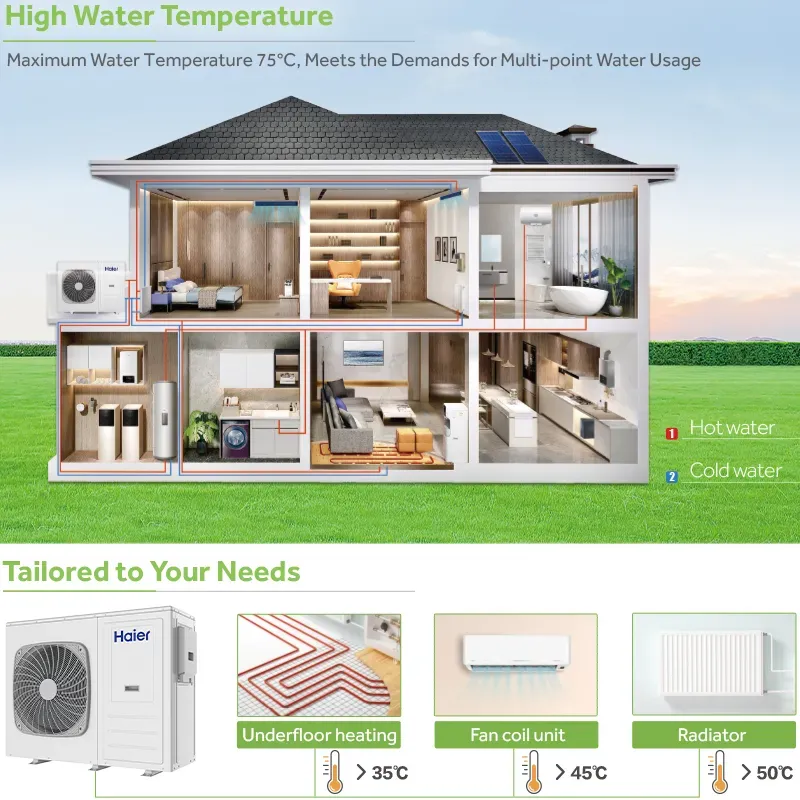

• Heating: 24-75 °C
• DHW: 30-60 °C

Product Features

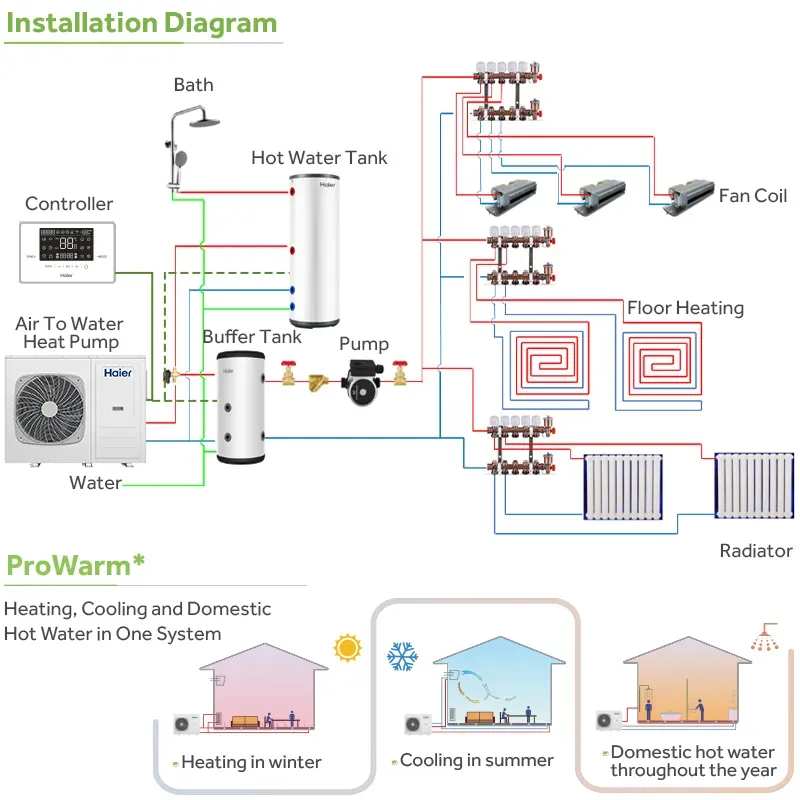

I HEATING, COOLING AND DOMESTIC HOT WATER IN ONE SYSTEM

Haier ProWarm* is an integrated system that provides everything your home needs: heating, cooling, and domestic hot water. It is also the ideal alternative for traditional gas or fuel oil heating, allowing you to enjoy delightfully warm and perfectly hot water throughout the year.

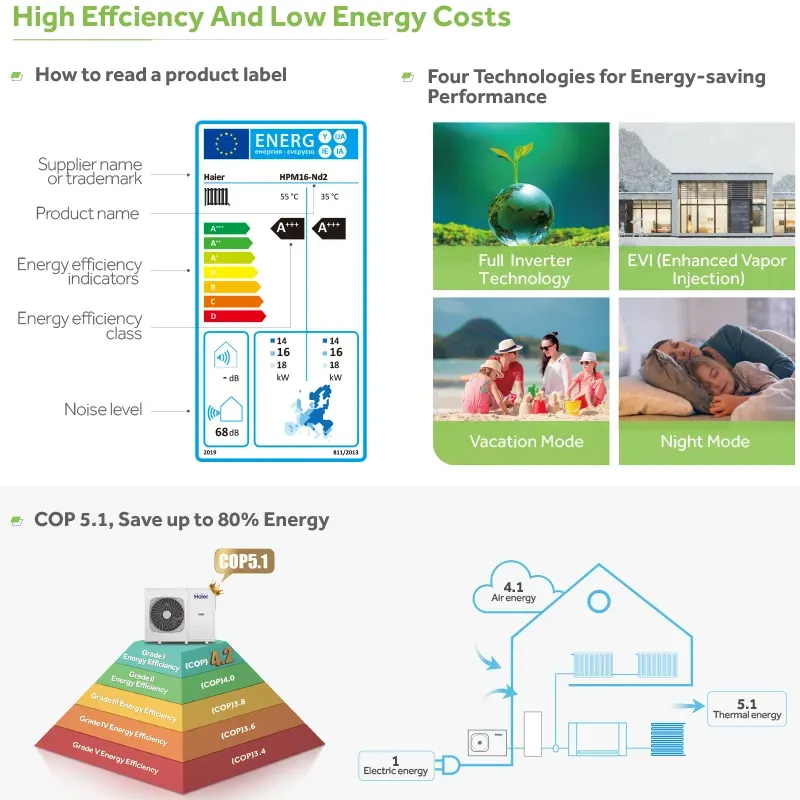

I FOUR TECHNOLOGIES FOR ENERGY-SAVING PERFORMANCE

The technologically advanced Haier ProWarm* takes a step ahead in efficiency and sustainability.
