Central Air-Conditioning and Water-to-Water Heat Pump System

Video

Product ID: 68589266

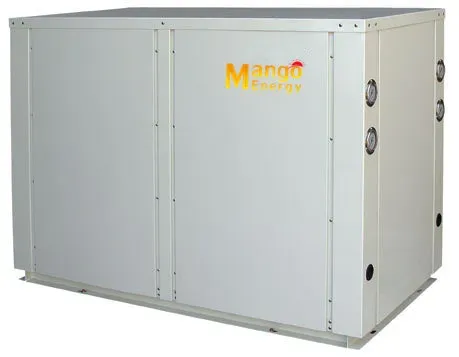

Central Air-Conditioning and Water-to-Water Heat Pump System

Contact Now

Description

Basic Info.

Model NO.

MG-25SFXRS

Work Environment

Low-temperature Heat Pump

Heat Source

Water-source

Heating Type

Circulating Heat

Application

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, CB, RoHS, SASO

City

Guangzhou

Transport Package

Ply Wood Packing

Specification

13kw

Trademark

Mango

Origin

China

HS Code

8418619000

Production Capacity

5000000000000000000 PCS/Year

Packaging & Delivery

Package Size

12.00cm * 8.00cm * 10.00cm

Package Gross Weight

106.000kg

Product Description

Central Air Conditioning,Water to Water Heat Pump,Central air-conditioning, Heating And Cooling

Model			MG-03SFXRS	MG-03SFXRS/380	MG-05SFXRS	MG-06SFXRS	MG-10SFXRS	MG-12SFXRS	MG-15SFXRS	MG-20SFXRS	MG-25SFXRS
Specifications	Heating input power	KW	2.13	2.39	4.25	5.08	8.5	10.16	11.4	15.1	20.2
	Heating capacity	KW	10.4	11.6	20.8	24.7	41.6	49.4	55.4	73.1	97.2
	COP		4.88	4.85	4.89	4.86	4.89	4.86	4.86	4.84	4.81
	Rated current	A	13	6	8.8	11.1	17.6	20.7	25.9	36.1	41.4
	Max outlet water temp	ºC	60	60	60	60	60	60	60	60	60
	Rated outlet water temp	ºC	55	55	55	55	55	55	55	55	55
	Hot water capacity	L/H	224	249	447	531	894	1062	1191	1572	2090
	Water flow of load side	L/h	2100	2100	3200	3800	4800	6200	7300	12400	19800
	water flow of source side	L/h	1800	2010	3650	4300	7401	8774	9838	12969	17217
	Water pressure drop	Kpa	≥70	≥70	≥70	≥70	≥80	≥80	≥80	≥80	≥80
	pipe size	mm	25	25	25	25	32	32	32	50	65
	noise	db	50	50	50	50	50	55	55	55	55
	net weight	kg	88	88	120	130	280	300	350	540	580
	gross weight	kg	92	92	130	140	295	315	370	570	620
	Level of protection		IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
	Electric shock proof grade		I	I	I	I	I	I	I	I	I
Standard components	cabinet		Galvanized sheet/ Spray coating / gray color
	dimension	mm	7105201000	7105201000	7105201000	7105201000	1280830800	1280830800	13208401130	175011201160	200011201160
	packing dimension	mm	7605701130	7605701130	7605701130	7605701130	1330880930	1330880930	14109401290	185012251340	210012251340
	Refrigerant		R407C/2.4kg*1	R407C/2.4kg*1	R407C/3.3kg*1	R407C/3.6kg*1	R407C/3.3kg*2	R407C/3.6kg*2	R407C/5kg*2	R407C/7kg*2	R407C/9kg*2
	Power supply		220V~240V/50Hz/1ph	380V~415V/50Hz/3ph
	Power supply L wire line	Mm2	2.5	2.5	4	6	6	6	10	10	16
	Power supply N wire line	Mm2		1.5	2.5	2.5	2.5	2.5	4	4	6
	noise	db	50	50	50	50	50	55	55	55	55
	compressor model		ZW30KAE	ZW34KAE	ZW61KAE	ZR72KCE	ZR61KCE	ZW72KAE	ZR81KCE	ZW108KAE	VR144KSE
	compressor		Copeland 1pc				Copeland 1pc		Copeland 2pcs
	load side HE		Double-pipe heat exchanger						shell and tube heat exchanger
	source side HE		plate heat exchanger
	Thermal expansion valve		Emerson 3Ton	Emerson 3Ton	Emerson 5Ton	Emerson 6Ton	Emerson 5Ton*2	Emerson 6Ton*2	Emerson 7.5Ton*2	Emerson 10Ton*2	Emerson 12Ton*2
	AC contactor and thermal relay
	Controller		multiple function controller
	Protection function		Tempreature protection, time protection, water flow protection, antifreeze protection, current protection
	Water pressure switch		0.015Mpa :OFF, 0.03Mpa: ON
	High pressure switch		3.0/3.4MPa
	Low pressure switch		0.15/0.32MPa
	Package		Plywood case
	working mode		heating mode

FAQ : Marketing of Mango Energy.

Q1> What does mango energy company do ?
A1:  Mango energy is professional manufacturer of ON/OFF heat pump , DC inverter heat pump, air source heat pump,water to water heat pump , swimming pool heat pump,high temperature heat pump so on all kind of heat pump.

Q2> What is the daily production of Mango energy company ?
A2:  Mango energy one day produce heat pump water heater around 150~255 PCS / day.

Q3> What is Mango heat pump certification ?
A3 :  Mango energy have : SGS, CE,CB, IEC60335-2-40, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and CCC certificate. Get Class A+, A as ErP EN14825 test report .

Q4> Where are the Mango energy heat pump export to till now ?
A4 : Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.

Q5> What is the marketing cooperation case with Mango energy ?
A5:  Mango energy all find exclusive agent / distributor / wholesale / OEM
     Mango energy is manufacturer , so we do not directly face to end user / retail ,
     After sign sales contract at this district , we will do not sales to others buyers again,
     So agent / distributor care for this district sales & service .

Q6> What Mango energy do for their agent / distributor /OEM ?
A6 : Mango energy offer sales training , heat pump & solar air conditioner product training,
      After sales service training , maintenance machine training , big air chiller ,or heating
      Project design case training , inside parts exchange training and test training.

Q7> How can get training from Mango energy ?
A7 : If have time , can visit to my factory to training,  or invite we engineer team to yours side
Training , or by Video training online.

Q8> What Mango energy offer to their business partner ?
A8:  Mango energy offer 1%~2% free spare parts according to order quantity .
     Offer whole this district market exclusive sales right .
     Offer rebate as this district agent sales amount within one year .
     Offer best competitive price & repair parts .
     Offer 24 hours online service .

Q9>  where is Mango energy heat pump using ?
A9:  Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating , restaurants, hospitals,schools, bath center, residential central heating and hot water plants, etc.

Welcome visit ours factory .
    Any more question you can contact us.
