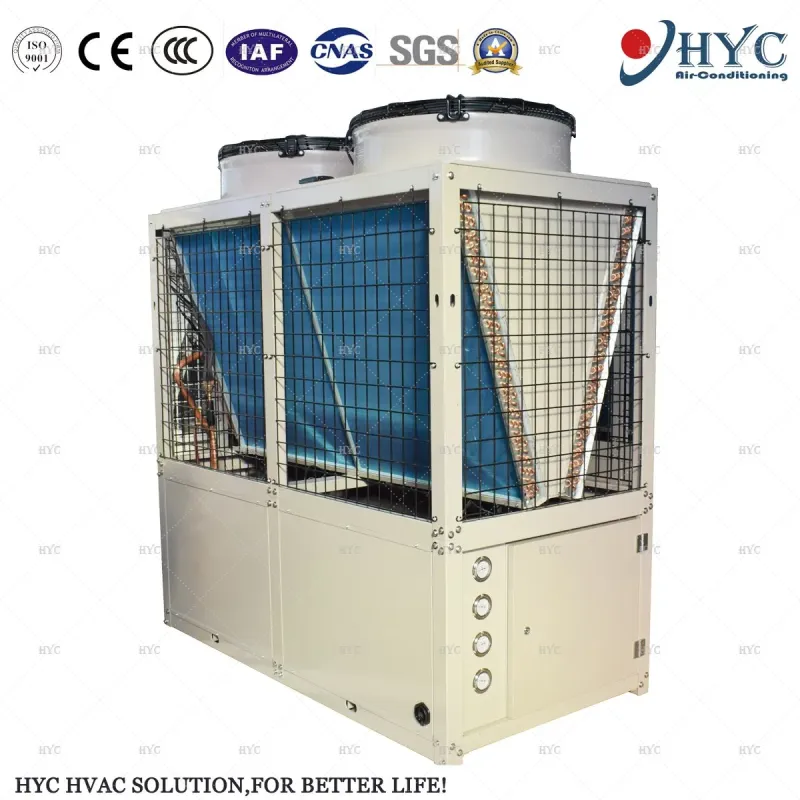

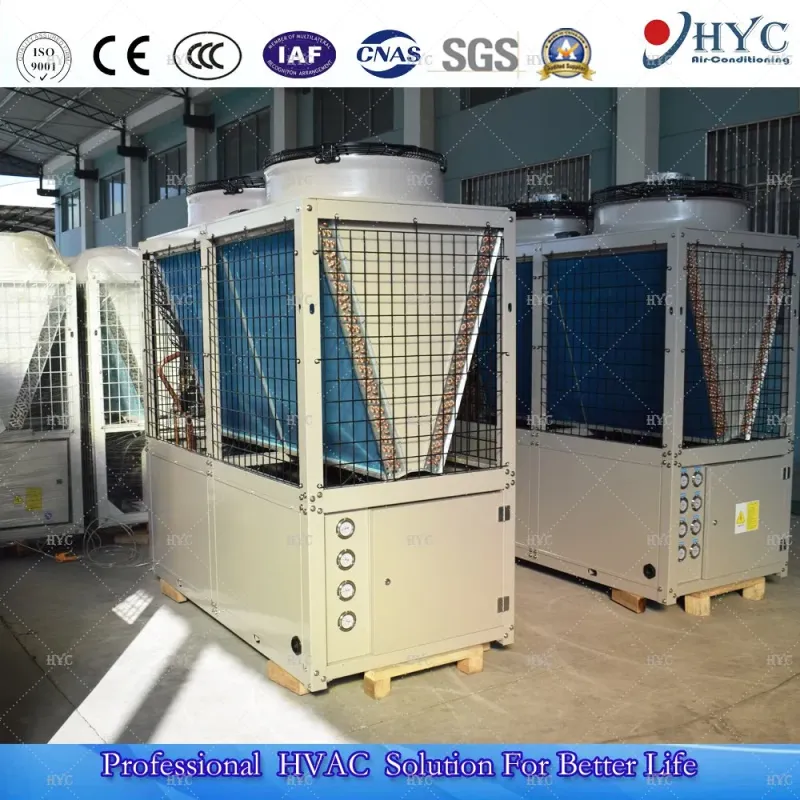

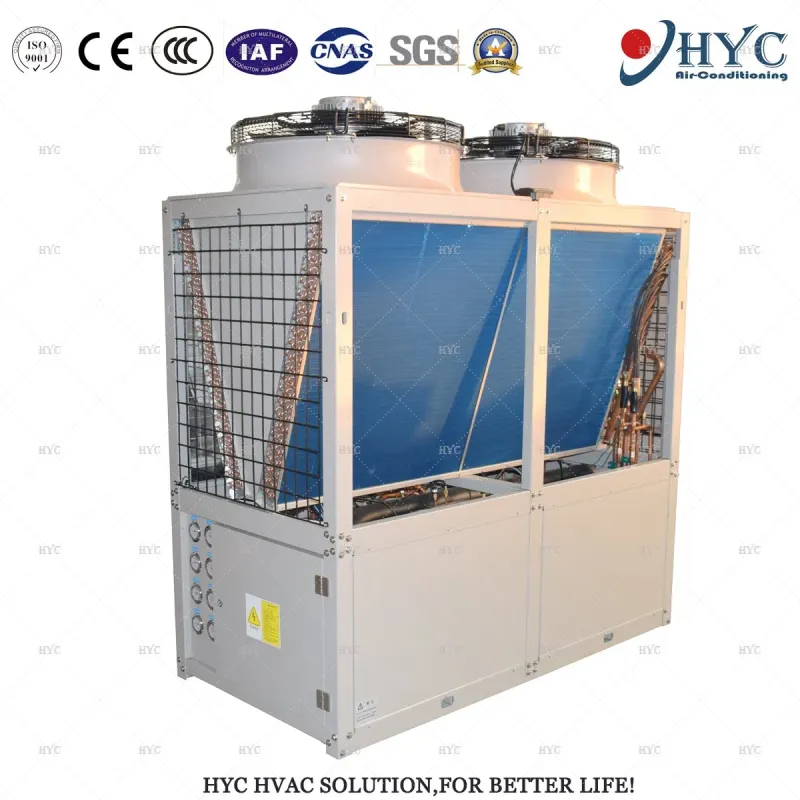

R410A Modular Air Source Heat Pump for Central Air Conditioning
Description
Basic Info
- Model NO. HCA
- Corrosion Durability Higher
- Operating Voltage 380/400 VAC
- Noise Level Low
- Mounting Floor Standing
- Lifetime >20 years
- Certification ISO, CE, CCC
- Color White/Optional Other Colors
- Delivery Time 30days
- Tailor Made Available
- OEM/ODM Available
- Capacity 65-130kw
- Refrigerant R22/R407c/R410A/R134A
- Compressor Type Scroll

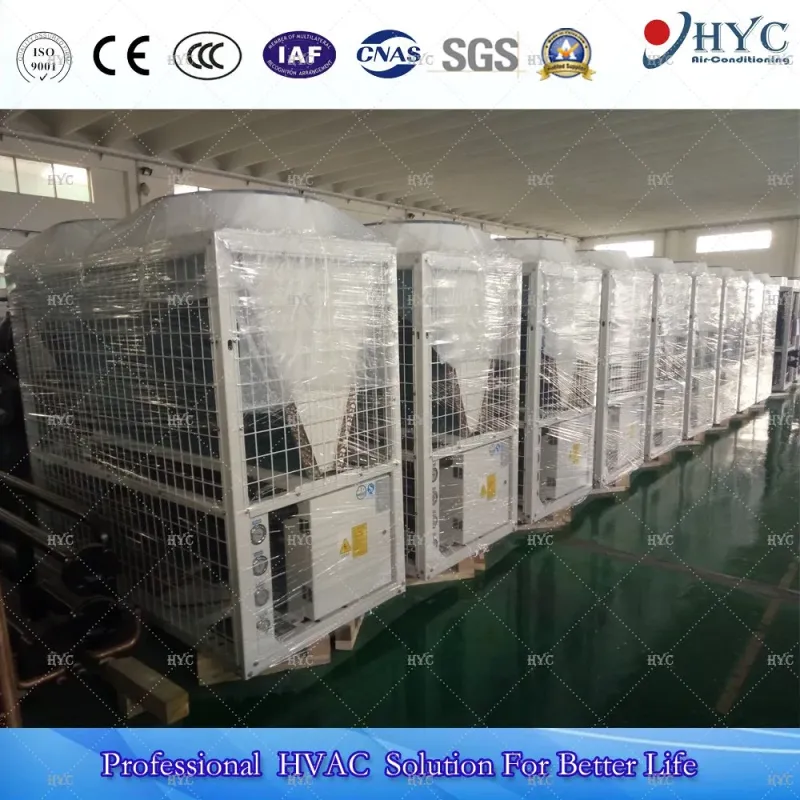

- Transport Package Film/Wooden Package
- Trademark OEM/ODM/HYC
- Origin China
- Production Capacity 5000sets
Product Description
Sincerely welcome to visit our factory at your convenience. Customer could witness their order production real conditions by online videos or photos at any time during production.
STRUCTURE
The master module can work independently or together with up to 11 slave modules.
HERMETIC COMPRESSOR
The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security protection to enhance reliability and performance.
AXIAL FAN
External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP55, provided with a protective outlet grille.
EVAPORATOR
Evaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.
HYDRAULIC CIRCUIT
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
ELECTRIC PANEL
Electric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
OPTIONAL
- Flow switch;
- Rubber anti-vibration mounting.
- Compressor soft connection
- BMS

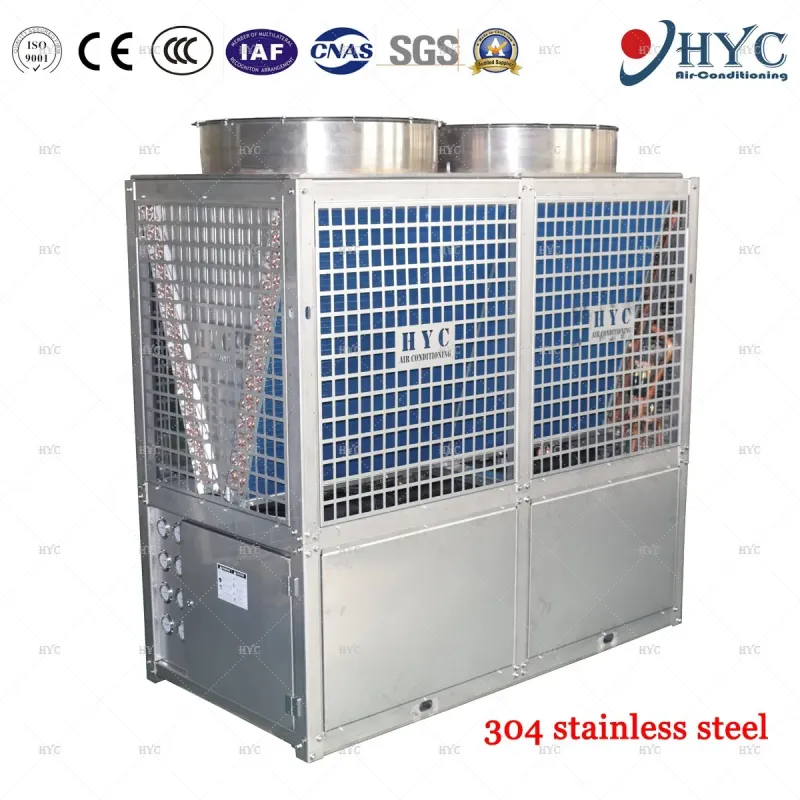

- Stainless steel covering
- Heat recovery 20%-25%
- Remote condenser
Model
| Model | 20 | 30 | 40 | |
|---|---|---|---|---|
| Power supply | V-Ph-Hz | 380v/3ph/50hz | 380v/3ph/50hz | 380v/3ph/50hz |
| Cooling* | ||||
| cooling capacity | KW | 65 | 97.5 | 130 |
| cooling power input | KW | 20.8 | 31.2 | 41.6 |
| cooling current input | A | 38.50 | 55.8 | 74.3 |
| Heating** | ||||
| heating capacity | KW | 68 | 103 | 141 |
| heating power input | KW | 21.5 | 32.25 | 43 |
| heating current input | A | 38.4 | 57.6 | 76.8 |
| Compressor | ||||
| qty | / | 2 | 3 | 4 |
| input power | kW | 10.1*2 | 10.1*3 | 10.1*4 |
| input current | A | 17.6*2 | 17.6*3 | 17.6*4 |
| Condensor | ||||
| condensor coil qty | / | 3 | 4 | 5 |
| air flow | m3/h | 12700*2 | 17800*2 | 23800*2 |
| axial fan qty | / | 2 | 2 | 2 |
| motor power input | KW | 0.75*2 | 1.1*2 | 1.5*2 |
| Evaporator | ||||
| type | / | shell and tube | shell and tube | shell and tube |
| water flow | m3/h | 11.2 | 16.8 | 22.4 |
| water pressure drop | kPa | 38 | 38 | 38 |
| water pipe | mm | DN50 | DN50 | DN50 |
| Noise level | dB(A) | 60 | 74 | 78 |
| Dimension(L*W*H) | mm | 2020*1000*1920 | 2020*1000*1920 | 2020*1000*1920 |
| Net weight | kg | 605 | 830 | 925 |

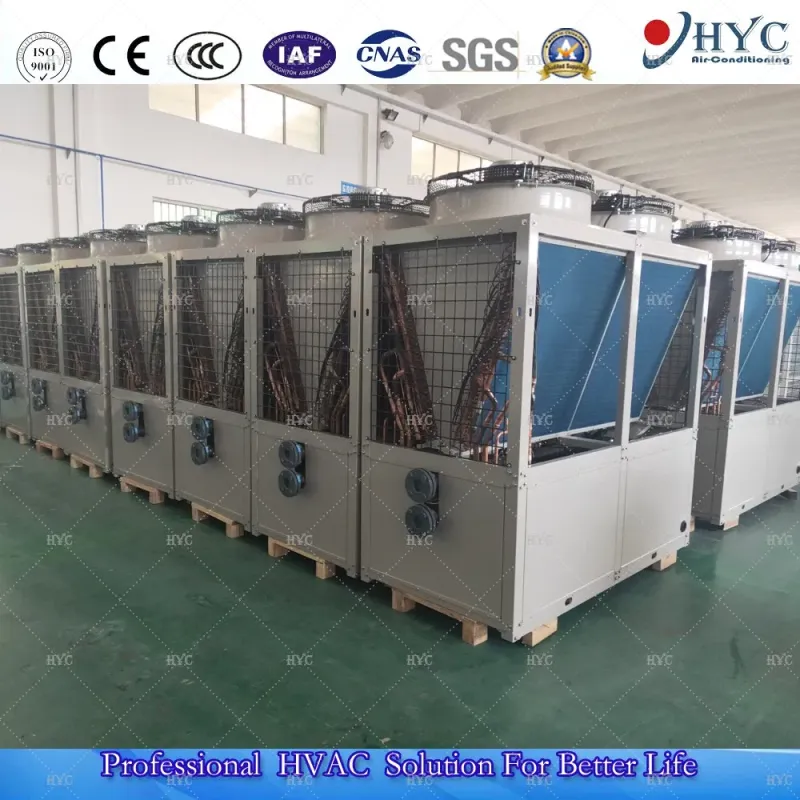

Factory View
Production Machinery
Test Lab

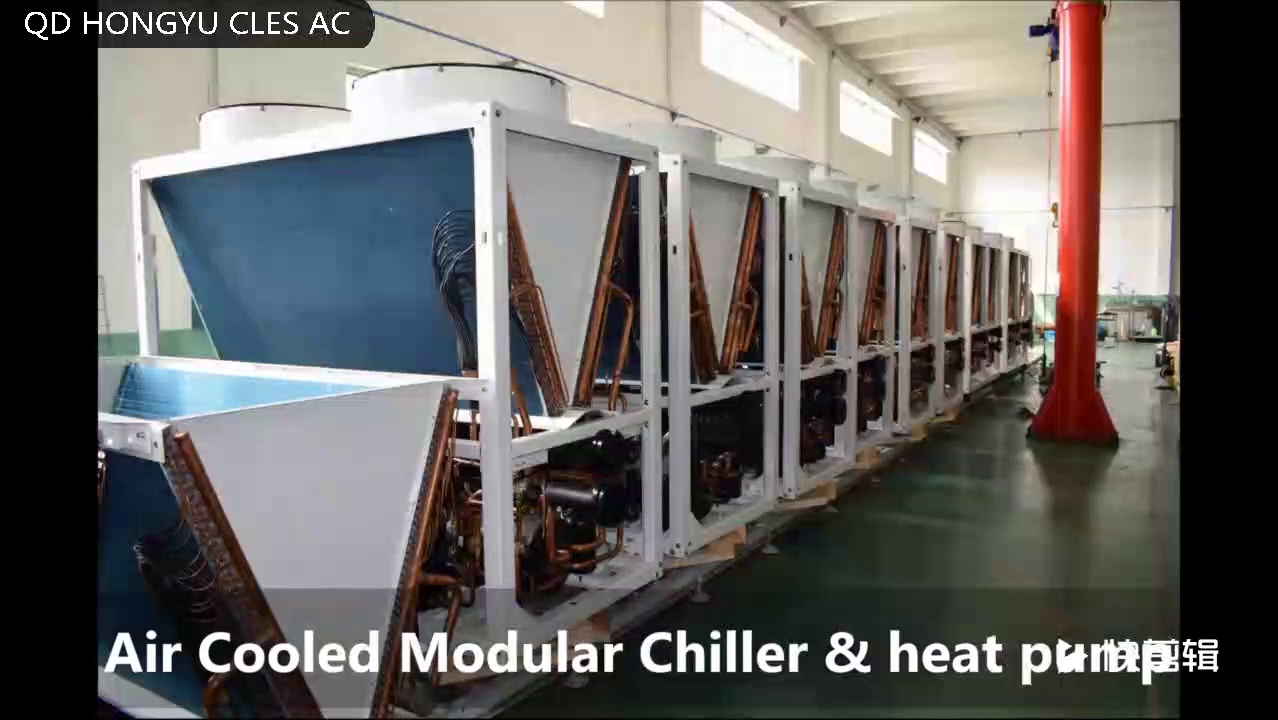

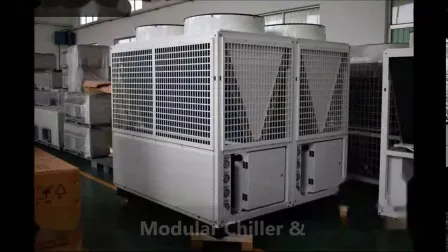

Air cooled water chiller & heat pump Production Line
