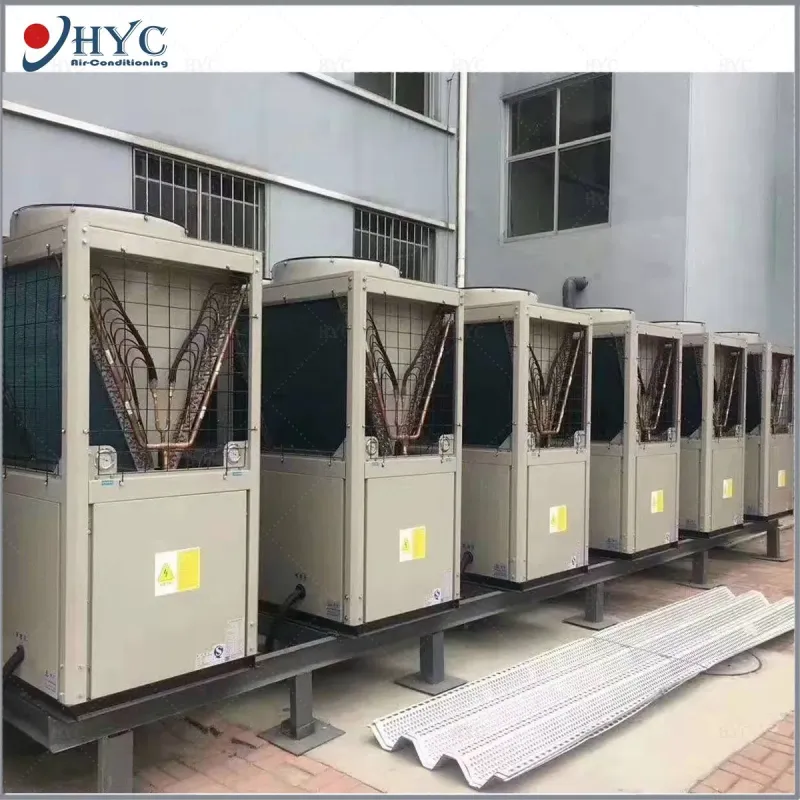

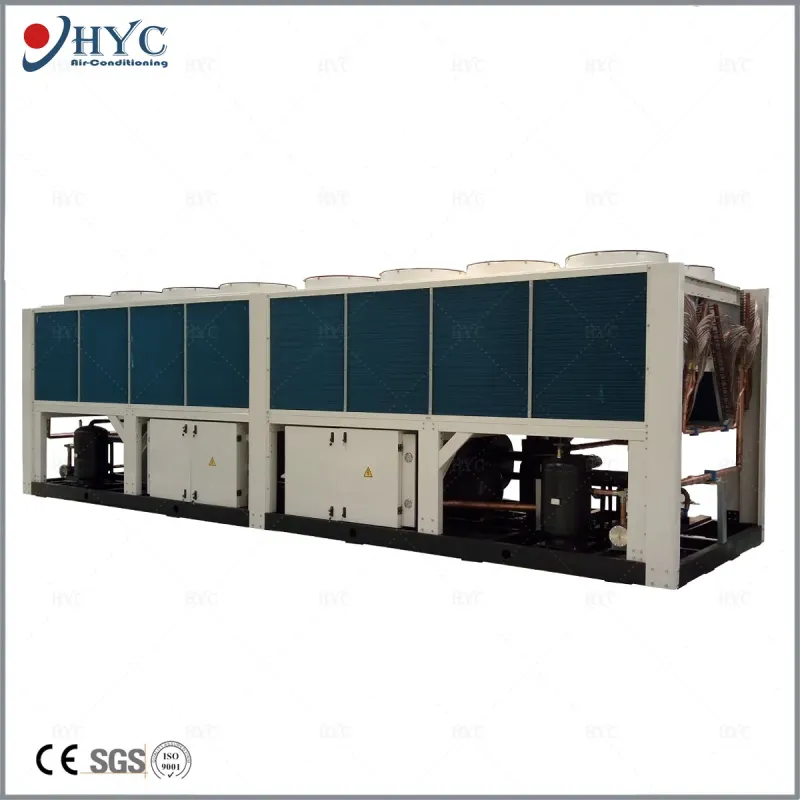

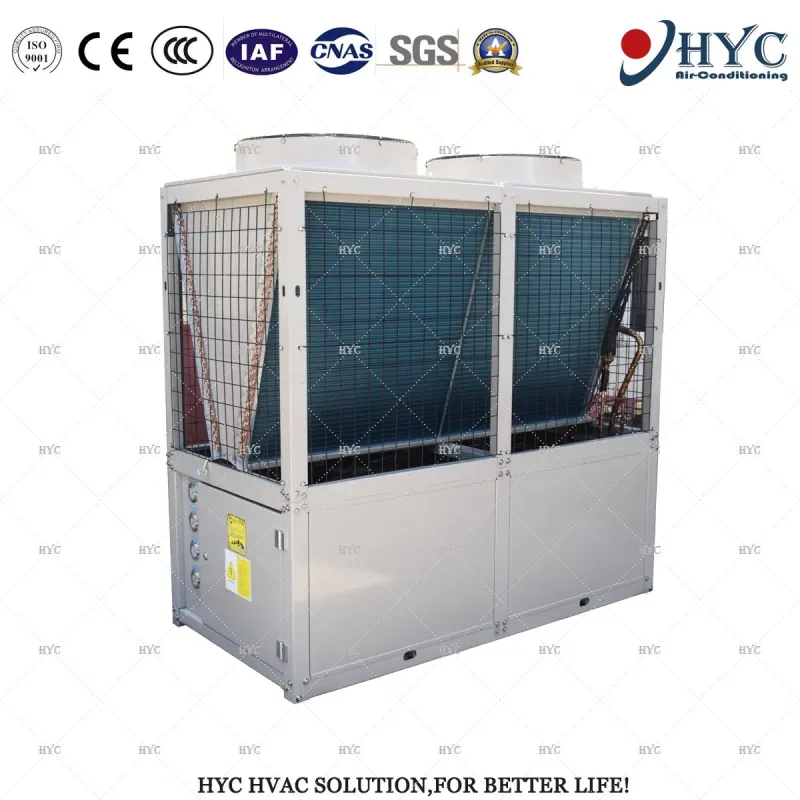

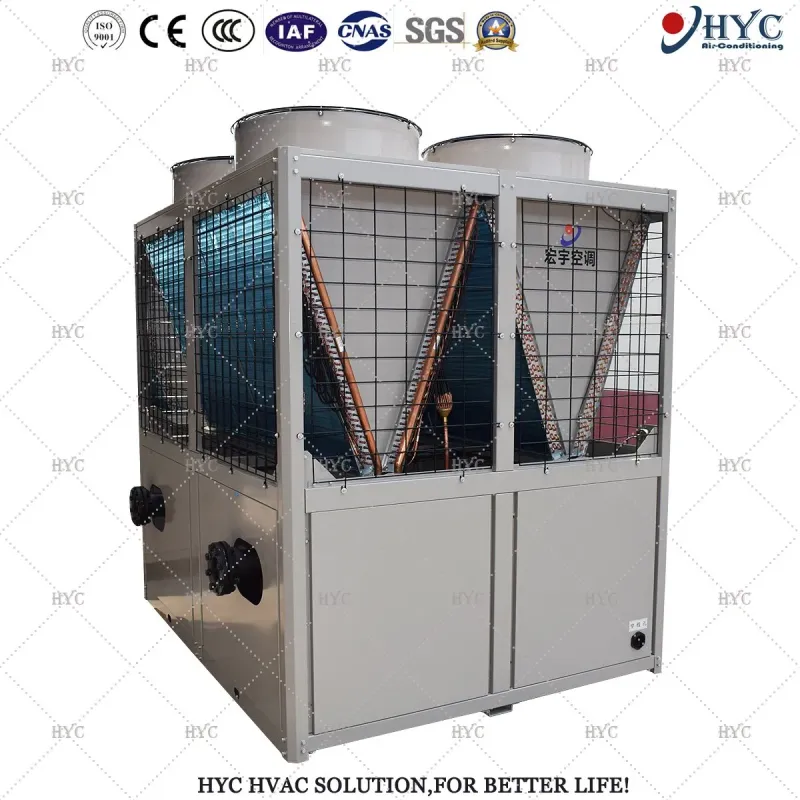

Hyc Modular DC Inverter Central Air Conditioning Unit
Contact Now
Description
Basic Info.
Model NO.
HCA-C-A
Heat Source Type
Air Source Heat Pump
Color
Whilte/Optional Other Colors
Delivery Time
30days
Tailor Made
Avaiable
OEM/ODM
Avaiable
Capacity
8-50kw
Refrigerant
R22/R407c/R410A/R134A
Compressor Type
Scroll
Transport Package
Film/Wooden Package
Trademark
OEM/ODM/HYC
Origin
China
Production Capacity
5000sets
Product Description

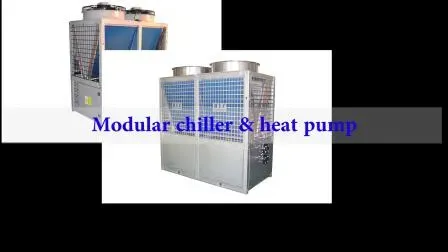

DC Inverter Air Source Heat Pump
FEATURES
CAPACITY RANGE
Capacity ranging from 2.5Ton to 640Ton
Cooling performance: -5~50ºC
Heating performance: -25~24ºC
EASY INSTALLATION
It is supplied as a complete package ready for operation, with no extra controls or other items to be installed. The units have a single power point entry with simple connections.
Quick start-up is assured once installation is completed, as each unit is manufactured in an ISO9001:2000 listed facility to guarantee quality. All units are tested at the factory to provide reliable start up.
HIGHLY QUALITY COMPONENTS AND RELIABLE PERFORMANCE
DC inverter type compressor and high quality world known brand cooling parts, which ensures units' reliable performance.
STRUCTURE
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total
resistance to atmospheric agents.
HERMETIC COMPRESSOR
The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security
protection to enhance reliability and performance.
AXIAL FAN
External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level
IP54, provided with a protective outlet grille.
EVAPORATOR
Evaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.

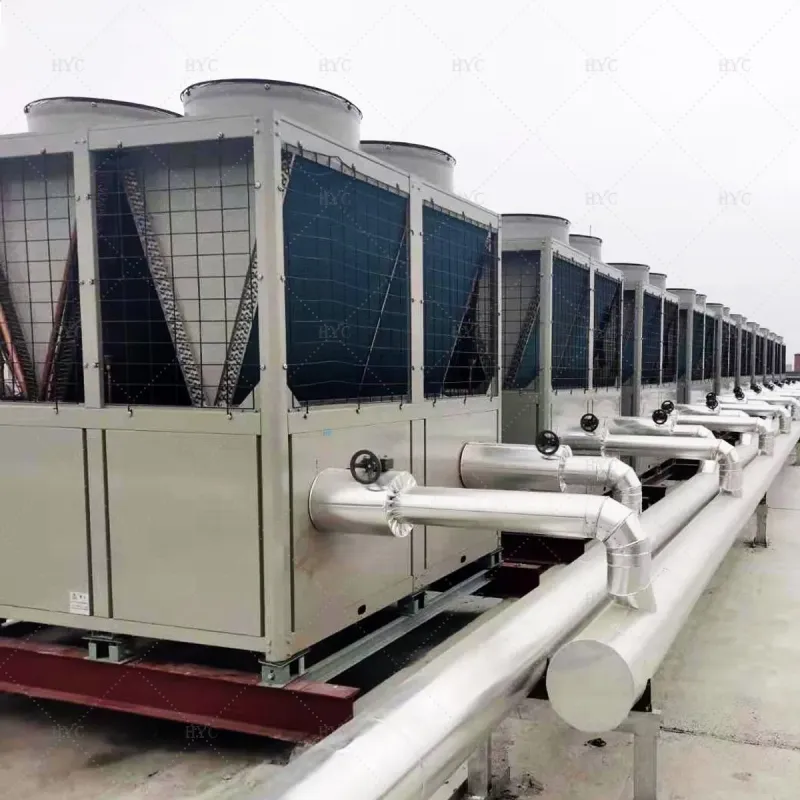

HYDRAULIC CIRCUIT
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
ELECTRIC PANEL
Electric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
OPTIONAL
• Pressure differential/Flow switch;
• Metallic filter for hydraulic circuit;
• Water pump;
• Rubber anti-vibration mounting..
• BMS
• Stainless steel covering
| Model | 8 | 10 | 12 | 14 | 20 | 25 | 30 | 35 | 40 | 50 | |
| Power supply | / | 220-240V/1Ph/50Hz | 380-415V/3Ph/50Hz | ||||||||
| Cooling | |||||||||||
| Cooling capacity | kW | 8 | 10 | 12 | 14 | 20 | 25 | 28 | 35 | 40 | 50 |
| Cooling input power | kW | 3.05 | 3.85 | 4.51 | 5.13 | 7.09 | 8.61 | 10.05 | 11.27 | 13.66 | 17.18 |
| Heating | |||||||||||
| Heating capacity | kW | 10 | 12.5 | 14.7 | 16 | 22 | 27.2 | 30 | 38 | 44 | 55 |
| Heating input power | kW | 3.05 | 3.85 | 4.51 | 5.13 | 7.09 | 8.61 | 10.05 | 11.27 | 13.66 | 17.18 |
| Compressor | |||||||||||
| Qty | / | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Input power | kW | 2.81 | 3.37 | 4.03 | 4.65 | 2x3.27 | 2x4.03 | 2x4.65 | 2x5.26 | 2x6.28 | 2x8.04 |
| Running current | A | 13.12 | 16.43 | 7.02 | 8.32 | 2x6.26 | 2x7.02 | 2x8.32 | 2x10.03 | 2x12.01 | 2x14.79 |
| Axial fan qty | / | 1 | 2 | 2 | 2 | 1 | 1 | 1 | 2 | 2 | 2 |
| Expansion type | / | thermal expansion type | |||||||||
| Evaporator | |||||||||||
| Type | / | Plate type or tank type heat exchanger | |||||||||
| Water flow | m3/h | 1.4 | 1.7 | 2.1 | 2.4 | 3.4 | 4.3 | 4.8 | 6.2 | 6.9 | 8.6 |
| Water pressure drop | kPa | 33 | 33 | 33 | 36 | 36 | 38 | 42 | 50 | 52 | 52 |
| Water pipe in/out | mm | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 | DN32 | DN32 | DN40 |
| Dimension | |||||||||||
| Length | mm | 1250 | 1250 | 1250 | 1250 | 1600 | 1600 | 1600 | 2000 | 2000 | 2000 |
| Width | mm | 452 | 452 | 452 | 452 | 940 | 940 | 940 | 900 | 900 | 900 |
| Height | mm | 1180 | 1180 | 1180 | 1180 | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Net weight | kg | 150 | 155 | 150 | 180 | 282 | 310 | 339 | 310 | 470 | 520 |
| Noise | dB(A) | 58 | 58 | 60 | 64 | 64 | 66 | 68 | 70 | 70 | 70 |
| Model | 20 | 30 | 40 | ||
| Power supply | V-Ph-Hz | 380v/3ph/50hz | 380v/3ph/50hz | 380v/3ph/50hz | |
| Cooling* | |||||
| cooling capacity | KW | 65 | 97.5 | 130 | |
| cooling power input | KW | 20.8 | 31.2 | 41.6 | |
| cooling current input | A | 38.50 | 55.8 | 74.3 | |
| Heating** | |||||
| heating capacity | KW | 68 | 103 | 141 | |
| heating power input | KW | 21.5 | 32.25 | 43 | |
| heating current input | A | 38.4 | 57.6 | 76.8 | |
| Compressor | |||||
| qty | / | 2 | 3 | 4 | |
| input power | kW | 10.1*2 | 10.1*3 | 10.1*4 | |
| input current | A | 17.6*2 | 17.6*3 | 17.6*4 | |
| Condensor | |||||
| condensor coil qty | / | 3 | 4 | 5 | |
| air flow | m3/h | 12700*2 | 17800*2 | 23800*2 | |
| axial fan qty | / | 2 | 2 | 2 | |
| motor power input | KW | 0.75*2 | 1.1*2 | 1.5*2 | |
| Evaporator | |||||
| type | / | shell and tube | shell and tube | shell and tube | |
| water flow | m3/h | 11.2 | 16.8 | 22.4 | |
| water pressure drop | kPa | 38 | 38 | 38 | |
| water pipe | mm | DN50 | DN50 | DN50 | |
| Noise level | dB(A) | 60 | 74 | 78 | |
| Dimension(L*W*H) | mm | 2020*1000*1920 | 2020*1000*1920 | 2020*1000*1920 | |
| Net weight | kg | 605 | 830 | 925 | |

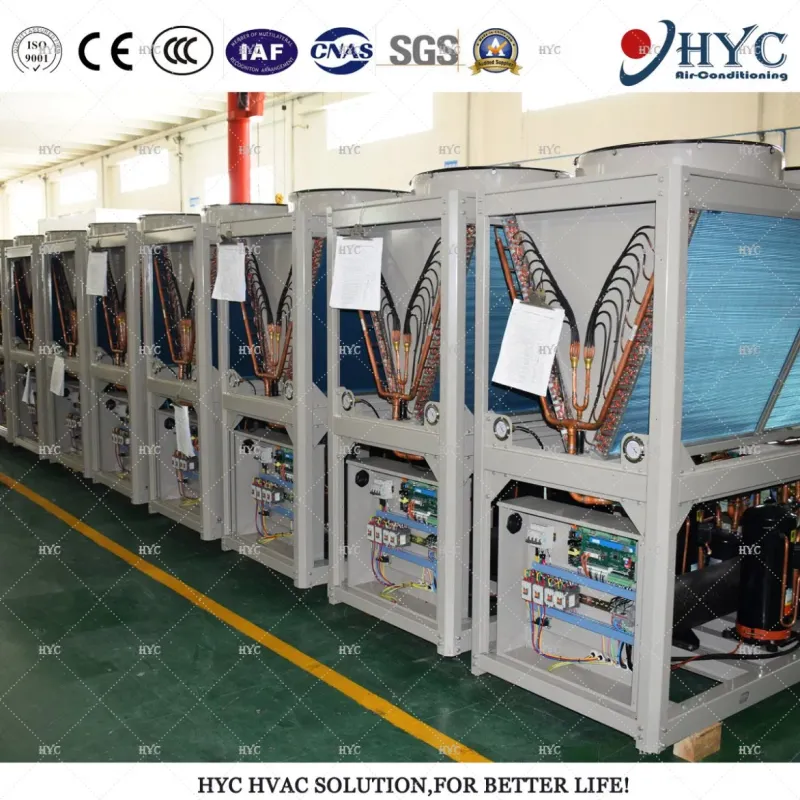

Factory View

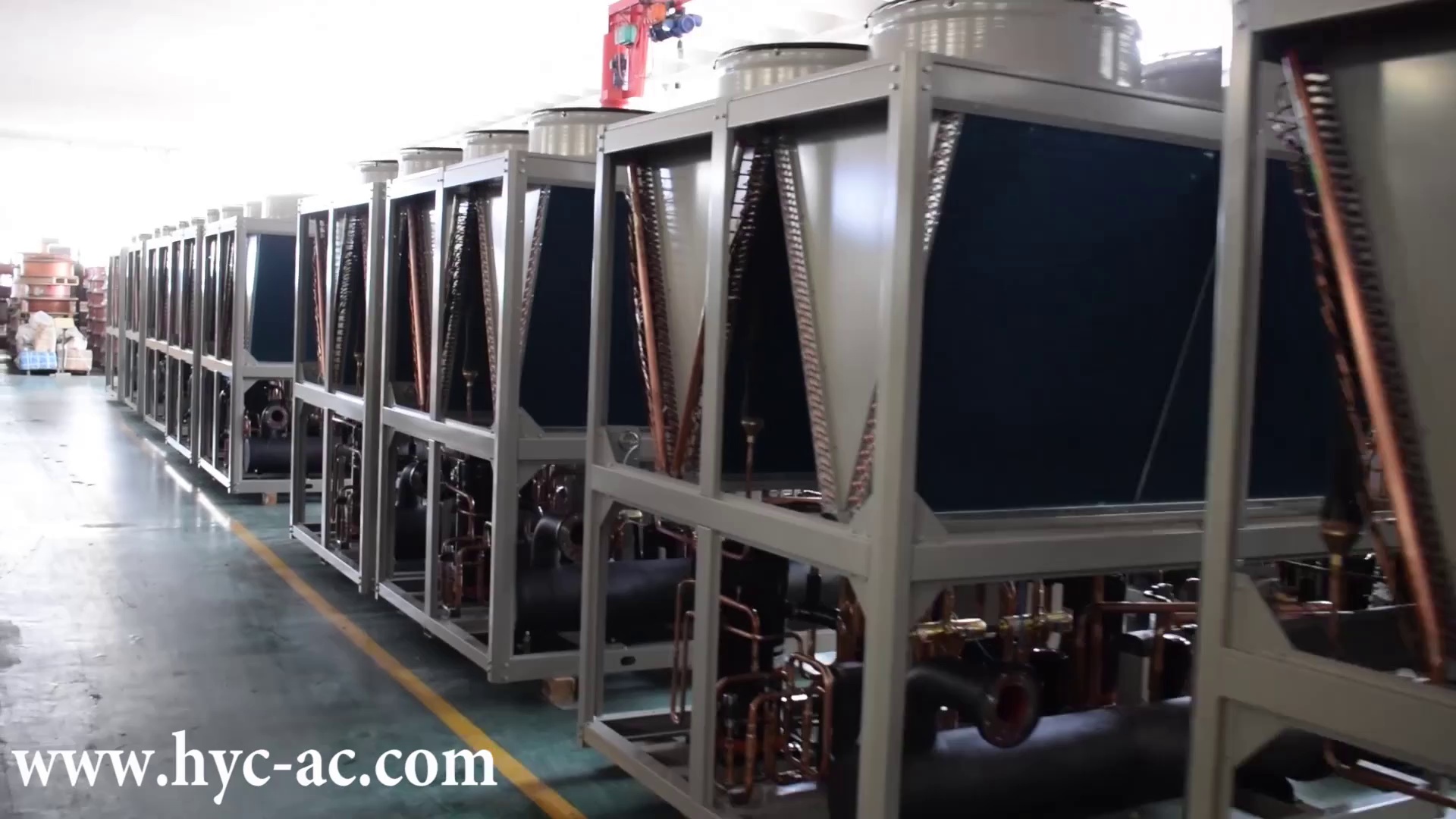

Production Machinery
Test Lab
Sincerely welcome to visit our factory at your convience. Customer could witness their order production real conditions by online videos or photos at any time during production.
