Description
Basic Info.
- Model NO. SMCT-ST1HA
- Unit Structure Packaged
- Selected Voltage 50Hz/60Hz
- Compressor Number 2-4
- Noise Level Low
- Application Fields Commercial & Industrial Field
- Certification ISO, CE, CCC
- Condition New
- Refrigerant R410A
- Compressor Scroll
- Condenser Fan Axial / Direct
- Water Side Heat Exchanger Shell & Tube
- Hydraulic Module Optional
- Heat Recovery Optional
- Transport Package Plastic Film Wrapped
- Specification 66kW-502kW
- Trademark SENDO or OEM
- Origin China
- HS Code 8418
- Production Capacity 5000 Sets
Product Description
R410A Air to Water Modular Air Conditioning
SENDO is a professional manufacturer of quality air conditioning products. Sendo could supply most products in HVAC field, such as Rooftop Packaged Unit, Split Commercial Unit, Air Cooled Water Chiller, Water Cooled Water Chiller, Chilled Water Air Handling Unit and Fan Coil Unit etc.
SENDO also supplies made-to-measure HVAC solutions. We engineer and manufacture Air Conditioner to suit the building design and application.

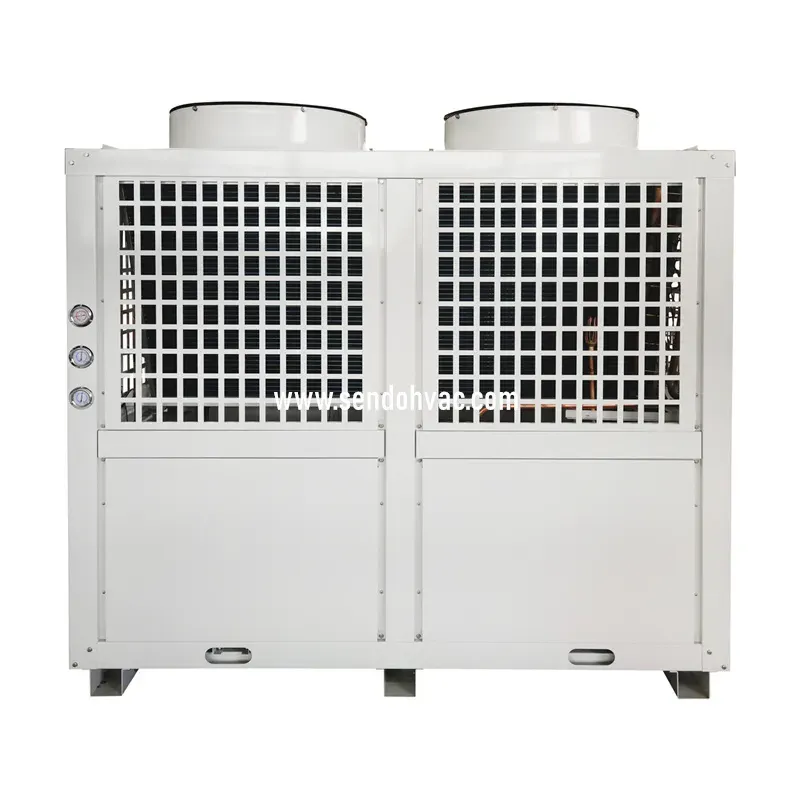

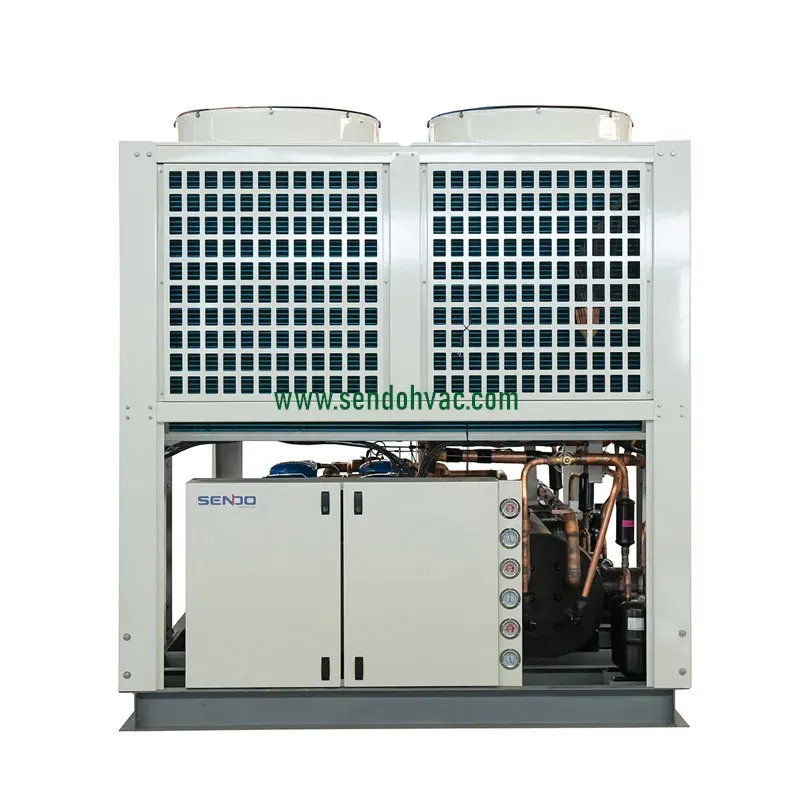

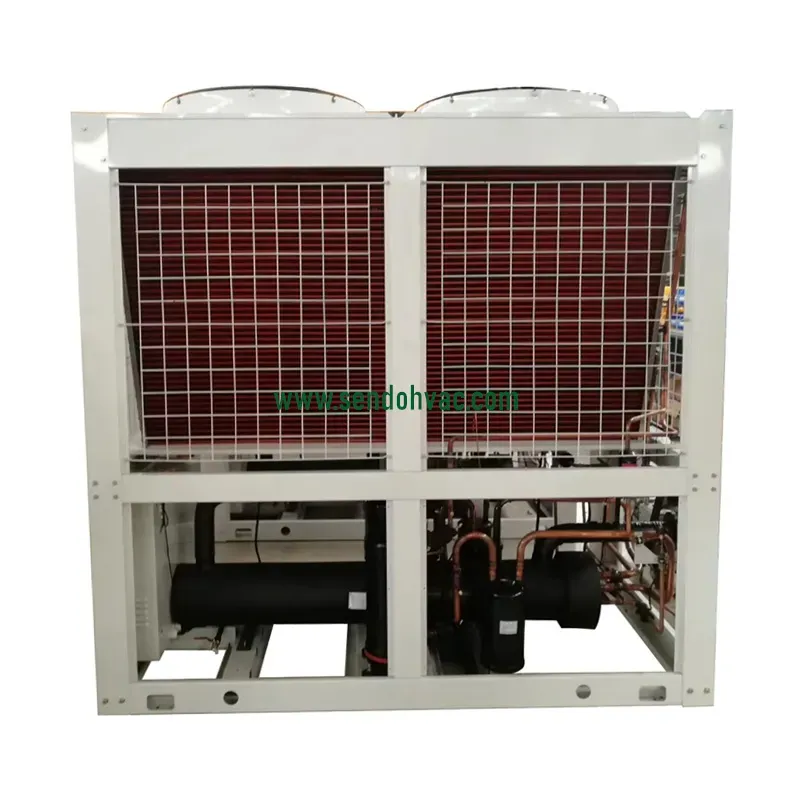

Conventional Modular Type Air Cooled Water Chiller & Heat Pump

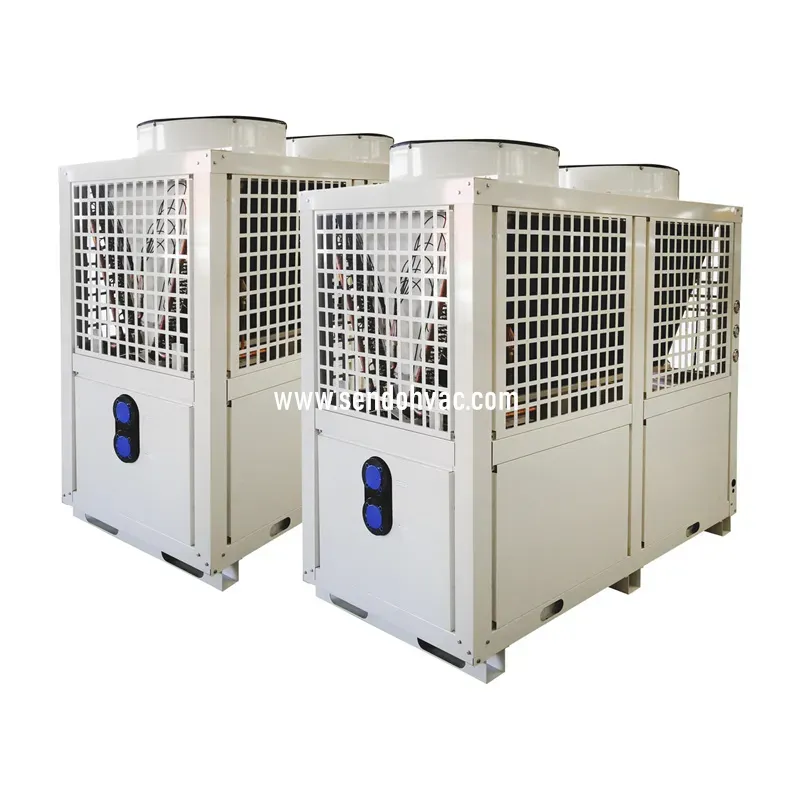

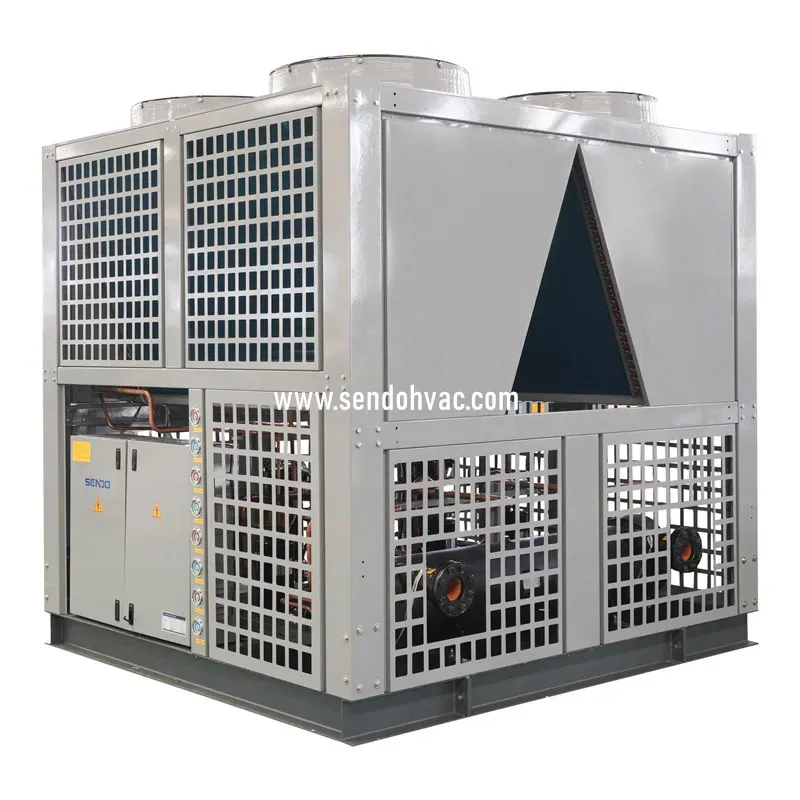

Modular type chillers adopt V shape air side heat exchanger and single unit' capacity from 66kW to 135kW. Colors can be ordered in either white or dark grey.
Features
- The master module can work independently or together with up to 16 slave modules, capacity from 66 to 2160kW.
- Back-up functions, In a combination system, if one module failed, other modules can be back-up instead of the failed one for continuing operation.
- In one combination module, all slave units operate as alternative in cycle duty to keep equal running time for better reliability and longer lifespan.
- Panels & frame are made from galvanized steel protected with polyester powder painting to ensure durability and protect against corrosive agents.
- Hermetic scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration isolators.
- External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille.

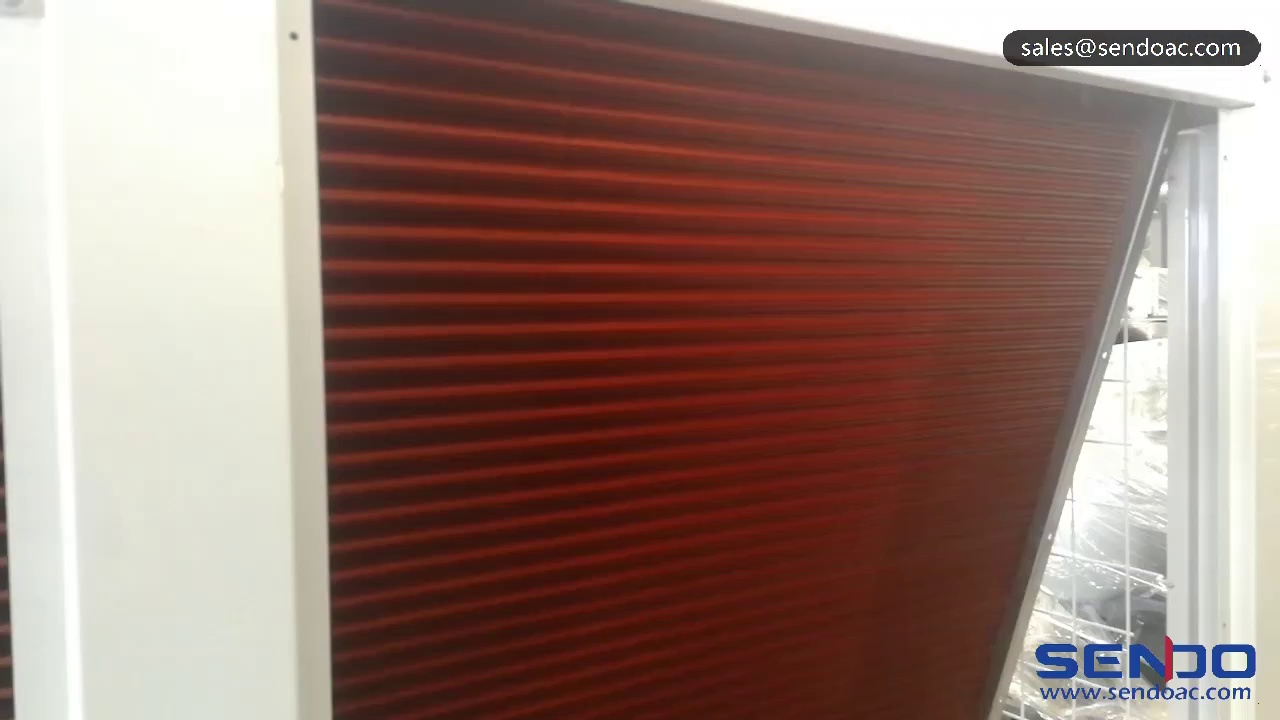

- The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
- Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.
- Electric panel consists of breakers and contactors for compressors & condenser fan motors, phase sequence protector and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.
- Optional built-in hydronic module, the integral structure design saves you much installation labor and cost.
- Optional golden condenser for some area need special anti-corrosion.
Specification
| Model | SMCT-ST1H65A | SMCT-ST1H90A | SMCT-ST1H100A | SMCT-ST1H130A |
|---|---|---|---|---|
| Cooling Capacity (kW) | 66 | 88 | 105 | 135 |
| Power Input (kW) | 21.70 | 26.62 | 38.85 | 43.4 |
| Running Current (A) | 42.52 | 53.70 | 76.20 | 84.04 |
| Heating Capacity (kW) | 70 | 95 | 110 | 140 |
| Power Input (kW) | 21.85 | 26.10 | 38.10 | 42.60 |
| Running Current (A) | 41.90 | 52.60 | 74.50 | 82.40 |
| Power Supply | 380~415V/3Ph/50Hz | |||
| Refrigerant Type | R410a | |||
| Compressor Type | Scroll | |||
| Quantity (Nos.) | 2 | 4 | 4 | 4 |
| Air Side Heat Exchanger Type | Copper Pipe + Anticorrosion Aluminium Fin | |||
| Fan Type | Axial / Direct | |||
| Qty | 2 | 2 | 2 | 2 |
| Airflow (m³/h) | 28000 | 30400 | 34000 | 44000 |
| Water Side Heat Exchanger Type | High Efficient Shell & Tube Heat Exchanger | |||
| Water Flow (m³/h) | 11.4 | 15.1 | 18.1 | 23.2 |
| Pressure Drop (kPa) | 43 | 42 | 41 | 48 |
| Connect Pipe (mm) | DN50 | DN65 | DN65 | DN65 |
| Sound Level (dB(A)) | 70 | 72 | 72 | 75 |
| Dimension (Length mm) | 2000 | 2240 | 2240 | 2240 |
| Width (mm) | 1060 | 1360 | 1360 | 1360 |
| Height (mm) | 1915 | 1985 | 1985 | 1985 |
| Net Weight (Kg) | 650 | 850 | 900 | 1180 |
Cooling: Chilled water inlet/outlet temperature: 12/7°C, outdoor ambient temperature 35°C DB.
Heating: Warm water inlet/outlet temperature: 40/45°C, outdoor ambient temperature 7°C DB/6°C WB.

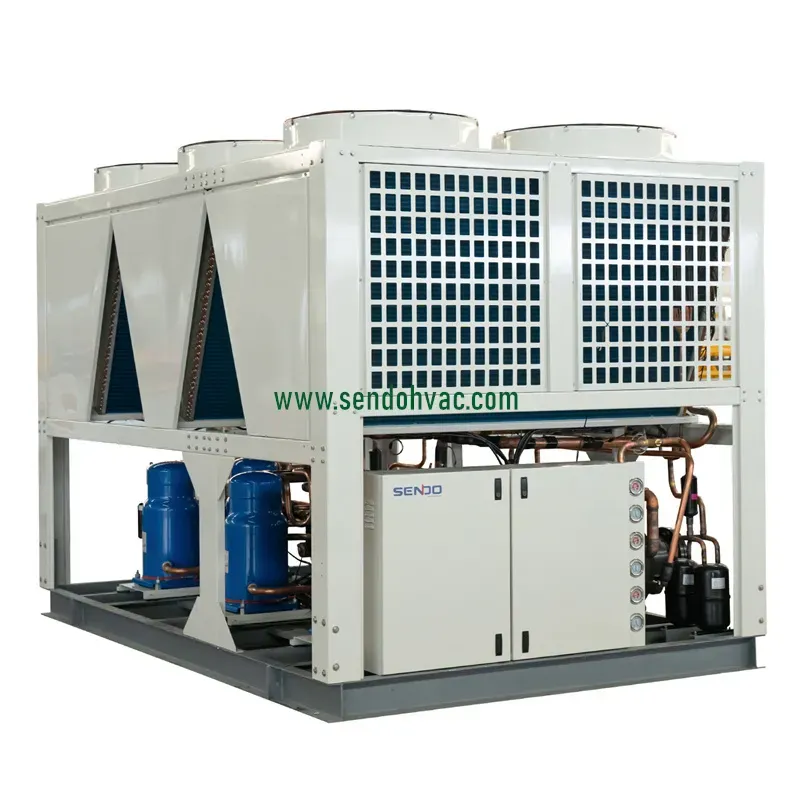

Large Size Air Cooled Scroll Chiller & Heat Pump
Single unit's capacity from 165kW to 502kW. Colors can be ordered in either white or dark grey.
Features
- Panels and frame are made from galvanized steel protected with polyester powder painting to ensure durability and protect against corrosive agents.
- Hermetic scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration isolators.
- External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille. Saw-shaped impellers provide large air volume, high durability and high air supply efficiency with low noise.
- The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
- Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.
- Electric panel consists of breakers and contactors for compressors & condenser fan motors, phase sequence protector and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.
Specifications
| Model | SMCT-ST1H165A | SMCT-ST1H260A | SMCT-ST1H330A | SMCT-ST1H440A | SMCT-ST1H500A |
|---|---|---|---|---|---|
| Cooling Capacity (kW) | 165 | 260 | 301 | 440 | 502 |
| Power Input (kW) | 53.2 | 83.8 | 105.3 | 141.9 | 175.5 |
| Heating Capacity (kW) | 180 | 280 | 345 | 475 | 575 |
| Power Input (kW) | 56.20 | 87.40 | 104.1 | 148.4 | 173.5 |
| Power Supply | 380~415V/3Ph/50Hz | ||||
| Refrigerant Type | R410a | ||||
| Compressor Type | Scroll | ||||
| Quantity (Nos.) | 4 | 4 | 3 | 4 | 5 |
| Air Side Heat Exchanger Type | Copper Pipe + Anticorrosion Aluminium Fin | ||||
| Fan Type | Axial / Direct | ||||
| Qty | 4 | 4 | 6 | 8 | 10 |
| Airflow (m³/h) | 60000 | 112000 | 126000 | 172000 | 210000 |
| Water Side Heat Exchanger Type | High Efficient Shell & Tube Heat Exchanger | ||||
| Water Flow (m³/h) | 28.4 | 44.7 | 51.8 | 75.7 | 86.3 |
| Pressure Drop (kPa) | 45 | 45 | 47 | 52 | 50 |
| Connect Pipe (mm) | DN80 | DN100 | DN125 | ||
| Dimension (Length mm) | 2200 | 2400 | 3610 | 4440 | 5970 |
| Width (mm) | 1720 | 2200 | 2260 | 2260 | 2260 |
| Height (mm) | 2000 | 2235 | 2515 | 2460 | 2515 |
| Net Weight (Kg) | 1420 | 2025 | 2900 | 3700 | 4500 |
Cooling: Chilled water inlet/outlet temperature: 12/7°C, outdoor ambient temperature 35°C DB.
Heating: Warm water inlet/outlet temperature: 40/45°C, outdoor ambient temperature 7°C DB/6°C WB.

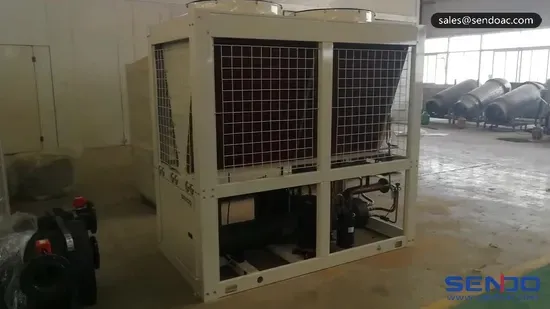

Workshop
Project Reference
Sendo contribution to combat rising energy costs and global warming is to design innovative, efficient and dependable AC products, while providing best comfort and air quality. We are optimistic about the response that we expect to get from our potential customers because we strive to ensure that our customers get the quality products when they approach us and we are determined to ensure that our customers can obtain various benefits when they buy Sendo Air Conditioners. Get in touch with us and book a Factory Tour! Sincerely welcome to visit our factory at your convenience.
