Industrial WiFi Air Conditioning with R410A Heating and Cooling
Description
Overview
Basic Info.
- Model NO. BLA-96FCRA
- Corrosion Durability General
- Noise Level Ultra Quiet
- Mounting Floor Standing
- Certification RoHS, ISO, CE, CCC
- Condition New
- Material Galvanized Steel Powder Coated
- Service OEM
- Controller Remote Controller
- Control WiFi/RS485
- Cooling Capacity 96K
- Design Split
- Transport Package Carton Packing for Container Order
- Trademark Blueway
- Origin Guangdong, China
- HS Code 8415102210
- Production Capacity 1000 Sets/Month
Product Description
PRODUCTION DESCRIPTION

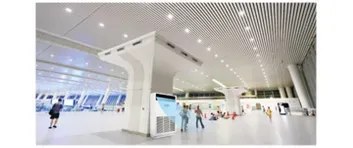

R410a Floor-Standing Air Conditioner blends in perfectly with the surrounding decor, clean and fresh air conditioning is ensured with a high level of cooling performance and air purifying operation, which is commonly used in places such as restaurants, halls, motels, data centers, etc.
KEY FEATURES
- The Appearance is Refreshing, Fashionable The appearance adopts the mainstream white, the shell adopts the pure sheet metal design, the structure strength is good, the texture is good.

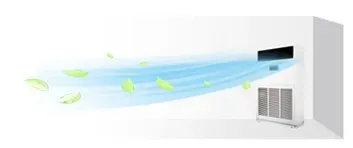

- Comfortable Air Supply A wide Angle 180° of uniform air supply, the outlet with wide and high efficiency centrifugal fan design, can Long-distance air supply, double environmental comfort.
- Clear Installation Design, Easy Installation Simple pipe connection and wiring operation can be completed on the ground. The installation process is simple, efficient, short installation time and ensures installation quality.
- Strong Cooling & Heating The design and super air capacity can realize strong refrigeration and heating. Dustproof design, air guide bar is closed after stop.
TECHNICAL SPECIFICATIONS
Options: Floor-Standing Air Conditioner (R32 & R410A)
| Model | BLA-60FCRA | BLA-96FCRA | BLA-96FHR |
|---|---|---|---|
| Cooling Capacity (Btu/h) | 60000 | 96000 | 96000 |
| Cooling Capacity (kW) | 17000 | 28.100 | 28.100 |
| Heating Capacity (Btu/h) | - | / | 10500 |
| Heating Capacity (kW) | - | / | 30.775 |
| Power Supply (V/Hz/Ph) | 380-415V~/50Hz/3Ph | 380-415V~/50Hz/3Ph | 380-415V~/50Hz/3Ph |
| Power Input(W) - Cooling | 5500 | 9680 | 9700 |
| Power Input(W) - Heating | - | / | 9150 |
| EER (W/W) | 3.1 | 2.90 | 2.90 |
| COP (W/W) | - | / | 3.36 |
| Air Flow Volume (m³/h) | 2300 | 4600 | 4600 |
| Indoor Noise Level (dB(A)) - Hi/Med/Low | 56/53/51 | 56 | 58/56/53 |
| Outdoor Noise Level (dB(A)) | - | 64 | 56 |
| Indoor Dimension (mm) - W×H×D | 610×1930×390 | 1200×1860×420 | 1200×1860×420 |
| Packing Dimension (mm) - W×H×D | 760×2140×540 | 1330×2030×570 | 1330×2030×570 |
| Indoor Weight - Net (kg) | 66 | 142 | 143 |
| Indoor Weight - Gross (kg) | 93 | 155 | 155 |
| Outdoor Dimension (mm) - W×H×D | 1000×1360×425 | 1000×1360×425 | 1000×1360×425 |
| Packing Dimension (mm) - W×H×D | 1140x1500x475 | 1140x1500x475 | 1140x1500x475 |
| Outdoor Weight - Net (kg) | 128 | 128 | 128 |
| Outdoor Weight - Gross (kg) | 140 | 140 | 140 |
| Piping Size - Liquid (mm) | φ9.52 | φ9.52(×2) | φ9.52(×2) |
| Piping Size - Gas (mm) | φ19.05 | φ19.05(×2) | φ19.05(×2) |
| Drainage (mm) | OD25 | OD25 | OD25 |
Blueway reserves the rights to modify the above specifications without notice for product improvement. Please contact us for updated information.
MANUFACTURING & SHIPMENT
ADVANTAGES & MARKET OVERVIEW
- Blueway has around 30 years of rich HVAC manufacturing experience.
- Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.
- Over 10000 engineering solutions with great success provided by Blueway.
- Online technical service is available twenty-four hours a day without break.
- Blueway intelligent control system with precise timing, temperature control & remote monitoring function.
With advanced technology and R&D capacity, Blueway has obtained over more than 20 patents and become one of the leading HVAC manufacturers in China. Meanwhile, 70% of Blueway products have been exported to oversea markets, including Australia, Europe, North America, Middle East, South Africa, South America and obtained worldwide recognition. Additionally, it has over 20 representative offices located in different cities of China, and also has its authorized distributors in Europe, Middle East, North America and South America.
So far, Blueway has already provided over 10000 engineering solutions with great success. What's more, Blueway is also the recommended brand by Hilton Hotel in Chinese market. Blueway will continue its endeavor and commitment to serve its worldwide partners by providing solutions and innovative products of high efficiency.
FAQ
- Q: Any product appearance option? A: Simple pipe connection and wiring operation can be completed on the ground. The installation process is simple, efficient, short installation time and ensures installation quality.
- Q: How about the working performance? A: Super air capacity can realize strong refrigeration and heating, dustproof design, air guide bar is closed after stop.
- Q: How about the air supply feeling? A: A wide angle 180° of uniform air supply, the outlet with wide and high efficiency centrifugal fan design, can long-distance air supply, double environmental comfort.
- Q: Adopt which refrigerant type? A: R32 or R410a.
- Q: With remote controller? A: Yes, remote controller as standard.
- Q: How long is the warranty time? A: 1 year for the whole unit, 3 years for the compressor.
- Q: What's the delivery time? A: Floor-Standing Air Conditioner depends on the PMC and production plan.
