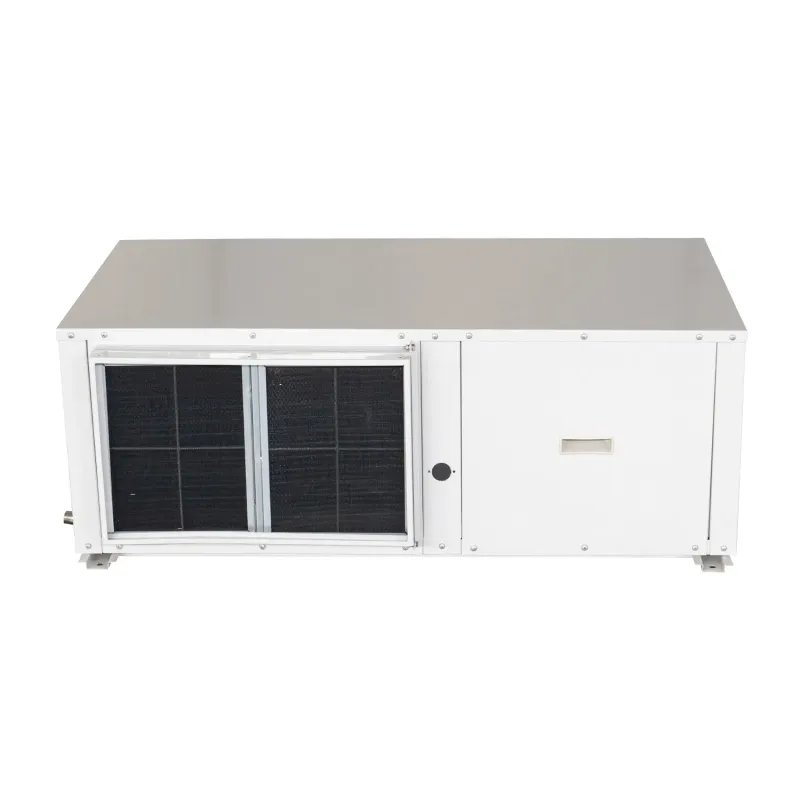

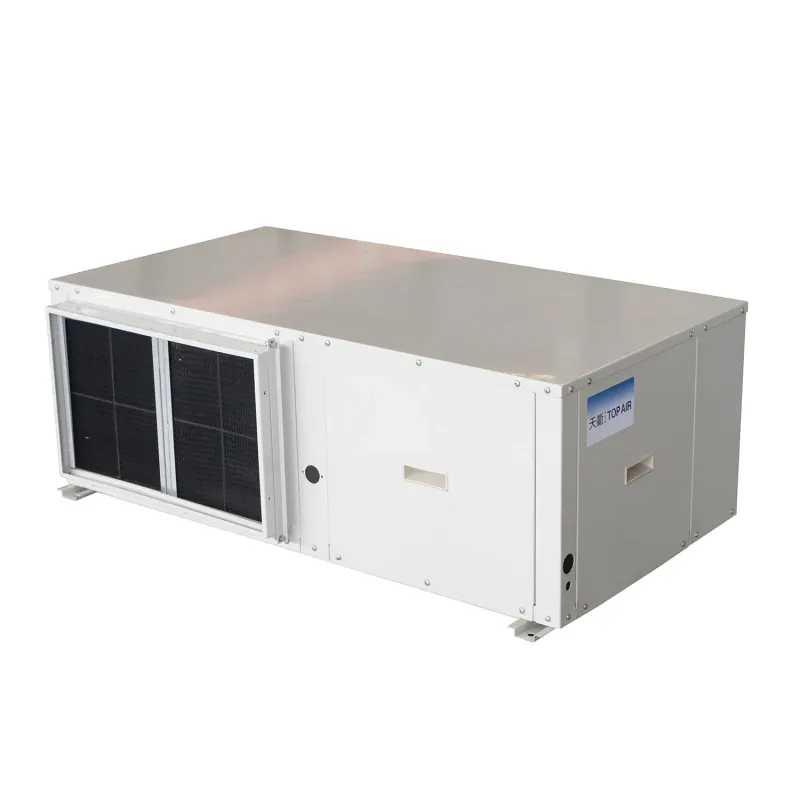

CE Certified Water Source Heat Pump Central Air Conditioning System
Description
Basic Info.
Usage: Room
Indoor Machine Noise: 36-49dB
Certification: CE, CCC, MEPS
China Energy Efficiency Standard: Level 1
Cooling/Heating: Cooling/Heating
Power Source: Electrical
Power Type: AC
Condition: New
Compressor: Pansonic/SANYO/Daikn
Other Name: Water Loop Heat Pump, Water Cooled Packaged
Refrigerant: R22/R410A
Certificate: CE
Served Area: Shopping Mall, Office Building

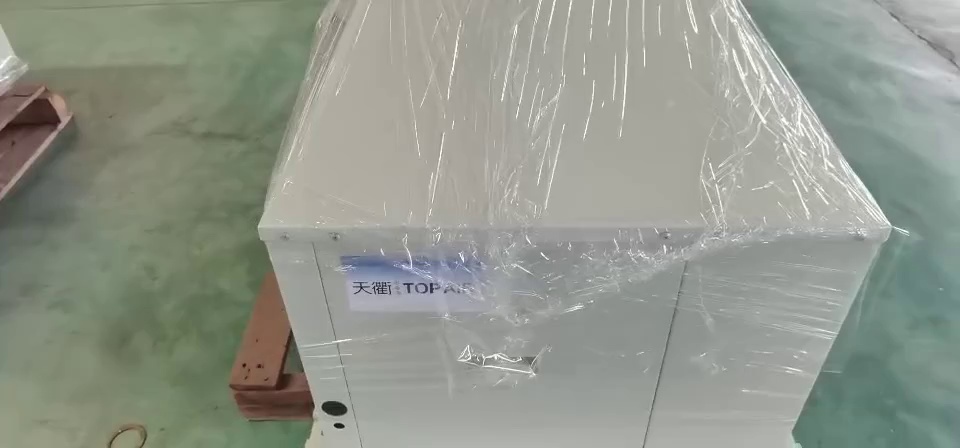

Transport Package: Carton
Specification: 2.5KW to 180KW
Trademark: TOP AIR/ LARK/ OEM
Origin: Origin
HS Code: 8418692090
Production Capacity: 50000 Units/Year
Product Description
Type: Water to Air Type Packaged Heat Pump/Water Cooled Packaged Unit/Water Source Heat Pump/Water Loop Heat Pump
Capacity Range: 2.5KW to 200KW
Refrigerant: R22 / R410a / R134a
Cooling/Heat Pump: Cooling only, Cooling & Heat Pump
Served Area: Office Building, Shopping Mall and etc
Certificate: CE / CCC / MEPS
STRUCTURE
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
HERMETIC COMPRESSOR
Single phase rotary type (model. 2.5 to14 KW) and 3-phase scroll compressor (model 18 to 74 KW), with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.
CENTRIFUGAL FAN
Forward centrifugal fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, three speeds
CONDENSER
High efficiency tube in tube heat exchanger, factory insulated with flexible close cell material.
EVAPORATOR
Coils are consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
DESUPERHEATER
High efficiency stainless steel brazed plate heat exchanger, factory insulated with flexible close cell material. (optional)

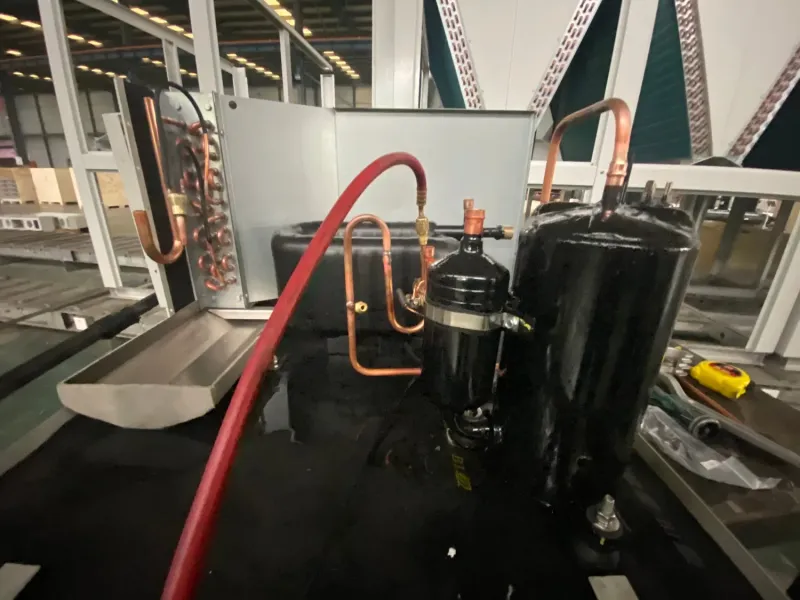

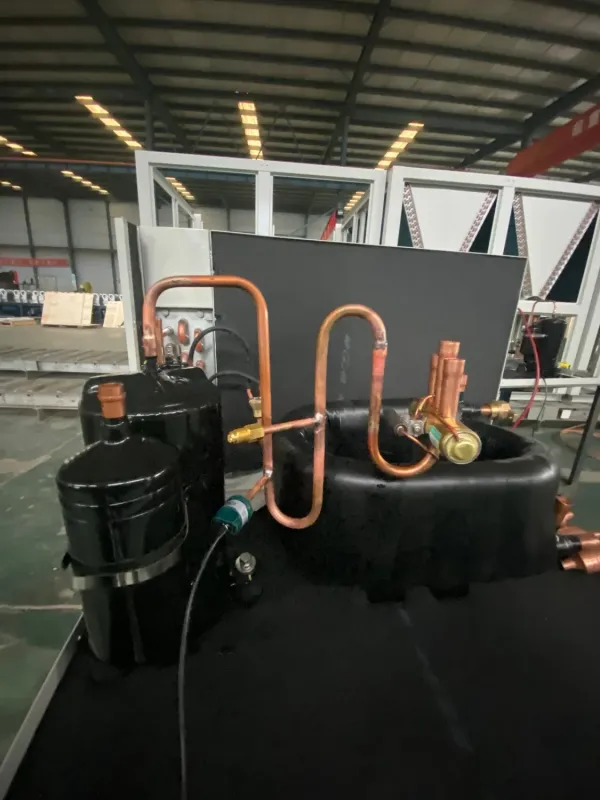

REFRIGERANT CIRCUIT
Copper tube connection with charge valve, filter, sight glass, gas-liquid separator, thermostatic expansion valve, low pressure switch, high pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
HYDRONIC CIRCUIT
Built with air vent valve, water drain connection, and female-threaded hydraulic connectors.
ELECTRIC PANEL
Compressor protection; Control circuit protection; Phase sequence relay (only for 3-phase power supplied; Programmable microprocessor controller (MODBUS included for BMS connection)

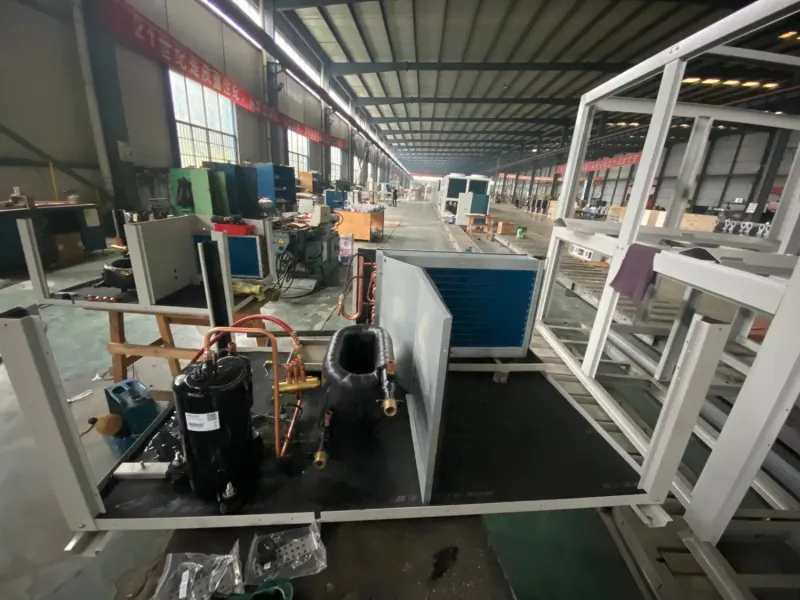

About Factory
Shandong Tianqu Cooling Technology Co., Ltd, was originated from LARK Central Air Conditioning, which is founded in 2007 and one of the major manufacturer for central air conditioning products.
We are professional on R&D, production, project design and installation, after sales service. Totally covering 260,000 square meters, investing 360 million RMB, owning high qualified machines from Germany and Japan to ensure high level products.
We take care of every section of process and service for clients. Qualified products are produced according to ISO 9001:2000 and ISO14001:2004, we flexibly provides wide range of Packaged rooftop Units, High Pressure Duct type, Condensing Units, Mini Chillers, Modular Chillers, Air Cooled Screw Chillers, Water Cooled Screw Chillers, Water Source Heat Pump, Water Cooled Packaged Units, Fan Coils, AHUs, HRVs and etc. Our market is based in China, and we have sold to Europe, America, Africa, Middle East, Australia, Asia and etc. Our products have been sold to over 90 countries.
Besides previously Lark brand, now we also have one new brand-Top Air.
Top Air, it is your top choice on HVAC products!
